Kohaihai South Details

Property	Value
Rupture Count	4,529
Ruptures Above Sect Min Mag	4,528
Ruptures w/ Nonzero Rates	23
Magnitude Range	[6.76, 8.35]
Length Range	[17, 780] km
Total Rate	1.605368E-4 /yr
Multi-Fault Rate	1.605368E-4 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	70

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

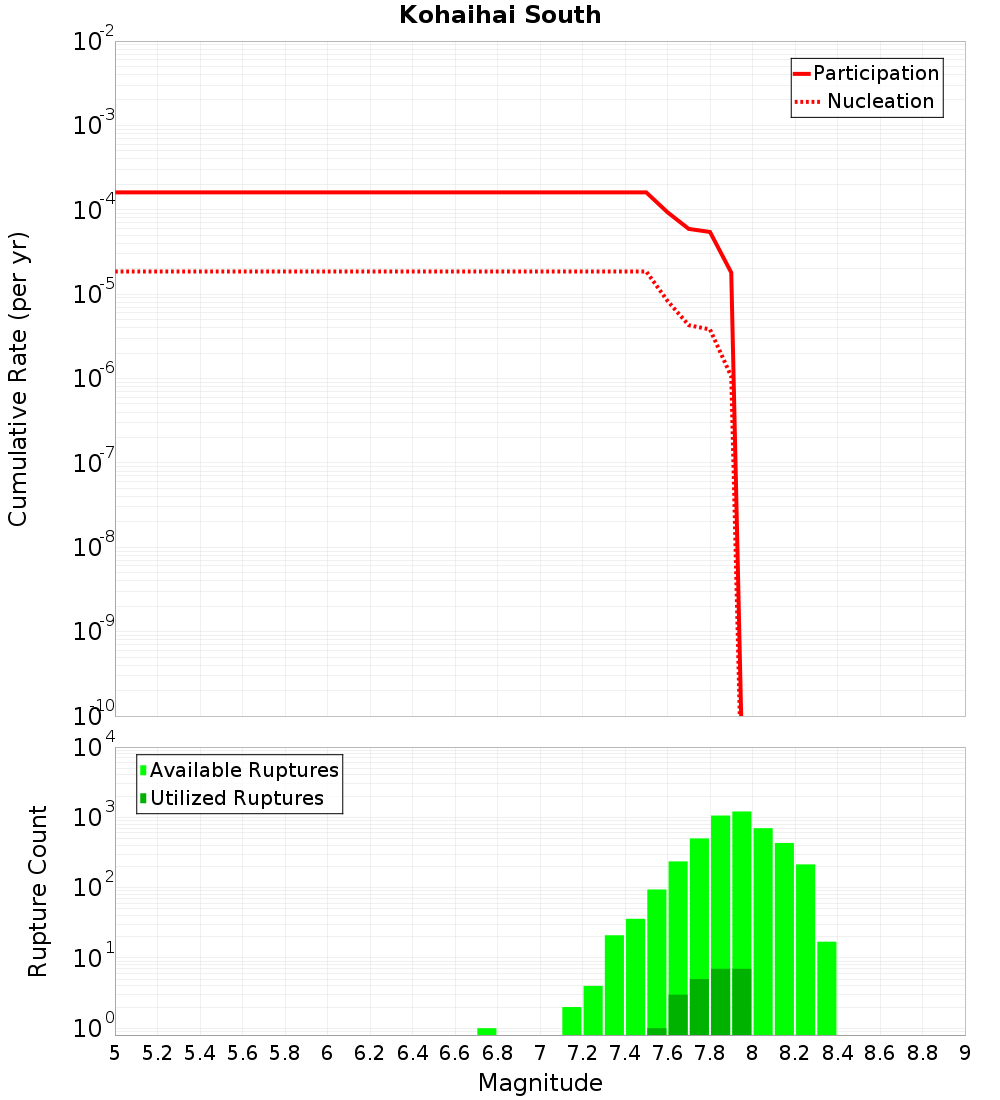

Magnitude-Frequency Distribution

Incremental	Cumulative

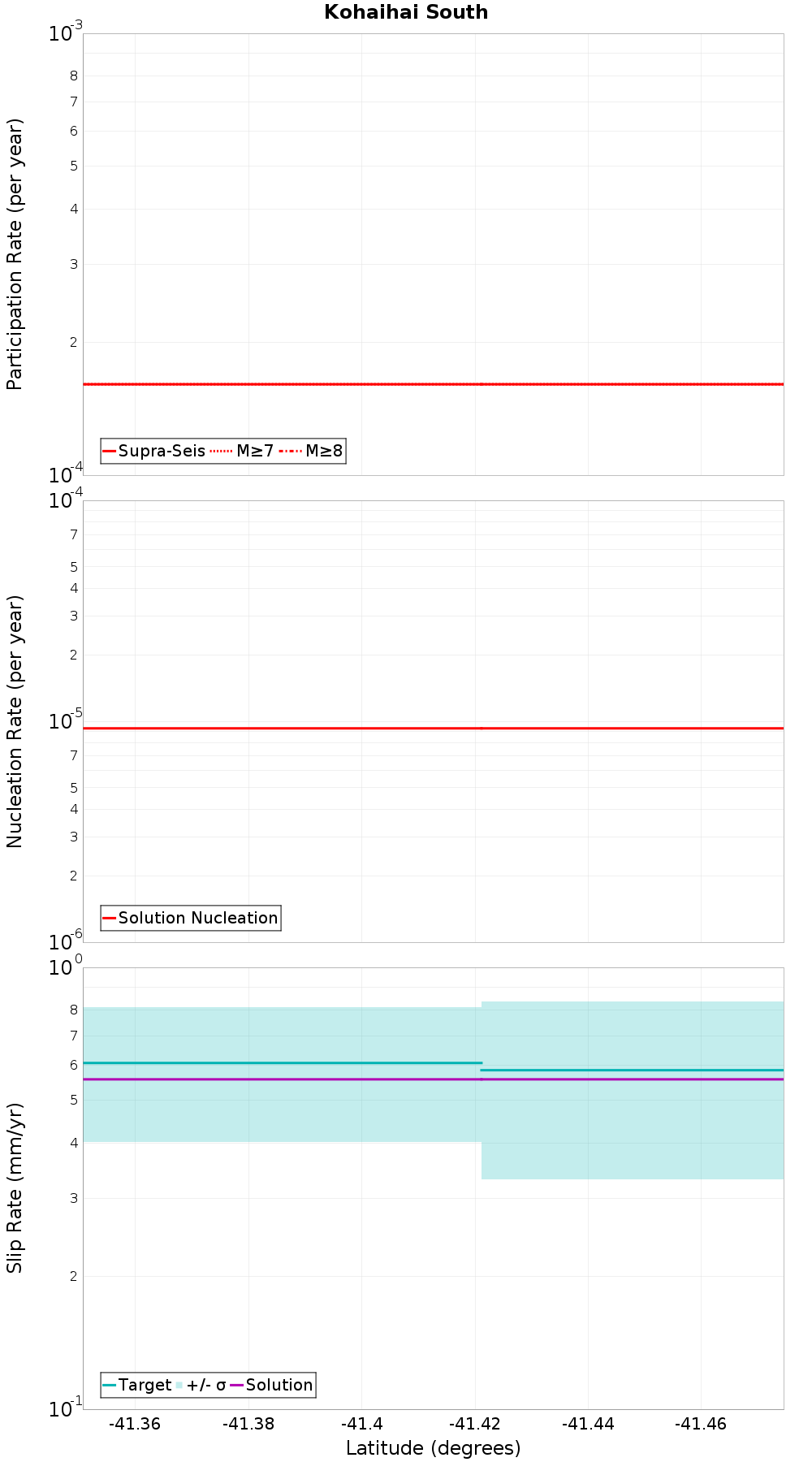

Along-Strike Values

Moment-Rates and b-Values

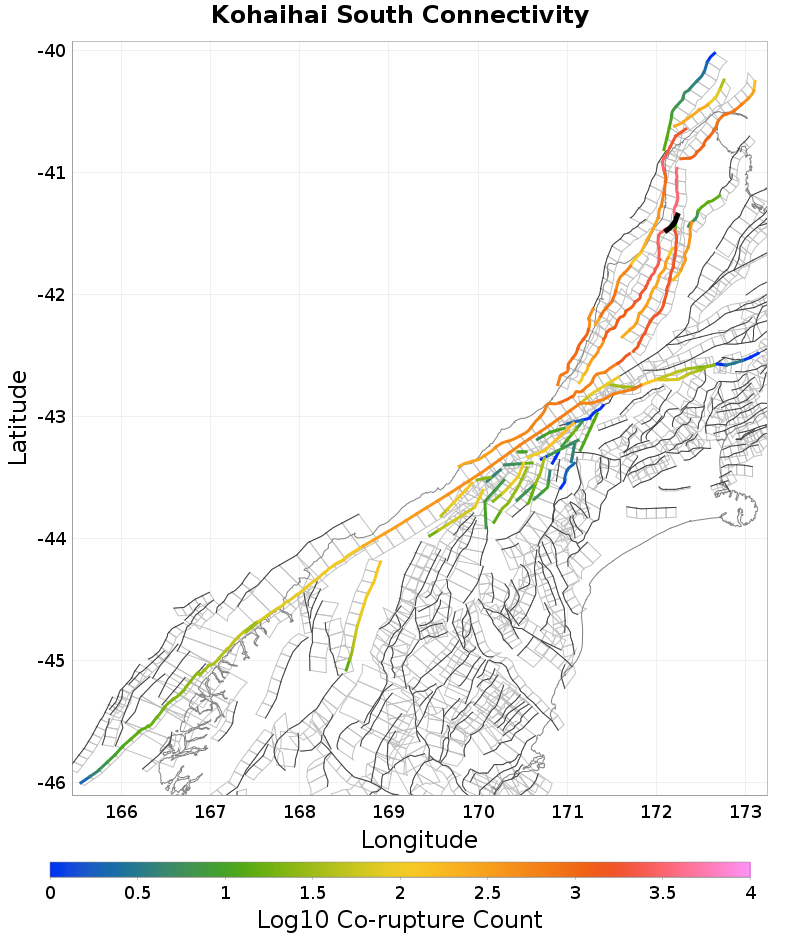

Connectivity

Nearby Sections

Fault Section
Glasgow, 0.11 km away
Matiri West, 0.15 km away
White Creek, 0.56 km away
Kohaihai, 1.69 km away
Kongahau, 7.18 km away
Karamea South, 12.43 km away

Glasgow, 0.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?	true
Directly Connected?	true
Co-rupture Count	2,659
Co-rupture Rate	1.2898767E-4

Matiri West, 0.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?	true
Directly Connected?	true
Co-rupture Count	441
Co-rupture Rate	2.697422E-5

White Creek, 0.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?	true
Directly Connected?	true
Co-rupture Count	1,839
Co-rupture Rate	3.9378152E-5

Kohaihai, 1.69 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?	true
Directly Connected?	true
Co-rupture Count	3,423
Co-rupture Rate	6.577275E-5

Kongahau, 7.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?	true
Directly Connected?	false
Co-rupture Count	3,116
Co-rupture Rate	2.4960202E-5

Karamea South, 12.43 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?	true
Directly Connected?	false
Co-rupture Count	6
Co-rupture Rate	1.96248E-6
