Omarama Saddle Details

Property	Value
Rupture Count	3,444
Ruptures Above Sect Min Mag	3,439
Ruptures w/ Nonzero Rates	27
Magnitude Range	[6.72, 8.27]
Length Range	[18, 608] km
Total Rate	2.2299368E-4 /yr
Multi-Fault Rate	2.2299368E-4 /yr (100.00%)
Directly-Connected Faults	7
All Co-Rupturing Faults	82

Table Of Contents

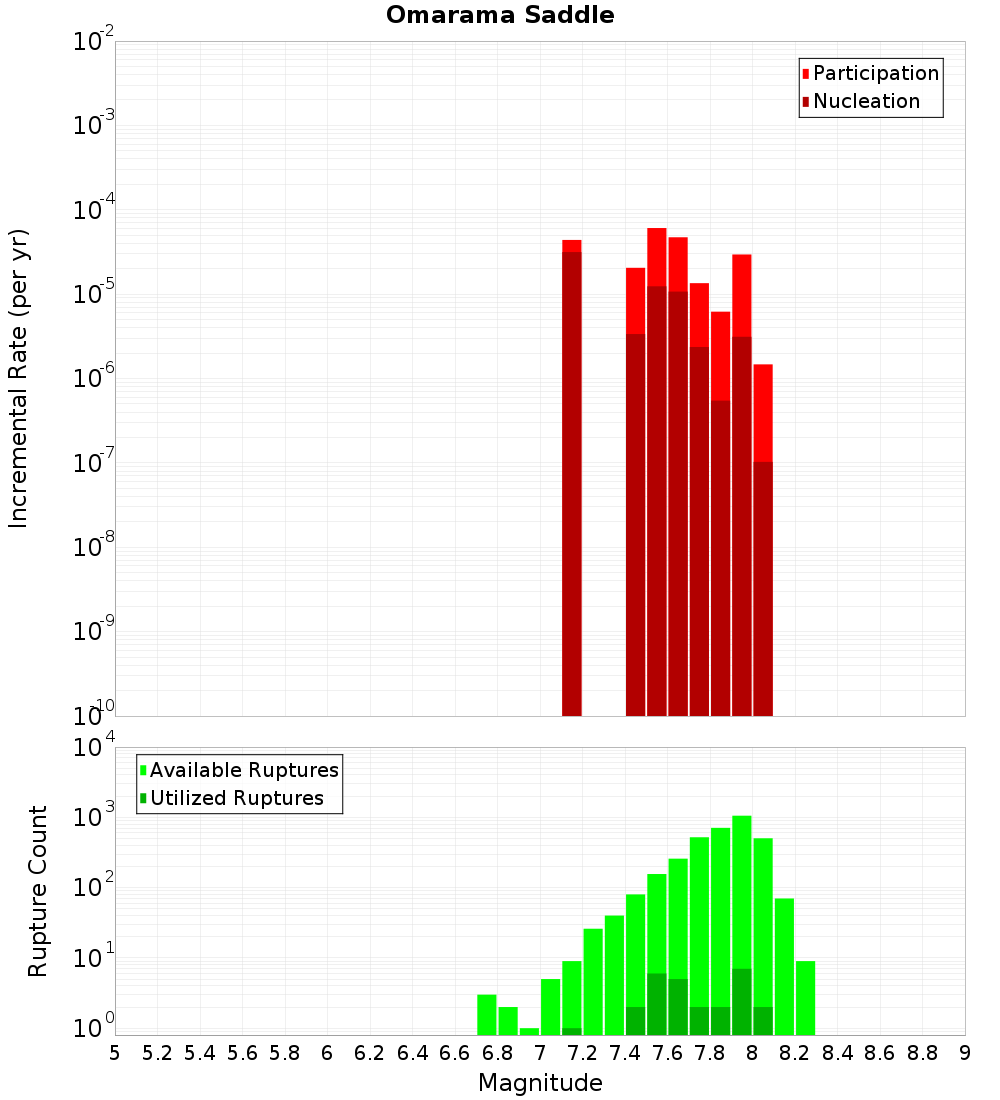

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values

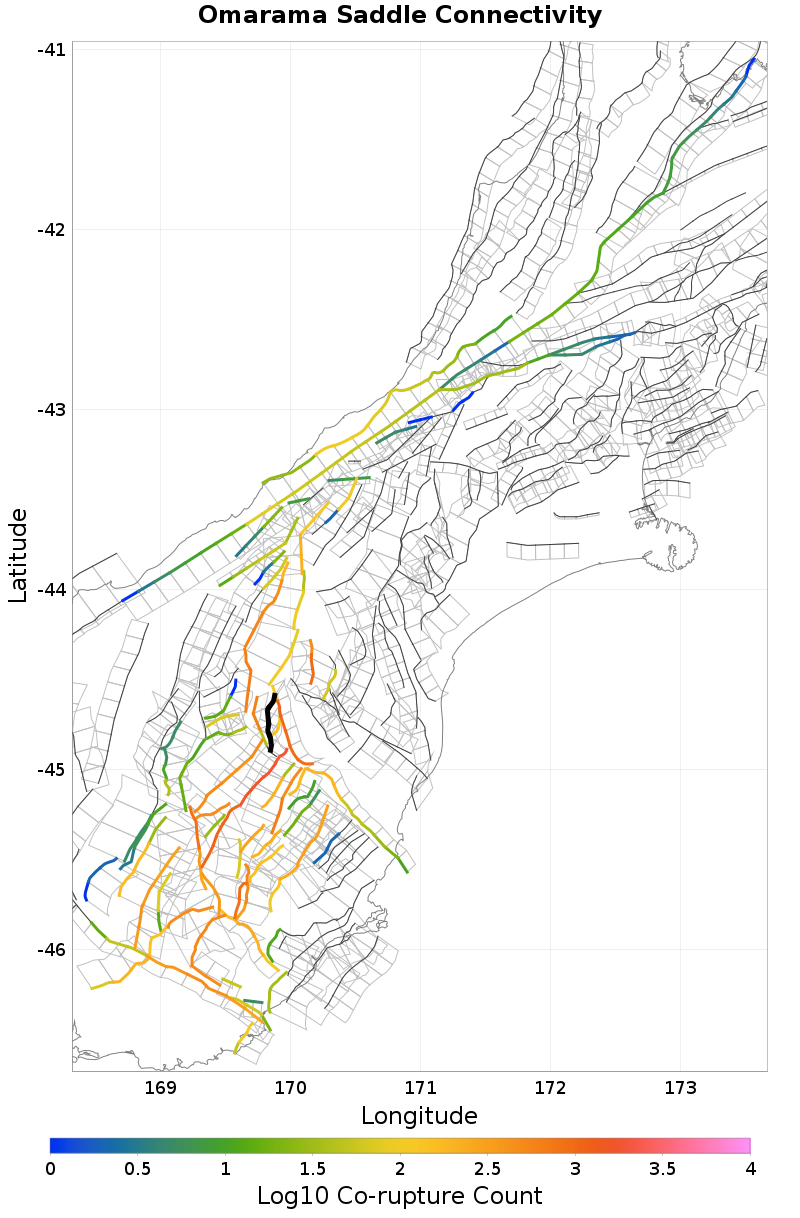

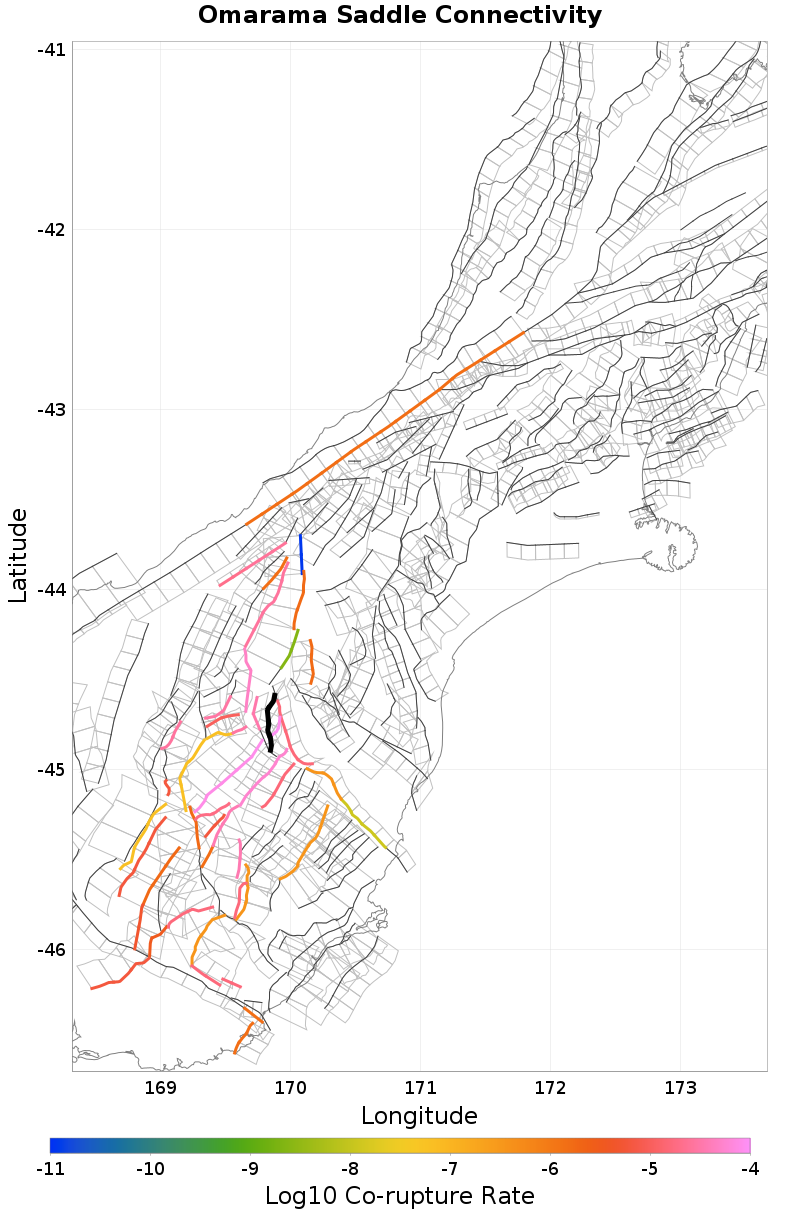

Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Hawkdun, 0.13 km away
Rocks Creek, 0.16 km away
Raggedy - Blackstone, 0.27 km away
Blue Lake, 1.09 km away
Fern Gully, 2.14 km away
Falstone, 4.56 km away
Dunstan, 5.06 km away
Gibson, 6.24 km away
Garibaldi, 7.2 km away
Ostler South, 7.29 km away
Gimmerburn, 11.84 km away
Dromedary, 13.1 km away
Cluden, 13.48 km away

Hawkdun, 0.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?	true
Directly Connected?	true
Co-rupture Count	1,135
Co-rupture Rate	1.5595107E-5

Rocks Creek, 0.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?	true
Directly Connected?	true
Co-rupture Count	158
Co-rupture Rate	9.166123E-5

Raggedy - Blackstone, 0.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?	true
Directly Connected?	true
Co-rupture Count	1,818
Co-rupture Rate	5.4688597E-5

Blue Lake, 1.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?	true
Directly Connected?	true
Co-rupture Count	640
Co-rupture Rate	3.227229E-5

Fern Gully, 2.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Falstone, 4.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?	true
Directly Connected?	true
Co-rupture Count	952
Co-rupture Rate	1.7085047E-6

Dunstan, 5.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?	true
Directly Connected?	true
Co-rupture Count	696
Co-rupture Rate	9.112433E-5

Gibson, 6.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?	true
Directly Connected?	false
Co-rupture Count	60
Co-rupture Rate	0.0

Garibaldi, 7.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?	true
Directly Connected?	false
Co-rupture Count	207
Co-rupture Rate	1.5231847E-5

Ostler South, 7.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?	true
Directly Connected?	false
Co-rupture Count	107
Co-rupture Rate	2.3048072E-9

Gimmerburn, 11.84 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?	true
Directly Connected?	false
Co-rupture Count	677
Co-rupture Rate	0.0

Dromedary, 13.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?	true
Directly Connected?	false
Co-rupture Count	704
Co-rupture Rate	4.716971E-5

Cluden, 13.48 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?	true
Directly Connected?	true
Co-rupture Count	36
Co-rupture Rate	2.8677183E-5
