Otakiri Details

Property	Value
Rupture Count	5,720
Ruptures Above Sect Min Mag	5,701
Ruptures w/ Nonzero Rates	82
Magnitude Range	[6.50, 8.27]
Length Range	[13, 669] km
Total Rate	3.6501457E-4 /yr
Multi-Fault Rate	3.6501457E-4 /yr (100.00%)
Directly-Connected Faults	7
All Co-Rupturing Faults	72

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

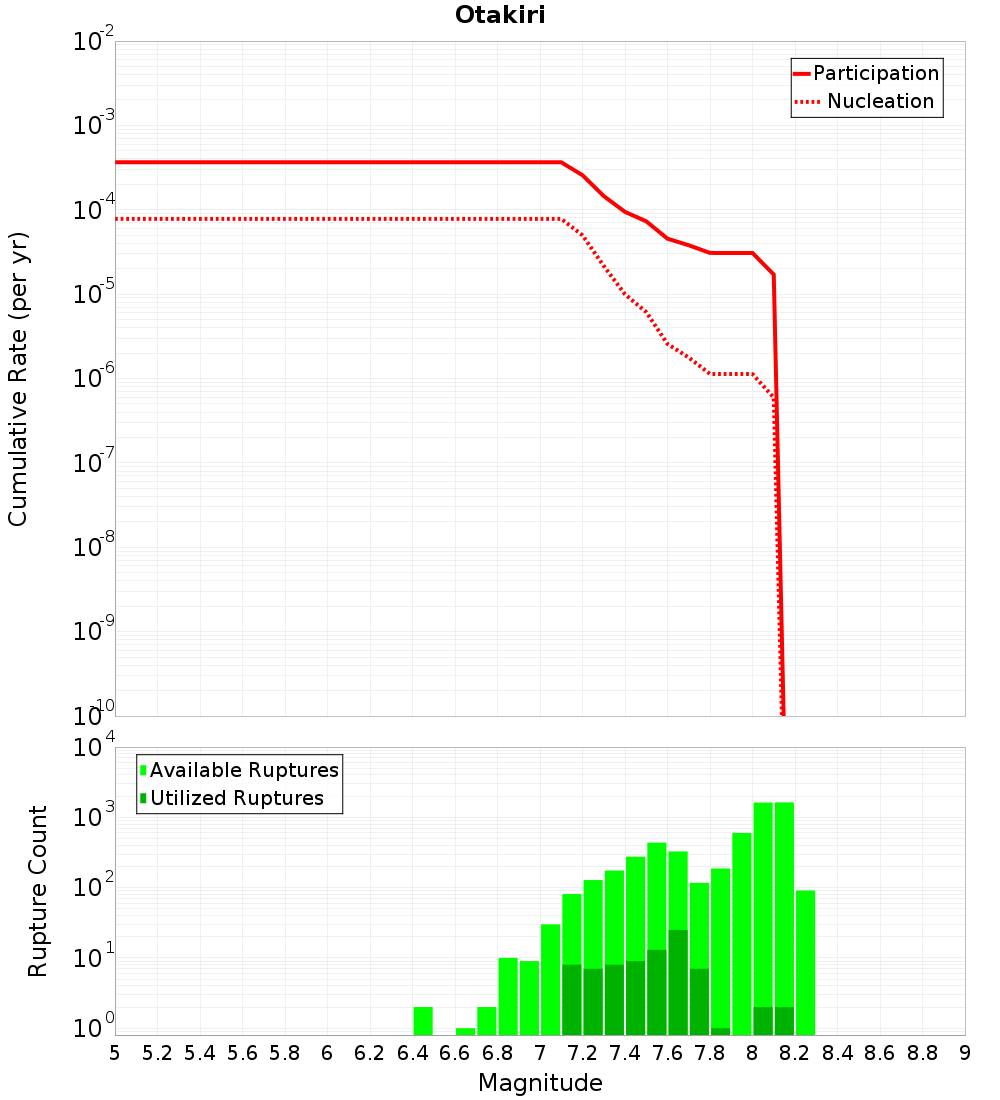

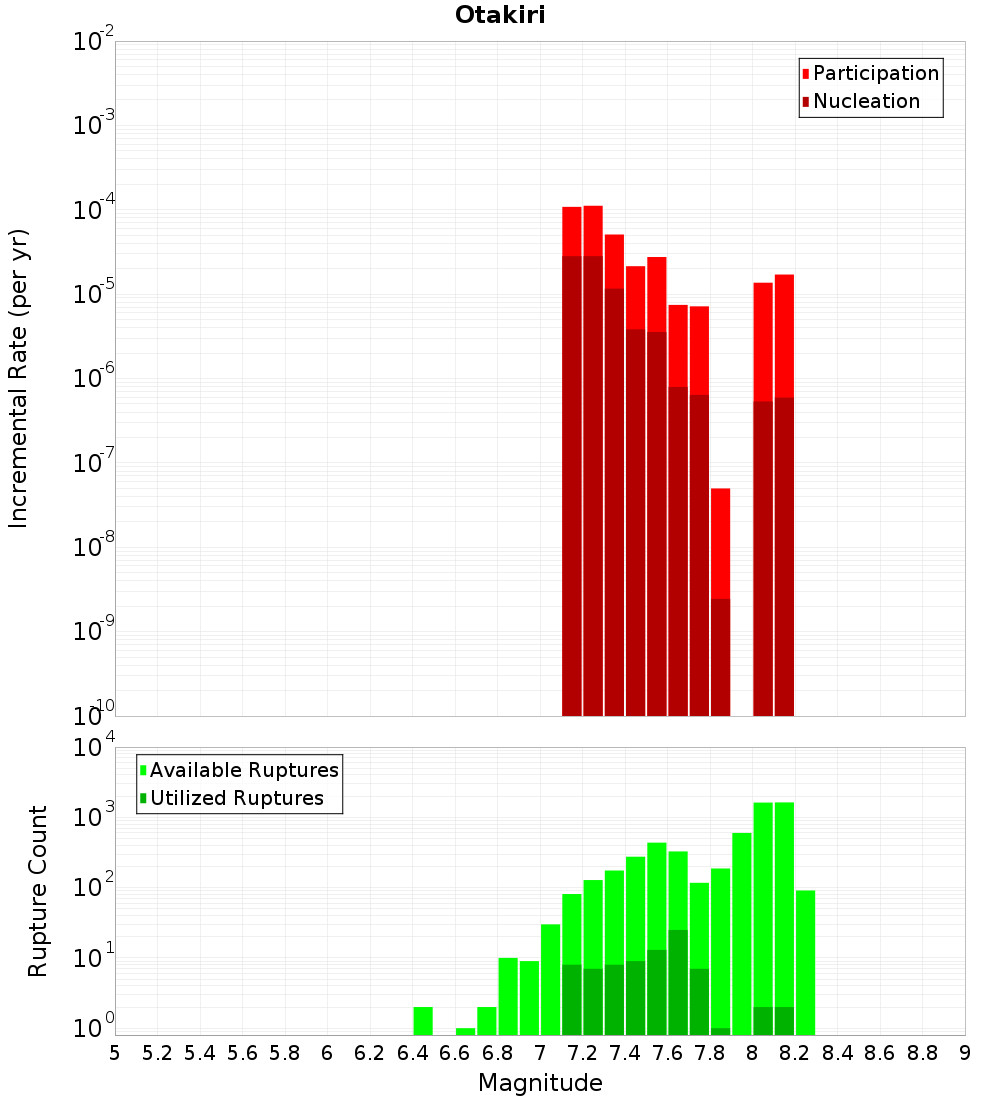

Magnitude-Frequency Distribution

Incremental	Cumulative

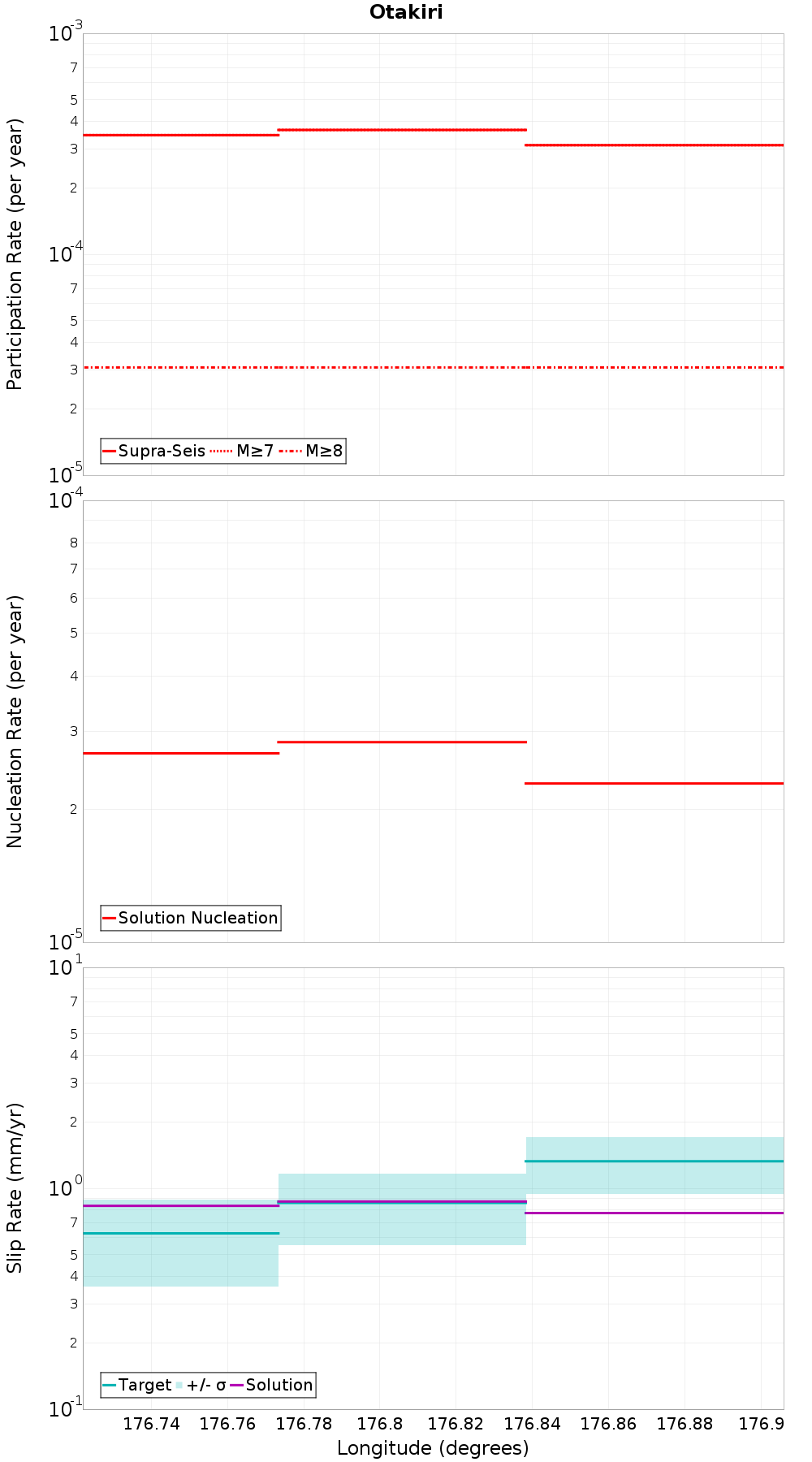

Along-Strike Values

Moment-Rates and b-Values

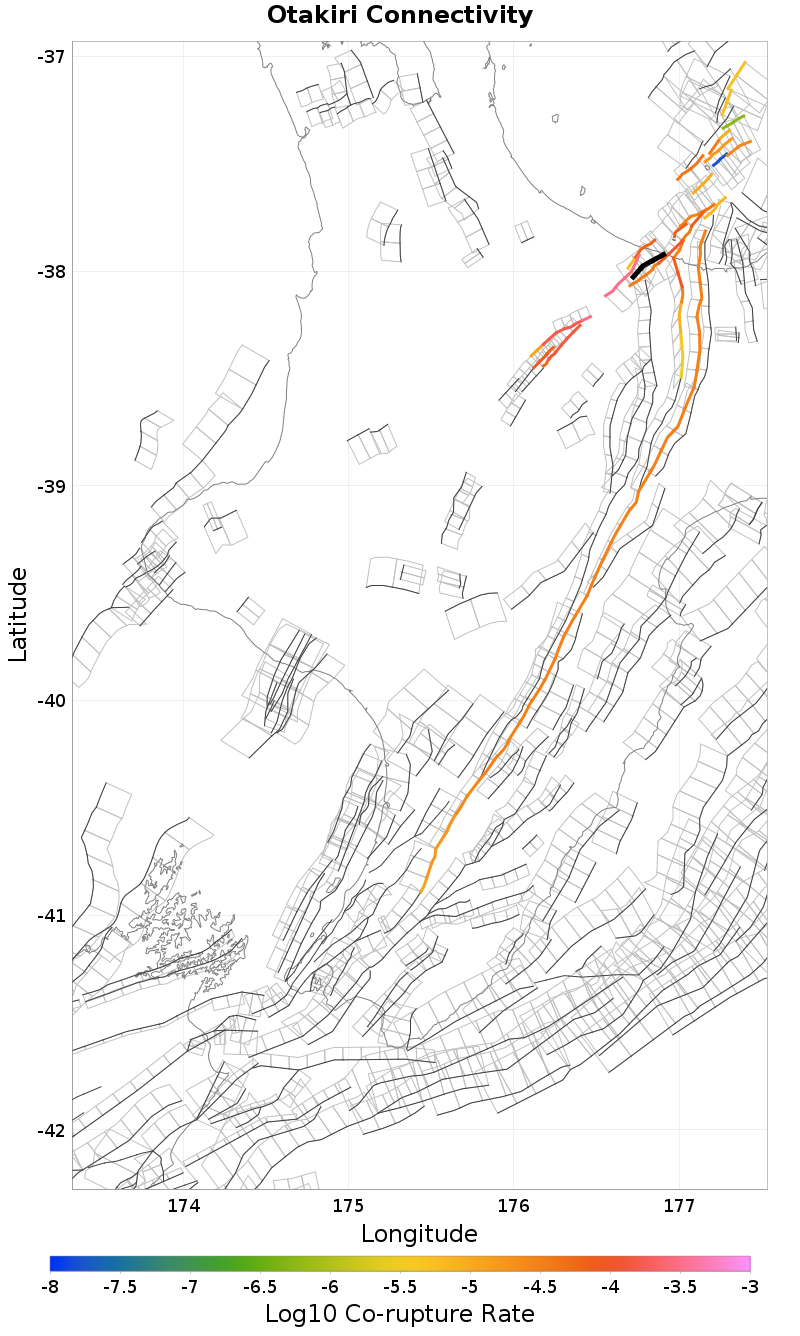

Connectivity

Nearby Sections

Fault Section
Edgecumbe Coastal, 0.1 km away
Edgecumbe 1987, 0.19 km away
Whakatane: North, 0.29 km away
Braemar, 0.31 km away
Waiohau: North, 0.33 km away
White Island 1, 2.46 km away
Keepa, 2.92 km away
Matata, 4.49 km away
Waimana: North, 8.25 km away
Rangitaiki 1, 10.94 km away
Waiotahi: North, 13.81 km away

Edgecumbe Coastal, 0.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?	true
Directly Connected?	true
Co-rupture Count	1,454
Co-rupture Rate	8.14706E-5

Edgecumbe 1987, 0.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?	true
Directly Connected?	true
Co-rupture Count	2,783
Co-rupture Rate	3.6232355E-5

Whakatane: North, 0.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?	true
Directly Connected?	true
Co-rupture Count	611
Co-rupture Rate	9.7720476E-5

Braemar, 0.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?	true
Directly Connected?	true
Co-rupture Count	942
Co-rupture Rate	3.2848938E-4

Waiohau: North, 0.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?	true
Directly Connected?	true
Co-rupture Count	2,628
Co-rupture Rate	0.0

White Island 1, 2.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?	true
Directly Connected?	true
Co-rupture Count	2,847
Co-rupture Rate	1.5241606E-4

Keepa, 2.92 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?	true
Directly Connected?	false
Co-rupture Count	1,041
Co-rupture Rate	3.0733405E-5

Matata, 4.49 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?	true
Directly Connected?	false
Co-rupture Count	1,628
Co-rupture Rate	6.521138E-5

Waimana: North, 8.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?	true
Directly Connected?	true
Co-rupture Count	3,618
Co-rupture Rate	3.1023377E-5

Rangitaiki 1, 10.94 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?	true
Directly Connected?	false
Co-rupture Count	731
Co-rupture Rate	6.989351E-5

Waiotahi: North, 13.81 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
