Otara East 1 Details

PropertyValue
Rupture Count1,238
Ruptures Above Sect Min Mag1,237
Ruptures w/ Nonzero Rates65
Magnitude Range[6.74, 8.29]
Length Range[14, 676] km
Total Rate4.8906673E-5 /yr
Multi-Fault Rate4.8906673E-5 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults64

Table Of Contents

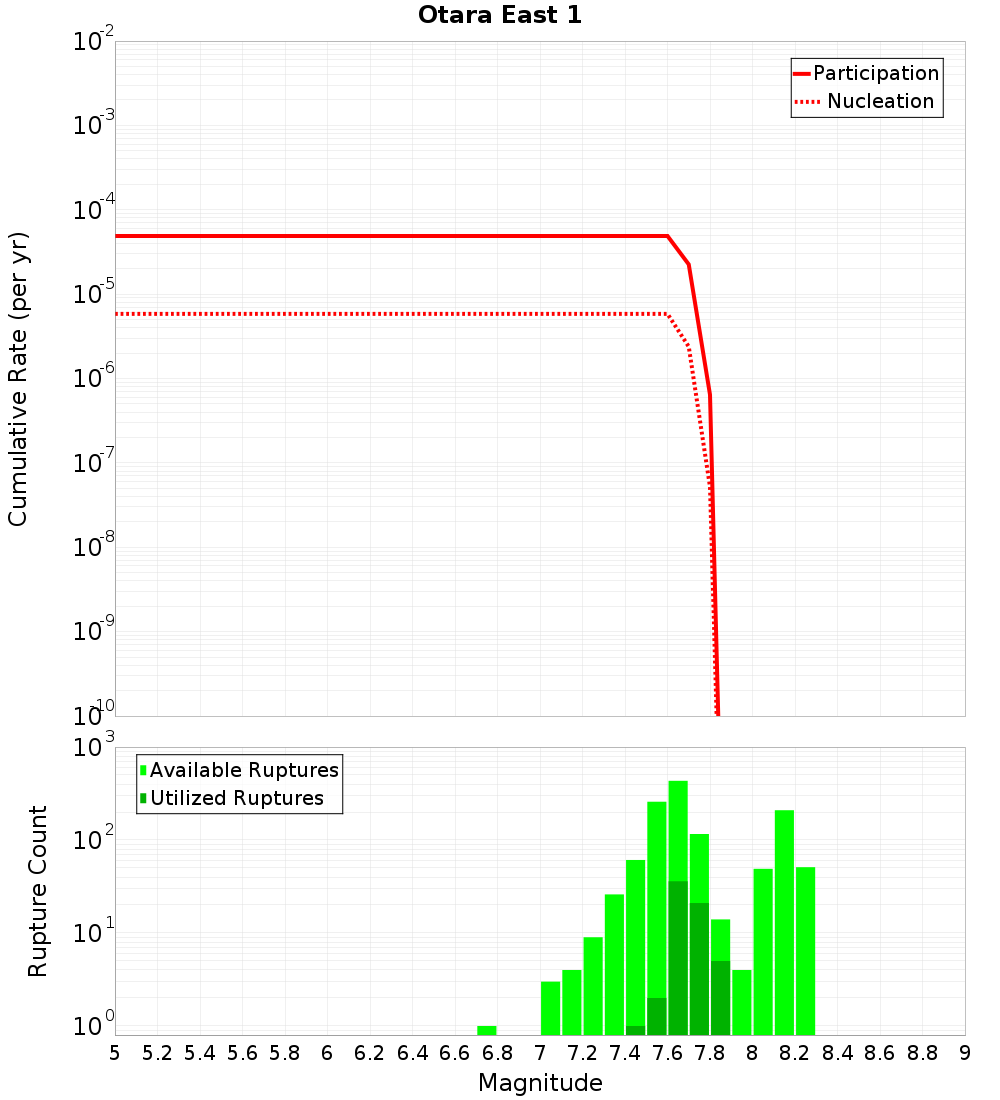

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Tuatoru 2, 0.2 km away
Volkner 4, 0.22 km away
Otara East 2, 1.27 km away
Otara West 1, 1.57 km away
Otara West 2, 3.71 km away
Te Arawa 3, 5.22 km away
Otara West 3, 6.01 km away
Te Arawa 2, 7.74 km away
Te Arawa 1, 11.84 km away
Hariki, 14.16 km away

Tuatoru 2, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?true
Directly Connected?true
Co-rupture Count1,021
Co-rupture Rate4.709355E-5

Volkner 4, 0.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?true
Directly Connected?true
Co-rupture Count45
Co-rupture Rate2.5753058E-10

Otara East 2, 1.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?true
Directly Connected?true
Co-rupture Count470
Co-rupture Rate2.5314583E-5

Otara West 1, 1.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otara West 2, 3.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Te Arawa 3, 5.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?true
Directly Connected?true
Co-rupture Count241
Co-rupture Rate1.8131549E-6

Otara West 3, 6.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Te Arawa 2, 7.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?true
Directly Connected?false
Co-rupture Count252
Co-rupture Rate6.471661E-6

Te Arawa 1, 11.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?true
Directly Connected?false
Co-rupture Count949
Co-rupture Rate4.2435015E-5

Hariki, 14.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?true
Directly Connected?false
Co-rupture Count22
Co-rupture Rate0.0
