Tukituki Thrust Details

PropertyValue
Rupture Count308
Ruptures Above Sect Min Mag296
Ruptures w/ Nonzero Rates14
Magnitude Range[6.67, 7.71]
Length Range[19, 168] km
Total Rate2.3717617E-4 /yr
Multi-Fault Rate2.3717617E-4 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults18

Table Of Contents

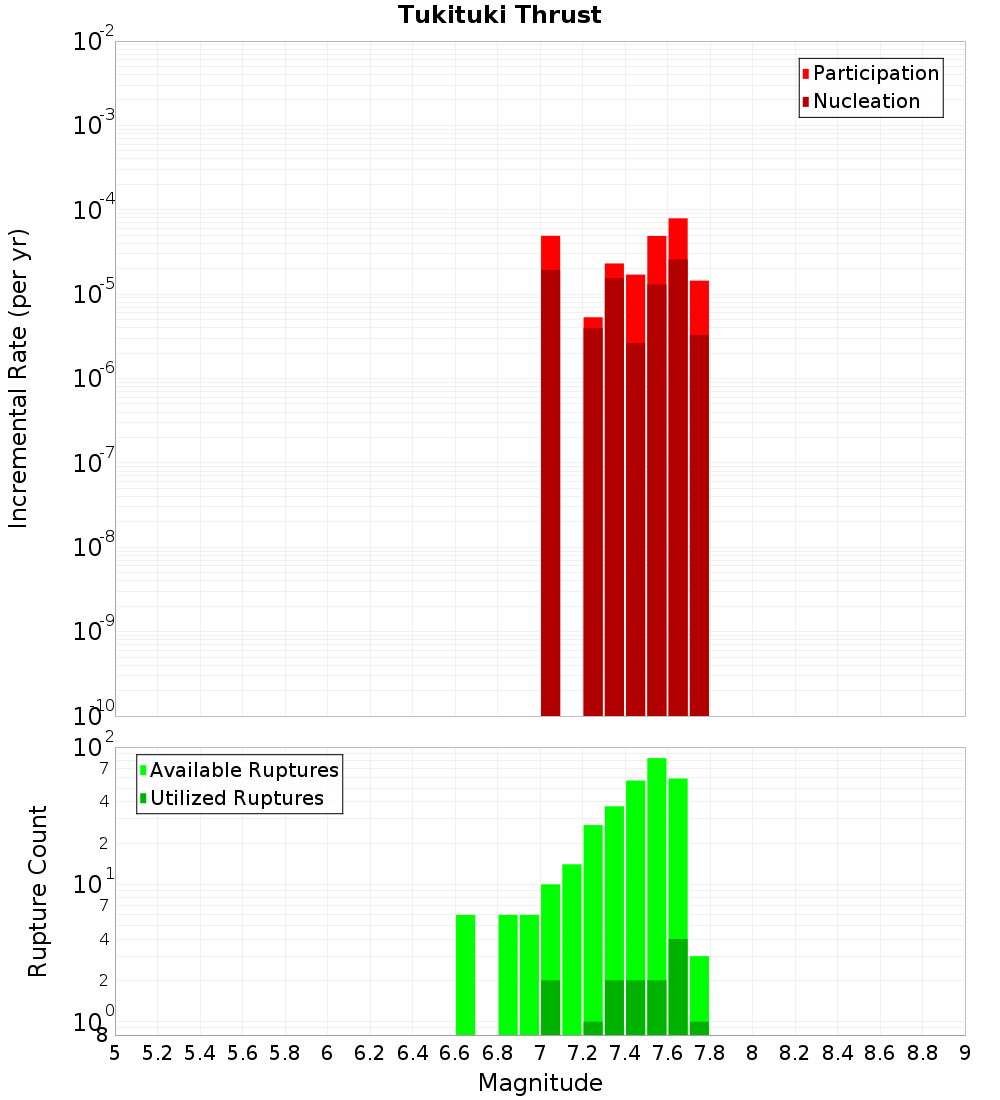

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

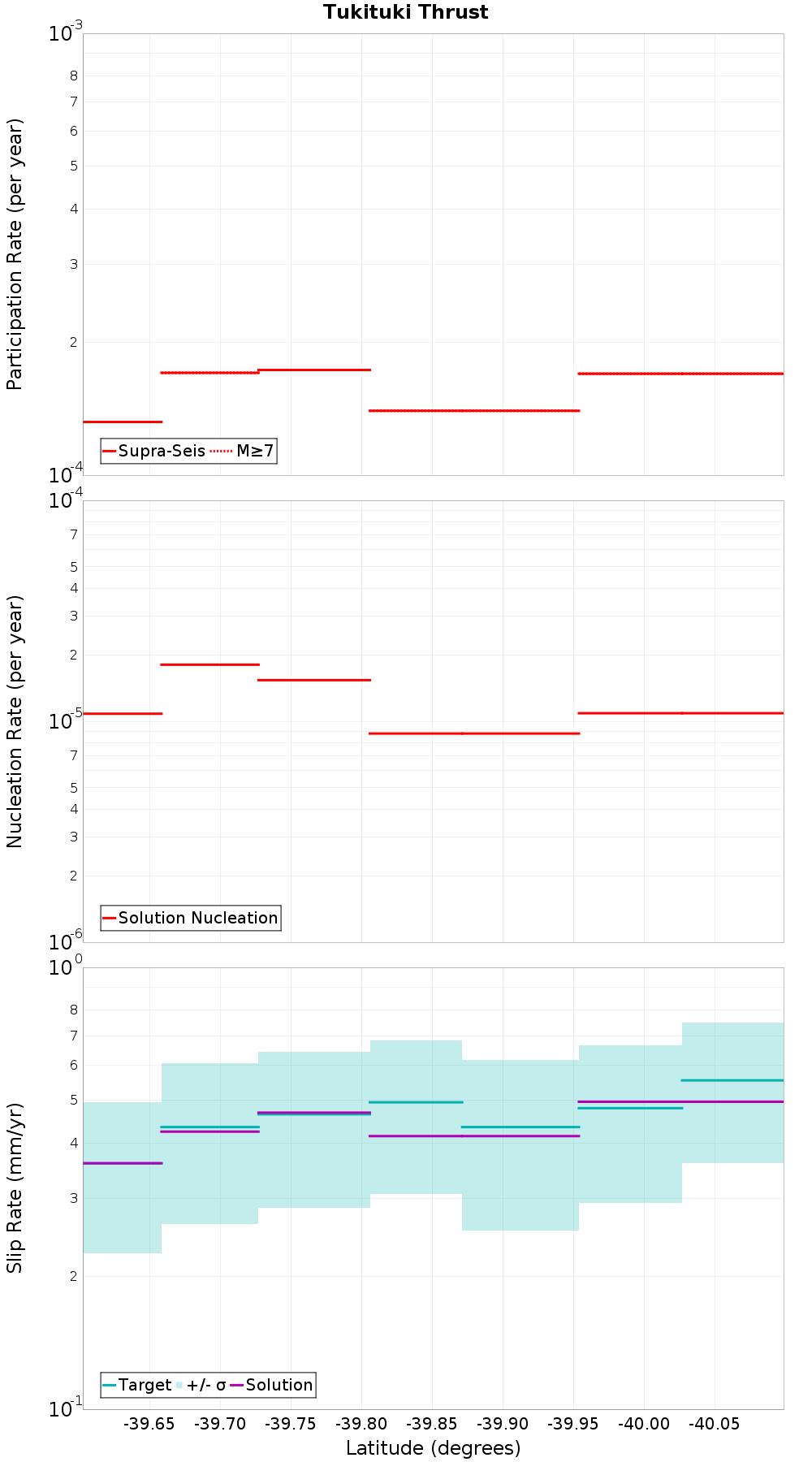

Along-Strike Values

(top)

Along-strike plot

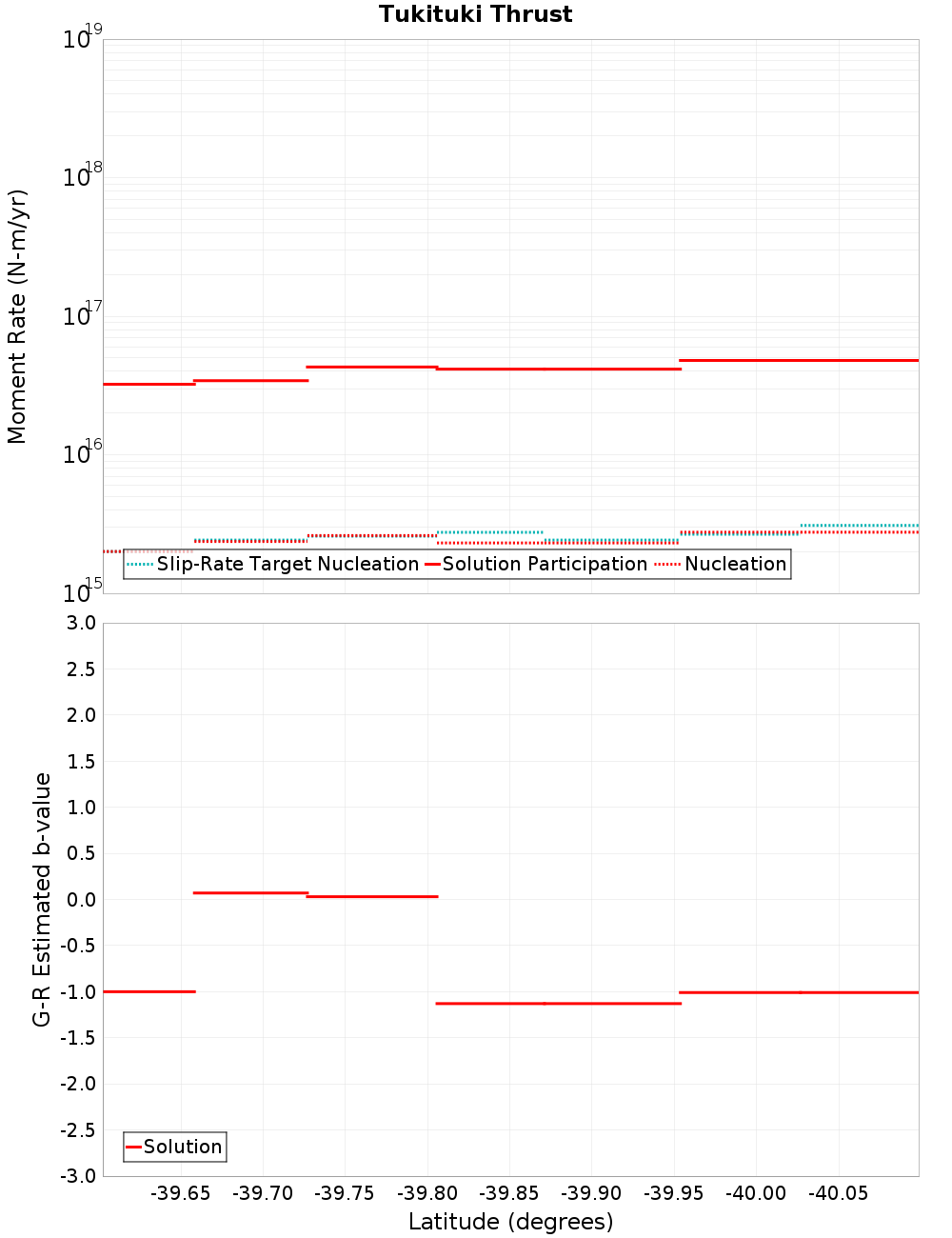

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Hawke Bay 8, 2.13 km away
Waipukurau - Poukawa, 3.57 km away
Awanui, 3.57 km away
Clear Hills - Waikopiro, 7.83 km away
Hawke Bay 2, 7.9 km away
Oruawharo - Mangatoro, 9.23 km away
Te Heka, 11.15 km away
Kidnappers Ridge, 11.23 km away
Waimarama 1 & 2, 13.07 km away

Hawke Bay 8, 2.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?true
Directly Connected?true
Co-rupture Count129
Co-rupture Rate9.7629774E-5

Waipukurau - Poukawa, 3.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?true
Directly Connected?true
Co-rupture Count90
Co-rupture Rate9.735323E-5

Awanui, 3.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?true
Directly Connected?true
Co-rupture Count116
Co-rupture Rate3.6876103E-5

Clear Hills - Waikopiro, 7.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?true
Directly Connected?true
Co-rupture Count76
Co-rupture Rate1.3848356E-4

Hawke Bay 2, 7.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?true
Directly Connected?false
Co-rupture Count128
Co-rupture Rate7.591538E-5

Oruawharo - Mangatoro, 9.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?true
Directly Connected?false
Co-rupture Count29
Co-rupture Rate1.7044777E-5

Te Heka, 11.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?true
Directly Connected?true
Co-rupture Count52
Co-rupture Rate2.9810964E-5

Kidnappers Ridge, 11.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waimarama 1 & 2, 13.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MDYuMHFRV2FL
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
