Alexander Details

Property	Value
Rupture Count	1,964
Ruptures Above Sect Min Mag	1,959
Ruptures w/ Nonzero Rates	25
Magnitude Range	[6.75, 8.32]
Length Range	[16, 579] km
Total Rate	2.3080054E-4 /yr
Multi-Fault Rate	2.0551364E-4 /yr (89.04%)
Directly-Connected Faults	4
All Co-Rupturing Faults	61

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

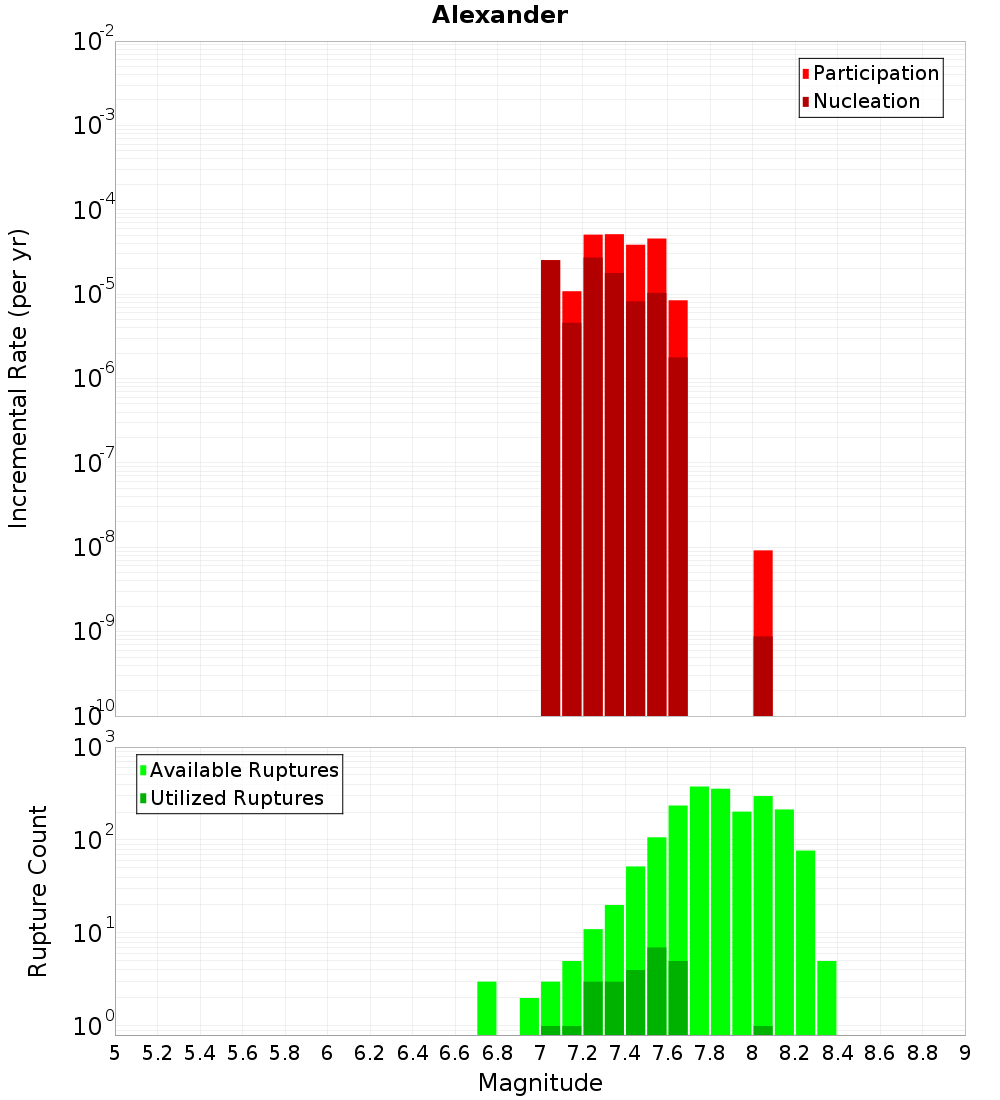

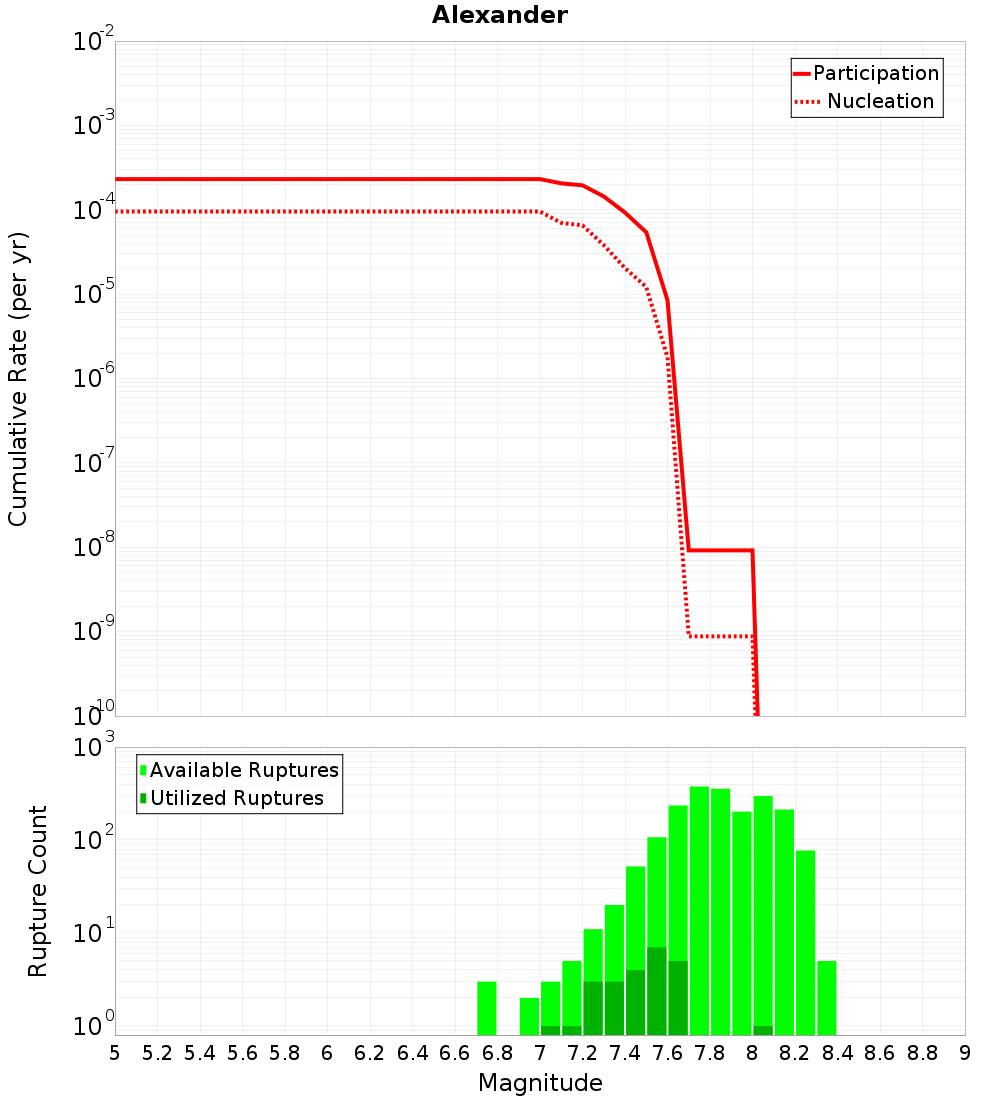

Magnitude-Frequency Distribution

Incremental	Cumulative

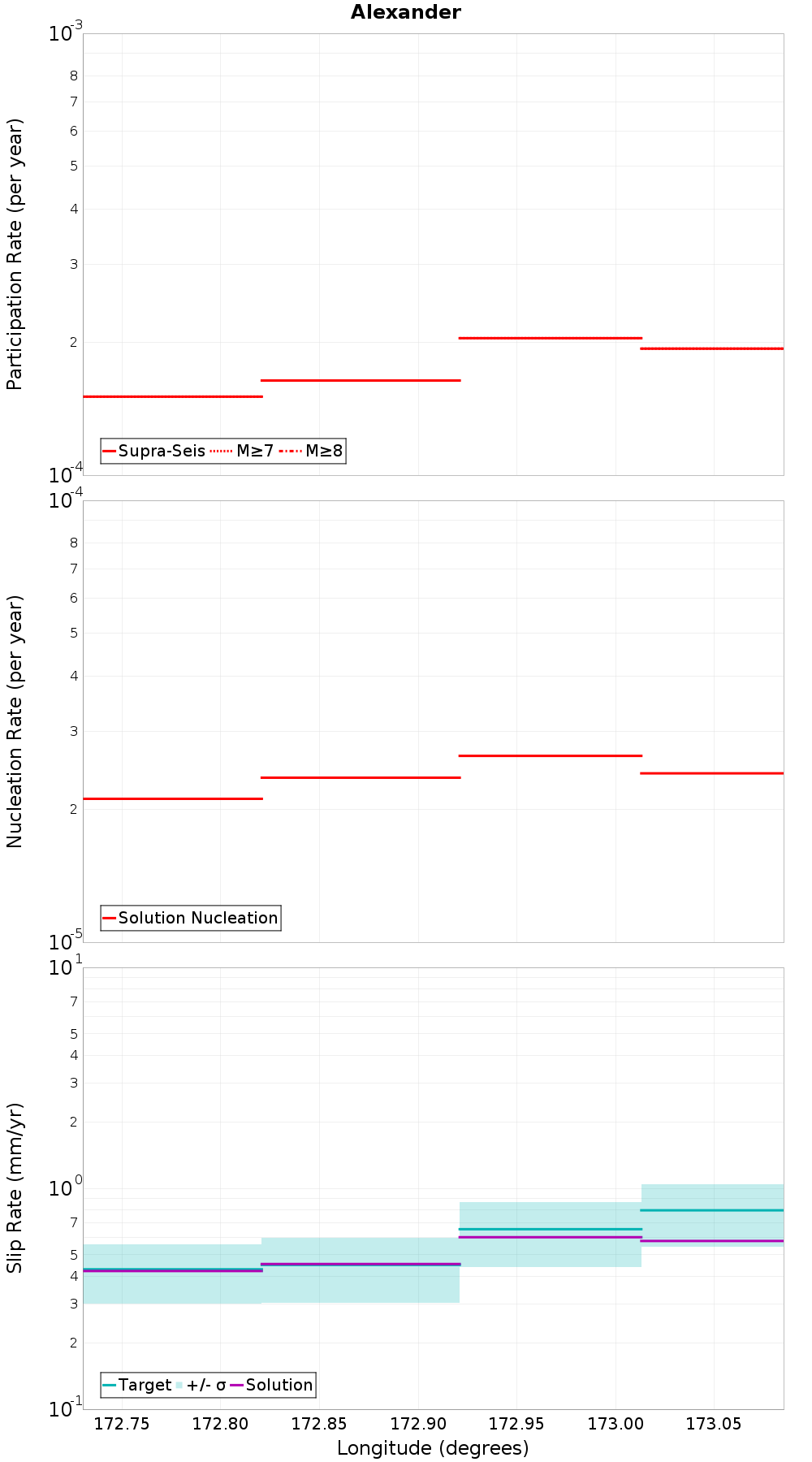

Along-Strike Values

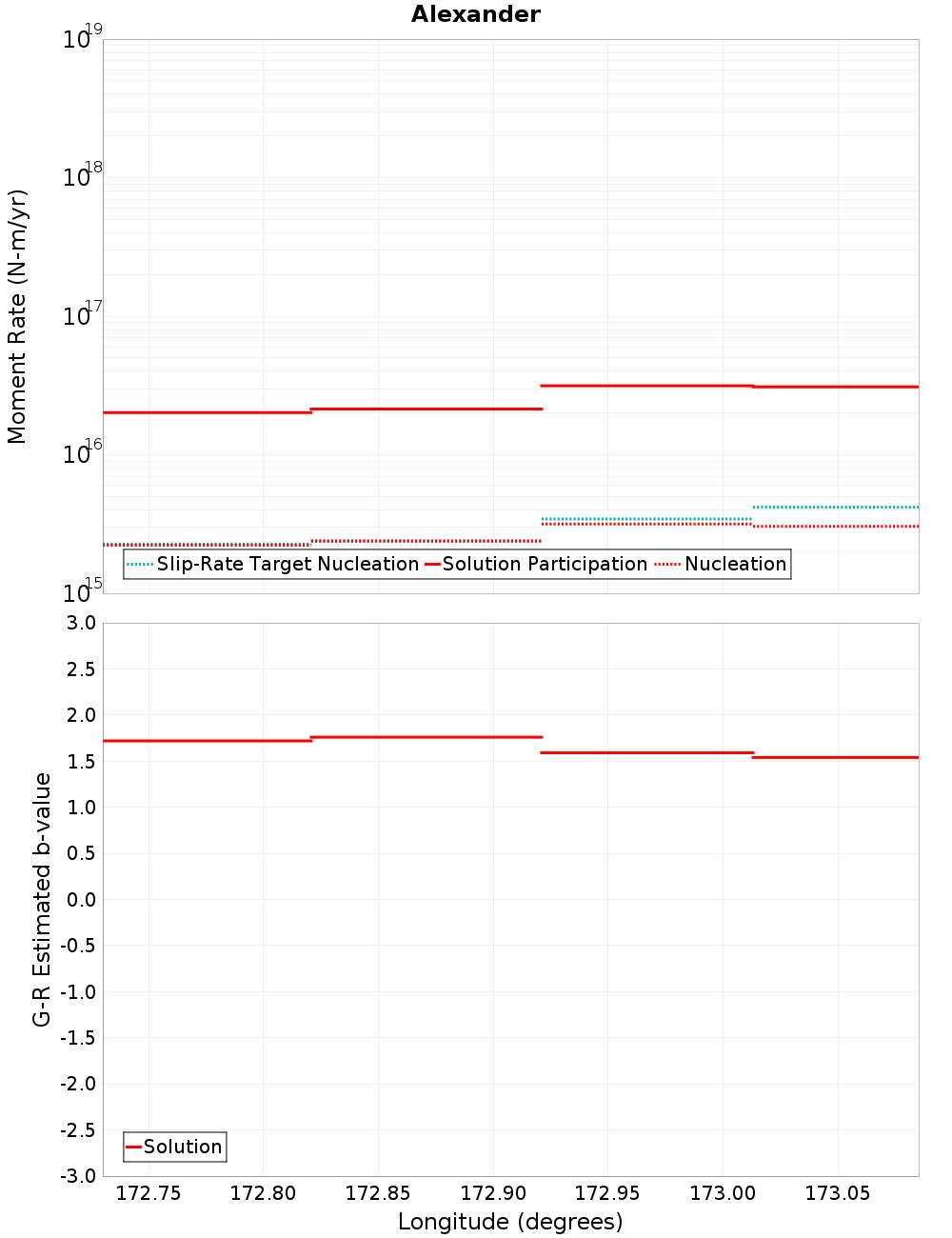

Moment-Rates and b-Values

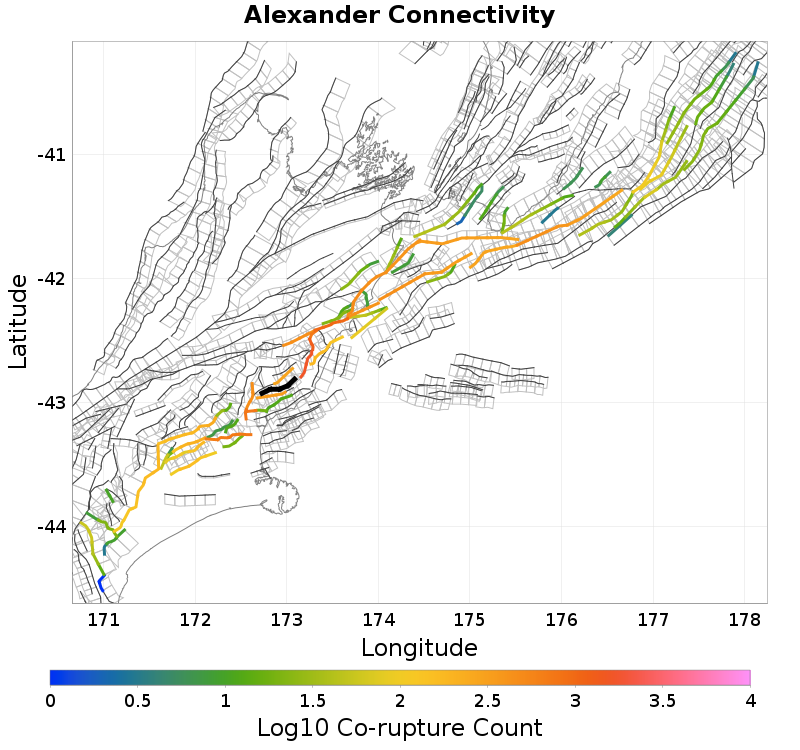

Connectivity

Nearby Sections

Fault Section
Lowry, 2.38 km away
Kaiwara South, 2.77 km away
Balmoral, 3.99 km away
Doctors, 4.18 km away
Kaiwara North, 5.21 km away
OmihiLwrHuru, 6.66 km away
Leonard Mound, 8.1 km away
Boby Stream, 10.71 km away
AmberBlyth, 11.84 km away
Mt Culverden, 14.58 km away

Lowry, 2.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuME1KSDU3
Connected?	true
Directly Connected?	true
Co-rupture Count	286
Co-rupture Rate	3.7443933E-5

Kaiwara South, 2.77 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuME1KSDU3
Connected?	true
Directly Connected?	true
Co-rupture Count	347
Co-rupture Rate	1.026679E-5

Balmoral, 3.99 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuME1KSDU3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Doctors, 4.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuME1KSDU3
Connected?	true
Directly Connected?	true
Co-rupture Count	778
Co-rupture Rate	8.71882E-5

Kaiwara North, 5.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuME1KSDU3
Connected?	true
Directly Connected?	true
Co-rupture Count	1,626
Co-rupture Rate	1.0749802E-4

OmihiLwrHuru, 6.66 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuME1KSDU3
Connected?	true
Directly Connected?	false
Co-rupture Count	12
Co-rupture Rate	0.0

Leonard Mound, 8.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuME1KSDU3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Boby Stream, 10.71 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuME1KSDU3
Connected?	true
Directly Connected?	false
Co-rupture Count	740
Co-rupture Rate	9.1872465E-9

AmberBlyth, 11.84 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuME1KSDU3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Mt Culverden, 14.58 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuME1KSDU3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
