Alpine: Kaniere to Springs Junction Details

PropertyValue
Rupture Count164,117
Ruptures Above Sect Min Mag164,108
Ruptures w/ Nonzero Rates439
Magnitude Range[6.86, 8.61]
Length Range[21, 1,132] km
Total Rate0.0042645475 /yr
Multi-Fault Rate0.0038388993 /yr (90.02%)
Directly-Connected Faults13
All Co-Rupturing Faults235

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

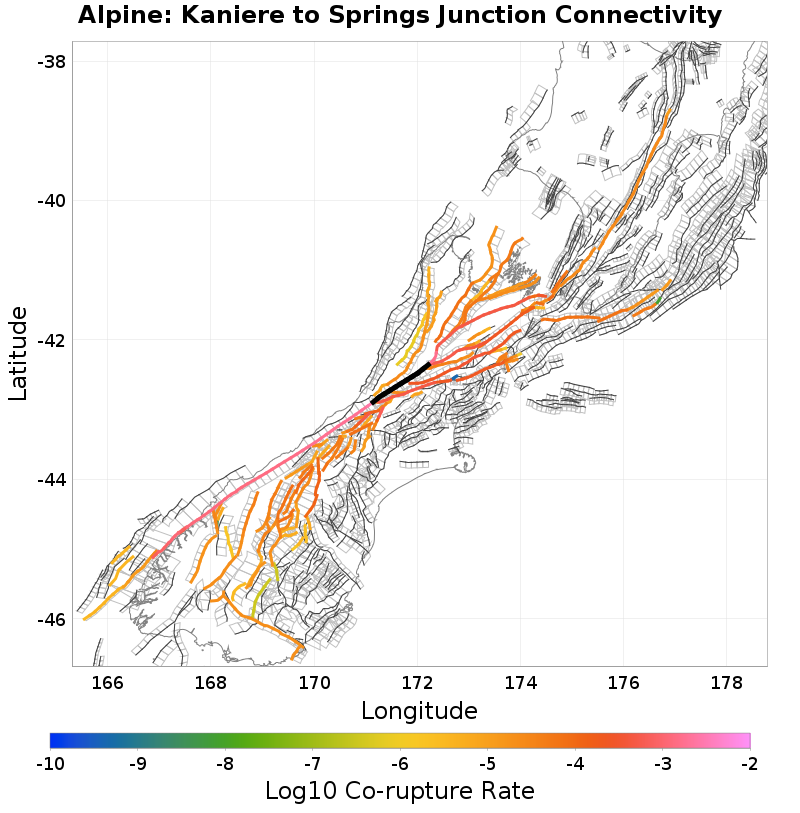

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Alpine: Springs Junction to Tophouse, 0 km awayFowlers, 0.24 km away
Alpine: Jacksons to Kaniere, 0 km awayHohonu North, 0.26 km away
Kelly, 0 km awayHope: Hope River, 2.94 km away
Awatere: Southwest, 0 km awayMistake - Rolleston, 3.4 km away
Hohonu South, 0.04 km awayKakapo, 6.32 km away
Browning Pass, 0.16 km awayMathias, 10.78 km away
Hohonu, 0.18 km awayWhite Creek - buried, 12.02 km away
Hope: Hurunui, 0.19 km awayMungo, 13.41 km away
Clarence: Southwest, 0.21 km awayEsk North, 14.61 km away
Hope: Taramakau, 0.23 km away

Alpine: Springs Junction to Tophouse, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuME1KSDU3
Connected?true
Directly Connected?true
Co-rupture Count92,332
Co-rupture Rate0.0016690352

Alpine: Jacksons to Kaniere, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuME1KSDU3
Connected?true
Directly Connected?true
Co-rupture Count122,197
Co-rupture Rate0.0025453938

Kelly, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuME1KSDU3
Connected?true
Directly Connected?true
Co-rupture Count49,005
Co-rupture Rate5.036737E-4

Awatere: Southwest, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuME1KSDU3
Connected?true
Directly Connected?true
Co-rupture Count39,330
Co-rupture Rate5.472653E-4

Hohonu South, 0.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuME1KSDU3
Connected?true
Directly Connected?true
Co-rupture Count22,109
Co-rupture Rate8.502889E-6

Browning Pass, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuME1KSDU3
Connected?true
Directly Connected?true
Co-rupture Count30,482
Co-rupture Rate3.4826124E-5

Hohonu, 0.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuME1KSDU3
Connected?true
Directly Connected?true
Co-rupture Count6,462
Co-rupture Rate7.2035605E-6

Hope: Hurunui, 0.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuME1KSDU3
Connected?true
Directly Connected?true
Co-rupture Count16,403
Co-rupture Rate5.306106E-4

Clarence: Southwest, 0.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuME1KSDU3
Connected?true
Directly Connected?true
Co-rupture Count6,910
Co-rupture Rate2.3769584E-4

Hope: Taramakau, 0.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuME1KSDU3
Connected?true
Directly Connected?false
Co-rupture Count2,986
Co-rupture Rate2.4781382E-5

Fowlers, 0.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuME1KSDU3
Connected?true
Directly Connected?true
Co-rupture Count5,430
Co-rupture Rate4.080628E-5

Hohonu North, 0.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuME1KSDU3
Connected?true
Directly Connected?true
Co-rupture Count11,519
Co-rupture Rate2.520216E-5

Hope: Hope River, 2.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuME1KSDU3
Connected?true
Directly Connected?true
Co-rupture Count16,293
Co-rupture Rate4.7490976E-4

Mistake - Rolleston, 3.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuME1KSDU3
Connected?true
Directly Connected?true
Co-rupture Count9,206
Co-rupture Rate6.3051446E-4

Kakapo, 6.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuME1KSDU3
Connected?true
Directly Connected?false
Co-rupture Count1,215
Co-rupture Rate0.0

Mathias, 10.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuME1KSDU3
Connected?true
Directly Connected?false
Co-rupture Count2,910
Co-rupture Rate7.1721943E-6

White Creek - buried, 12.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuME1KSDU3
Connected?true
Directly Connected?false
Co-rupture Count5,130
Co-rupture Rate2.2056733E-5

Mungo, 13.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuME1KSDU3
Connected?true
Directly Connected?false
Co-rupture Count880
Co-rupture Rate1.2923246E-4

Esk North, 14.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuME1KSDU3
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate0.0
