F16 - Central Details

PropertyValue
Rupture Count27,464
Ruptures Above Sect Min Mag27,462
Ruptures w/ Nonzero Rates58
Magnitude Range[7.06, 8.43]
Length Range[26, 701] km
Total Rate5.483098E-4 /yr
Multi-Fault Rate5.483098E-4 /yr (100.00%)
Directly-Connected Faults11
All Co-Rupturing Faults64

Table Of Contents

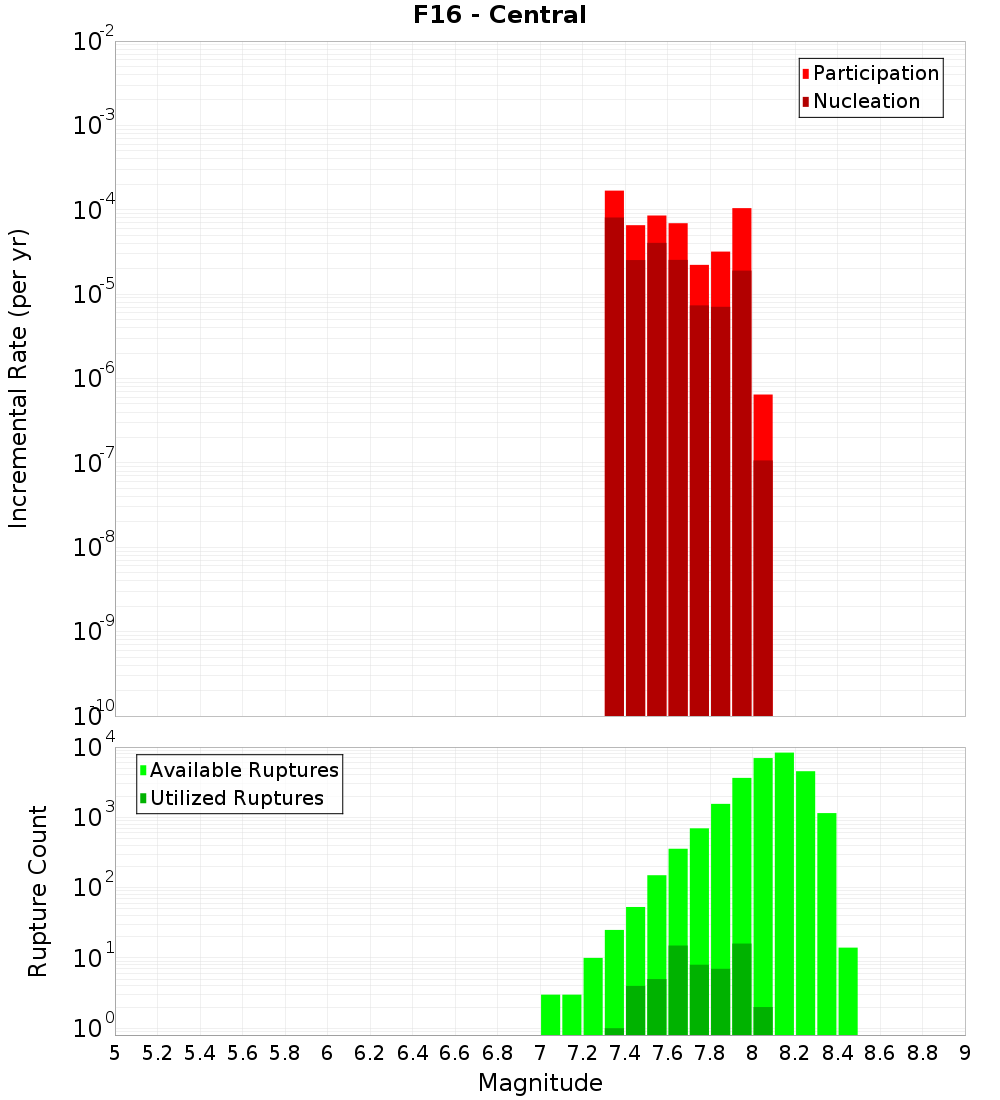

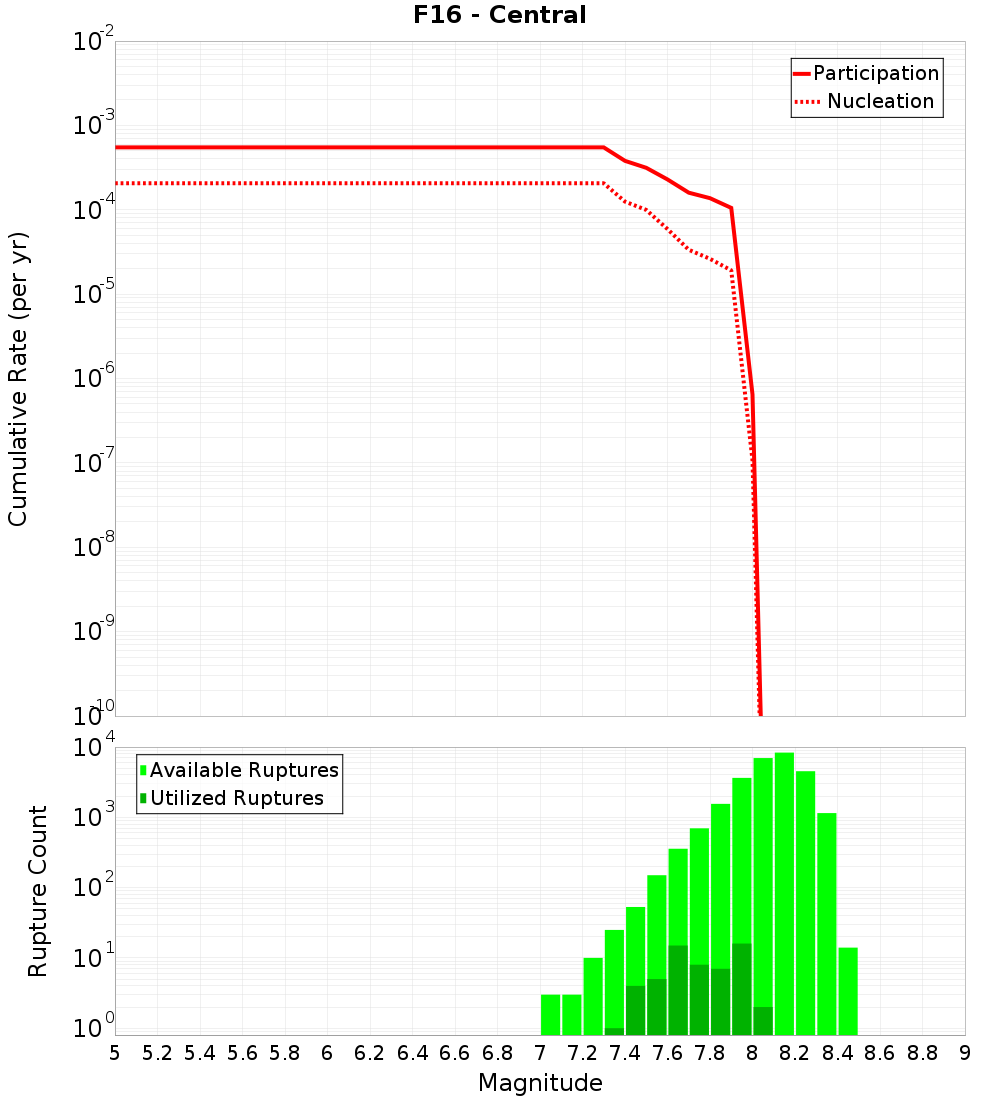

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

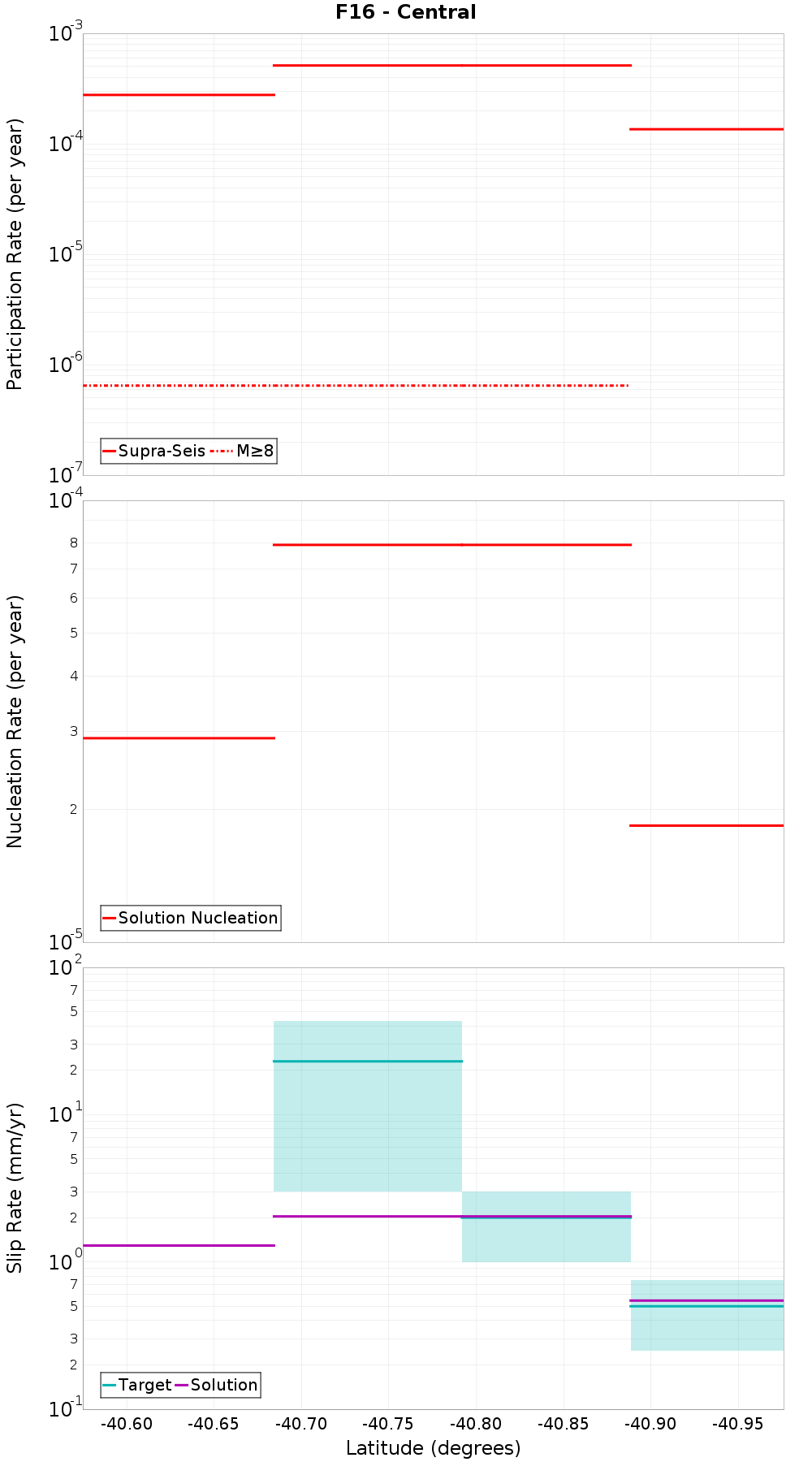

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
BKSmt-North, 0.11 km away
BKSmt-West, 0.19 km away
Aorangi Ridge, 0.8 km away
Bennett Knoll, 1.07 km away
F16 - South, 1.46 km away
Akitio Ridge, 2.28 km away
F17 - Central, 3.82 km away
F14 - North, 4.34 km away
F17 - South, 5.88 km away
Aorangi Trough, 5.98 km away
Akitio Trough West, 8.18 km away
F16 - North, 10.71 km away
Porangahau Northeast, 14.86 km away

BKSmt-North, 0.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuME1KSDU3
Connected?true
Directly Connected?true
Co-rupture Count7,843
Co-rupture Rate1.8145645E-4

BKSmt-West, 0.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuME1KSDU3
Connected?true
Directly Connected?true
Co-rupture Count3,044
Co-rupture Rate1.0561059E-4

Aorangi Ridge, 0.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuME1KSDU3
Connected?true
Directly Connected?true
Co-rupture Count12,501
Co-rupture Rate4.2530027E-4

Bennett Knoll, 1.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuME1KSDU3
Connected?true
Directly Connected?true
Co-rupture Count238
Co-rupture Rate3.069722E-5

F16 - South, 1.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuME1KSDU3
Connected?true
Directly Connected?true
Co-rupture Count5,019
Co-rupture Rate1.3131375E-4

Akitio Ridge, 2.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuME1KSDU3
Connected?true
Directly Connected?true
Co-rupture Count20,476
Co-rupture Rate3.4646702E-5

F17 - Central, 3.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuME1KSDU3
Connected?true
Directly Connected?true
Co-rupture Count4,061
Co-rupture Rate1.351485E-4

F14 - North, 4.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuME1KSDU3
Connected?true
Directly Connected?true
Co-rupture Count8,943
Co-rupture Rate6.802457E-5

F17 - South, 5.88 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuME1KSDU3
Connected?true
Directly Connected?true
Co-rupture Count7,111
Co-rupture Rate9.497099E-5

Aorangi Trough, 5.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuME1KSDU3
Connected?true
Directly Connected?true
Co-rupture Count7,360
Co-rupture Rate3.7248017E-5

Akitio Trough West, 8.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuME1KSDU3
Connected?true
Directly Connected?true
Co-rupture Count1,747
Co-rupture Rate0.0

F16 - North, 10.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuME1KSDU3
Connected?true
Directly Connected?false
Co-rupture Count1,434
Co-rupture Rate1.6214681E-4

Porangahau Northeast, 14.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuME1KSDU3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
