Alpine: Caswell Details

PropertyValue
Rupture Count66,977
Ruptures Above Sect Min Mag66,975
Ruptures w/ Nonzero Rates1,241
Magnitude Range[7.01, 8.68]
Length Range[22, 1,083] km
Total Rate0.0013389218 /yr
Multi-Fault Rate0.0013389218 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults193

Table Of Contents

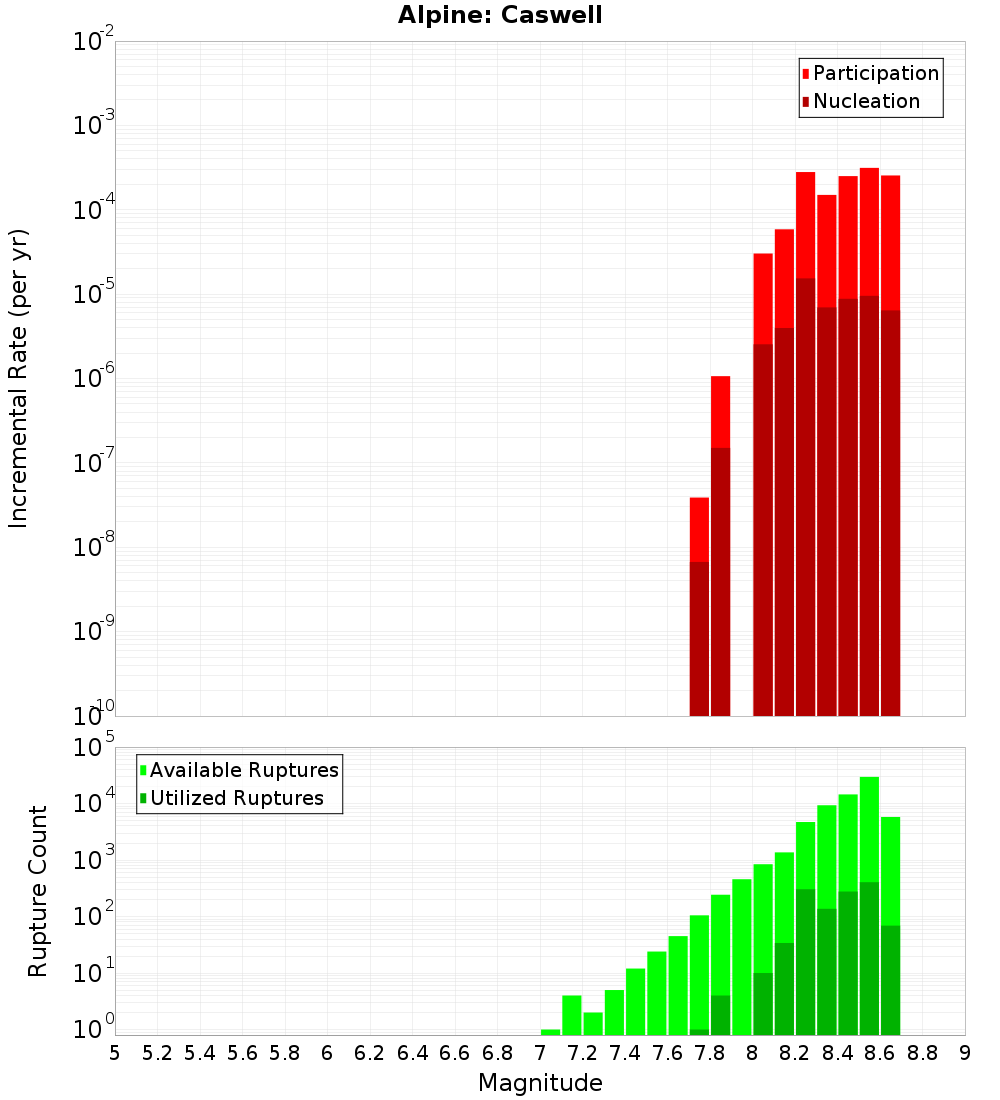

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

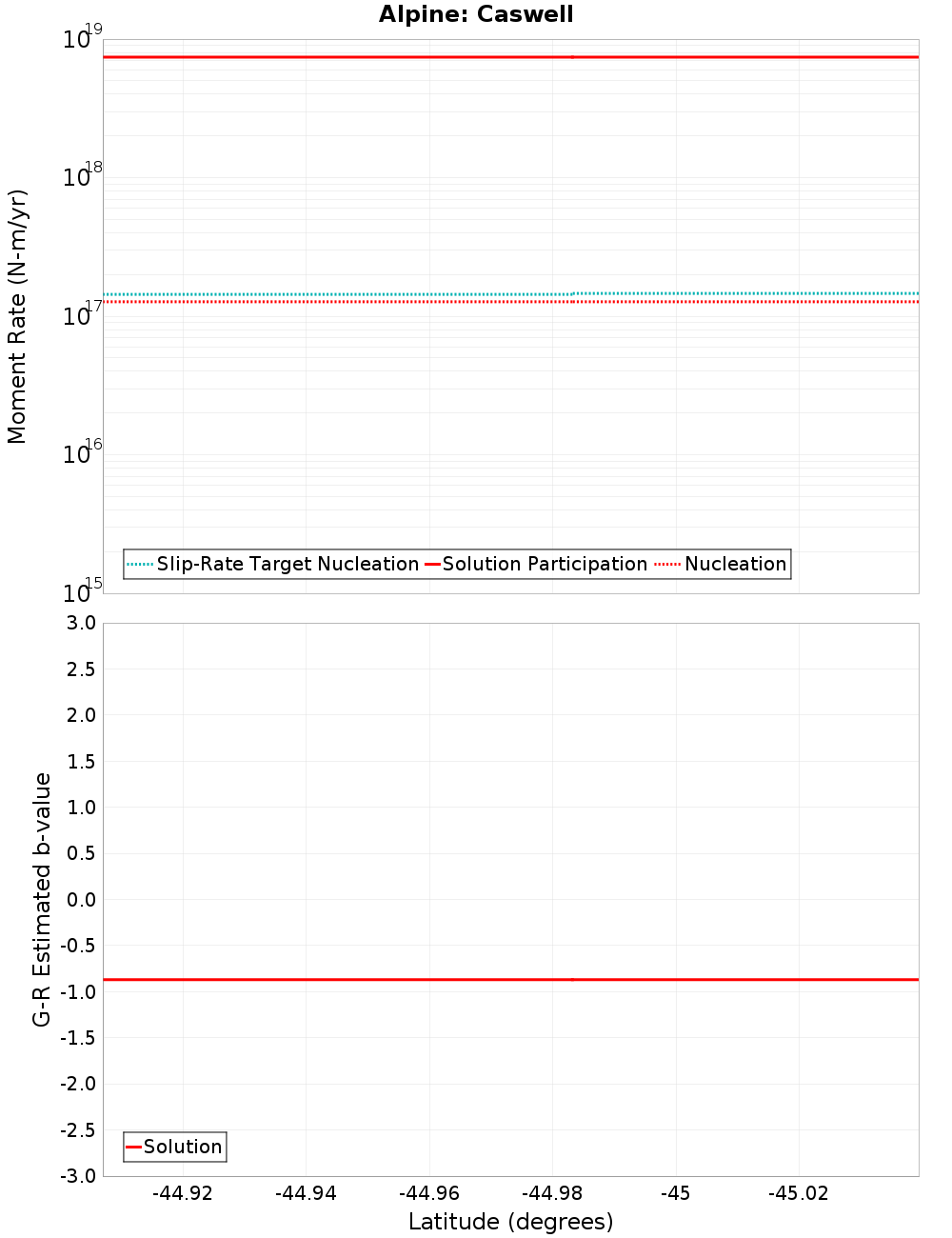

Moment-Rates and b-Values

(top)

Along-strike plot

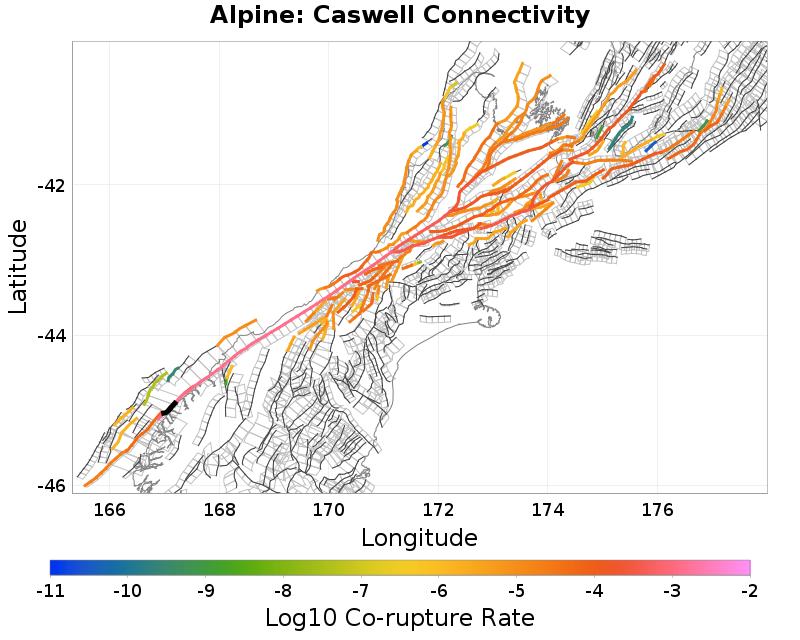

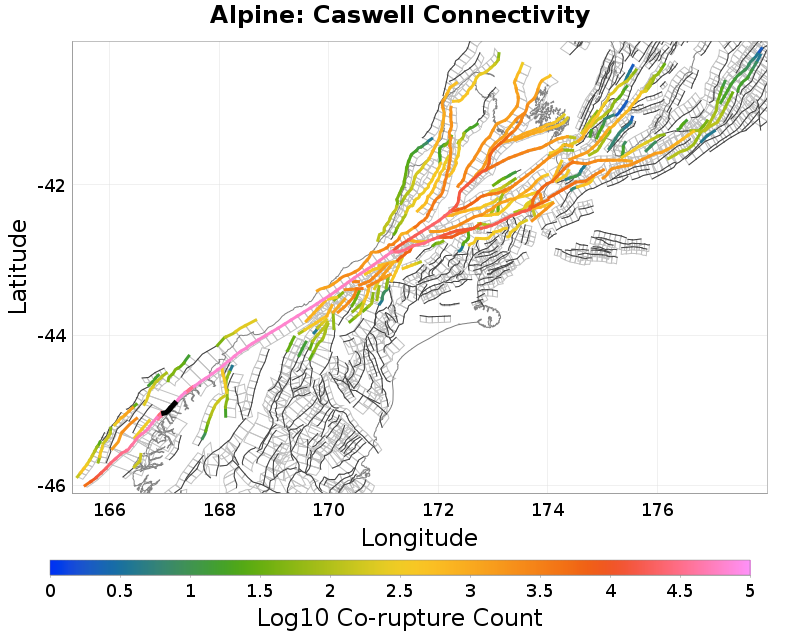

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Alpine: Nancy, 0 km away
Alpine: Caswell - South George, 0 km away
Central Wedge 1 & 2 & 3, 0.12 km away
South Wedge 2, 0.26 km away
Central Wedge 4 - South Wedge 411, 0.32 km away
Alpine: Resolution - Charles, 3.33 km away
Alpine: Resolution - Dagg, 11.17 km away

Alpine: Nancy, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuMGZHdmNG
Connected?true
Directly Connected?true
Co-rupture Count37,899
Co-rupture Rate0.0010332728

Alpine: Caswell - South George, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuMGZHdmNG
Connected?true
Directly Connected?true
Co-rupture Count66,772
Co-rupture Rate0.0013388827

Central Wedge 1 & 2 & 3, 0.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuMGZHdmNG
Connected?true
Directly Connected?true
Co-rupture Count215
Co-rupture Rate3.908844E-8

South Wedge 2, 0.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuMGZHdmNG
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Central Wedge 4 - South Wedge 411, 0.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuMGZHdmNG
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Alpine: Resolution - Charles, 3.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuMGZHdmNG
Connected?true
Directly Connected?true
Co-rupture Count25,236
Co-rupture Rate6.6668625E-5

Alpine: Resolution - Dagg, 11.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuMGZHdmNG
Connected?true
Directly Connected?false
Co-rupture Count56,313
Co-rupture Rate4.953345E-5
