Brothers Details
| Property | Value |
|---|---|
| Rupture Count | 3,030 |
| Ruptures Above Sect Min Mag | 3,027 |
| Ruptures w/ Nonzero Rates | 80 |
| Magnitude Range | [6.98, 8.35] |
| Length Range | [21, 534] km |
| Total Rate | 8.760169E-5 /yr |
| Multi-Fault Rate | 8.760169E-5 /yr (100.00%) |
| Directly-Connected Faults | 9 |
| All Co-Rupturing Faults | 92 |
Table Of Contents

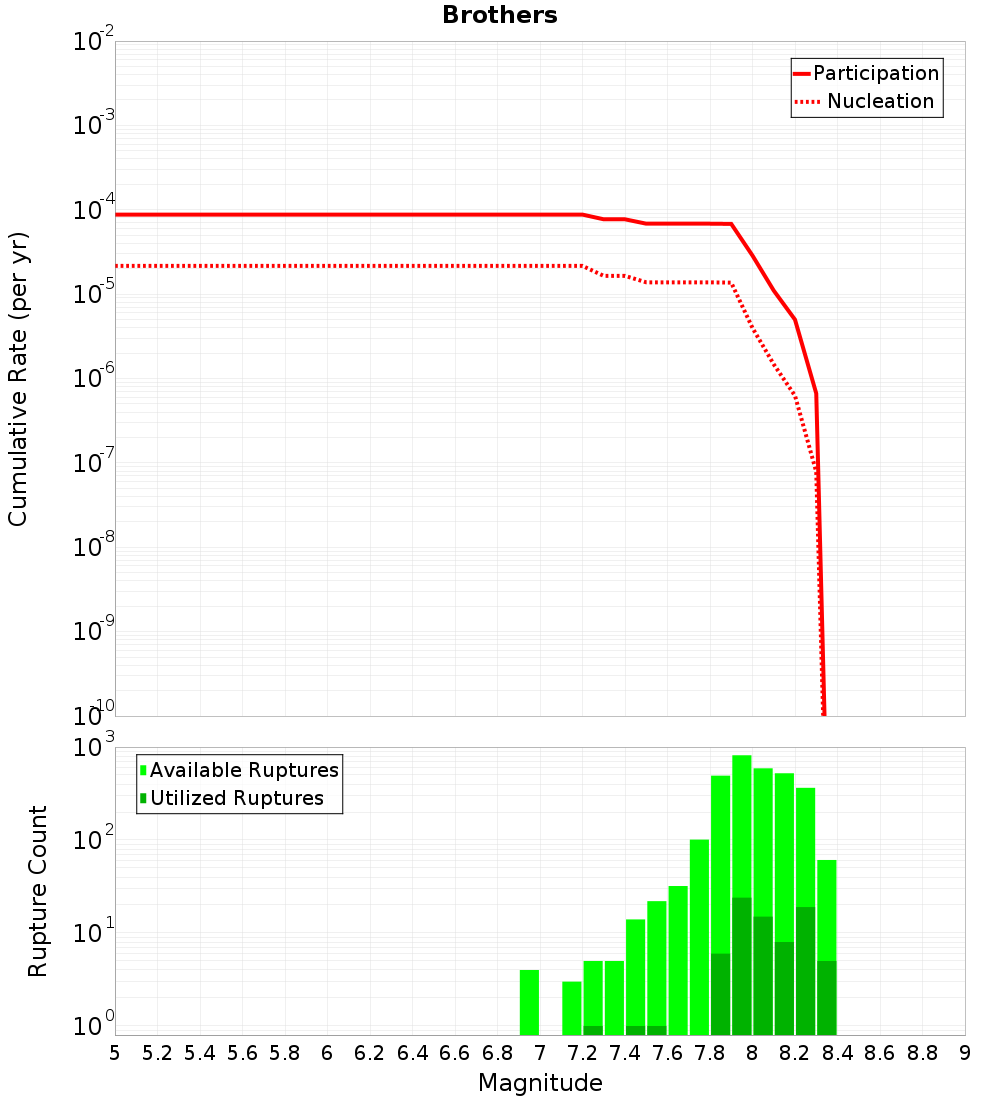

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

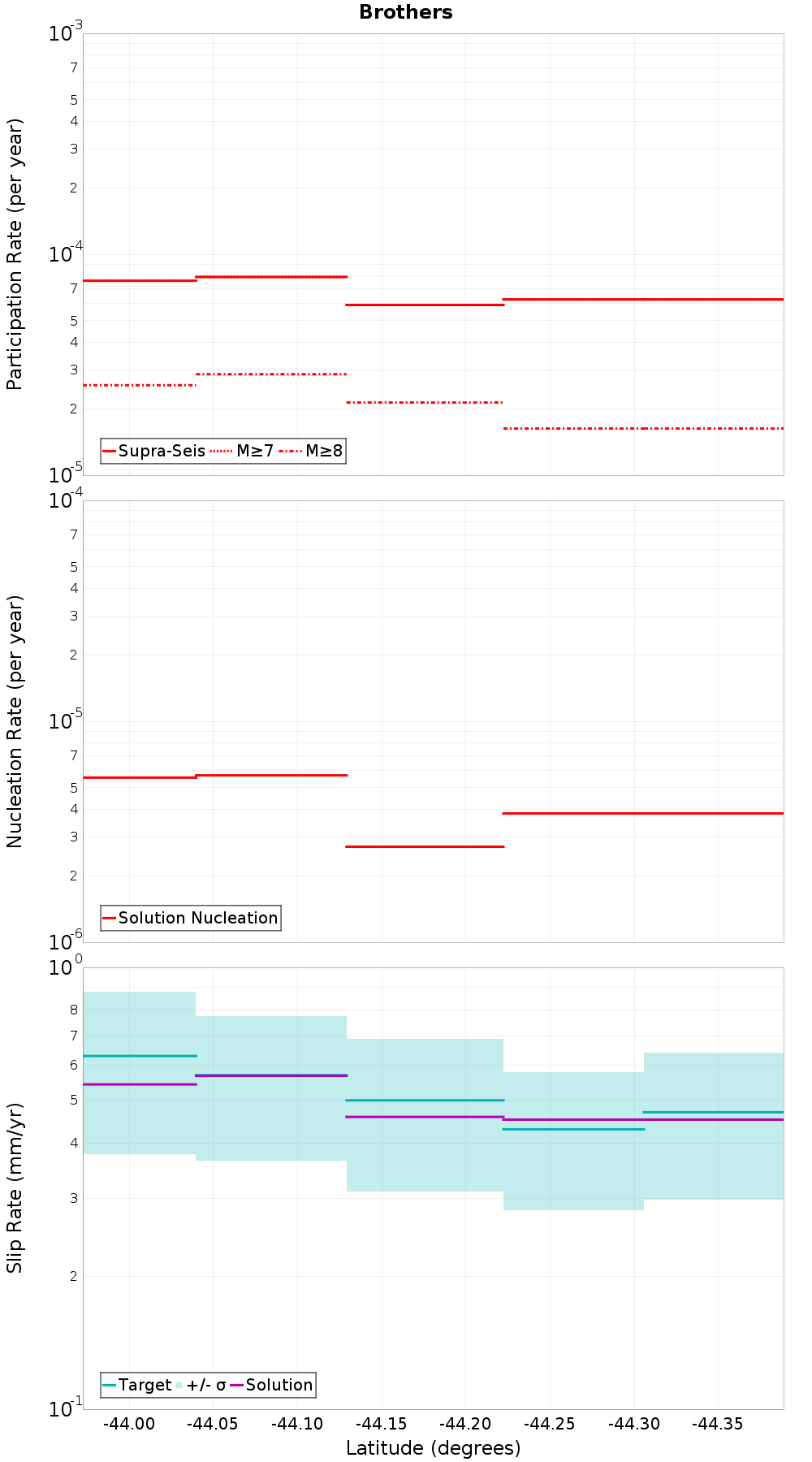

Along-Strike Values
Moment-Rates and b-Values

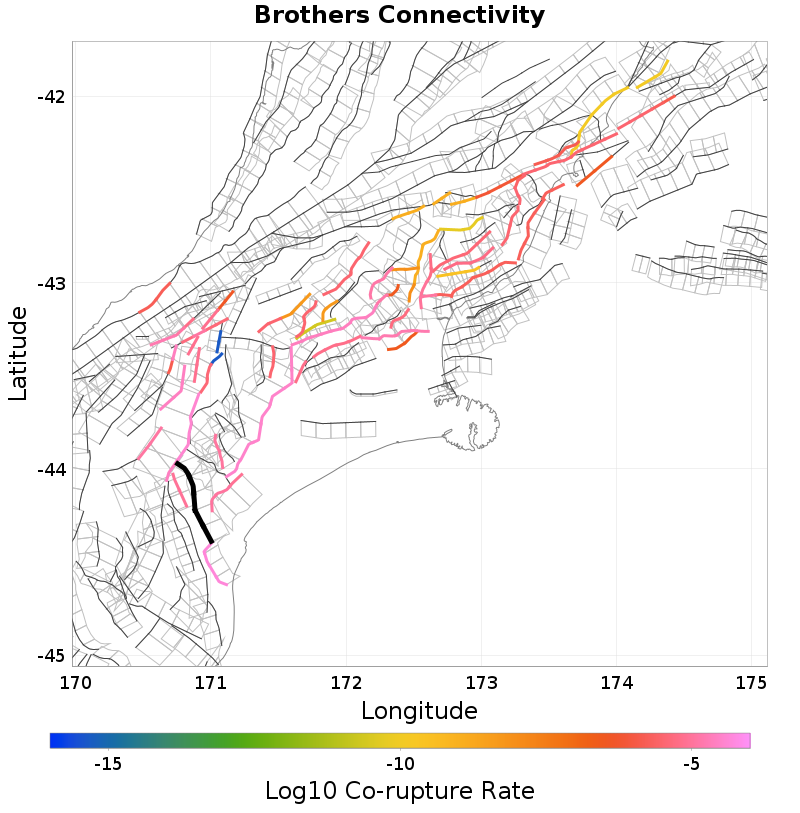

Connectivity
 |  |
|---|
Nearby Sections
Catherine, 0.12 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuMGZHdmNG | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 4 |
| Co-rupture Rate | 1.0565037E-5 |
Maungati, 0.21 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuMGZHdmNG | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 520 |
| Co-rupture Rate | 4.4877303E-5 |
Sugarloaf, 0.22 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuMGZHdmNG | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 18 |
| Co-rupture Rate | 0.0 |
Hutt Peel, 0.36 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuMGZHdmNG | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,541 |
| Co-rupture Rate | 3.2159354E-5 |
Fox Peak, 1.31 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuMGZHdmNG | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,509 |
| Co-rupture Rate | 3.620558E-5 |
Edith, 2.5 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuMGZHdmNG | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Rapuwai, 3.77 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuMGZHdmNG | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 172 |
| Co-rupture Rate | 1.0409838E-5 |
Albury, 4.78 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuMGZHdmNG | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 270 |
| Co-rupture Rate | 8.671725E-6 |
Ben McLeod, 5.41 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuMGZHdmNG | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 90 |
| Co-rupture Rate | 0.0 |
Coal Creek, 6.03 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuMGZHdmNG | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Irishman Creek, 7.17 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuMGZHdmNG | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 134 |
| Co-rupture Rate | 1.1183327E-5 |
Hunters, 7.39 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuMGZHdmNG | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 26 |
| Co-rupture Rate | 0.0 |
Opawa, 8.81 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuMGZHdmNG | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 5 |
| Co-rupture Rate | 0.0 |
Chamberlain, 12.7 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuMGZHdmNG | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
