Otaraia Details

Property	Value
Rupture Count	5,459
Ruptures Above Sect Min Mag	5,456
Ruptures w/ Nonzero Rates	120
Magnitude Range	[6.79, 8.57]
Length Range	[17, 864] km
Total Rate	3.3791296E-4 /yr
Multi-Fault Rate	3.1764782E-4 /yr (94.00%)
Directly-Connected Faults	7
All Co-Rupturing Faults	157

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

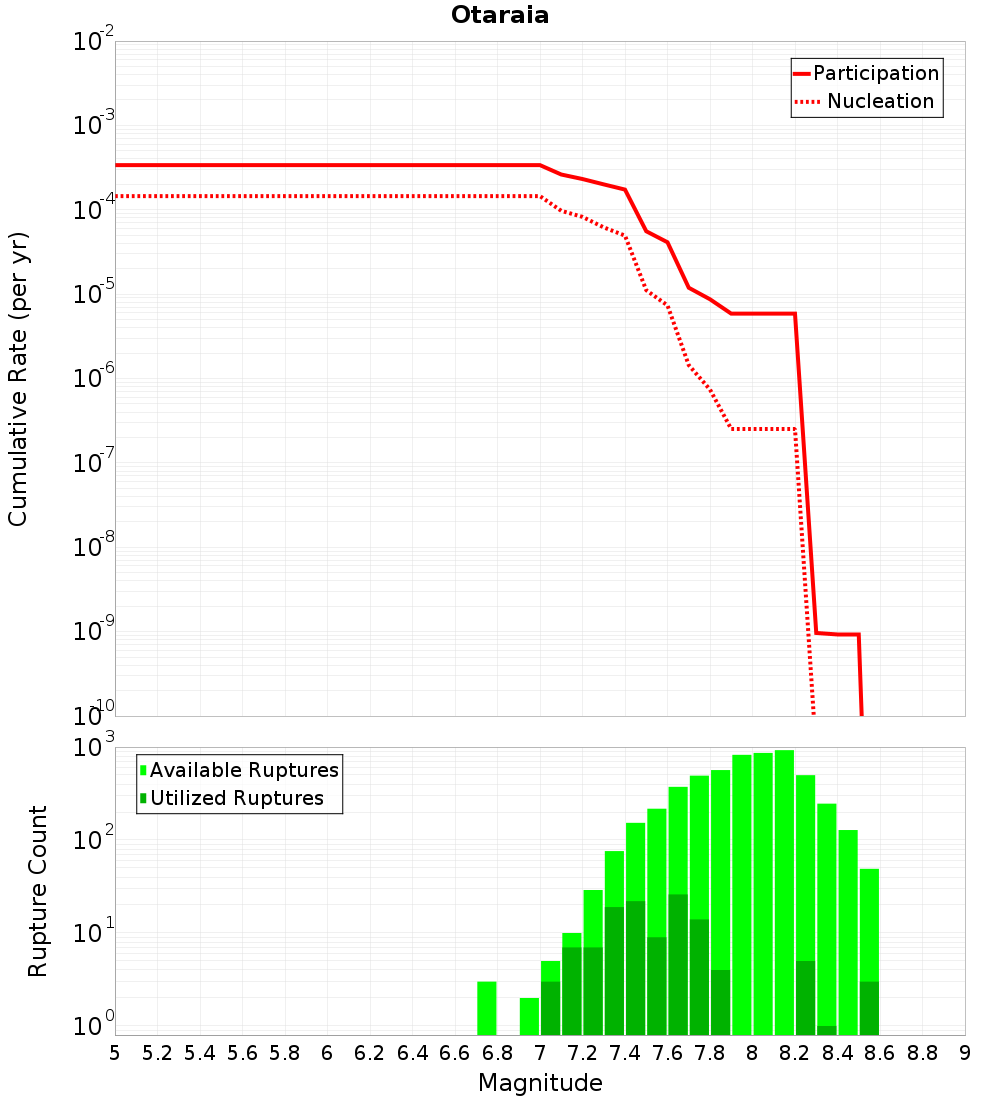

Magnitude-Frequency Distribution

Incremental	Cumulative

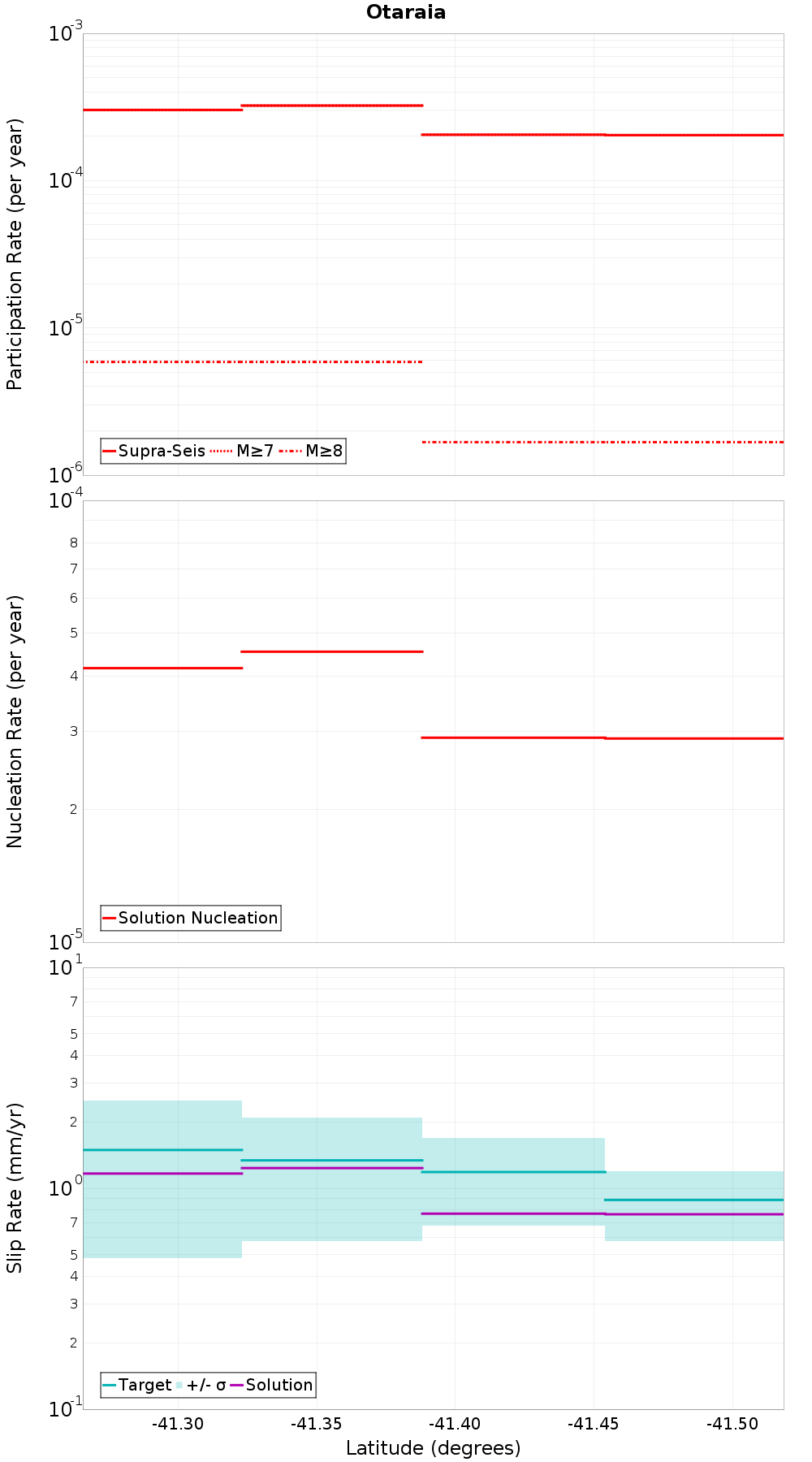

Along-Strike Values

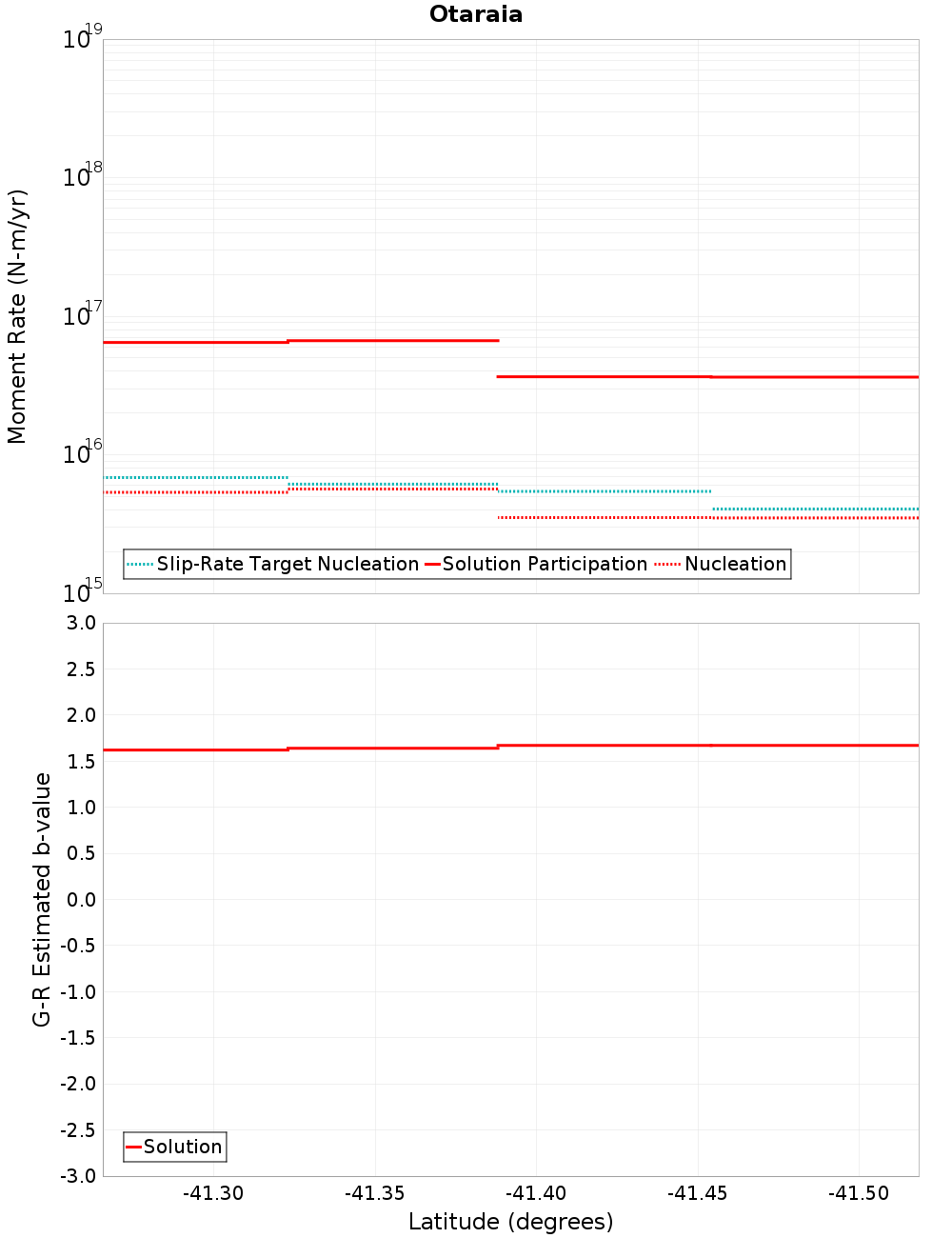

Moment-Rates and b-Values

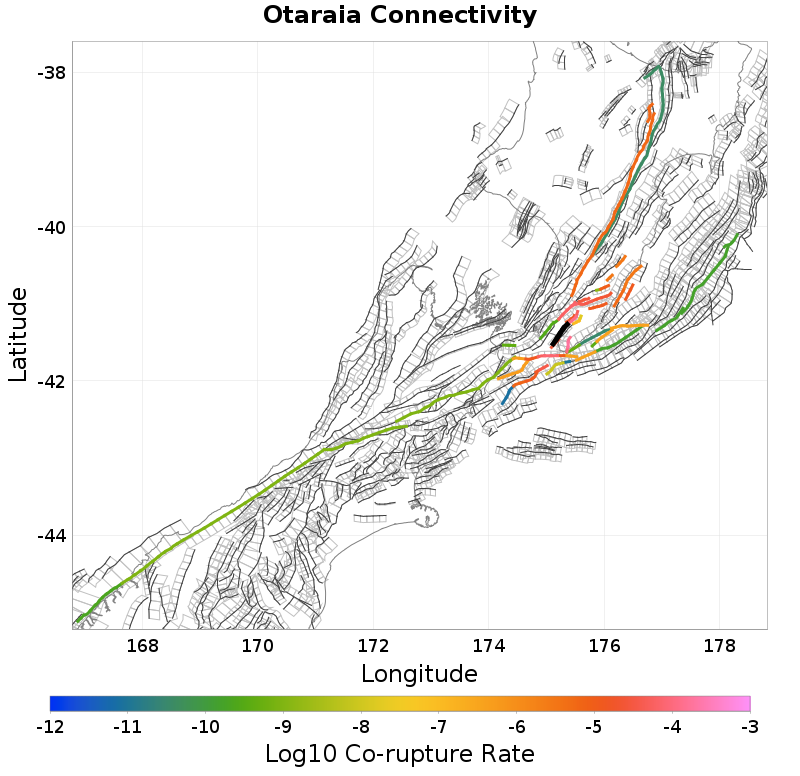

Connectivity

Nearby Sections

Fault Section
Ngapotiki, 0.19 km away
Dry River - Huangarua: 1, 0.38 km away
Palliser - Kaiwhata, 1.71 km away
Martinborough, 1.89 km away
Bidwill, 3.57 km away
BooBoo, 5.89 km away
Dry River - Huangarua: 2, 7.53 km away
Opouawe - Uruti, 7.92 km away
Wharekauhau, 12.78 km away
Dry River - Huangarua: 3, 13.51 km away
Wairarapa: 2, 13.88 km away

Ngapotiki, 0.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuMGZHdmNG
Connected?	true
Directly Connected?	true
Co-rupture Count	365
Co-rupture Rate	1.8494937E-4

Dry River - Huangarua: 1, 0.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuMGZHdmNG
Connected?	true
Directly Connected?	true
Co-rupture Count	309
Co-rupture Rate	2.5778183E-5

Palliser - Kaiwhata, 1.71 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuMGZHdmNG
Connected?	true
Directly Connected?	true
Co-rupture Count	104
Co-rupture Rate	4.4243142E-10

Martinborough, 1.89 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuMGZHdmNG
Connected?	true
Directly Connected?	true
Co-rupture Count	2,229
Co-rupture Rate	1.11807974E-4

Bidwill, 3.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuMGZHdmNG
Connected?	true
Directly Connected?	true
Co-rupture Count	1,448
Co-rupture Rate	1.5812133E-5

BooBoo, 5.89 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuMGZHdmNG
Connected?	true
Directly Connected?	true
Co-rupture Count	2,416
Co-rupture Rate	8.280957E-5

Dry River - Huangarua: 2, 7.53 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuMGZHdmNG
Connected?	true
Directly Connected?	false
Co-rupture Count	23
Co-rupture Rate	1.0790791E-7

Opouawe - Uruti, 7.92 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuMGZHdmNG
Connected?	true
Directly Connected?	true
Co-rupture Count	2,477
Co-rupture Rate	3.868968E-7

Wharekauhau, 12.78 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuMGZHdmNG
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Dry River - Huangarua: 3, 13.51 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuMGZHdmNG
Connected?	true
Directly Connected?	false
Co-rupture Count	30
Co-rupture Rate	1.7197664E-8

Wairarapa: 2, 13.88 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuMGZHdmNG
Connected?	true
Directly Connected?	false
Co-rupture Count	197
Co-rupture Rate	5.7783738E-5
