Te Rapa 2 Details

PropertyValue
Rupture Count52,630
Ruptures Above Sect Min Mag52,620
Ruptures w/ Nonzero Rates46
Magnitude Range[6.59, 8.66]
Length Range[13, 1,076] km
Total Rate1.2368138E-4 /yr
Multi-Fault Rate1.2368138E-4 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults197

Table Of Contents

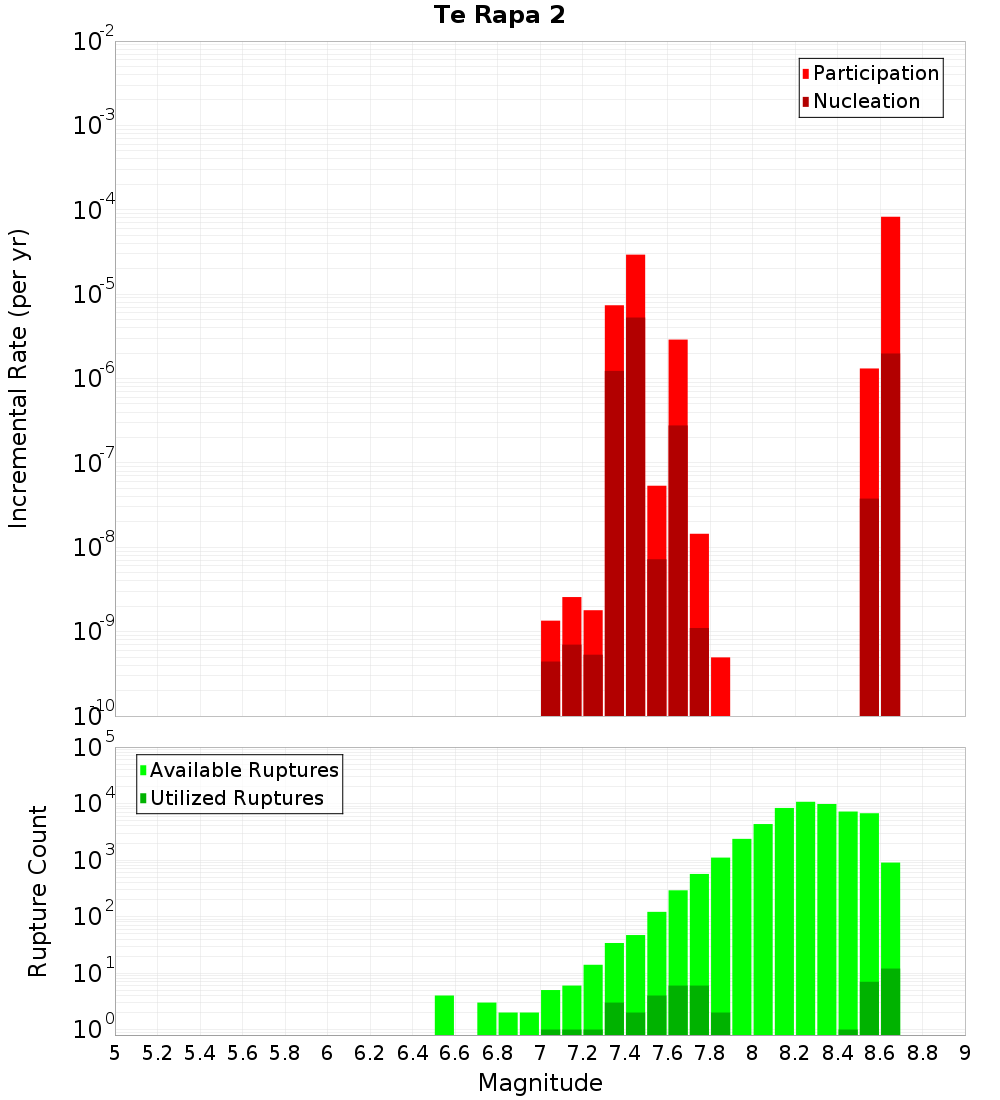

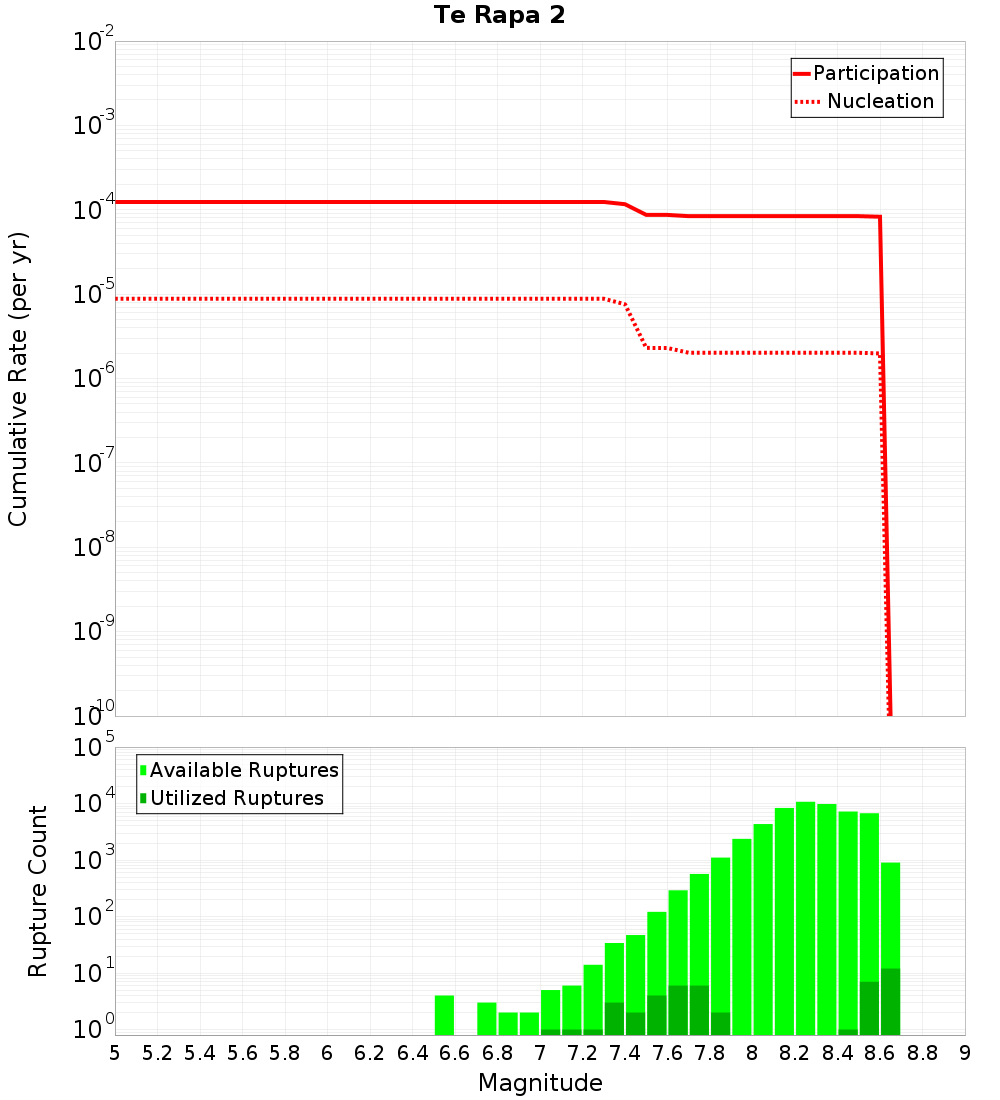

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

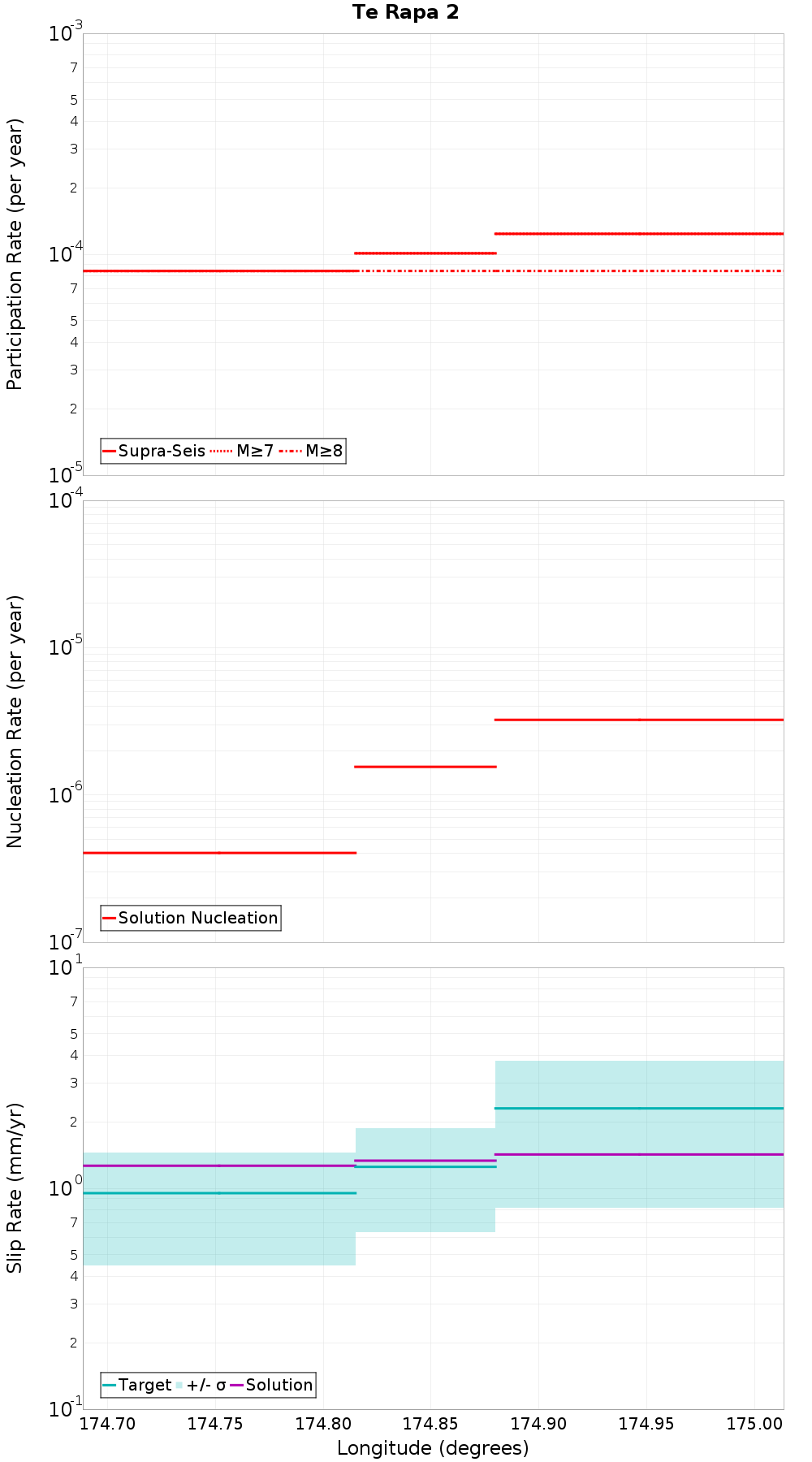

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Te Rapa 1, 0 km away
Upper Slope, 0.18 km away
Opouawe - Uruti, 0.25 km away
Campbell Bank, 2.03 km away
Kekerengu Bank, 4.95 km away
Pahaua, 10.36 km away
Pahaua SE2, 10.91 km away
Chancet, 11.11 km away
Pahaua SE1, 11.33 km away
BooBoo, 13.57 km away
Hope: Te Rapa, 14.01 km away

Te Rapa 1, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuMGZHdmNG
Connected?true
Directly Connected?true
Co-rupture Count50,202
Co-rupture Rate8.394978E-5

Upper Slope, 0.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuMGZHdmNG
Connected?true
Directly Connected?true
Co-rupture Count1,028
Co-rupture Rate0.0

Opouawe - Uruti, 0.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuMGZHdmNG
Connected?true
Directly Connected?true
Co-rupture Count38,874
Co-rupture Rate8.3948864E-5

Campbell Bank, 2.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuMGZHdmNG
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kekerengu Bank, 4.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuMGZHdmNG
Connected?true
Directly Connected?true
Co-rupture Count57
Co-rupture Rate0.0

Pahaua, 10.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuMGZHdmNG
Connected?true
Directly Connected?false
Co-rupture Count243
Co-rupture Rate0.0

Pahaua SE2, 10.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuMGZHdmNG
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Chancet, 11.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuMGZHdmNG
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate0.0

Pahaua SE1, 11.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuMGZHdmNG
Connected?true
Directly Connected?false
Co-rupture Count24
Co-rupture Rate0.0

BooBoo, 13.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuMGZHdmNG
Connected?true
Directly Connected?true
Co-rupture Count4,352
Co-rupture Rate3.9732524E-5

Hope: Te Rapa, 14.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MTYuMGZHdmNG
Connected?true
Directly Connected?false
Co-rupture Count50,286
Co-rupture Rate8.394751E-5
