Hope: Hamner SW Details

PropertyValue
Rupture Count533
Ruptures Above Sect Min Mag532
Ruptures w/ Nonzero Rates14
Magnitude Range[6.70, 8.57]
Length Range[11, 738] km
Total Rate1.17720105E-4 /yr
Multi-Fault Rate1.17720105E-4 /yr (100.00%)
Directly-Connected Faults2
All Co-Rupturing Faults111

Table Of Contents

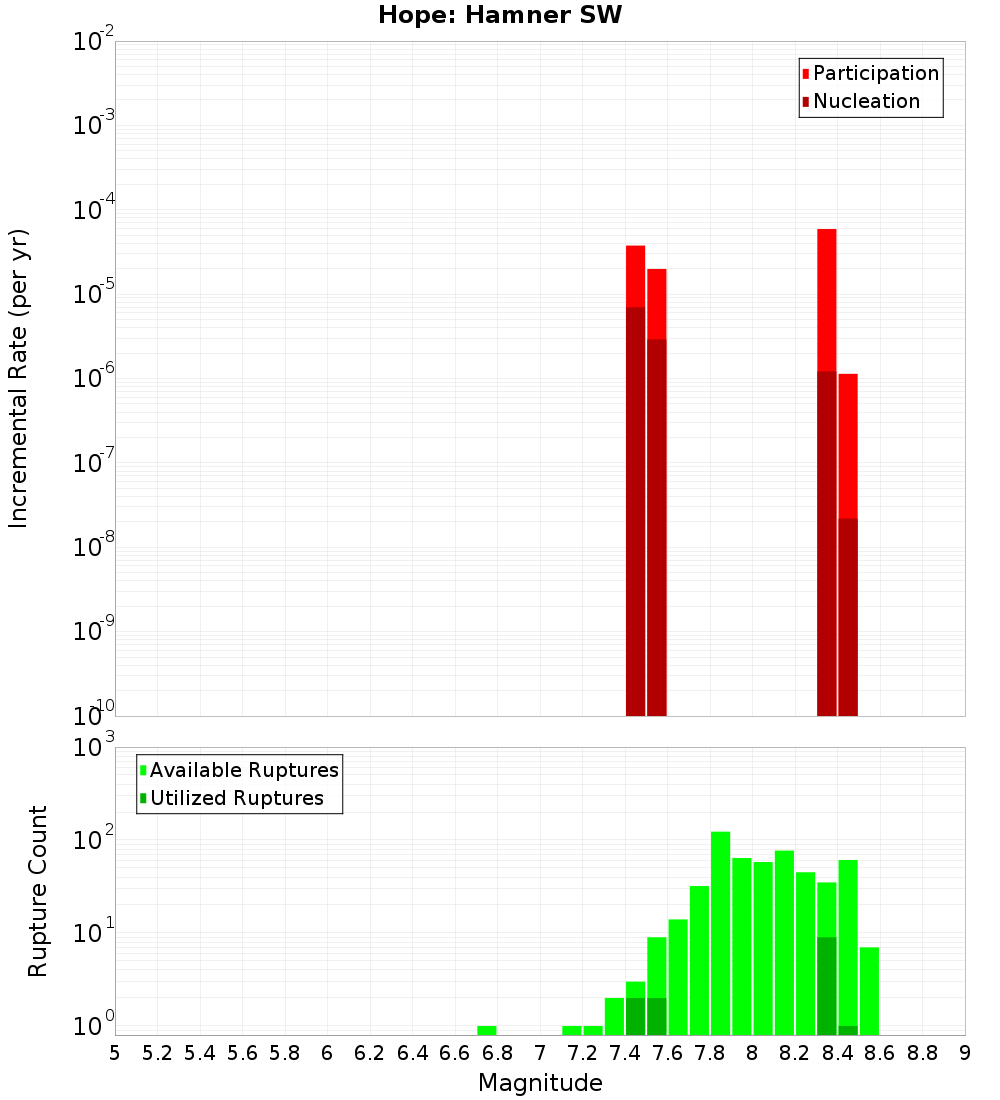

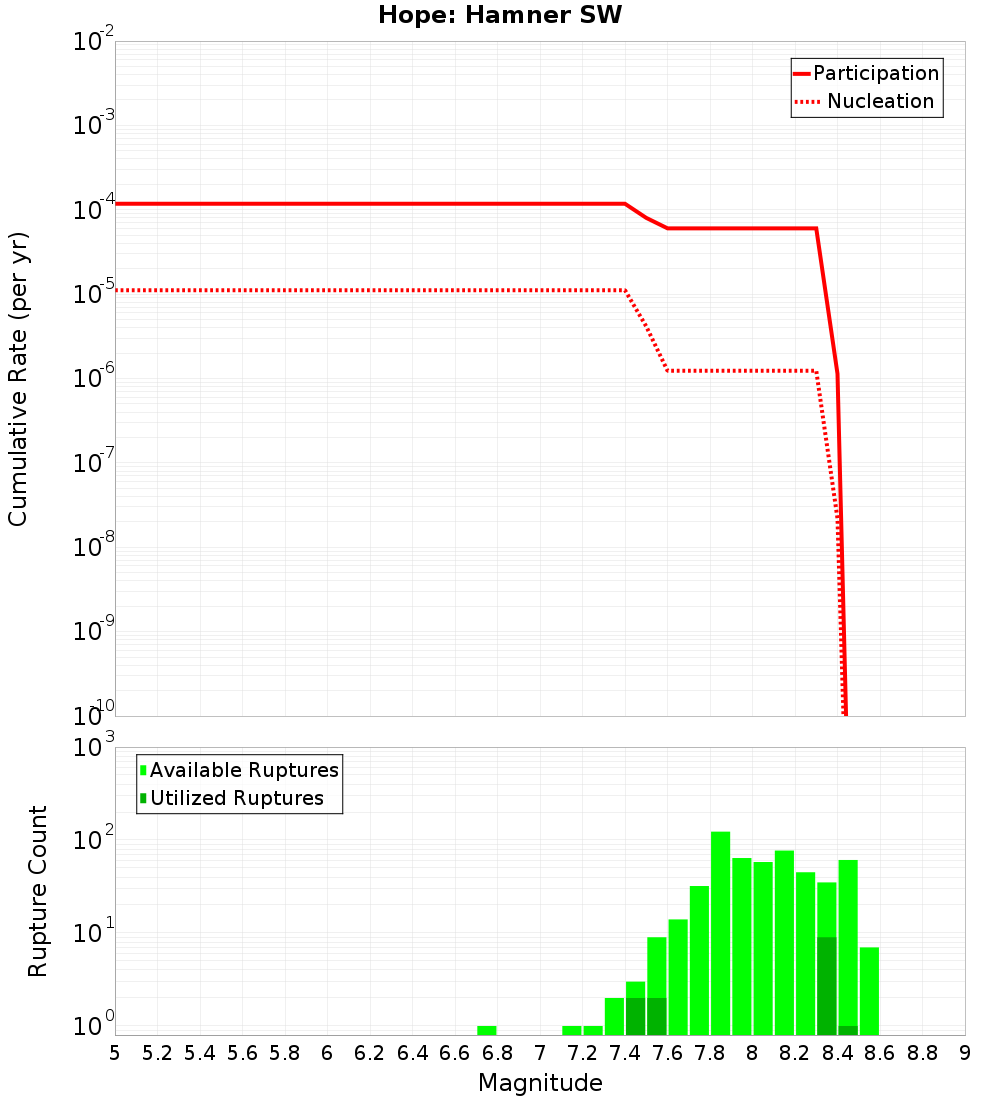

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

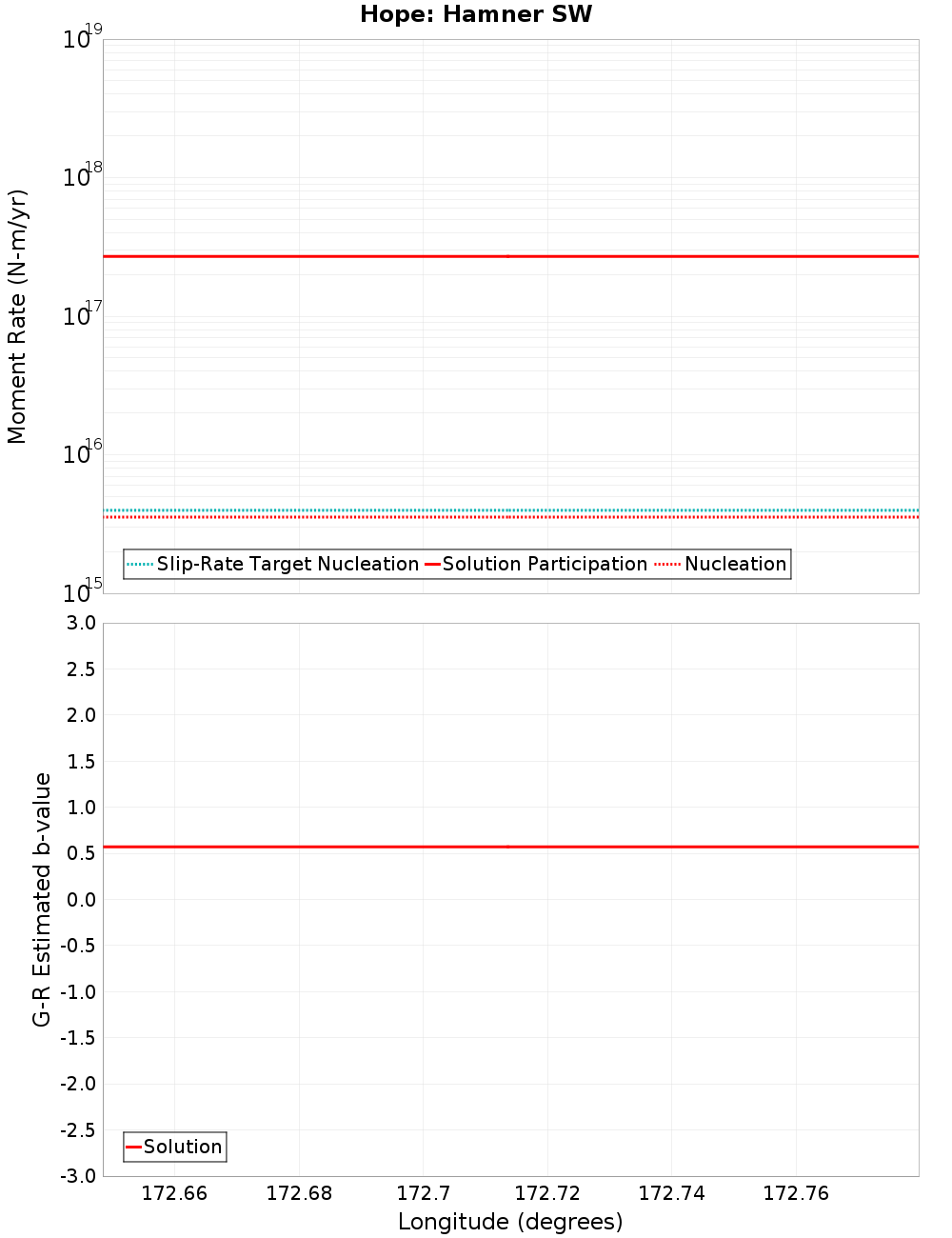

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Hope: Hamner SE, 0 km away
Hope: Kakapo-2-Hamner, 0 km away
Hope: Hanmer NW, 0 km away
Hanmer, 1.7 km away
Kakapo, 6.21 km away
Hope: Hope River, 6.25 km away
Hurunui Peak, 7.69 km away
Esk North, 9.8 km away
The Humps, 10.45 km away
Mt Culverden, 14.21 km away
Clarence: Southwest, 14.55 km away
Balmoral, 14.75 km away

Hope: Hamner SE, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MjMuMEN6bzdV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hope: Kakapo-2-Hamner, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MjMuMEN6bzdV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hope: Hanmer NW, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MjMuMEN6bzdV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hanmer, 1.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MjMuMEN6bzdV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kakapo, 6.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MjMuMEN6bzdV
Connected?true
Directly Connected?true
Co-rupture Count489
Co-rupture Rate6.022678E-5

Hope: Hope River, 6.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MjMuMEN6bzdV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hurunui Peak, 7.69 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MjMuMEN6bzdV
Connected?true
Directly Connected?false
Co-rupture Count78
Co-rupture Rate0.0

Esk North, 9.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MjMuMEN6bzdV
Connected?true
Directly Connected?false
Co-rupture Count63
Co-rupture Rate0.0

The Humps, 10.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MjMuMEN6bzdV
Connected?true
Directly Connected?true
Co-rupture Count43
Co-rupture Rate5.7493326E-5

Mt Culverden, 14.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MjMuMEN6bzdV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Clarence: Southwest, 14.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MjMuMEN6bzdV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Balmoral, 14.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MjMuMEN6bzdV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
