Bennett Knoll Details

Property	Value
Rupture Count	3,447
Ruptures Above Sect Min Mag	3,443
Ruptures w/ Nonzero Rates	101
Magnitude Range	[7.05, 8.29]
Length Range	[25, 453] km
Total Rate	2.1647409E-4 /yr
Multi-Fault Rate	2.1588273E-4 /yr (99.73%)
Directly-Connected Faults	6
All Co-Rupturing Faults	38

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

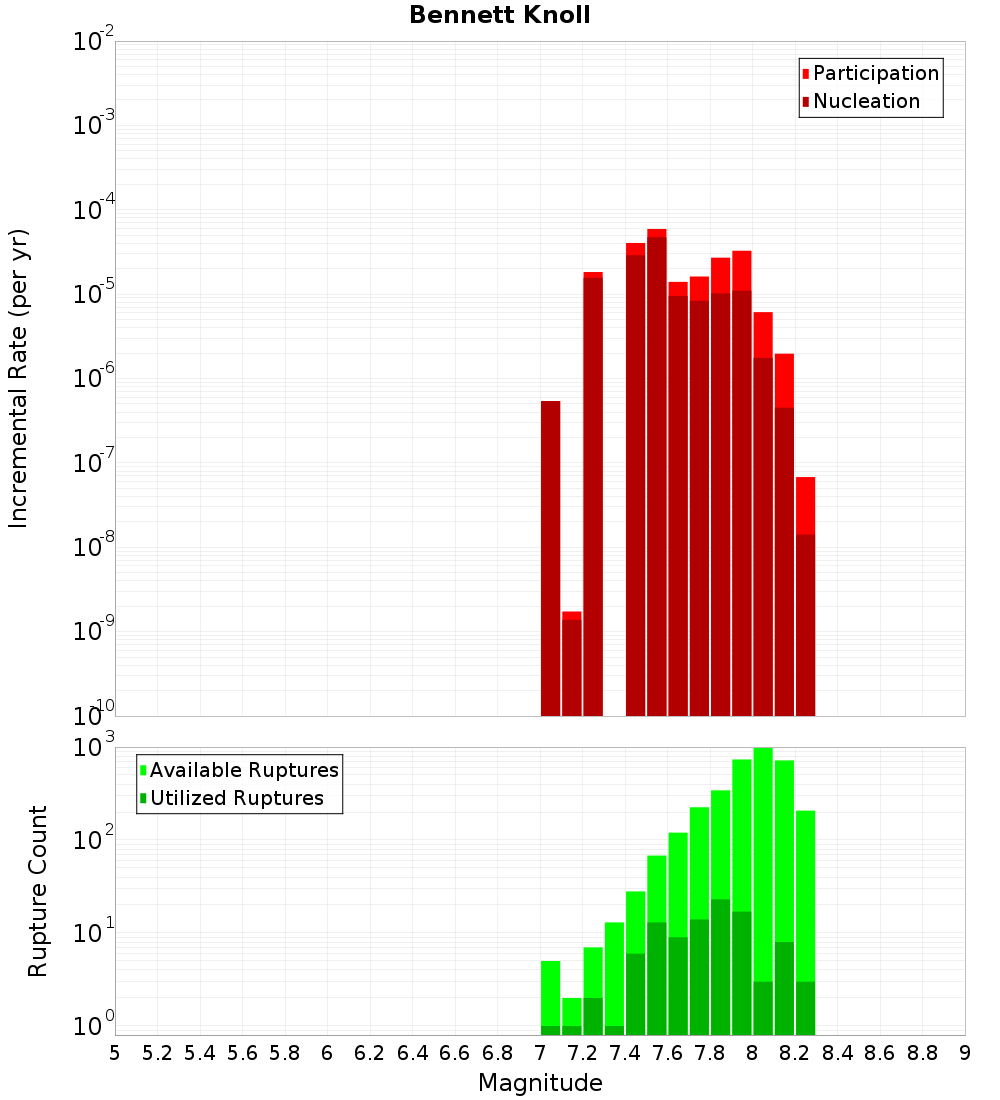

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

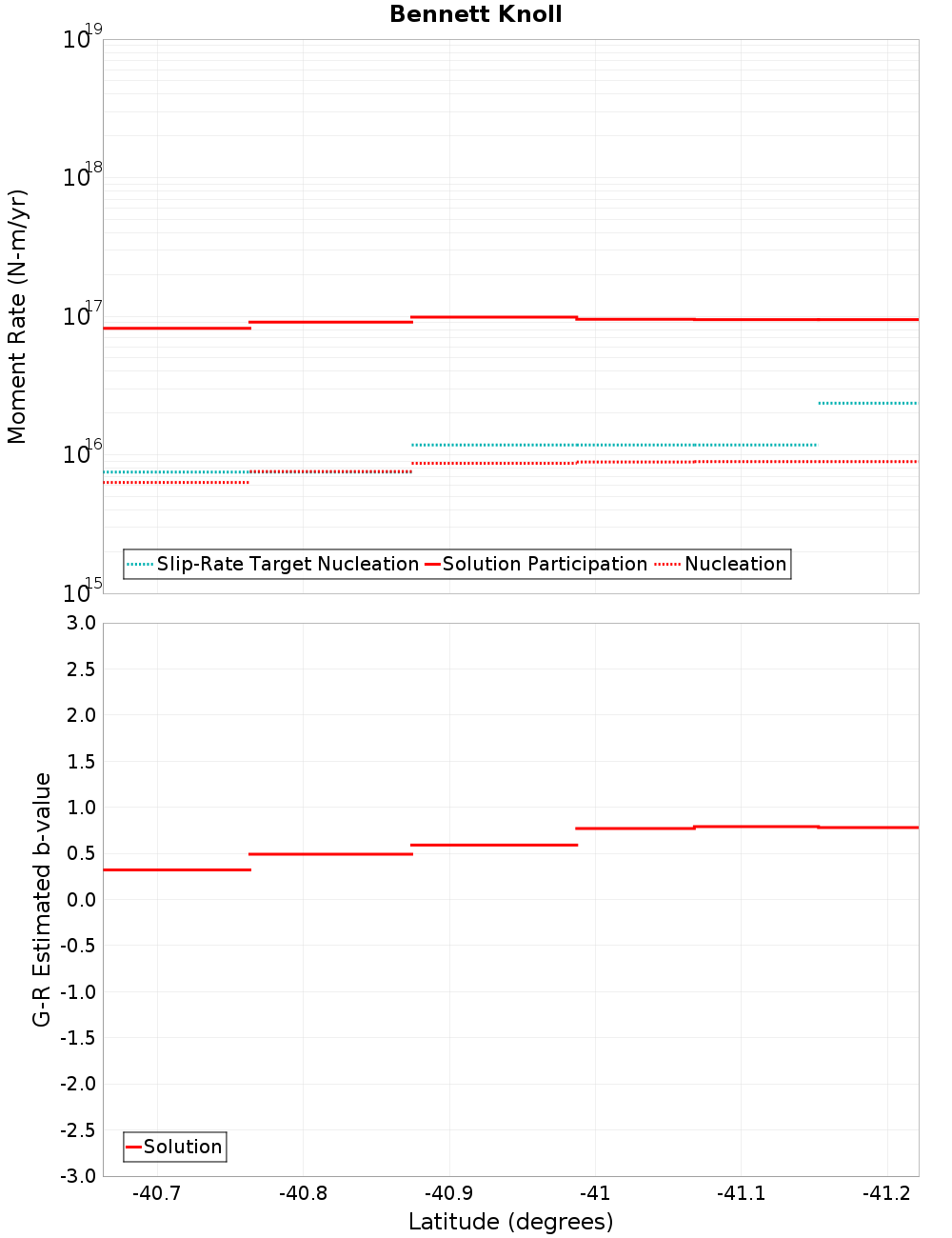

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
BKSmt-West, 0.21 km away
F16 - Central, 1.07 km away
F17 - South, 5.32 km away
Akitio Ridge, 5.44 km away
F17 - Central, 6.66 km away
BKSmt-North, 7.43 km away
F16 - South, 8.18 km away
Akitio Trough West, 11.25 km away
Aorangi Ridge, 12.35 km away
F14 - North, 12.97 km away

BKSmt-West, 0.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MjYuMHV1czVF
Connected?	true
Directly Connected?	true
Co-rupture Count	713
Co-rupture Rate	1.3741115E-4

F16 - Central, 1.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MjYuMHV1czVF
Connected?	true
Directly Connected?	true
Co-rupture Count	238
Co-rupture Rate	9.276871E-6

F17 - South, 5.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MjYuMHV1czVF
Connected?	true
Directly Connected?	true
Co-rupture Count	1,094
Co-rupture Rate	7.042658E-5

Akitio Ridge, 5.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MjYuMHV1czVF
Connected?	true
Directly Connected?	true
Co-rupture Count	2,716
Co-rupture Rate	2.2331076E-5

F17 - Central, 6.66 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MjYuMHV1czVF
Connected?	true
Directly Connected?	true
Co-rupture Count	660
Co-rupture Rate	1.3597934E-5

BKSmt-North, 7.43 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MjYuMHV1czVF
Connected?	true
Directly Connected?	false
Co-rupture Count	101
Co-rupture Rate	2.032013E-6

F16 - South, 8.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MjYuMHV1czVF
Connected?	true
Directly Connected?	false
Co-rupture Count	155
Co-rupture Rate	8.038705E-6

Akitio Trough West, 11.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MjYuMHV1czVF
Connected?	true
Directly Connected?	true
Co-rupture Count	531
Co-rupture Rate	2.9191398E-5

Aorangi Ridge, 12.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MjYuMHV1czVF
Connected?	true
Directly Connected?	false
Co-rupture Count	645
Co-rupture Rate	4.9387098E-5

F14 - North, 12.97 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MjYuMHV1czVF
Connected?	true
Directly Connected?	false
Co-rupture Count	75
Co-rupture Rate	1.642677E-6
