Motatapu Details

Property	Value
Rupture Count	19,658
Ruptures Above Sect Min Mag	19,656
Ruptures w/ Nonzero Rates	113
Magnitude Range	[6.93, 8.56]
Length Range	[19, 856] km
Total Rate	1.0268472E-4 /yr
Multi-Fault Rate	1.02684695E-4 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	113

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

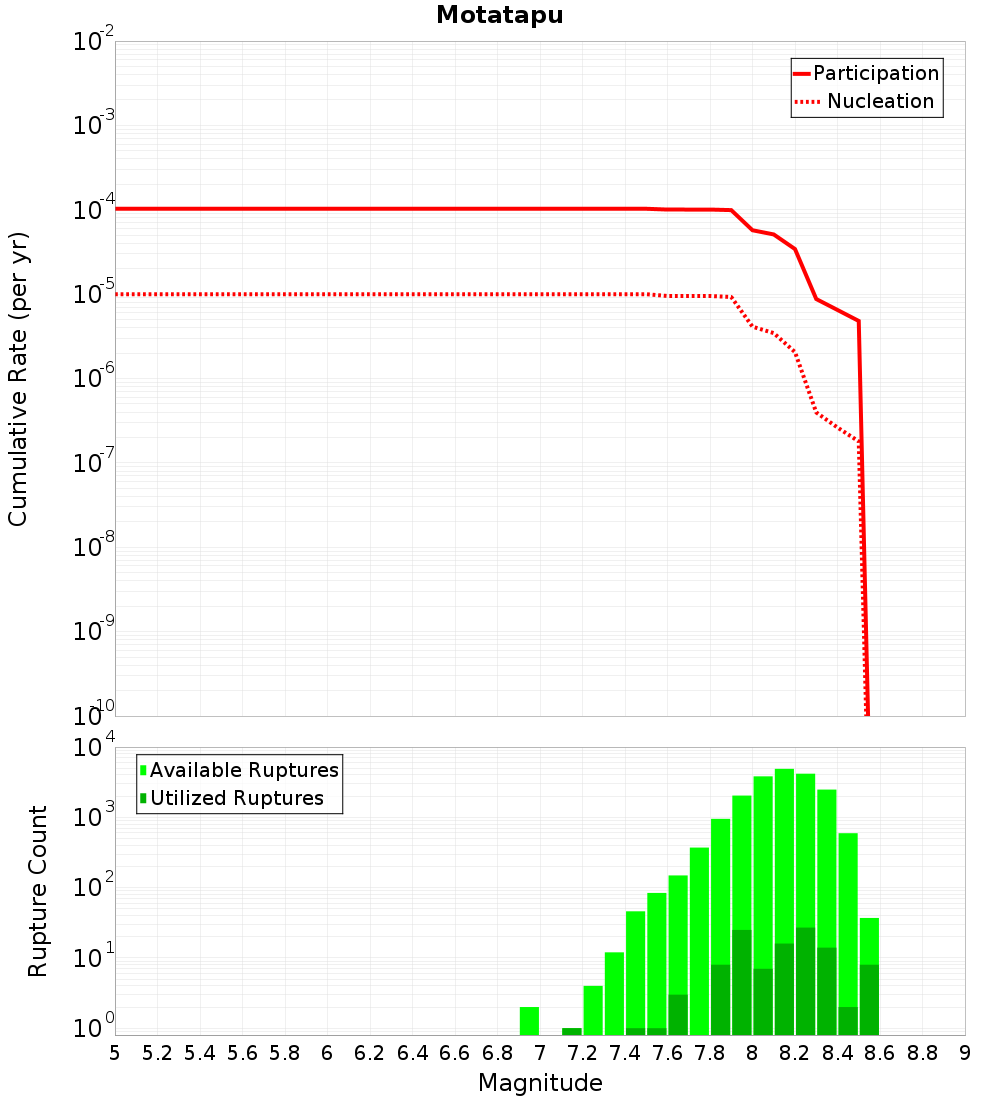

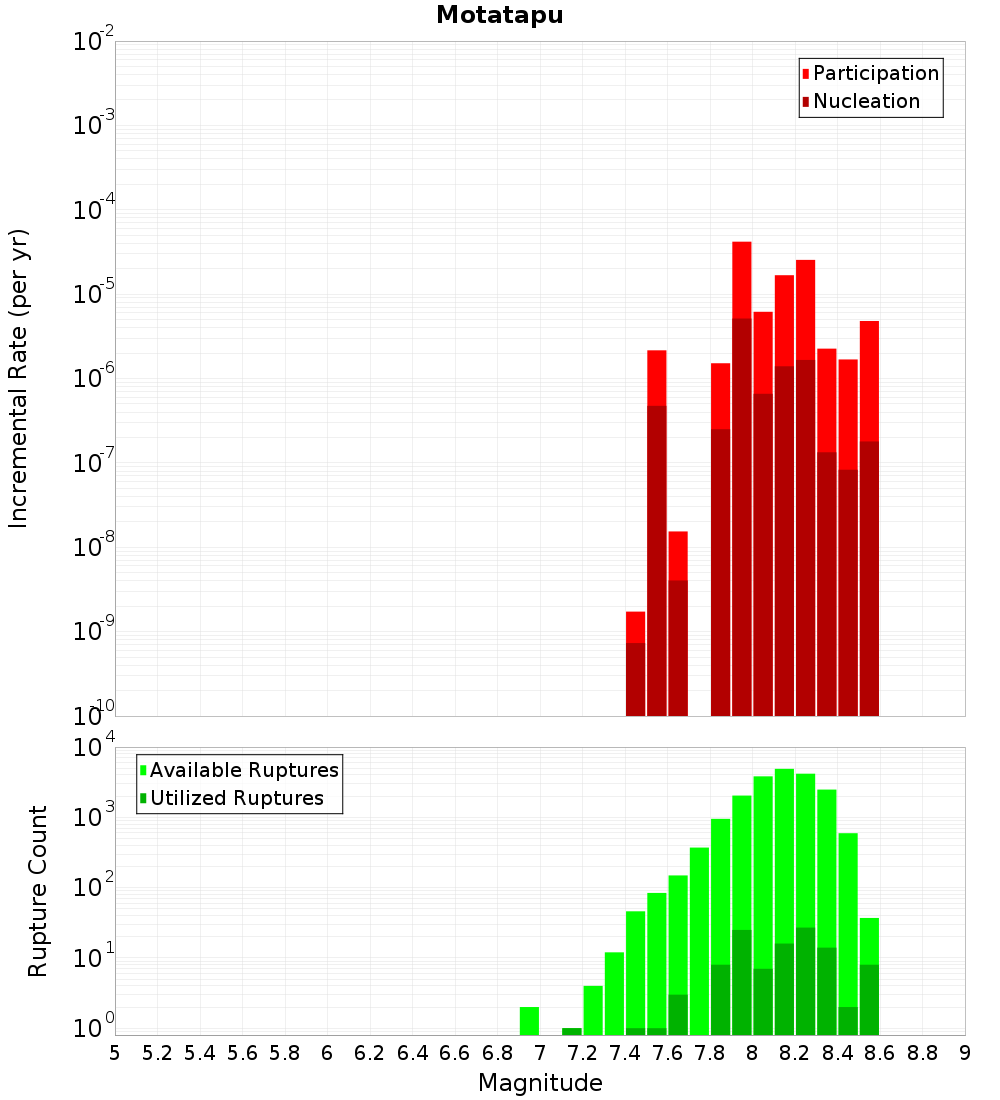

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

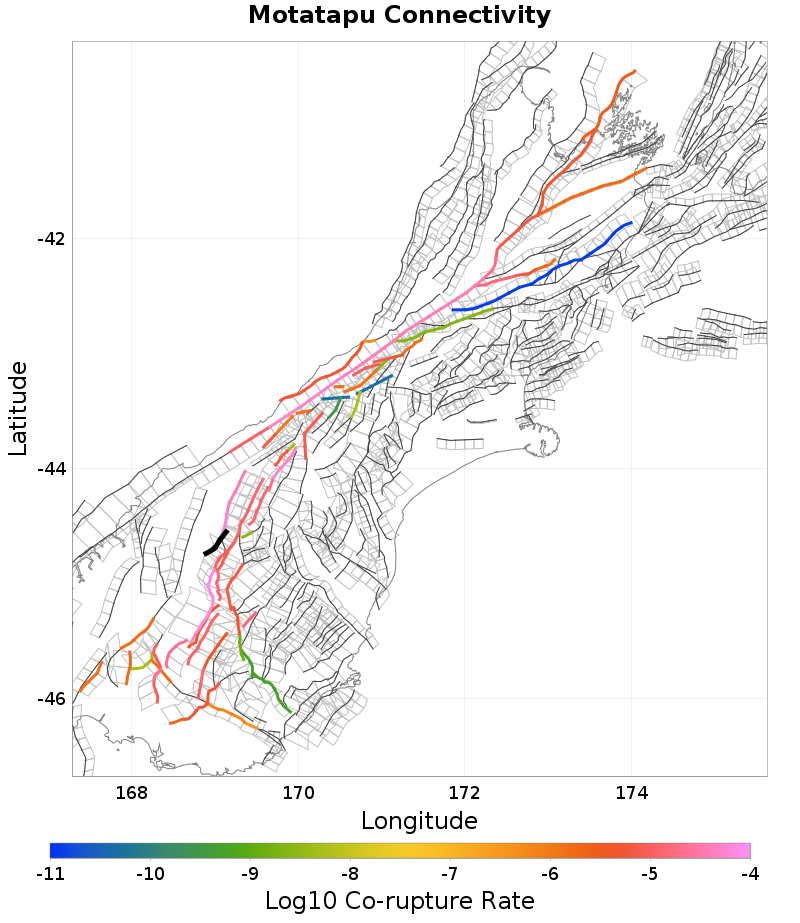

Connectivity

Nearby Sections

Fault Section
NW Cardrona North, 0.1 km away
Pisa, 0.11 km away
Cardrona - Hawea, 0.19 km away
Wanaka, 1.15 km away
NW Cardrona South, 6.08 km away
Hunter Valley, 6.8 km away
Timaru Creek, 7.21 km away
Cluden, 8.82 km away
Paddys Ridge, 10.99 km away
Roaring Meg, 11.22 km away
Grandview, 11.67 km away

NW Cardrona North, 0.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MjYuMHV1czVF
Connected?	true
Directly Connected?	true
Co-rupture Count	933
Co-rupture Rate	9.508386E-6

Pisa, 0.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MjYuMHV1czVF
Connected?	true
Directly Connected?	true
Co-rupture Count	11,309
Co-rupture Rate	6.9018297E-6

Cardrona - Hawea, 0.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MjYuMHV1czVF
Connected?	true
Directly Connected?	true
Co-rupture Count	3,600
Co-rupture Rate	1.9690075E-5

Wanaka, 1.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MjYuMHV1czVF
Connected?	true
Directly Connected?	true
Co-rupture Count	16,028
Co-rupture Rate	5.548704E-5

NW Cardrona South, 6.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MjYuMHV1czVF
Connected?	true
Directly Connected?	true
Co-rupture Count	5,484
Co-rupture Rate	7.048591E-5

Hunter Valley, 6.8 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MjYuMHV1czVF
Connected?	true
Directly Connected?	false
Co-rupture Count	2,016
Co-rupture Rate	1.5583819E-5

Timaru Creek, 7.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MjYuMHV1czVF
Connected?	true
Directly Connected?	false
Co-rupture Count	1,538
Co-rupture Rate	2.518323E-9

Cluden, 8.82 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MjYuMHV1czVF
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Paddys Ridge, 10.99 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MjYuMHV1czVF
Connected?	true
Directly Connected?	false
Co-rupture Count	62
Co-rupture Rate	8.47359E-6

Roaring Meg, 11.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MjYuMHV1czVF
Connected?	true
Directly Connected?	false
Co-rupture Count	138
Co-rupture Rate	1.4078351E-5

Grandview, 11.67 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MjYuMHV1czVF
Connected?	true
Directly Connected?	false
Co-rupture Count	1
Co-rupture Rate	0.0
