Wharekauhau Details

PropertyValue
Rupture Count18,401
Ruptures Above Sect Min Mag18,397
Ruptures w/ Nonzero Rates94
Magnitude Range[6.91, 8.53]
Length Range[20, 960] km
Total Rate1.2164094E-4 /yr
Multi-Fault Rate1.2164094E-4 /yr (100.00%)
Directly-Connected Faults10
All Co-Rupturing Faults192

Table Of Contents

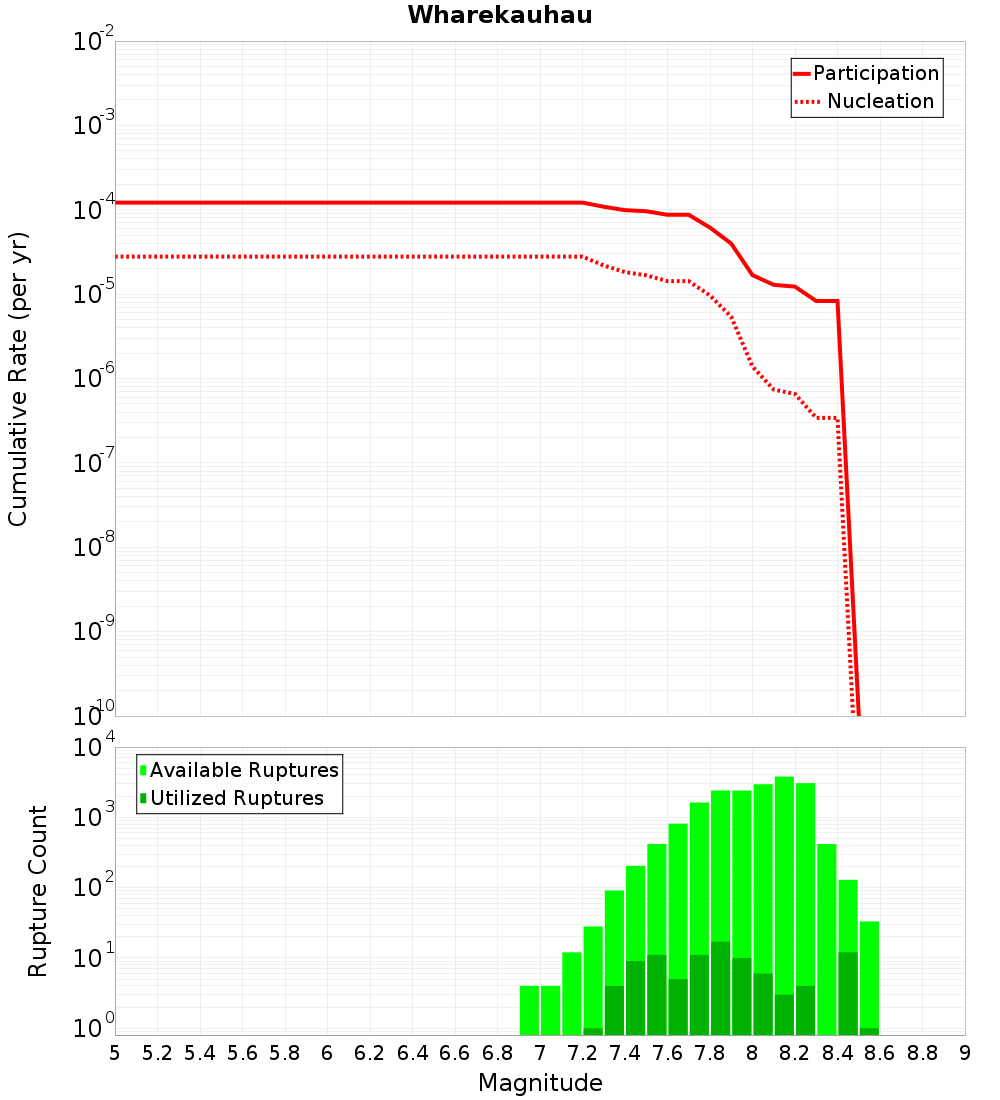

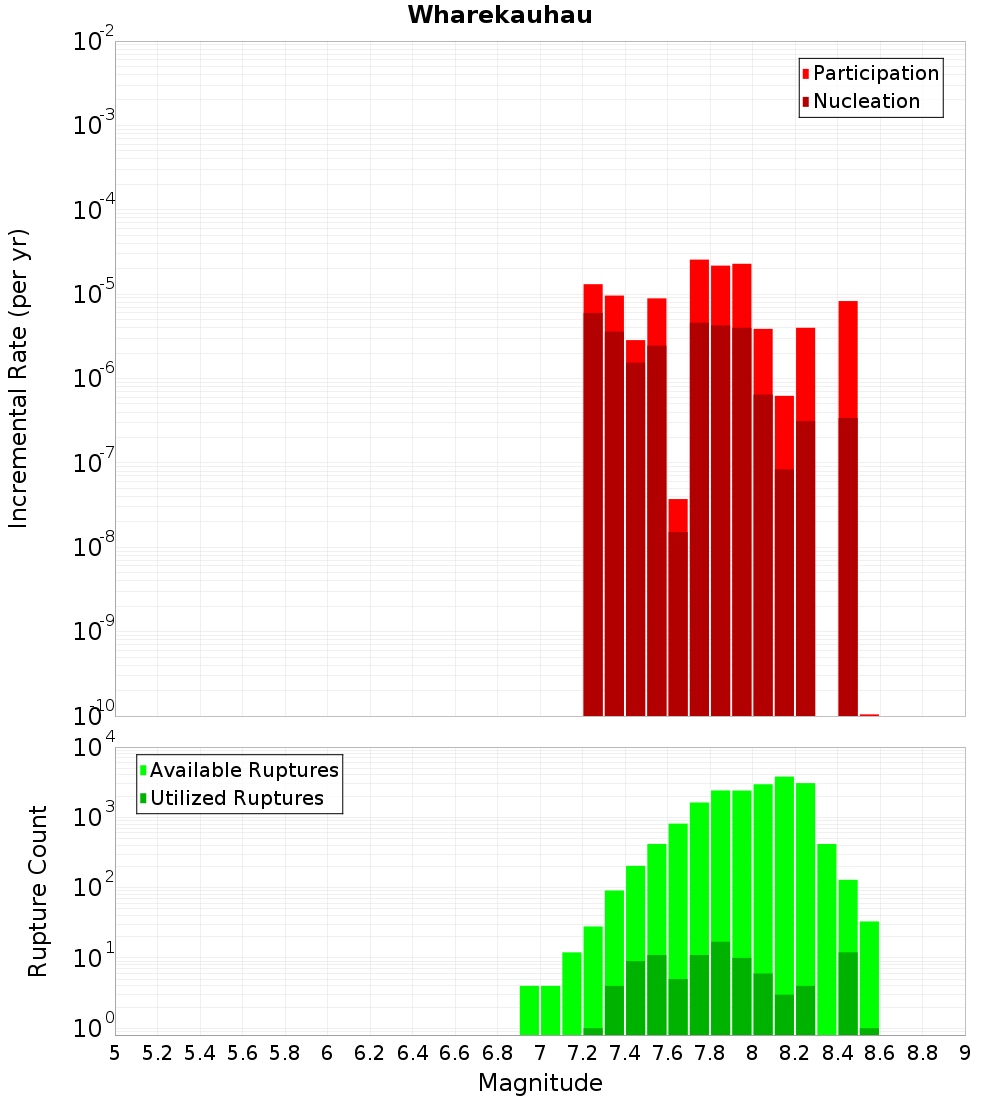

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

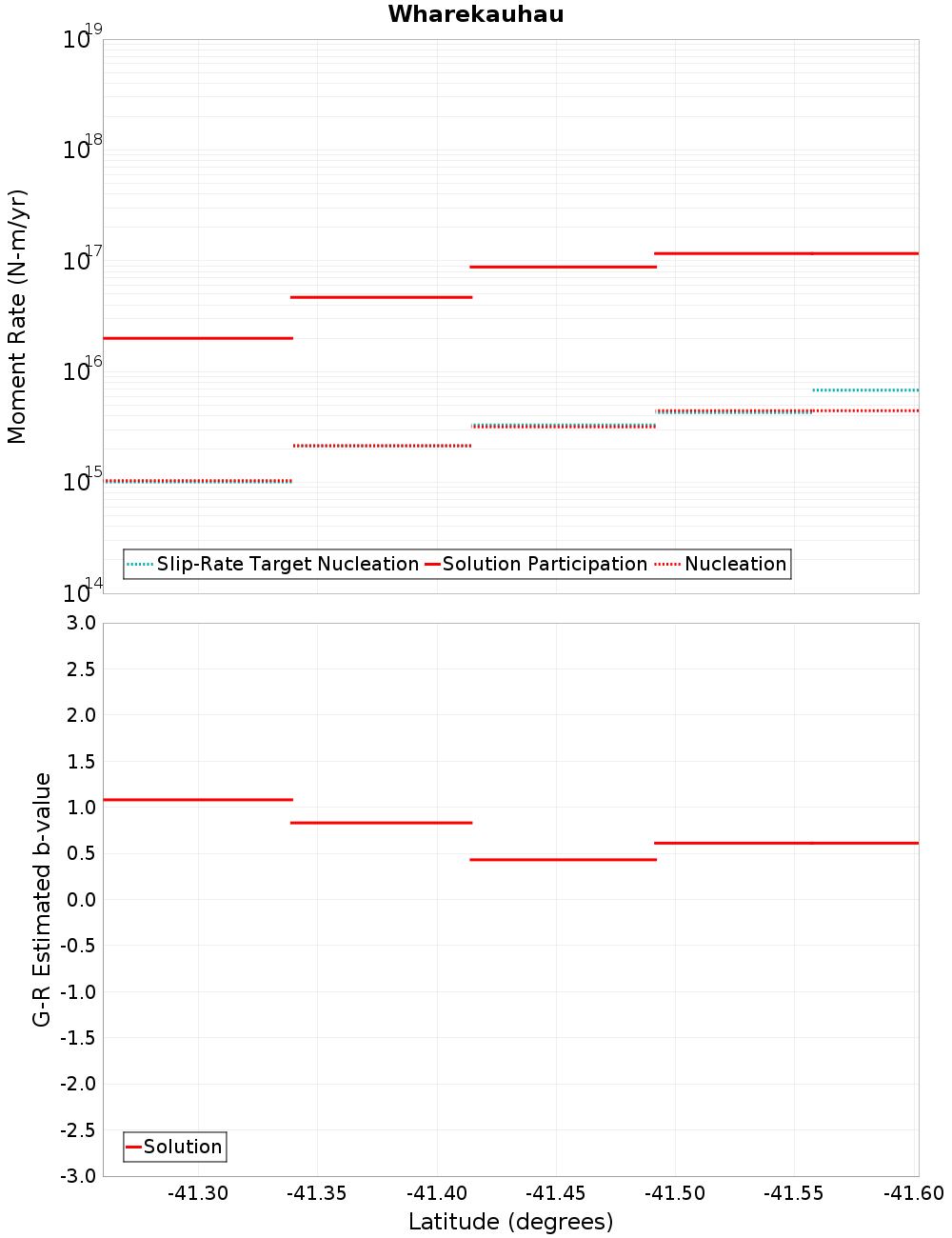

Moment-Rates and b-Values

(top)

Along-strike plot

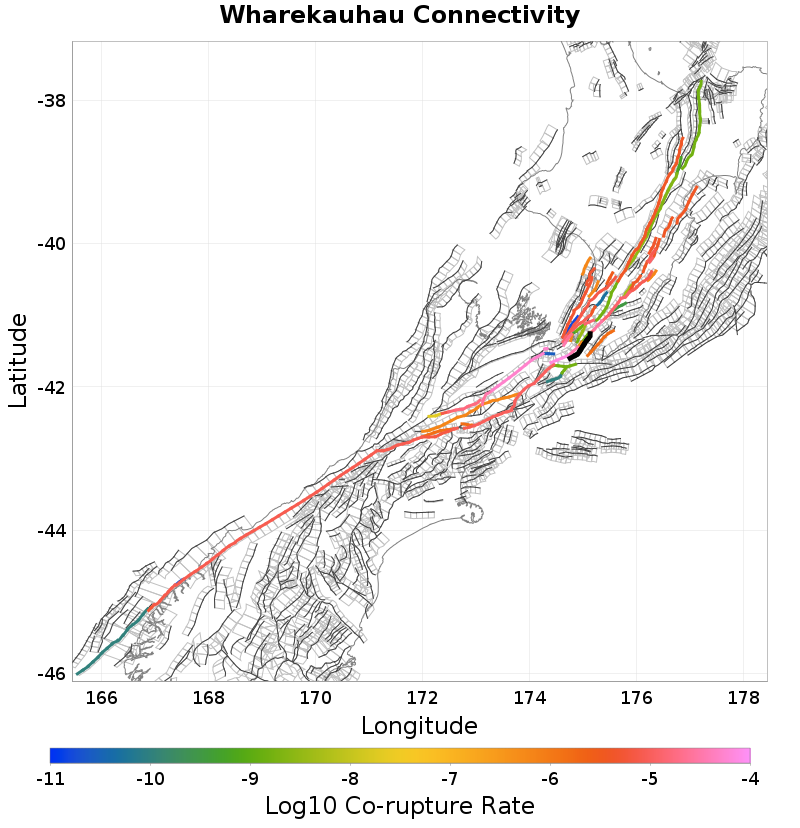

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Wairarapa: 1, 0.2 km awayWellington Hutt Valley: 2, 8.32 km away
Wellington Hutt Valley: 4, 0.21 km awayOhariu, 10 km away
Aotea - Evans Bay, 0.31 km awayBooBoo, 10.67 km away
Wairarapa: Needles, 0.4 km awayWellington Hutt Valley: 1, 11.16 km away
Wairarapa: 2, 1.34 km awayWairau 3, 11.59 km away
Whitemans Valley, 3.06 km awayOtaraia, 12.78 km away
Wellington Hutt Valley: 5, 3.98 km awayDry River - Huangarua: 1, 12.89 km away
Moonshine, 4.85 km awayPukerua - Shepherds Gully: 3, 13.68 km away
Akatarawa, 6.22 km awayCampbell Bank, 13.94 km away
Wellington Hutt Valley: 3, 7.34 km awayGibbs, 14.76 km away

Wairarapa: 1, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MjYuMHV1czVF
Connected?true
Directly Connected?true
Co-rupture Count4,396
Co-rupture Rate3.4013865E-5

Wellington Hutt Valley: 4, 0.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MjYuMHV1czVF
Connected?true
Directly Connected?true
Co-rupture Count710
Co-rupture Rate1.466209E-9

Aotea - Evans Bay, 0.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MjYuMHV1czVF
Connected?true
Directly Connected?true
Co-rupture Count146
Co-rupture Rate6.68751E-7

Wairarapa: Needles, 0.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MjYuMHV1czVF
Connected?true
Directly Connected?true
Co-rupture Count8,513
Co-rupture Rate7.0976435E-5

Wairarapa: 2, 1.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MjYuMHV1czVF
Connected?true
Directly Connected?true
Co-rupture Count7,533
Co-rupture Rate2.8779888E-5

Whitemans Valley, 3.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MjYuMHV1czVF
Connected?true
Directly Connected?true
Co-rupture Count1,211
Co-rupture Rate3.843972E-9

Wellington Hutt Valley: 5, 3.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MjYuMHV1czVF
Connected?true
Directly Connected?true
Co-rupture Count7,313
Co-rupture Rate1.3114531E-5

Moonshine, 4.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MjYuMHV1czVF
Connected?true
Directly Connected?true
Co-rupture Count963
Co-rupture Rate8.950977E-6

Akatarawa, 6.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MjYuMHV1czVF
Connected?true
Directly Connected?false
Co-rupture Count28
Co-rupture Rate0.0

Wellington Hutt Valley: 3, 7.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MjYuMHV1czVF
Connected?true
Directly Connected?false
Co-rupture Count61
Co-rupture Rate2.1397389E-5

Wellington Hutt Valley: 2, 8.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MjYuMHV1czVF
Connected?true
Directly Connected?false
Co-rupture Count382
Co-rupture Rate3.3408713E-5

Ohariu, 10 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MjYuMHV1czVF
Connected?true
Directly Connected?false
Co-rupture Count840
Co-rupture Rate1.2679863E-5

BooBoo, 10.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MjYuMHV1czVF
Connected?true
Directly Connected?true
Co-rupture Count2,832
Co-rupture Rate1.6171812E-9

Wellington Hutt Valley: 1, 11.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MjYuMHV1czVF
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Wairau 3, 11.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MjYuMHV1czVF
Connected?true
Directly Connected?false
Co-rupture Count64
Co-rupture Rate0.0

Otaraia, 12.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MjYuMHV1czVF
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Dry River - Huangarua: 1, 12.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MjYuMHV1czVF
Connected?true
Directly Connected?true
Co-rupture Count80
Co-rupture Rate1.5121611E-6

Pukerua - Shepherds Gully: 3, 13.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MjYuMHV1czVF
Connected?true
Directly Connected?false
Co-rupture Count10
Co-rupture Rate1.5582672E-11

Campbell Bank, 13.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MjYuMHV1czVF
Connected?true
Directly Connected?false
Co-rupture Count131
Co-rupture Rate1.5902206E-9

Gibbs, 14.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MjYuMHV1czVF
Connected?true
Directly Connected?false
Co-rupture Count16
Co-rupture Rate0.0
