Dingle Details

PropertyValue
Rupture Count23,987
Ruptures Above Sect Min Mag23,986
Ruptures w/ Nonzero Rates251
Magnitude Range[7.16, 8.61]
Length Range[27, 776] km
Total Rate5.5314642E-5 /yr
Multi-Fault Rate5.5314642E-5 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults142

Table Of Contents

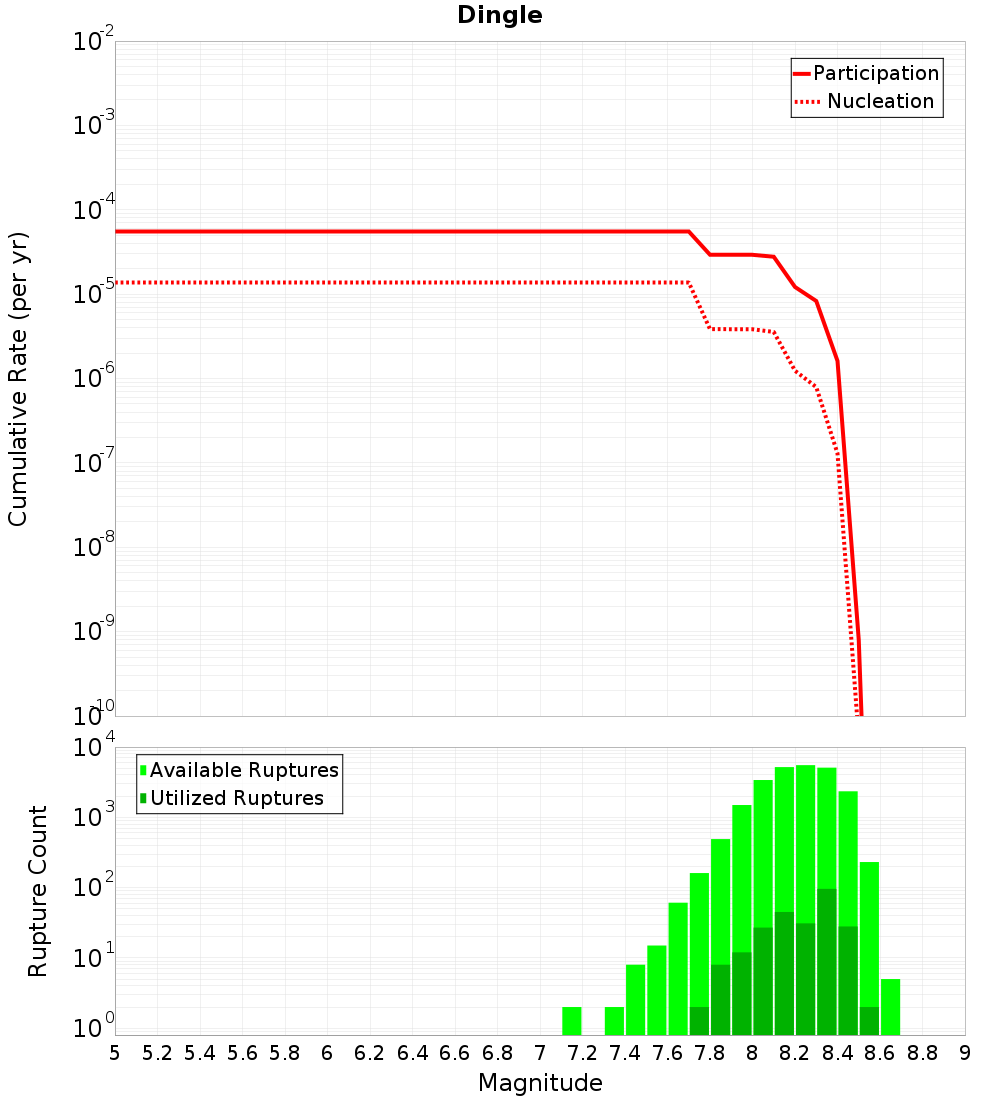

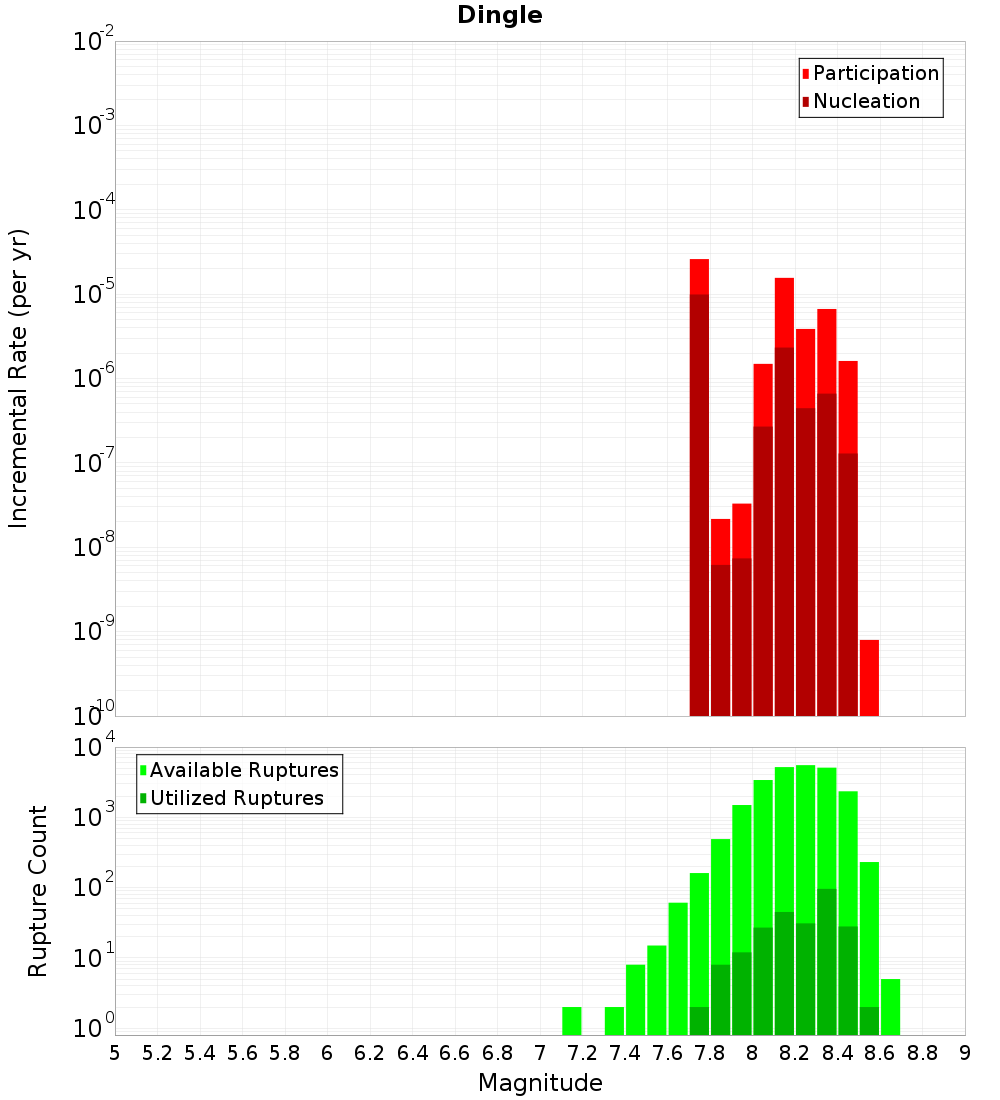

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

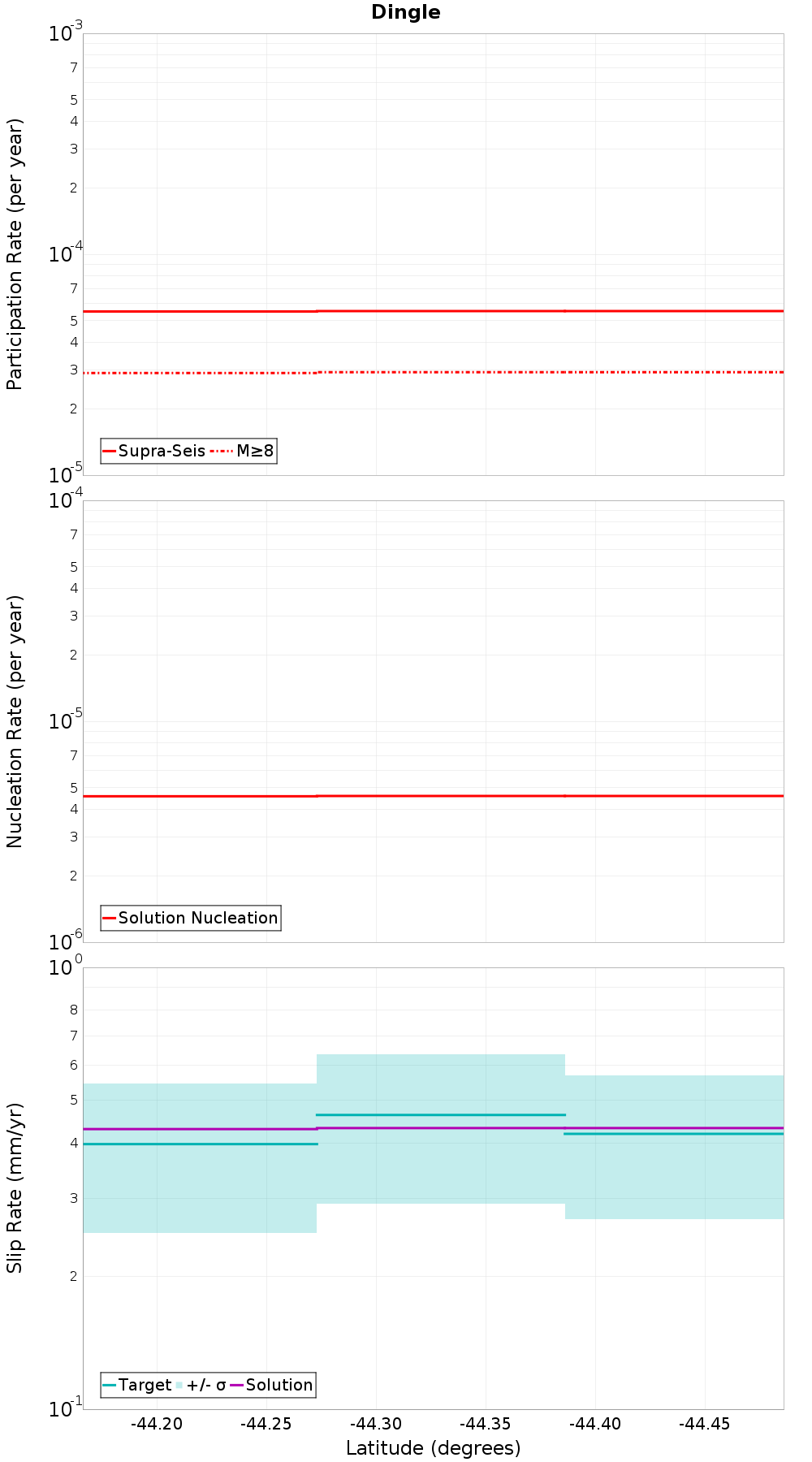

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Wanaka, 0.04 km away
Hopkins, 1.8 km away
Timaru Creek, 4.97 km away
Hunter Valley, 6.56 km away
Barrier Range, 7.44 km away
Dromedary, 7.84 km away
Grandview, 9.57 km away
Lindis River, 10.56 km away
Cardrona - Hawea, 11.84 km away

Wanaka, 0.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MzIuMDZXY2JN
Connected?true
Directly Connected?true
Co-rupture Count10,063
Co-rupture Rate7.398576E-6

Hopkins, 1.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MzIuMDZXY2JN
Connected?true
Directly Connected?true
Co-rupture Count23,128
Co-rupture Rate5.5068656E-5

Timaru Creek, 4.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MzIuMDZXY2JN
Connected?true
Directly Connected?true
Co-rupture Count10,431
Co-rupture Rate2.222645E-5

Hunter Valley, 6.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MzIuMDZXY2JN
Connected?true
Directly Connected?true
Co-rupture Count206
Co-rupture Rate0.0

Barrier Range, 7.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MzIuMDZXY2JN
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Dromedary, 7.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MzIuMDZXY2JN
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Grandview, 9.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MzIuMDZXY2JN
Connected?true
Directly Connected?false
Co-rupture Count4,166
Co-rupture Rate1.2644229E-7

Lindis River, 10.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MzIuMDZXY2JN
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Cardrona - Hawea, 11.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MzIuMDZXY2JN
Connected?true
Directly Connected?false
Co-rupture Count5,087
Co-rupture Rate6.7446337E-7
