Lachlan 3 Details

PropertyValue
Rupture Count682
Ruptures Above Sect Min Mag667
Ruptures w/ Nonzero Rates30
Magnitude Range[6.70, 7.96]
Length Range[15, 250] km
Total Rate2.4383698E-4 /yr
Multi-Fault Rate1.2363232E-4 /yr (50.70%)
Directly-Connected Faults5
All Co-Rupturing Faults15

Table Of Contents

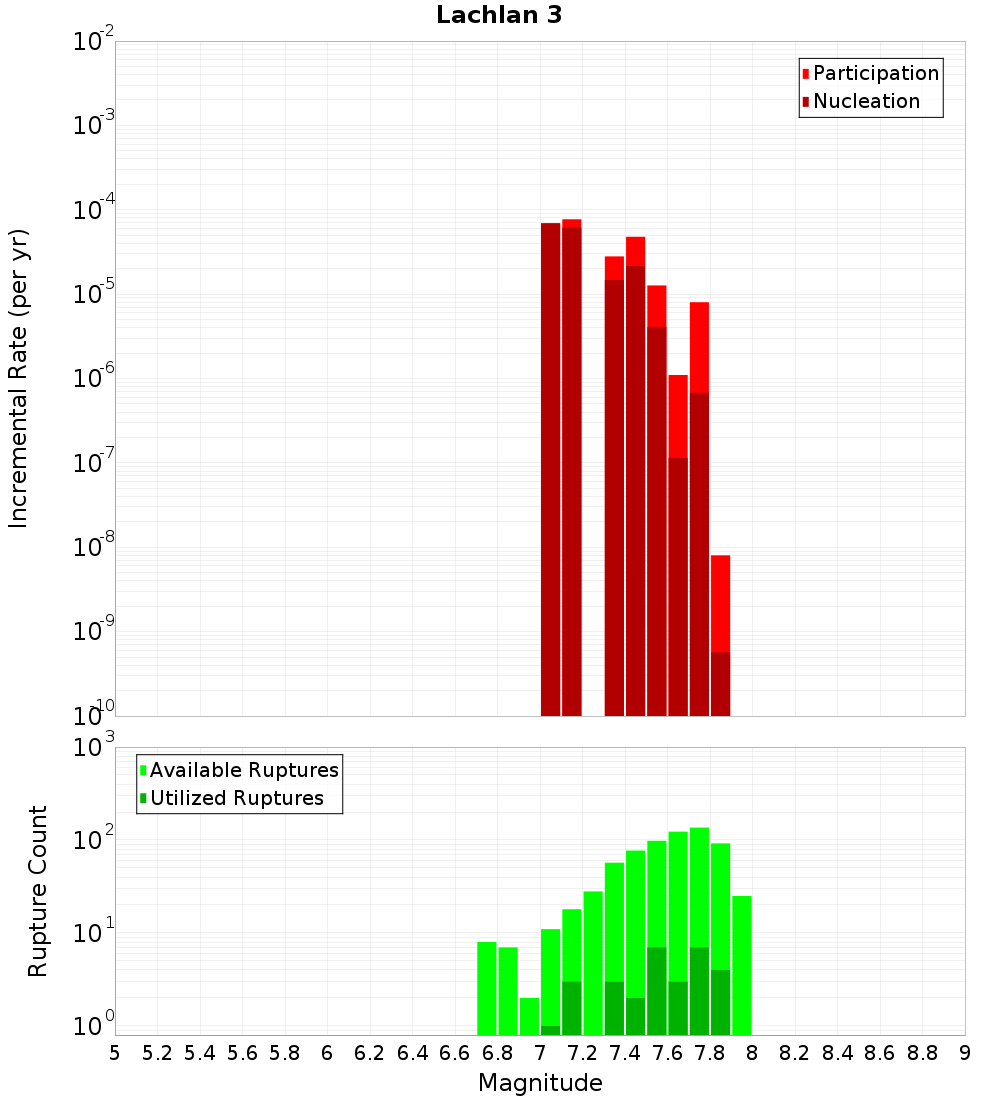

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

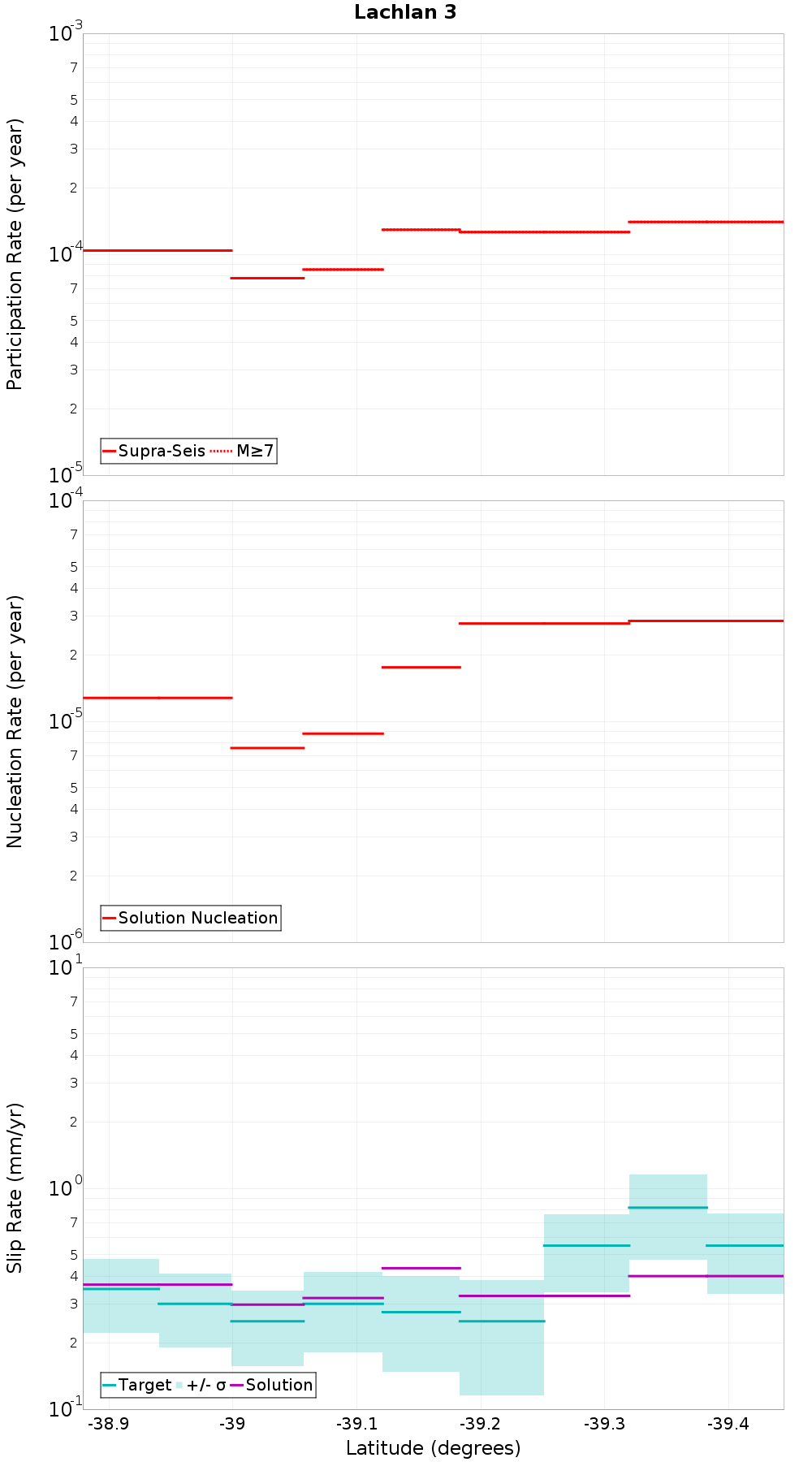

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Lachlan 1 & 2, 0.53 km away
Mahia 2, 2.4 km away
Ariel East, 3.12 km away
Poverty Bay, 3.82 km away
Ariel Bank, 6.88 km away
Gable End South, 14.38 km away

Lachlan 1 & 2, 0.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MzIuMDZXY2JN
Connected?true
Directly Connected?true
Co-rupture Count327
Co-rupture Rate1.976519E-5

Mahia 2, 2.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MzIuMDZXY2JN
Connected?true
Directly Connected?true
Co-rupture Count92
Co-rupture Rate7.786828E-5

Ariel East, 3.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MzIuMDZXY2JN
Connected?true
Directly Connected?true
Co-rupture Count188
Co-rupture Rate2.537046E-5

Poverty Bay, 3.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MzIuMDZXY2JN
Connected?true
Directly Connected?true
Co-rupture Count124
Co-rupture Rate7.684836E-5

Ariel Bank, 6.88 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MzIuMDZXY2JN
Connected?true
Directly Connected?true
Co-rupture Count252
Co-rupture Rate1.648303E-6

Gable End South, 14.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MzIuMDZXY2JN
Connected?true
Directly Connected?false
Co-rupture Count87
Co-rupture Rate0.0
