Torlesse Details

PropertyValue
Rupture Count232
Ruptures Above Sect Min Mag224
Ruptures w/ Nonzero Rates34
Magnitude Range[6.59, 7.96]
Length Range[13, 198] km
Total Rate3.527194E-4 /yr
Multi-Fault Rate3.527194E-4 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults18

Table Of Contents

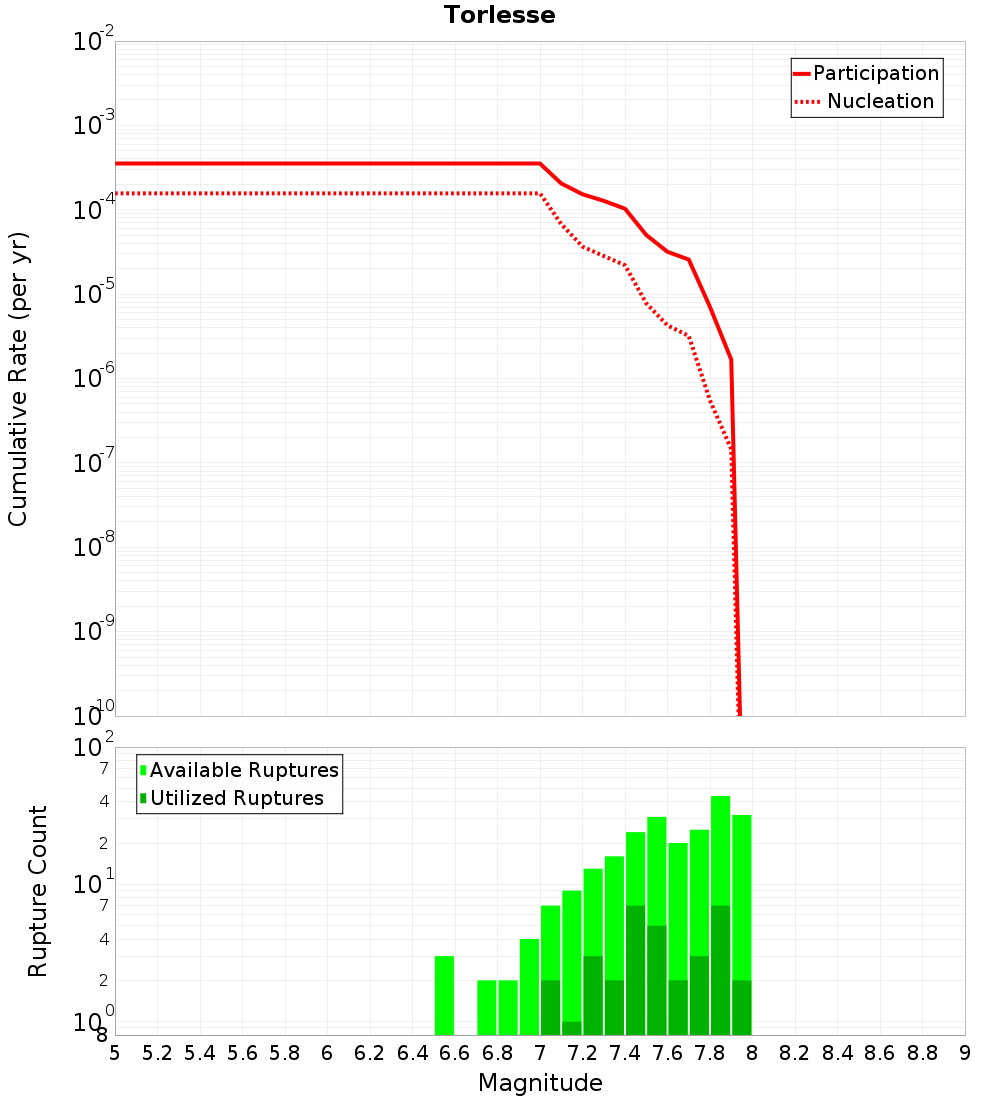

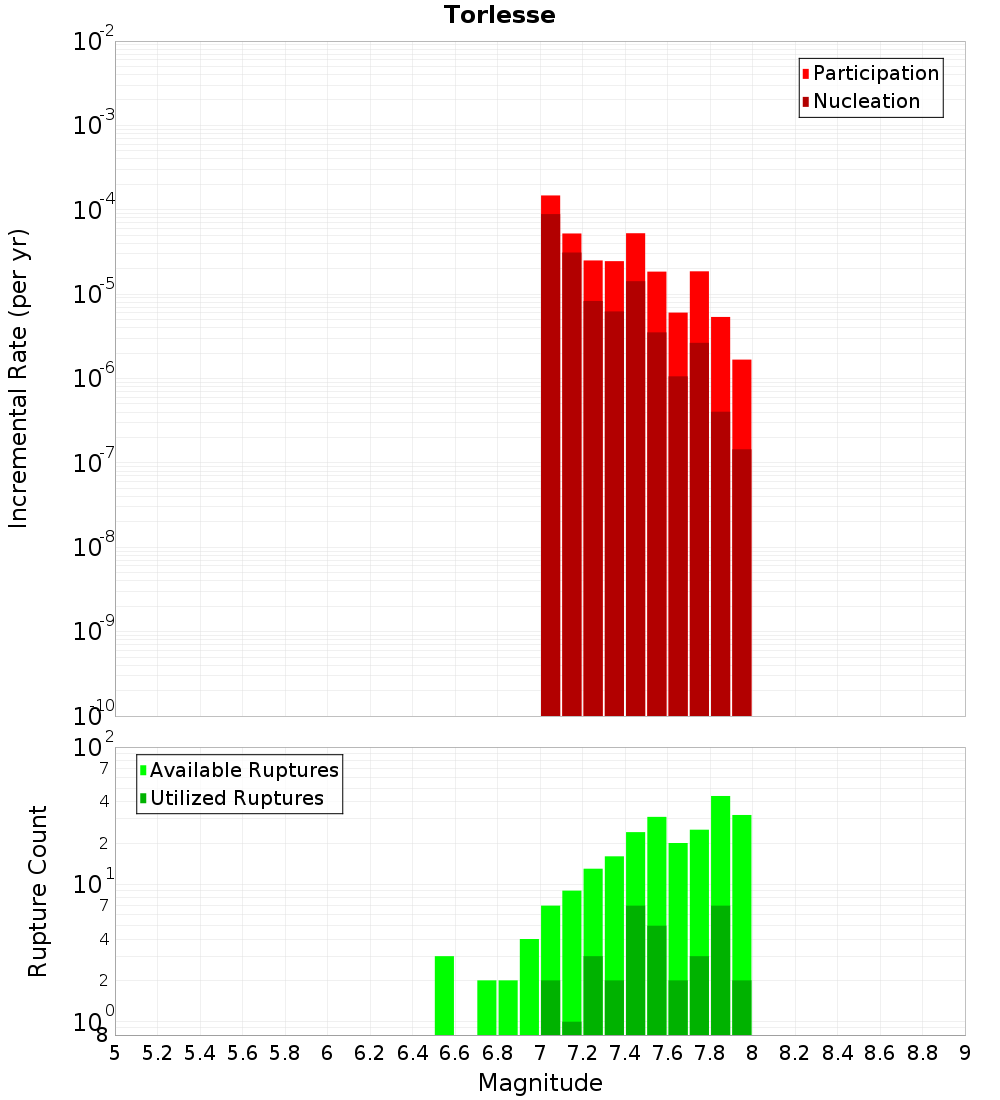

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

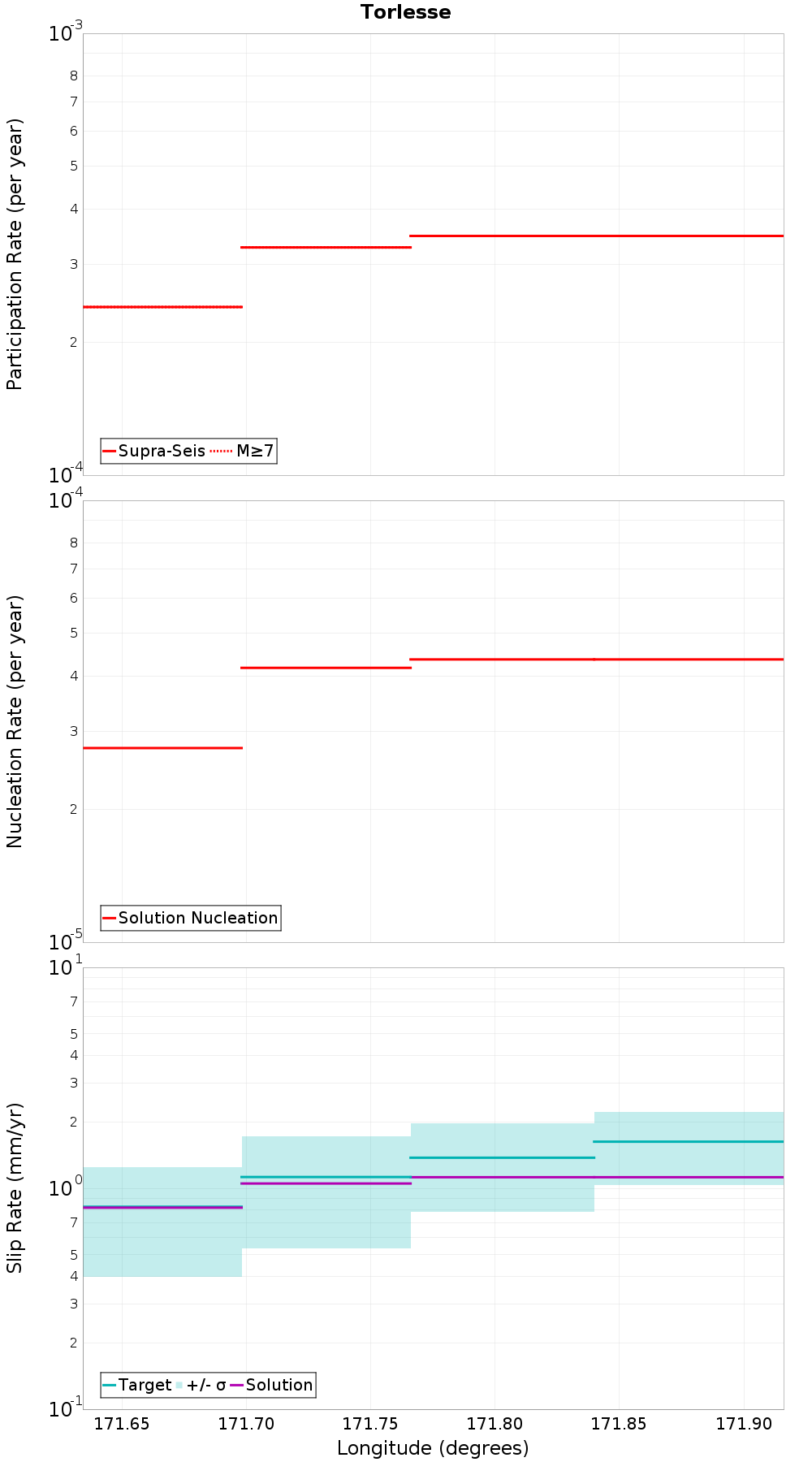

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

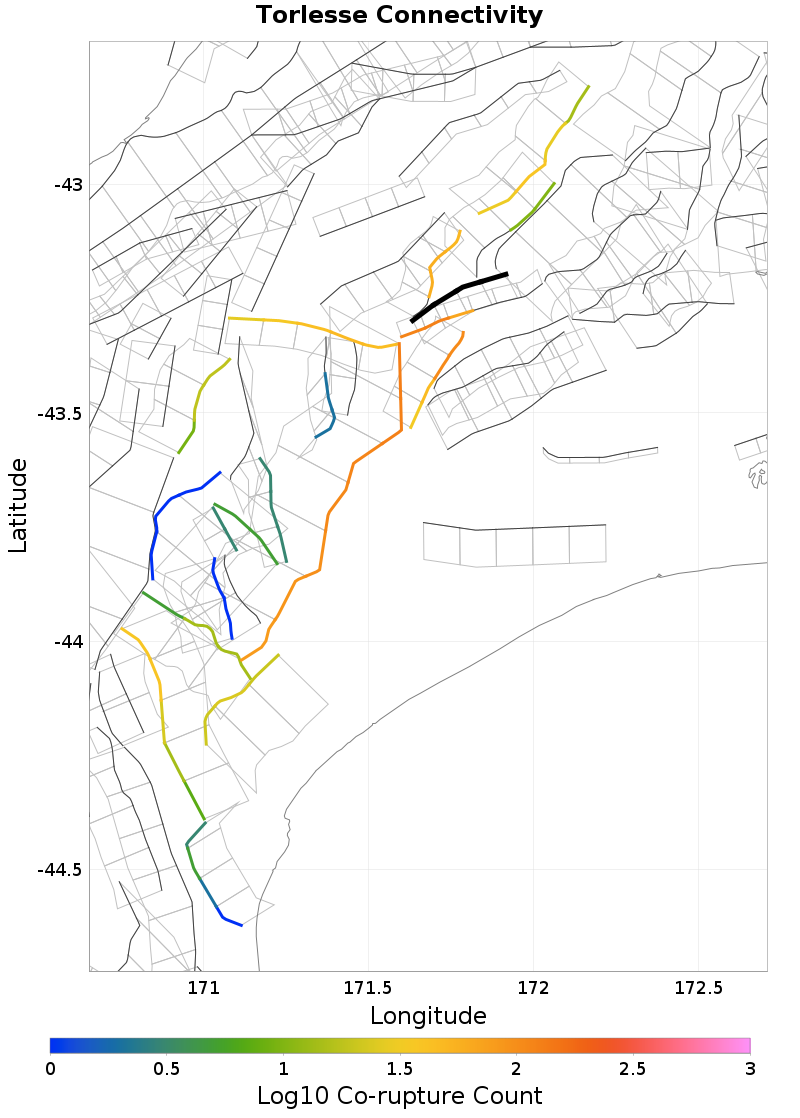

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Porters Pass, 0.31 km away
Esk South, 0.32 km away
Big Ben, 0.4 km away
Cheeseman, 0.67 km away
Sailor, 1.39 km away
Hutt Peel, 6.35 km away
Double Hill, 6.89 km away
Lees Valley, 9.41 km away
Harper, 10.94 km away
Knowles Top, 11.34 km away
Hororata, 12.36 km away
Starvation - Ashley, 12.83 km away
Kowai - View Hill, 13.54 km away

Porters Pass, 0.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MzIuMDZXY2JN
Connected?true
Directly Connected?true
Co-rupture Count124
Co-rupture Rate3.294316E-4

Esk South, 0.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MzIuMDZXY2JN
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Big Ben, 0.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MzIuMDZXY2JN
Connected?true
Directly Connected?true
Co-rupture Count105
Co-rupture Rate5.9600472E-5

Cheeseman, 0.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MzIuMDZXY2JN
Connected?true
Directly Connected?true
Co-rupture Count58
Co-rupture Rate4.9220243E-6

Sailor, 1.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MzIuMDZXY2JN
Connected?true
Directly Connected?false
Co-rupture Count10
Co-rupture Rate0.0

Hutt Peel, 6.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MzIuMDZXY2JN
Connected?true
Directly Connected?false
Co-rupture Count129
Co-rupture Rate9.297419E-5

Double Hill, 6.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MzIuMDZXY2JN
Connected?true
Directly Connected?false
Co-rupture Count48
Co-rupture Rate3.0812844E-5

Lees Valley, 9.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MzIuMDZXY2JN
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Harper, 10.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MzIuMDZXY2JN
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Knowles Top, 11.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MzIuMDZXY2JN
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hororata, 12.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MzIuMDZXY2JN
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Starvation - Ashley, 12.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MzIuMDZXY2JN
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kowai - View Hill, 13.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MzIuMDZXY2JN
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
