Aorangi Ridge Details

PropertyValue
Rupture Count27,948
Ruptures Above Sect Min Mag27,940
Ruptures w/ Nonzero Rates46
Magnitude Range[7.19, 8.52]
Length Range[28, 687] km
Total Rate4.884123E-4 /yr
Multi-Fault Rate4.884123E-4 /yr (100.00%)
Directly-Connected Faults10
All Co-Rupturing Faults78

Table Of Contents

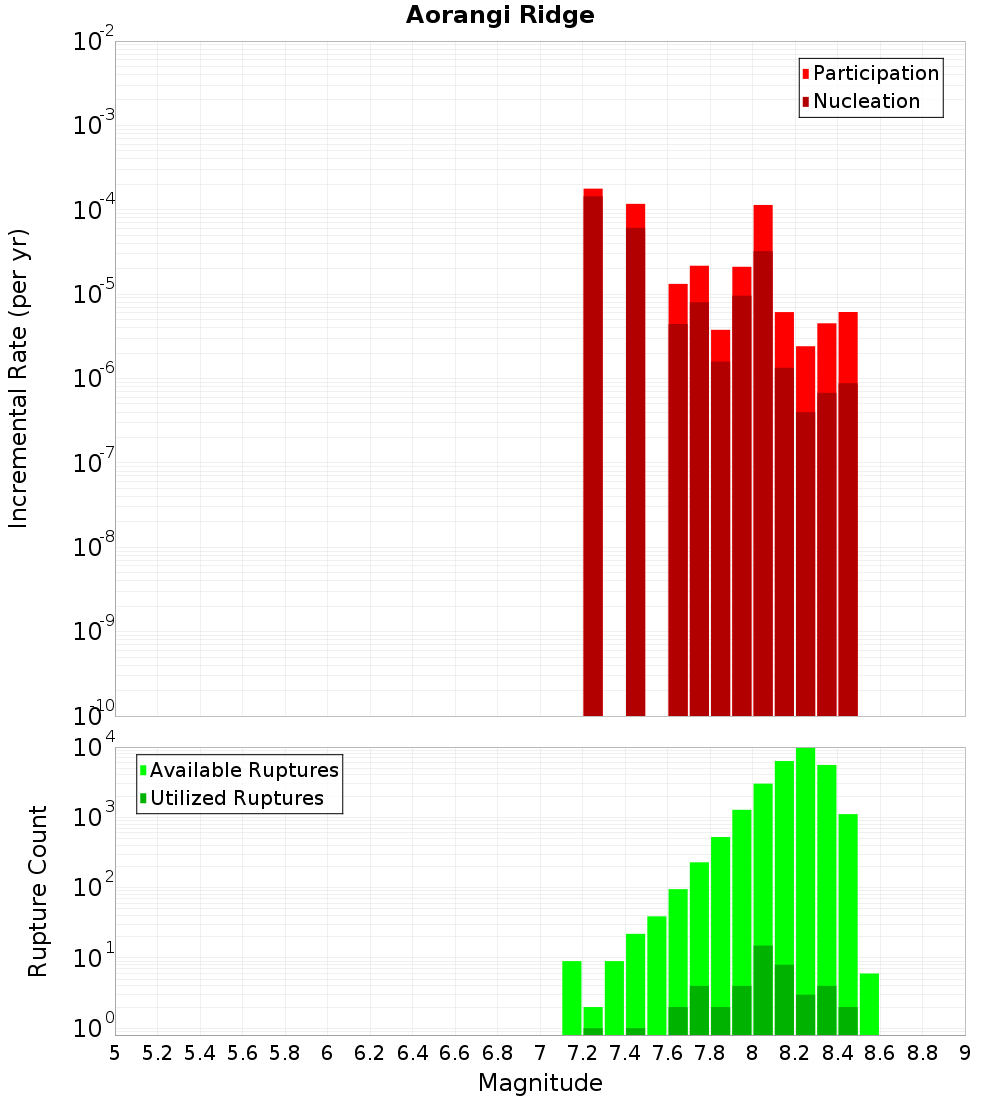

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

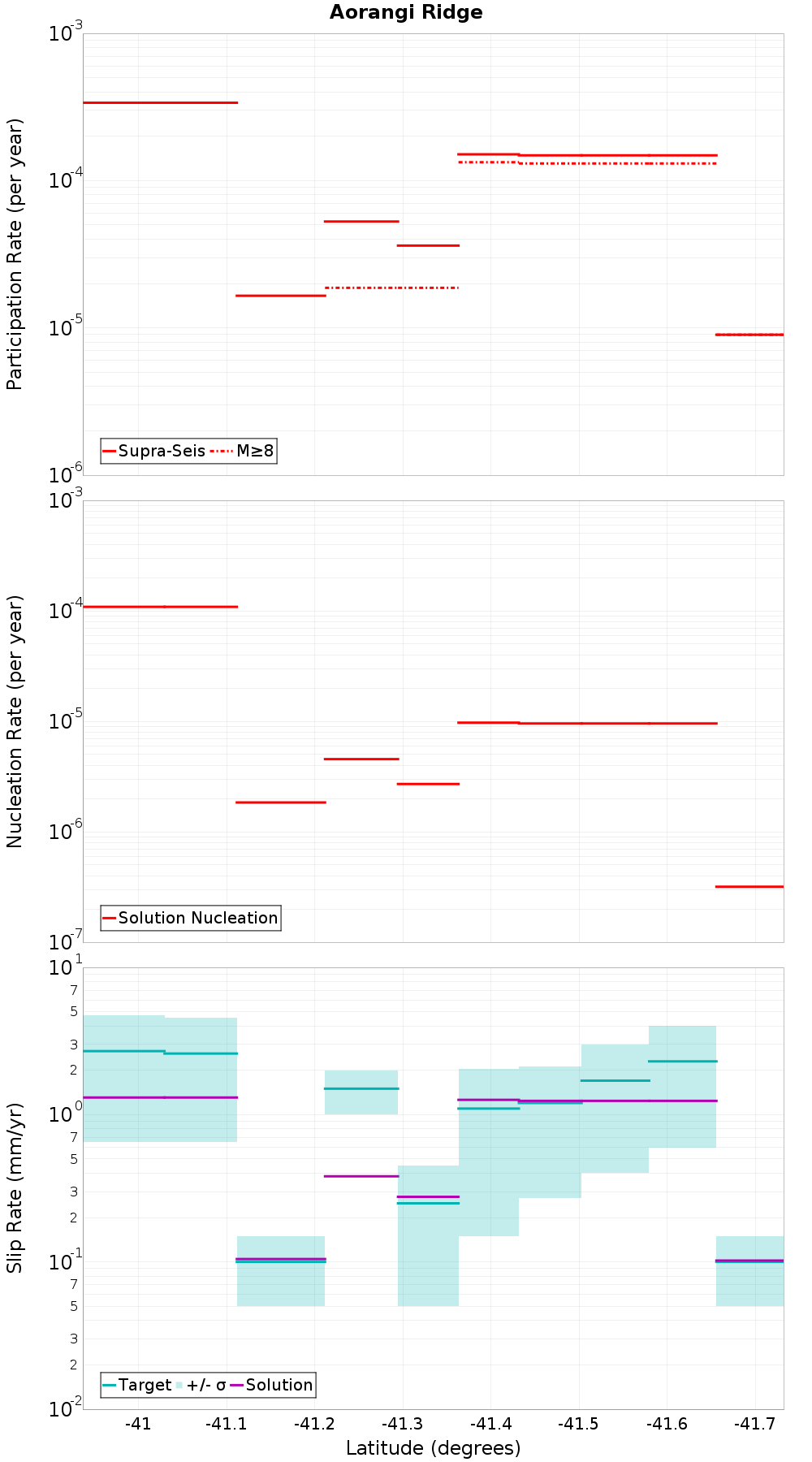

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
BKSmt-West, 0.57 km awayAkitio Trough West, 8.36 km away
F16 - Central, 0.8 km awayPorangahau Ridge, 9.74 km away
F17 - South, 2.05 km awayPukeroro 2, 9.84 km away
F16 - South, 2.18 km awayGlendhu Ridge, 11.73 km away
Akitio Ridge, 2.42 km awayUruti East - PorWest 1, 12.19 km away
Aorangi Trough, 3.73 km awayBennett Knoll, 12.35 km away
F17 - Central, 4.58 km awayPorangahau Basin, 12.69 km away
Pukeroro Ridge, 6.09 km awayPahaua, 13.7 km away
Uruti Basin, 7.06 km awayHoneycomb Ridge, 14.09 km away

BKSmt-West, 0.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MzYuMGdhelhx
Connected?true
Directly Connected?true
Co-rupture Count5,120
Co-rupture Rate2.1006918E-4

F16 - Central, 0.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MzYuMGdhelhx
Connected?true
Directly Connected?true
Co-rupture Count12,501
Co-rupture Rate2.5154446E-4

F17 - South, 2.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MzYuMGdhelhx
Connected?true
Directly Connected?true
Co-rupture Count8,186
Co-rupture Rate1.16860785E-4

F16 - South, 2.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MzYuMGdhelhx
Connected?true
Directly Connected?true
Co-rupture Count5,779
Co-rupture Rate4.516358E-5

Akitio Ridge, 2.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MzYuMGdhelhx
Connected?true
Directly Connected?true
Co-rupture Count20,946
Co-rupture Rate1.5263935E-5

Aorangi Trough, 3.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MzYuMGdhelhx
Connected?true
Directly Connected?true
Co-rupture Count1,102
Co-rupture Rate9.433935E-6

F17 - Central, 4.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MzYuMGdhelhx
Connected?true
Directly Connected?true
Co-rupture Count2,287
Co-rupture Rate7.370247E-5

Pukeroro Ridge, 6.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MzYuMGdhelhx
Connected?true
Directly Connected?true
Co-rupture Count122
Co-rupture Rate0.0

Uruti Basin, 7.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MzYuMGdhelhx
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Akitio Trough West, 8.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MzYuMGdhelhx
Connected?true
Directly Connected?false
Co-rupture Count1,224
Co-rupture Rate9.111772E-6

Porangahau Ridge, 9.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MzYuMGdhelhx
Connected?true
Directly Connected?false
Co-rupture Count47
Co-rupture Rate0.0

Pukeroro 2, 9.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MzYuMGdhelhx
Connected?true
Directly Connected?true
Co-rupture Count9,420
Co-rupture Rate8.977082E-6

Glendhu Ridge, 11.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MzYuMGdhelhx
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Uruti East - PorWest 1, 12.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MzYuMGdhelhx
Connected?true
Directly Connected?true
Co-rupture Count45
Co-rupture Rate0.0

Bennett Knoll, 12.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MzYuMGdhelhx
Connected?true
Directly Connected?false
Co-rupture Count645
Co-rupture Rate4.052491E-5

Porangahau Basin, 12.69 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MzYuMGdhelhx
Connected?true
Directly Connected?false
Co-rupture Count157
Co-rupture Rate0.0

Pahaua, 13.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MzYuMGdhelhx
Connected?true
Directly Connected?false
Co-rupture Count6,979
Co-rupture Rate8.977082E-6

Honeycomb Ridge, 14.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MzYuMGdhelhx
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
