Waikaia Details

PropertyValue
Rupture Count13,850
Ruptures Above Sect Min Mag13,848
Ruptures w/ Nonzero Rates39
Magnitude Range[7.25, 8.66]
Length Range[28, 856] km
Total Rate1.2765419E-4 /yr
Multi-Fault Rate1.1181026E-4 /yr (87.59%)
Directly-Connected Faults8
All Co-Rupturing Faults88

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

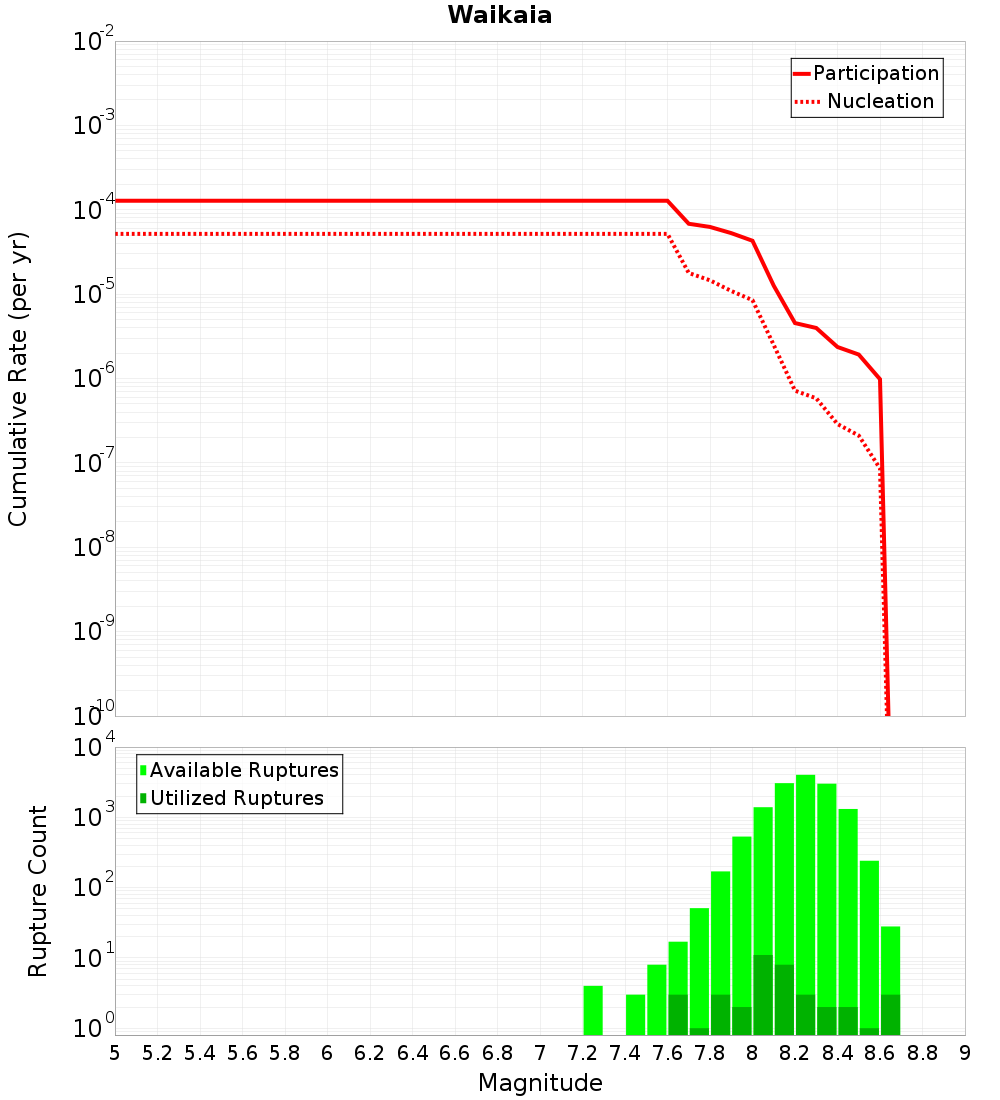

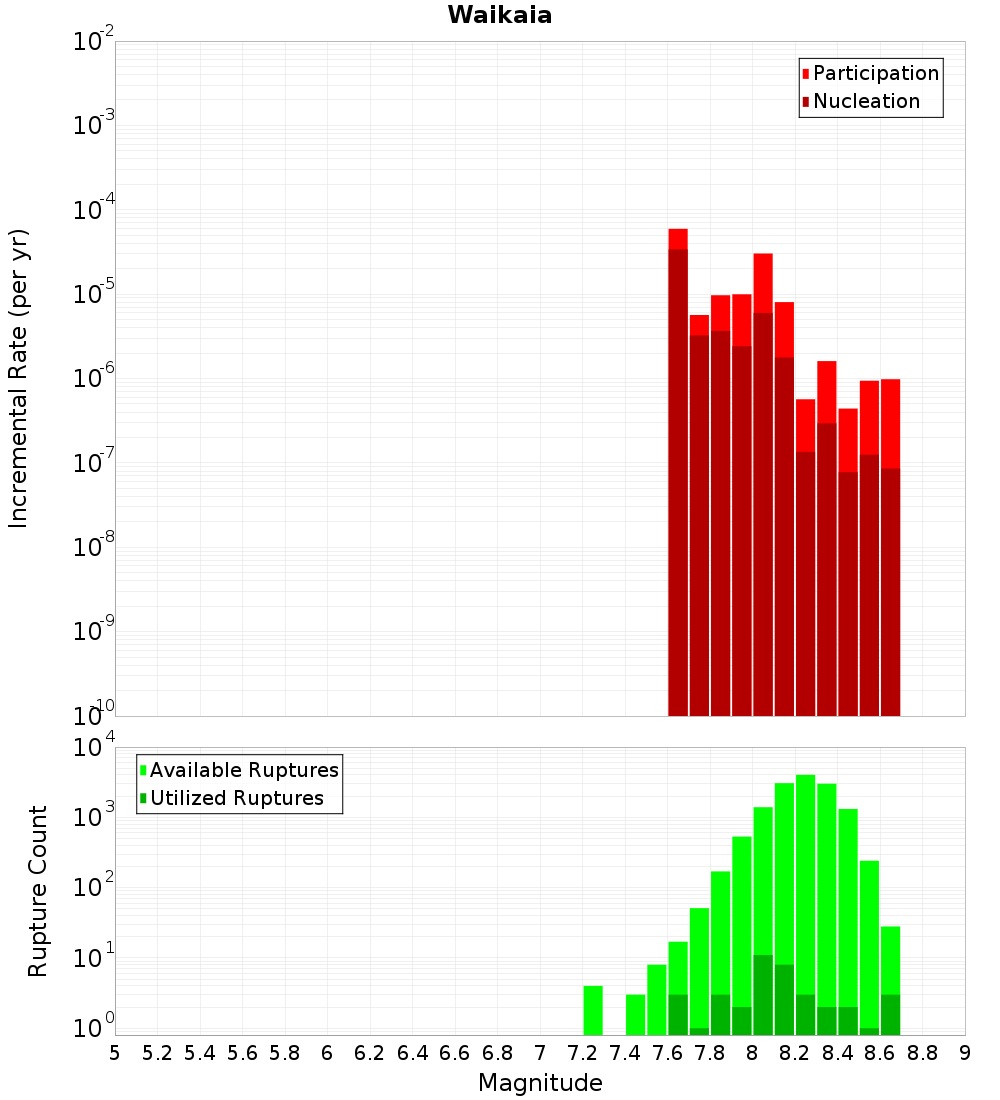

Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Waikaka, 0.07 km away
Old Man, 0.22 km away
Teviot, 0.26 km away
Hokonui, 0.29 km away
Hedgehope, 0.35 km away
Garvie, 1.79 km away
Wendon Valley, 4.03 km away
Hillfoot, 4.34 km away
Roaring Lion, 6.18 km away
Galloway, 7.24 km away
Lake Onslow, 9.64 km away
Backbone, 13.79 km away
Galloway Shanty, 14.6 km away

Waikaka, 0.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MzYuMGdhelhx
Connected?true
Directly Connected?true
Co-rupture Count2,375
Co-rupture Rate1.2561943E-5

Old Man, 0.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MzYuMGdhelhx
Connected?true
Directly Connected?true
Co-rupture Count12,476
Co-rupture Rate3.6846664E-5

Teviot, 0.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MzYuMGdhelhx
Connected?true
Directly Connected?true
Co-rupture Count1,338
Co-rupture Rate0.0

Hokonui, 0.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MzYuMGdhelhx
Connected?true
Directly Connected?true
Co-rupture Count269
Co-rupture Rate3.1832167E-6

Hedgehope, 0.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MzYuMGdhelhx
Connected?true
Directly Connected?true
Co-rupture Count2,570
Co-rupture Rate2.996506E-5

Garvie, 1.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MzYuMGdhelhx
Connected?true
Directly Connected?true
Co-rupture Count1,431
Co-rupture Rate2.088214E-5

Wendon Valley, 4.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MzYuMGdhelhx
Connected?true
Directly Connected?true
Co-rupture Count417
Co-rupture Rate4.848366E-5

Hillfoot, 4.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MzYuMGdhelhx
Connected?true
Directly Connected?true
Co-rupture Count4,731
Co-rupture Rate9.858575E-6

Roaring Lion, 6.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MzYuMGdhelhx
Connected?true
Directly Connected?false
Co-rupture Count903
Co-rupture Rate1.9740335E-5

Galloway, 7.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MzYuMGdhelhx
Connected?true
Directly Connected?false
Co-rupture Count985
Co-rupture Rate3.3202527E-6

Lake Onslow, 9.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MzYuMGdhelhx
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Backbone, 13.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MzYuMGdhelhx
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Galloway Shanty, 14.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MzYuMGdhelhx
Connected?true
Directly Connected?false
Co-rupture Count604
Co-rupture Rate3.9276812E-5
