F16 - South Details

PropertyValue
Rupture Count7,977
Ruptures Above Sect Min Mag7,975
Ruptures w/ Nonzero Rates34
Magnitude Range[6.95, 8.27]
Length Range[25, 592] km
Total Rate3.2249672E-4 /yr
Multi-Fault Rate3.2249672E-4 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults54

Table Of Contents

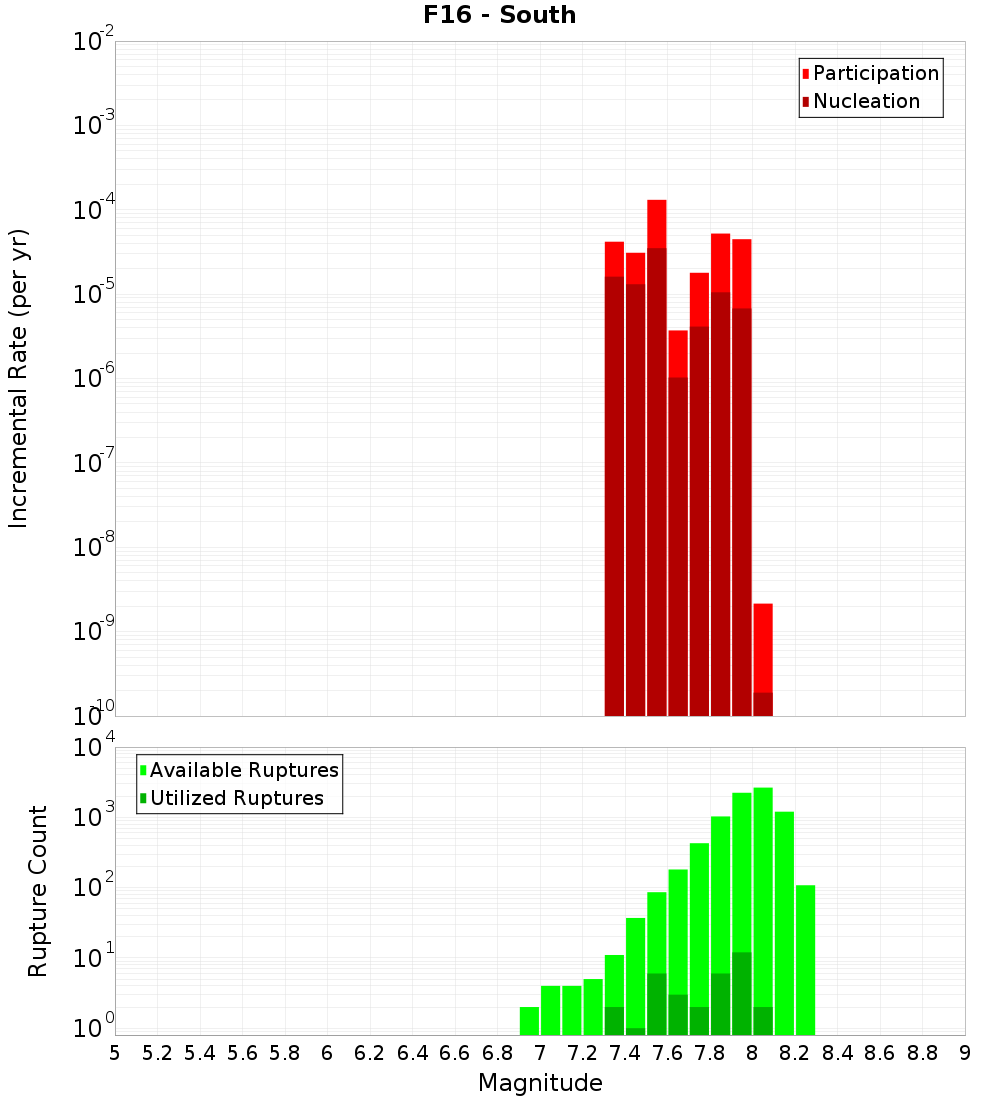

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

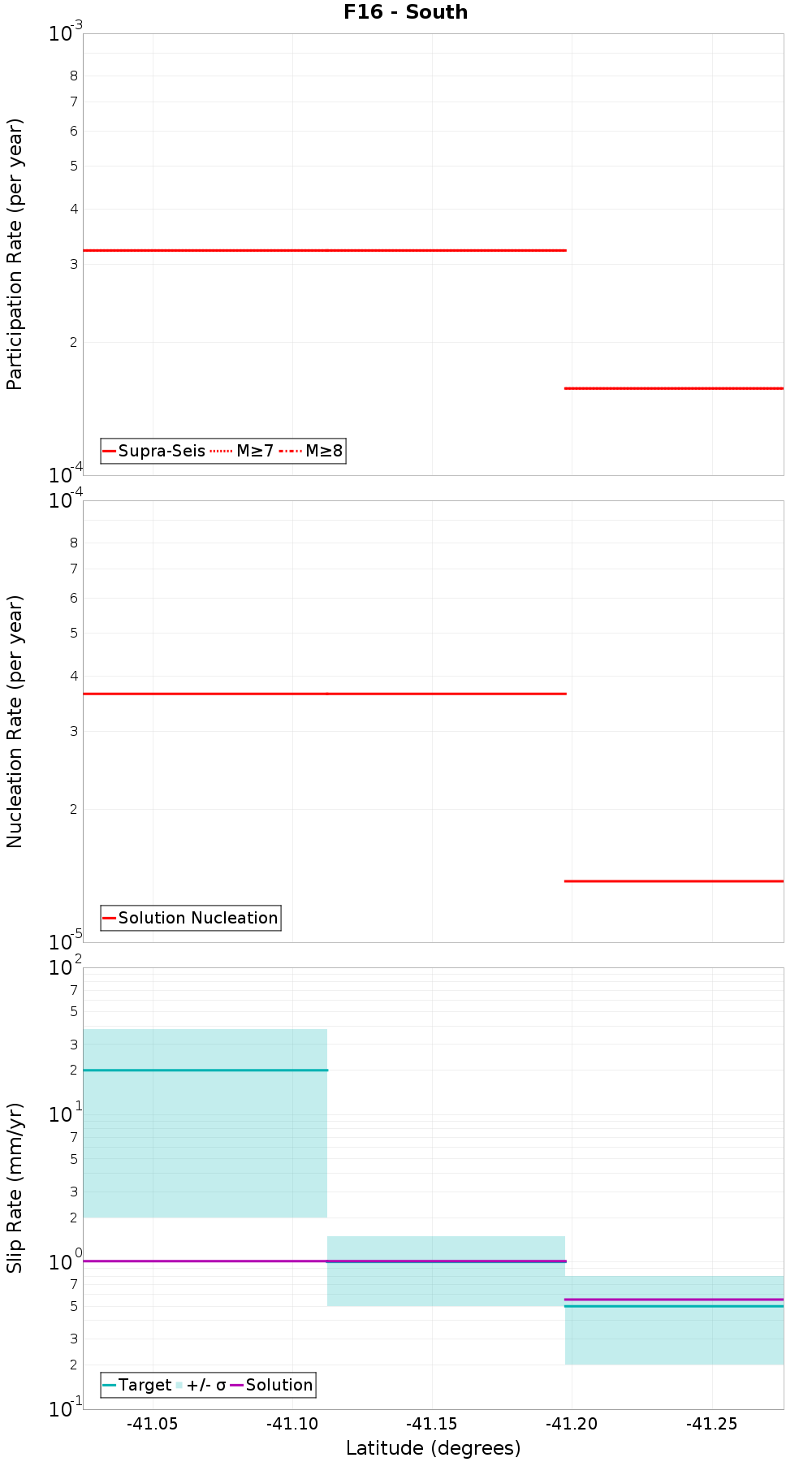

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
F17 - South, 0.02 km away
BKSmt-West, 0.87 km away
F16 - Central, 1.46 km away
Aorangi Ridge, 2.18 km away
F17 - Central, 2.38 km away
Aorangi Trough, 7.43 km away
Bennett Knoll, 8.18 km away
Akitio Ridge, 9.14 km away
Akitio Trough West, 12.01 km away
Pukeroro Ridge, 13.19 km away

F17 - South, 0.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MzYuNUxUTm1B
Connected?true
Directly Connected?true
Co-rupture Count821
Co-rupture Rate1.5023275E-4

BKSmt-West, 0.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MzYuNUxUTm1B
Connected?true
Directly Connected?true
Co-rupture Count3,131
Co-rupture Rate2.7202492E-5

F16 - Central, 1.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MzYuNUxUTm1B
Connected?true
Directly Connected?true
Co-rupture Count5,019
Co-rupture Rate2.1519486E-4

Aorangi Ridge, 2.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MzYuNUxUTm1B
Connected?true
Directly Connected?true
Co-rupture Count5,779
Co-rupture Rate1.0492388E-4

F17 - Central, 2.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MzYuNUxUTm1B
Connected?true
Directly Connected?true
Co-rupture Count1,323
Co-rupture Rate1.3579792E-4

Aorangi Trough, 7.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MzYuNUxUTm1B
Connected?true
Directly Connected?false
Co-rupture Count10
Co-rupture Rate7.010664E-5

Bennett Knoll, 8.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MzYuNUxUTm1B
Connected?true
Directly Connected?false
Co-rupture Count155
Co-rupture Rate0.0

Akitio Ridge, 9.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MzYuNUxUTm1B
Connected?true
Directly Connected?false
Co-rupture Count6,248
Co-rupture Rate1.2802462E-6

Akitio Trough West, 12.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MzYuNUxUTm1B
Connected?true
Directly Connected?false
Co-rupture Count435
Co-rupture Rate1.0001719E-5

Pukeroro Ridge, 13.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MzYuNUxUTm1B
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
