Wheao: North Details

Property	Value
Rupture Count	10,404
Ruptures Above Sect Min Mag	10,402
Ruptures w/ Nonzero Rates	24
Magnitude Range	[6.47, 8.28]
Length Range	[11, 675] km
Total Rate	6.744966E-5 /yr
Multi-Fault Rate	6.744966E-5 /yr (100.00%)
Directly-Connected Faults	3
All Co-Rupturing Faults	98

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values

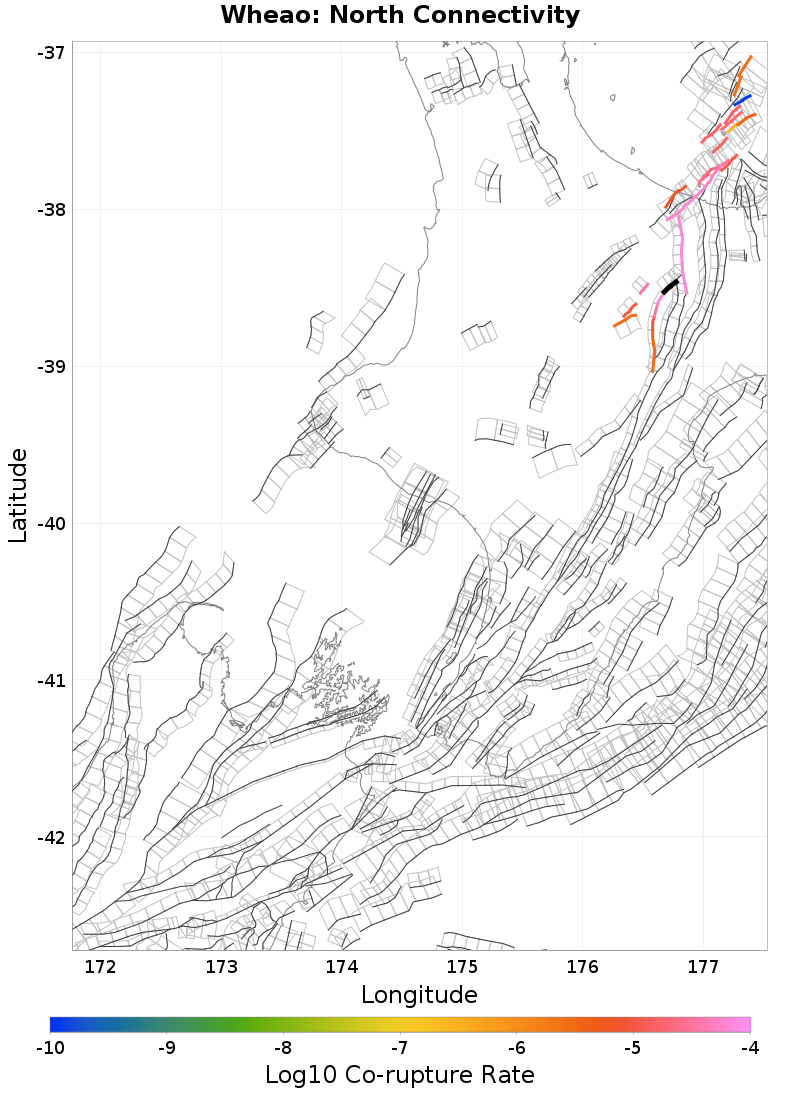

Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Wheao: South, 0 km away
Te Whaiti South, 0 km away
Te Whaiti North, 0 km away
Waiohau: North, 2.41 km away
Waiohau: South, 10.35 km away
Kaingaroa 3, 12.16 km away

Wheao: South, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MzYuNUxUTm1B
Connected?	true
Directly Connected?	true
Co-rupture Count	9,441
Co-rupture Rate	6.511435E-5

Te Whaiti South, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MzYuNUxUTm1B
Connected?	true
Directly Connected?	true
Co-rupture Count	465
Co-rupture Rate	0.0

Te Whaiti North, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MzYuNUxUTm1B
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waiohau: North, 2.41 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MzYuNUxUTm1B
Connected?	true
Directly Connected?	true
Co-rupture Count	9,269
Co-rupture Rate	6.744966E-5

Waiohau: South, 10.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MzYuNUxUTm1B
Connected?	true
Directly Connected?	false
Co-rupture Count	432
Co-rupture Rate	0.0

Kaingaroa 3, 12.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3MzYuNUxUTm1B
Connected?	true
Directly Connected?	false
Co-rupture Count	4
Co-rupture Rate	3.6151938E-5
