Tuatoru 1 Details

Property	Value
Rupture Count	2,512
Ruptures Above Sect Min Mag	2,506
Ruptures w/ Nonzero Rates	88
Magnitude Range	[6.46, 8.27]
Length Range	[9, 661] km
Total Rate	1.821339E-4 /yr
Multi-Fault Rate	1.821339E-4 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	67

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

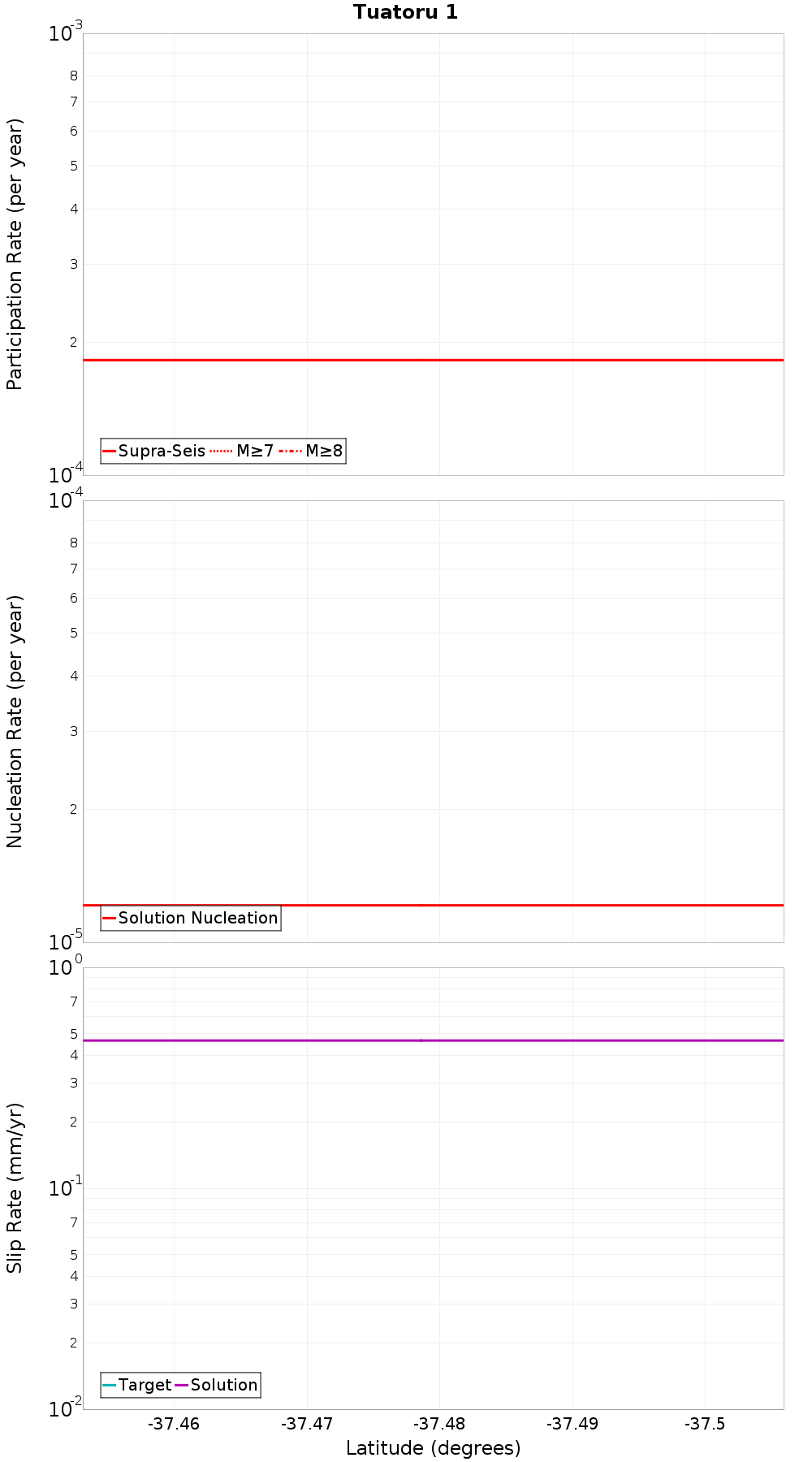

Along-Strike Values

Moment-Rates and b-Values

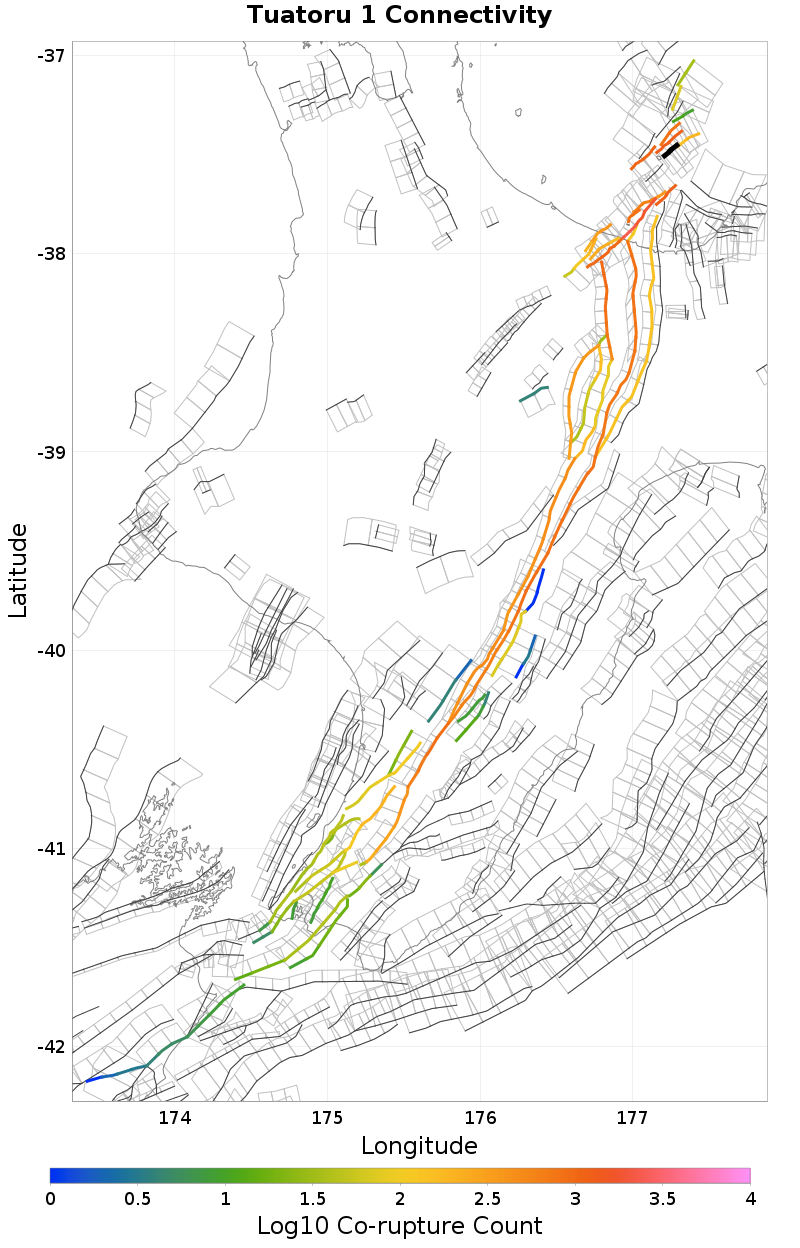

Connectivity

Nearby Sections

Fault Section
Tuatoru 2, 0.43 km away
Te Arawa 1, 3.09 km away
Calypso 2, 3.86 km away
Te Arawa 2, 4.63 km away
Hariki, 5.5 km away
Whakaari 4, 5.84 km away
White Island 2, 5.84 km away
Opotiki 3, 8.38 km away
Te Arawa 3, 9.82 km away
Volkner 3, 10.46 km away
Volkner 4, 11.02 km away
Ohiwa 1, 11.29 km away

Tuatoru 2, 0.43 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDYuMEZ6RDhl
Connected?	true
Directly Connected?	false
Co-rupture Count	193
Co-rupture Rate	6.952636E-5

Te Arawa 1, 3.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDYuMEZ6RDhl
Connected?	true
Directly Connected?	true
Co-rupture Count	1,282
Co-rupture Rate	1.0503899E-4

Calypso 2, 3.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDYuMEZ6RDhl
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Te Arawa 2, 4.63 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDYuMEZ6RDhl
Connected?	true
Directly Connected?	true
Co-rupture Count	822
Co-rupture Rate	9.198683E-5

Hariki, 5.5 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDYuMEZ6RDhl
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Whakaari 4, 5.84 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDYuMEZ6RDhl
Connected?	true
Directly Connected?	true
Co-rupture Count	1,081
Co-rupture Rate	1.4413185E-5

White Island 2, 5.84 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDYuMEZ6RDhl
Connected?	true
Directly Connected?	true
Co-rupture Count	1,177
Co-rupture Rate	8.515196E-5

Opotiki 3, 8.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDYuMEZ6RDhl
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Te Arawa 3, 9.82 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDYuMEZ6RDhl
Connected?	true
Directly Connected?	false
Co-rupture Count	11
Co-rupture Rate	3.663414E-12

Volkner 3, 10.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDYuMEZ6RDhl
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Volkner 4, 11.02 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDYuMEZ6RDhl
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ohiwa 1, 11.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDYuMEZ6RDhl
Connected?	true
Directly Connected?	false
Co-rupture Count	381
Co-rupture Rate	8.256885E-5
