Motu Details
| Property | Value |
|---|---|
| Rupture Count | 4 |
| Ruptures Above Sect Min Mag | 4 |
| Ruptures w/ Nonzero Rates | 3 |
| Magnitude Range | [6.95, 7.38] |
| Length Range | [21, 53] km |
| Total Rate | 3.7288226E-4 /yr |
| Multi-Fault Rate | 3.7288226E-4 /yr (100.00%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 3 |
Table Of Contents

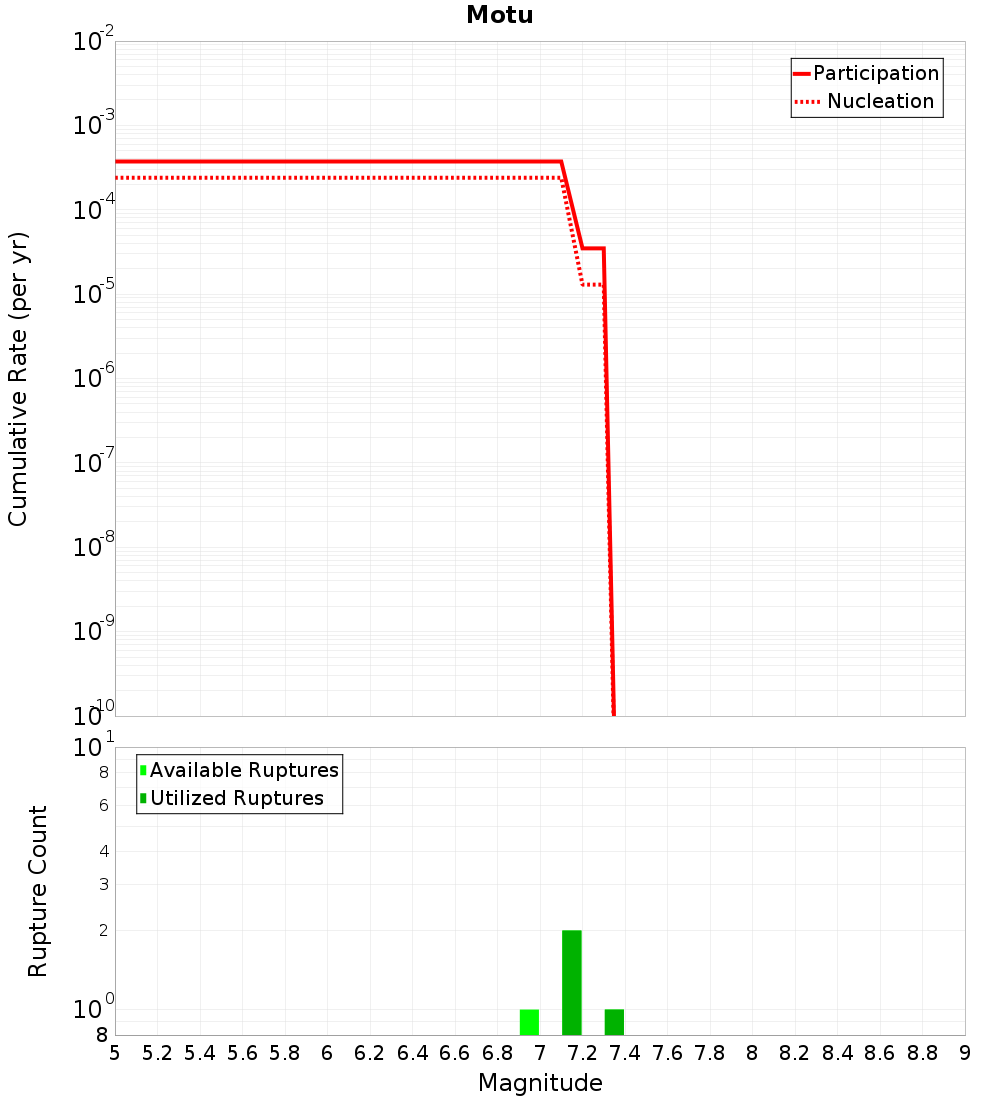

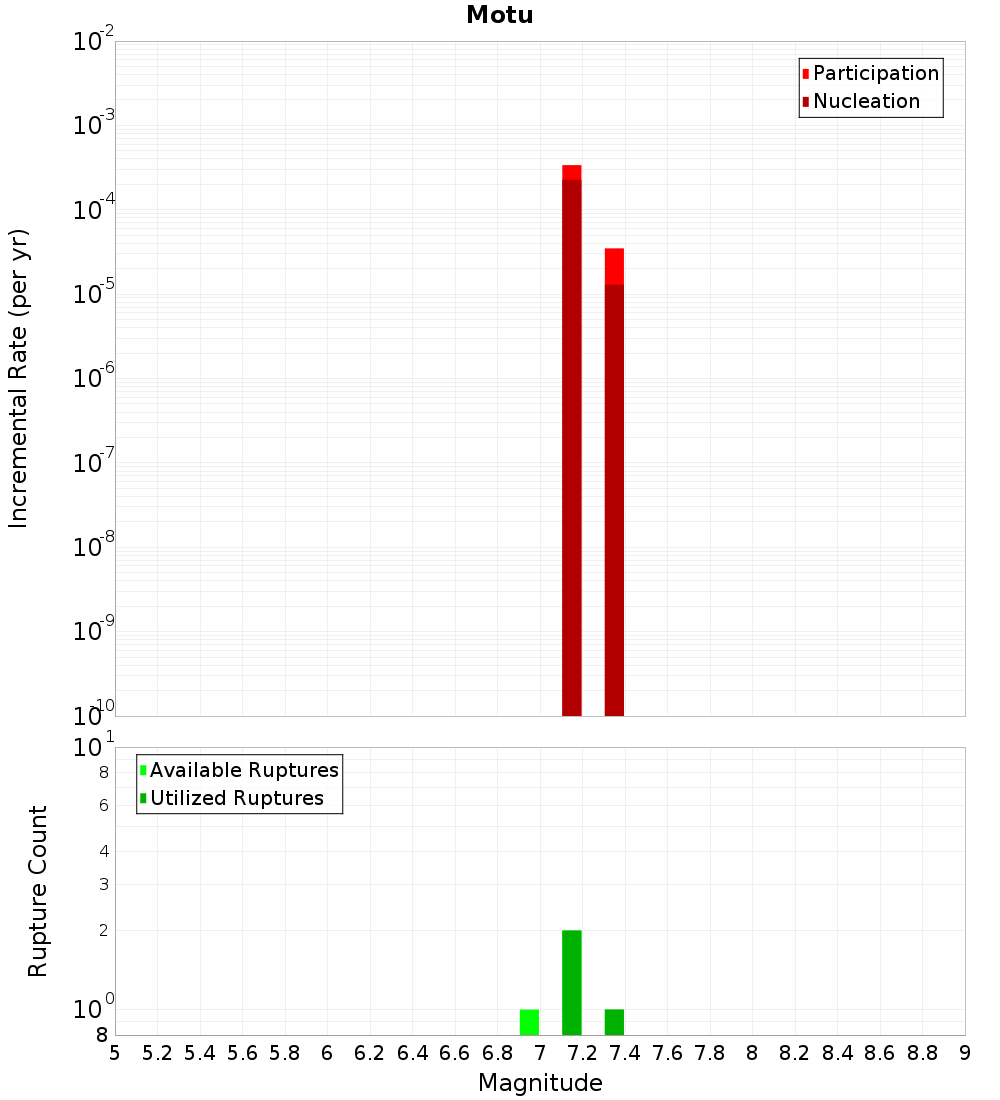

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

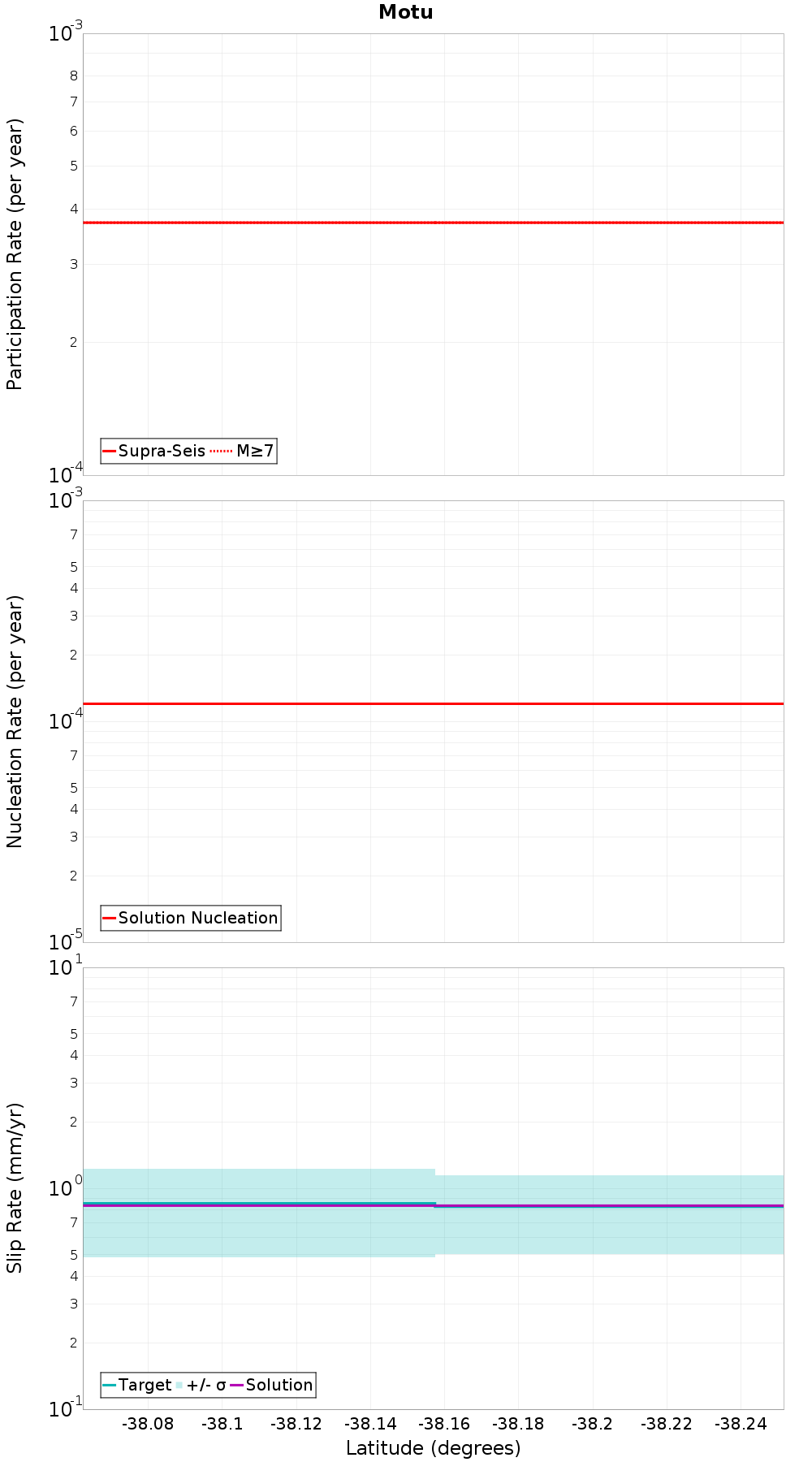

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Raukumara 16, 0.15 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMEpEc1RR | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1 |
| Co-rupture Rate | 2.7133228E-4 |
Raukumara 17, 2.76 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMEpEc1RR | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2 |
| Co-rupture Rate | 1.0154998E-4 |
Opape 1, 2.79 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMEpEc1RR | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Raukumara 18, 4.18 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMEpEc1RR | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Tirohanga, 5.97 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMEpEc1RR | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Motu River, 7.68 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMEpEc1RR | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1 |
| Co-rupture Rate | 3.4880348E-5 |
Ohae 2, 9.08 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMEpEc1RR | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Kotare - Moutuhora, 13.58 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMEpEc1RR | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Ohae 1, 14.88 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMEpEc1RR | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
