Alpine: Caswell Details

PropertyValue
Rupture Count66,977
Ruptures Above Sect Min Mag66,974
Ruptures w/ Nonzero Rates205
Magnitude Range[6.81, 8.48]
Length Range[22, 1,083] km
Total Rate0.0031868075 /yr
Multi-Fault Rate0.0031868075 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults193

Table Of Contents

Magnitude-Frequency Distribution

(top)

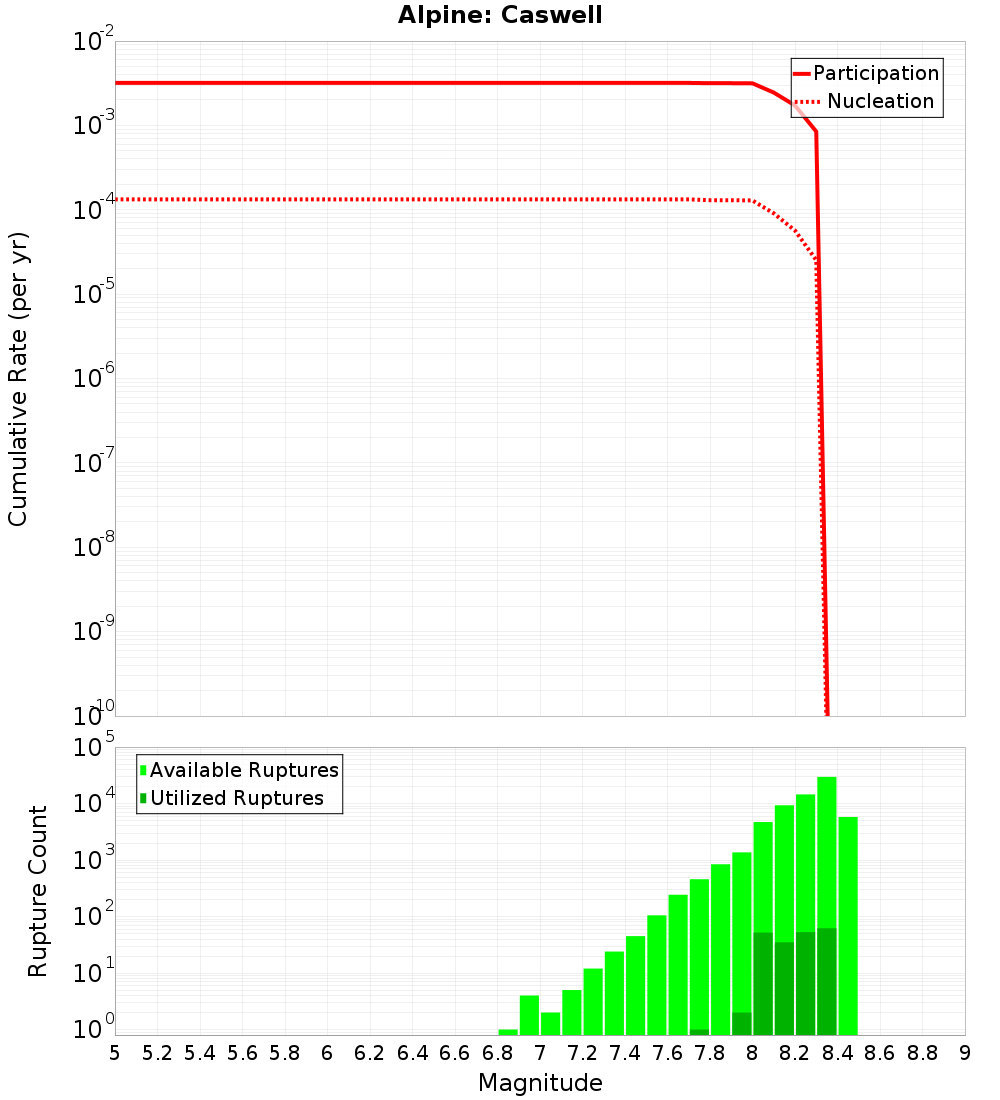

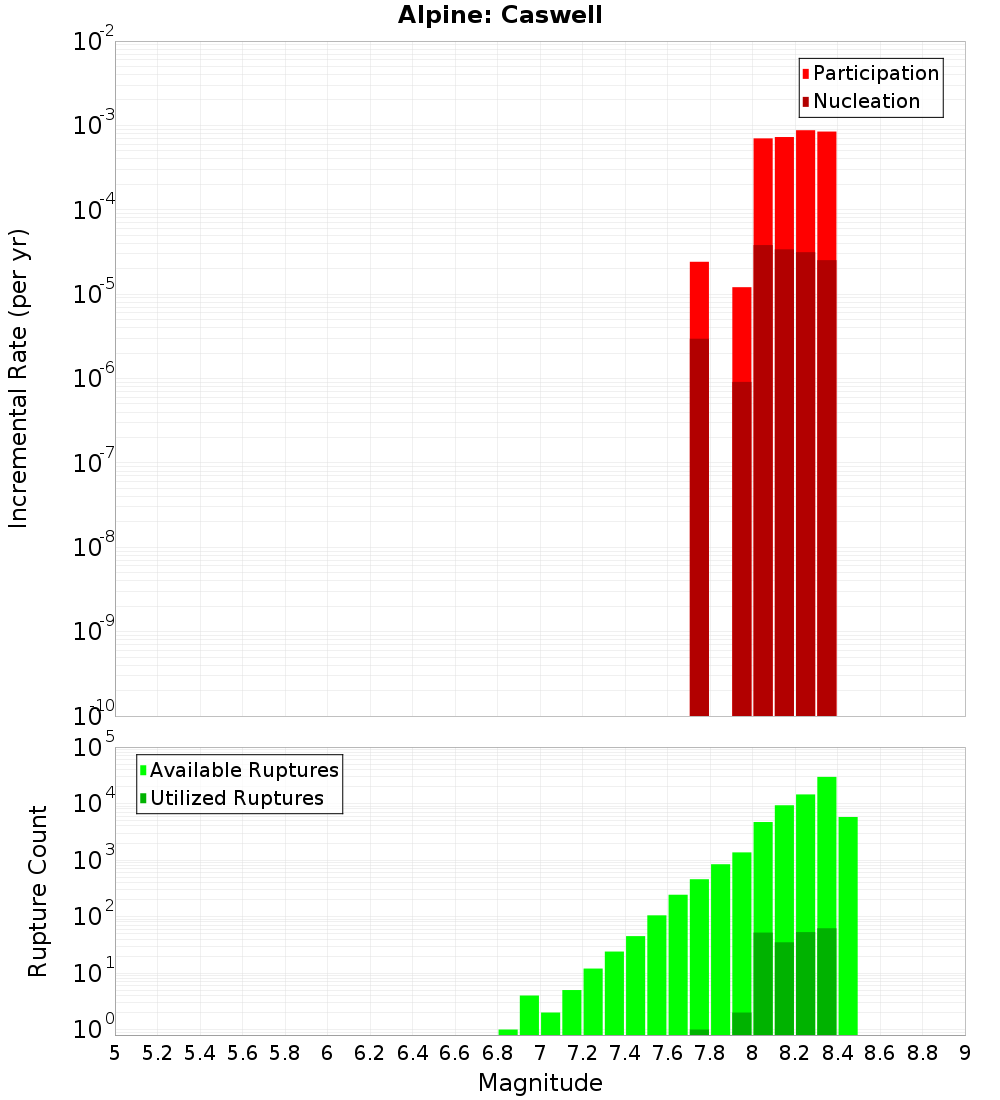

IncrementalCumulative
Incremental PlotCumulative Plot

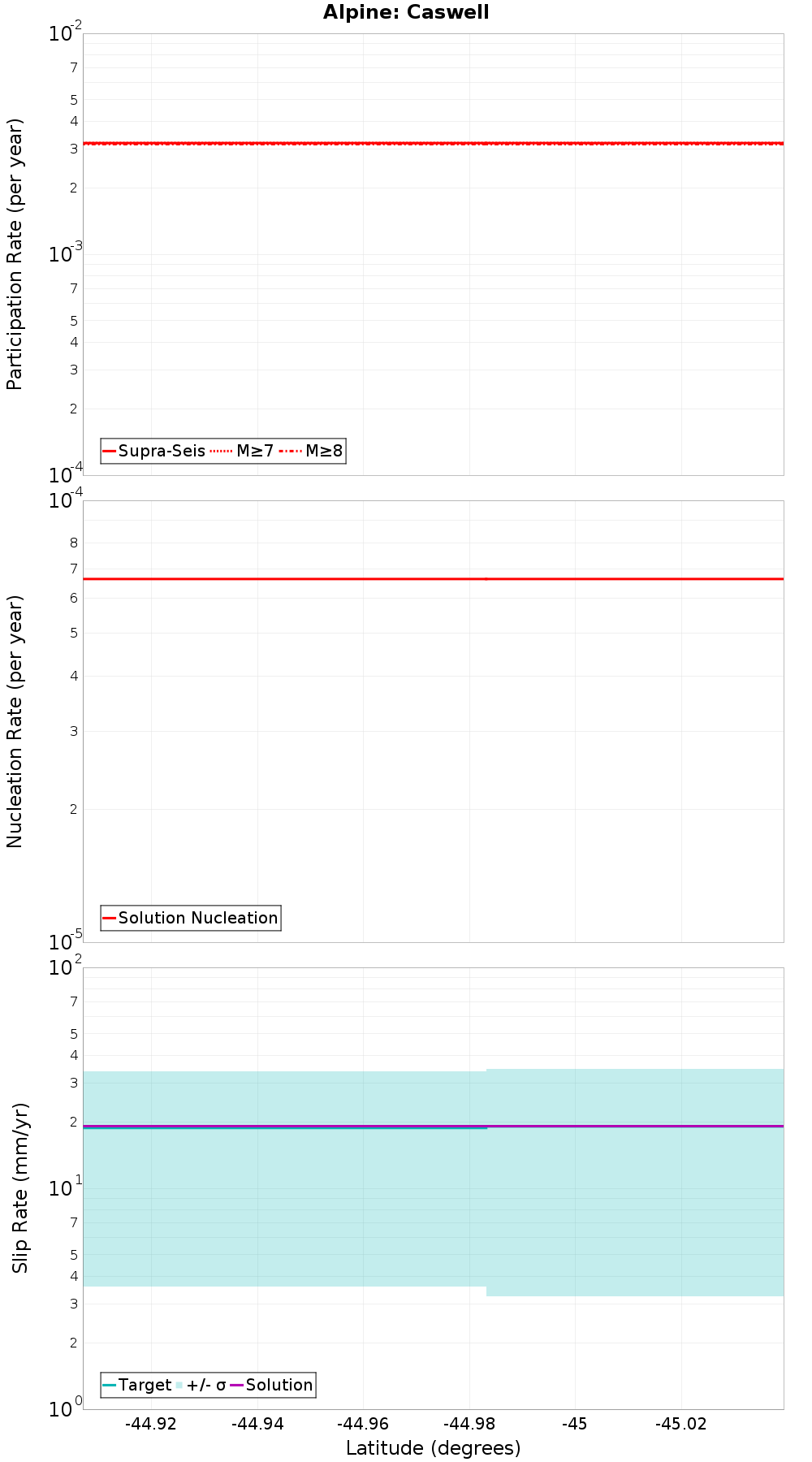

Along-Strike Values

(top)

Along-strike plot

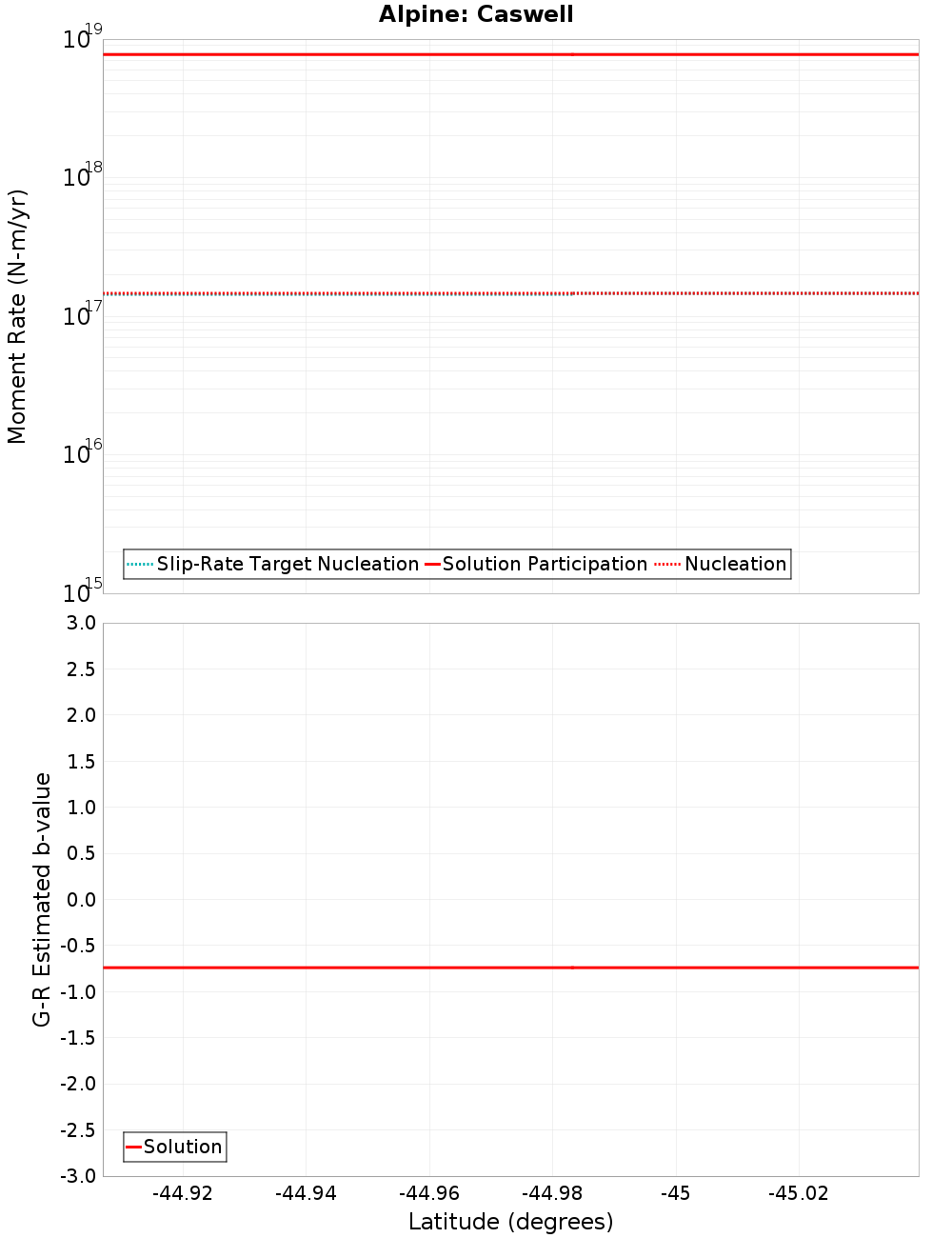

Moment-Rates and b-Values

(top)

Along-strike plot

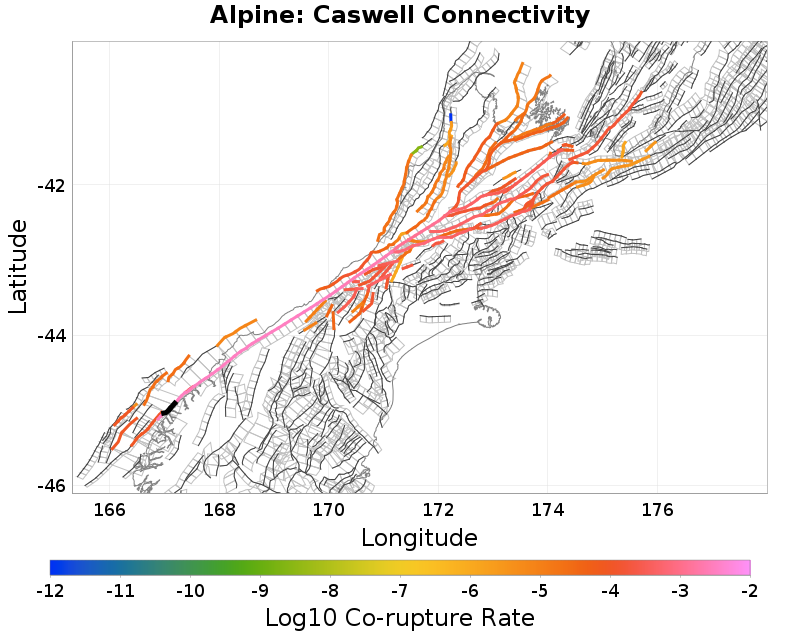

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Alpine: Nancy, 0 km away
Alpine: Caswell - South George, 0 km away
Central Wedge 1 & 2 & 3, 0.12 km away
South Wedge 2, 0.26 km away
Central Wedge 4 - South Wedge 411, 0.32 km away
Alpine: Resolution - Charles, 3.33 km away
Alpine: Resolution - Dagg, 11.17 km away

Alpine: Nancy, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?true
Directly Connected?true
Co-rupture Count37,899
Co-rupture Rate0.003014543

Alpine: Caswell - South George, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?true
Directly Connected?true
Co-rupture Count66,772
Co-rupture Rate0.0031626248

Central Wedge 1 & 2 & 3, 0.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?true
Directly Connected?true
Co-rupture Count215
Co-rupture Rate2.4182793E-5

South Wedge 2, 0.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Central Wedge 4 - South Wedge 411, 0.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Alpine: Resolution - Charles, 3.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?true
Directly Connected?true
Co-rupture Count25,236
Co-rupture Rate1.2625541E-4

Alpine: Resolution - Dagg, 11.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?true
Directly Connected?false
Co-rupture Count56,313
Co-rupture Rate9.5945885E-5
