Coal Creek Details

Property	Value
Rupture Count	65
Ruptures Above Sect Min Mag	64
Ruptures w/ Nonzero Rates	8
Magnitude Range	[6.91, 7.79]
Length Range	[21, 199] km
Total Rate	1.417764E-4 /yr
Multi-Fault Rate	1.417764E-4 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	26

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

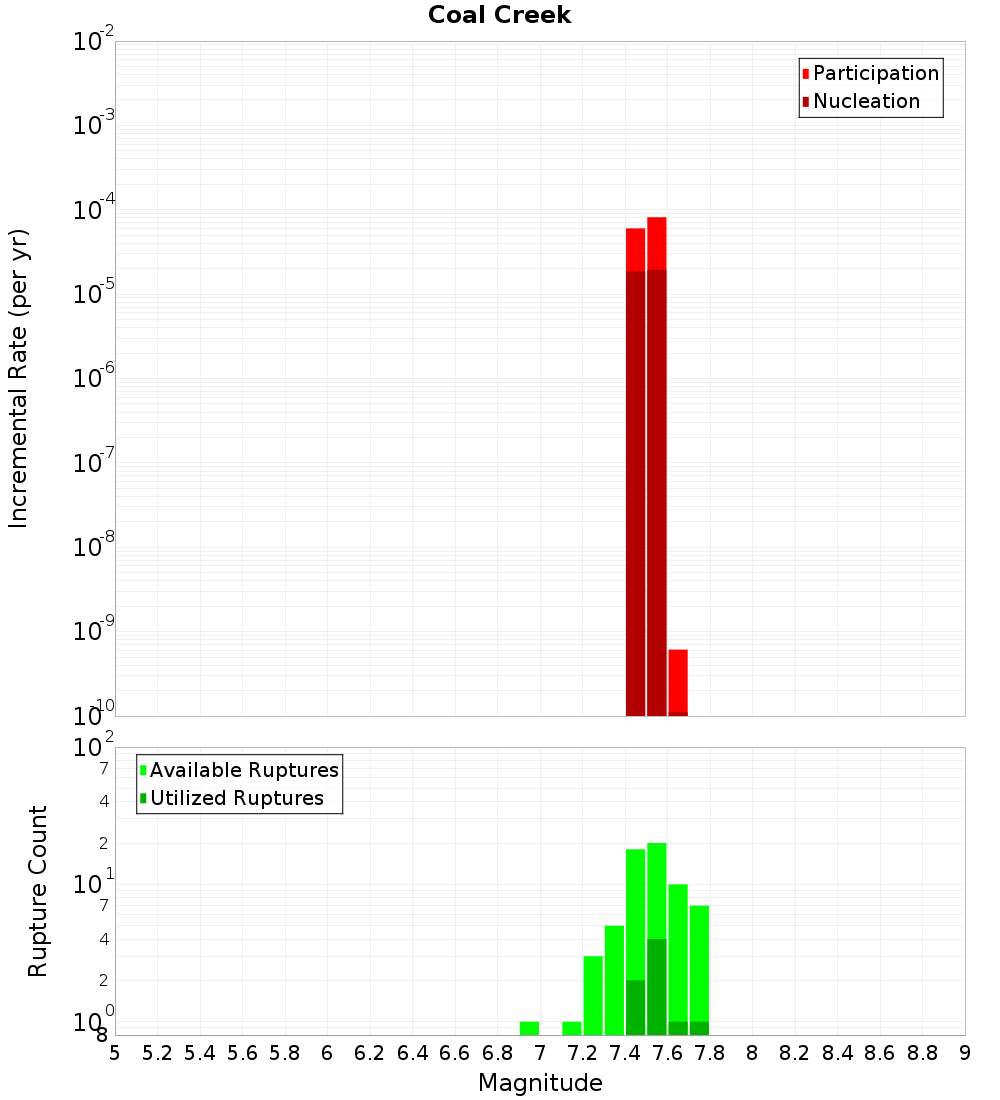

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

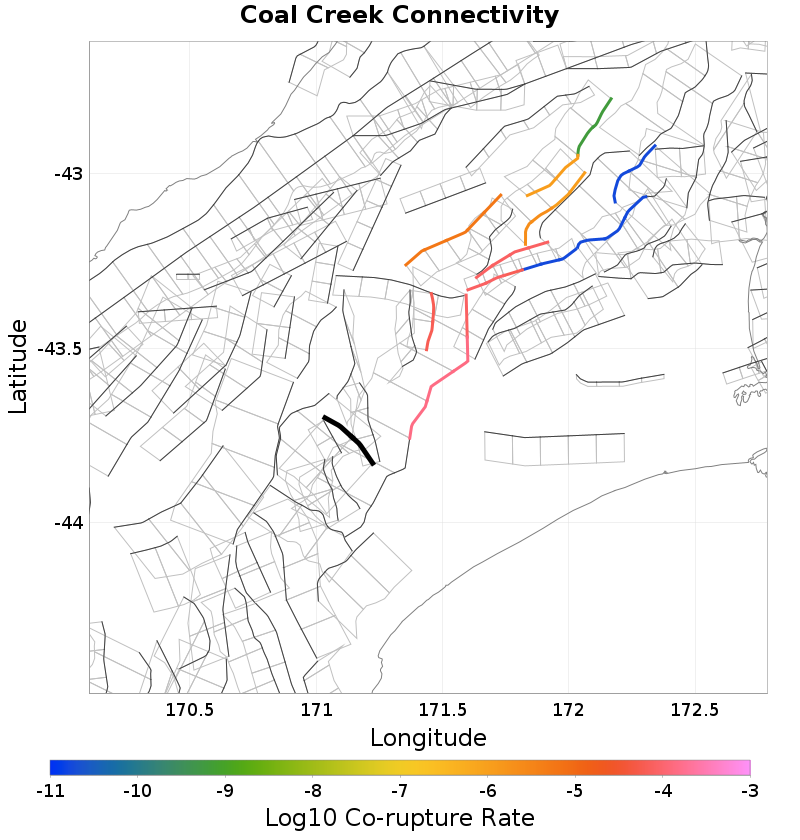

Connectivity

Nearby Sections

Fault Section
Quartz Creek, 0.08 km away
Hutt Peel, 0.21 km away
Ben McLeod, 0.22 km away
Catherine, 0.3 km away
Edith, 0.36 km away
Klondyke Moor, 2.3 km away
Brothers, 6.03 km away
Lake Heron, 6.87 km away
Irishman Creek, 10.21 km away
Sugarloaf, 11.62 km away
Fox Peak, 12.13 km away

Quartz Creek, 0.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hutt Peel, 0.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?	true
Directly Connected?	true
Co-rupture Count	45
Co-rupture Rate	1.417764E-4

Ben McLeod, 0.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?	true
Directly Connected?	true
Co-rupture Count	3
Co-rupture Rate	0.0

Catherine, 0.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Edith, 0.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Klondyke Moor, 2.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Brothers, 6.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Lake Heron, 6.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?	true
Directly Connected?	false
Co-rupture Count	2
Co-rupture Rate	0.0

Irishman Creek, 10.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Sugarloaf, 11.62 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?	true
Directly Connected?	true
Co-rupture Count	1
Co-rupture Rate	0.0

Fox Peak, 12.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?	true
Directly Connected?	true
Co-rupture Count	15
Co-rupture Rate	0.0
