Hohonu South Details

PropertyValue
Rupture Count136,157
Ruptures Above Sect Min Mag136,146
Ruptures w/ Nonzero Rates113
Magnitude Range[6.91, 8.45]
Length Range[25, 934] km
Total Rate6.88844E-4 /yr
Multi-Fault Rate6.88844E-4 /yr (100.00%)
Directly-Connected Faults22
All Co-Rupturing Faults304

Table Of Contents

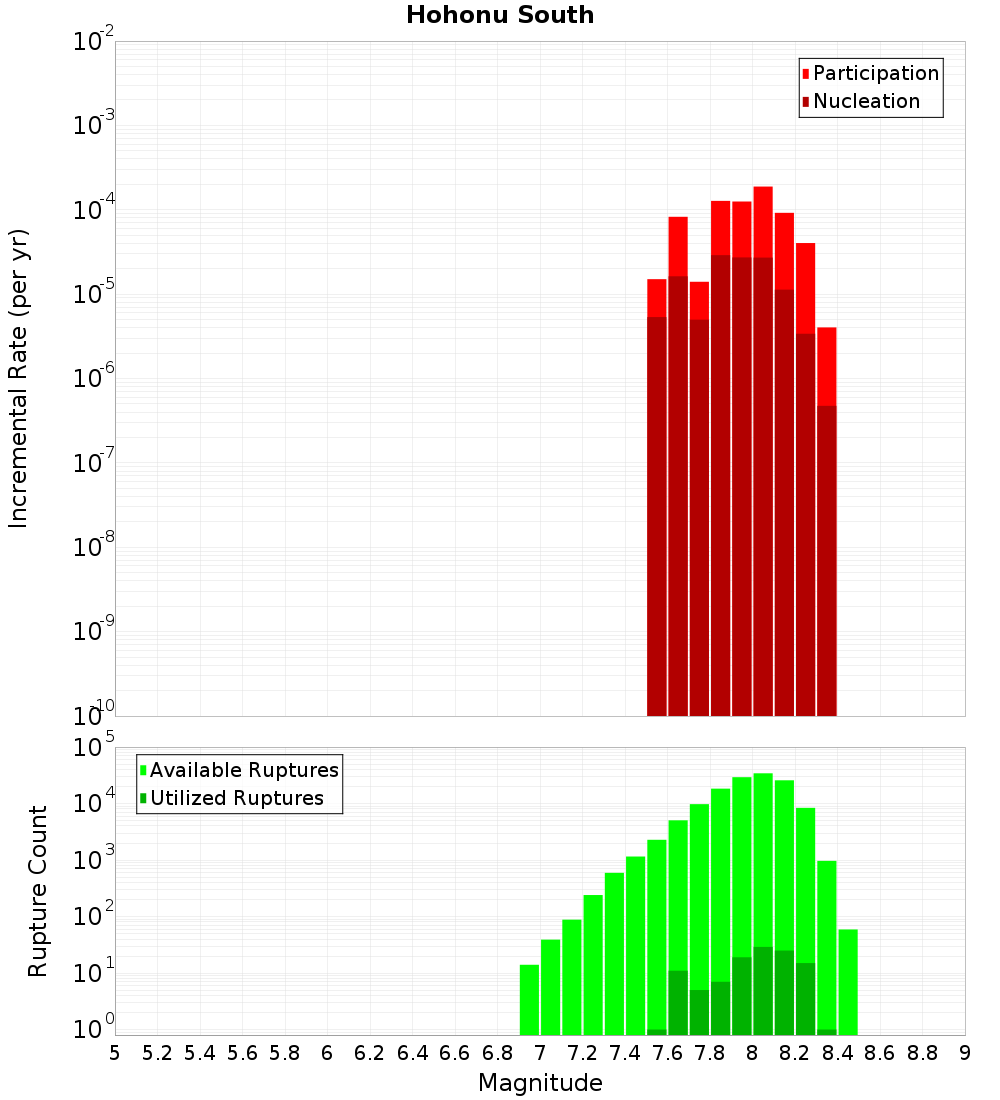

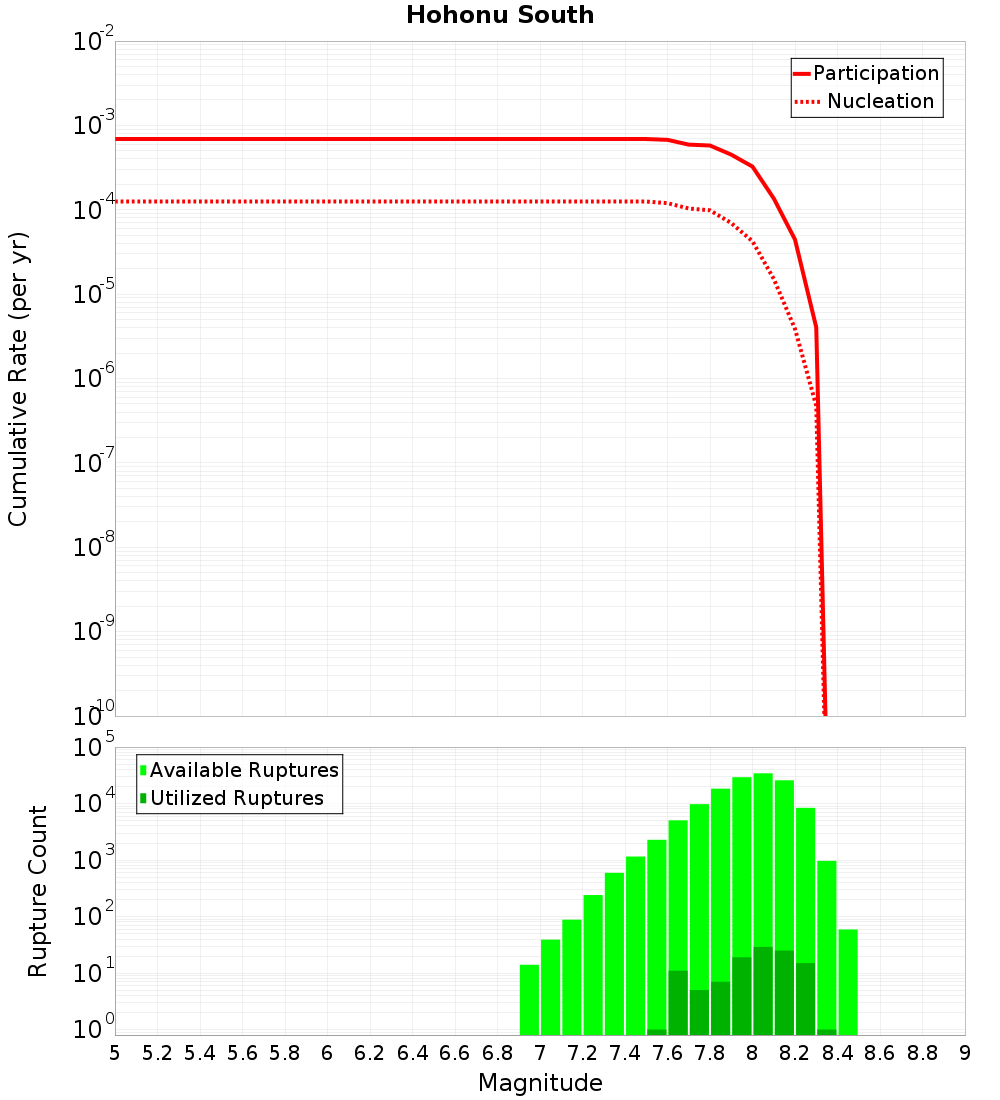

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

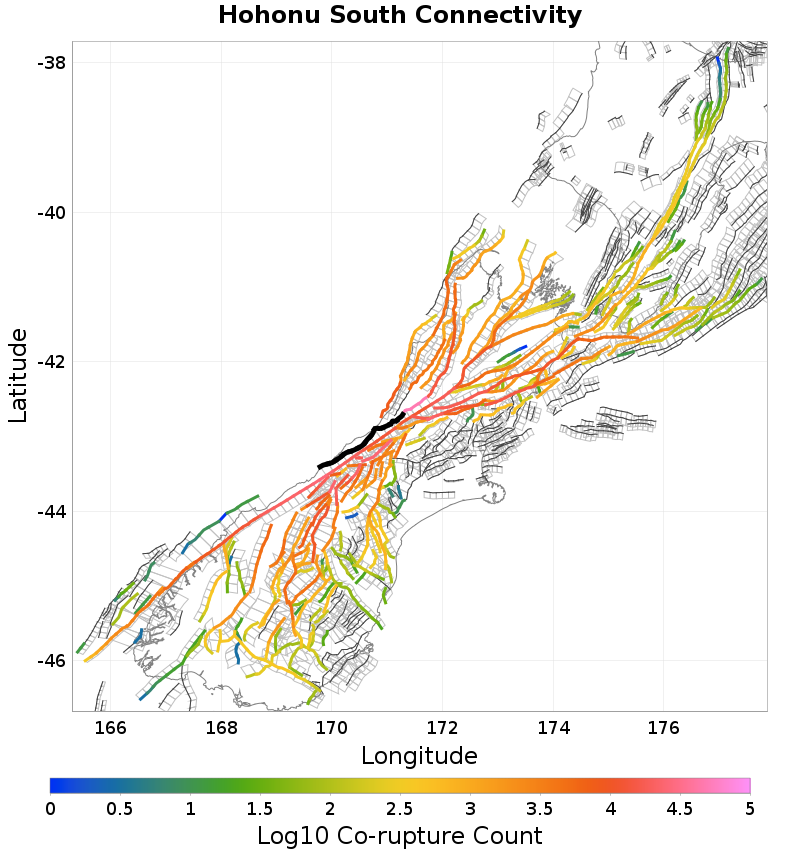

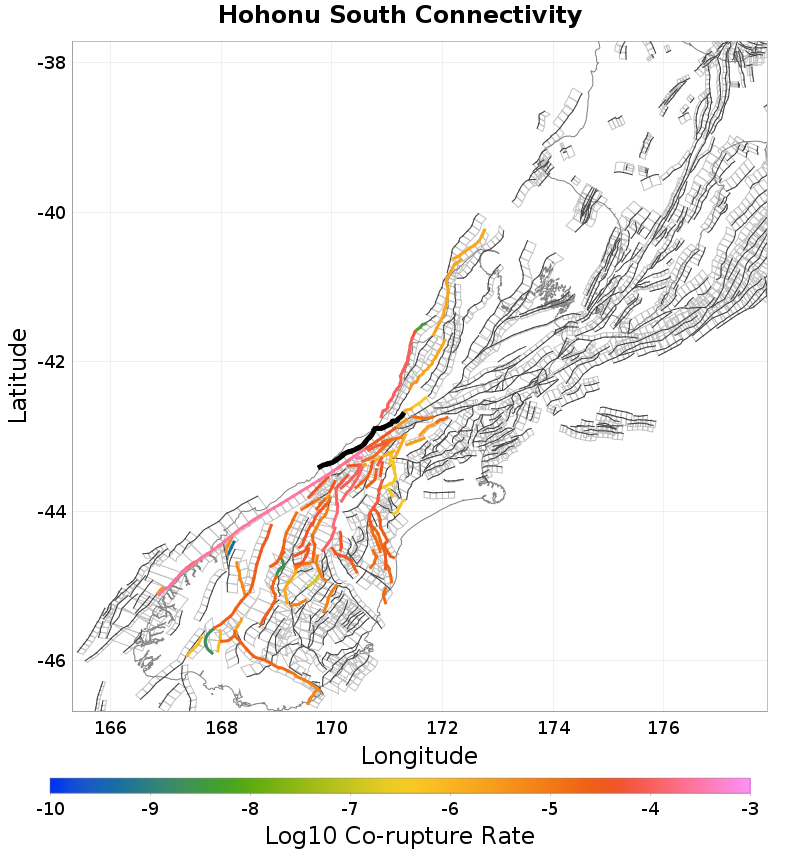

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Hohonu, 0 km awayMistake - Rolleston, 2.4 km away
Alpine: Kaniere to Springs Junction, 0.04 km awayKarangarua, 2.41 km away
Mt Adams, 0.11 km awayMcKerrow - Douglas Duplex, 2.56 km away
Murchison 1 - Ice Lake, 0.15 km awayMt Roon, 4.79 km away
Lord Range, 0.25 km awayHope: Taramakau, 6.54 km away
Black Blob - Haast Ridge, 0.28 km awayMungo, 7.08 km away
Kelly, 0.29 km awayJollie Range, 7.2 km away
Browning Pass, 0.29 km awayMaimai: Brunner Anticline, 7.36 km away
Gunn Glacier, 0.37 km awayTwo Thumb Stream, 10.18 km away
Waitaha, 0.4 km awayStraight Creek, 10.89 km away
Alpine: Jacksons to Kaniere, 0.74 km awayPotts Range, 11.39 km away
Mathias, 0.76 km awayHohonu North, 14.35 km away
Liebig North, 1.16 km awayCape Foulwind 1, 14.46 km away
Observation, 1.39 km awayJagged, 14.95 km away
Veil Stream, 1.86 km away

Hohonu, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?true
Directly Connected?true
Co-rupture Count50,596
Co-rupture Rate1.605508E-6

Alpine: Kaniere to Springs Junction, 0.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?true
Directly Connected?true
Co-rupture Count20,546
Co-rupture Rate3.5673615E-6

Mt Adams, 0.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?true
Directly Connected?true
Co-rupture Count17,698
Co-rupture Rate3.3996179E-4

Murchison 1 - Ice Lake, 0.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?true
Directly Connected?true
Co-rupture Count22,363
Co-rupture Rate9.612174E-5

Lord Range, 0.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?true
Directly Connected?true
Co-rupture Count28,713
Co-rupture Rate1.578565E-5

Black Blob - Haast Ridge, 0.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?true
Directly Connected?true
Co-rupture Count12,759
Co-rupture Rate6.601996E-5

Kelly, 0.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?true
Directly Connected?true
Co-rupture Count25,591
Co-rupture Rate0.0

Browning Pass, 0.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?true
Directly Connected?true
Co-rupture Count529
Co-rupture Rate0.0

Gunn Glacier, 0.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?true
Directly Connected?true
Co-rupture Count8,795
Co-rupture Rate4.9312664E-5

Waitaha, 0.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?true
Directly Connected?true
Co-rupture Count4,415
Co-rupture Rate6.237982E-5

Alpine: Jacksons to Kaniere, 0.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?true
Directly Connected?true
Co-rupture Count34,191
Co-rupture Rate4.273736E-4

Mathias, 0.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?true
Directly Connected?true
Co-rupture Count4,454
Co-rupture Rate0.0

Liebig North, 1.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?true
Directly Connected?true
Co-rupture Count6,386
Co-rupture Rate1.2815255E-4

Observation, 1.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?true
Directly Connected?true
Co-rupture Count5,615
Co-rupture Rate1.1583716E-6

Veil Stream, 1.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?true
Directly Connected?true
Co-rupture Count6,930
Co-rupture Rate4.8056765E-5

Mistake - Rolleston, 2.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?true
Directly Connected?true
Co-rupture Count5,903
Co-rupture Rate1.605508E-6

Karangarua, 2.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?true
Directly Connected?true
Co-rupture Count18,495
Co-rupture Rate3.8995728E-5

McKerrow - Douglas Duplex, 2.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?true
Directly Connected?true
Co-rupture Count23,079
Co-rupture Rate3.7499292E-5

Mt Roon, 4.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?true
Directly Connected?true
Co-rupture Count641
Co-rupture Rate0.0

Hope: Taramakau, 6.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?true
Directly Connected?true
Co-rupture Count16,791
Co-rupture Rate1.4613785E-5

Mungo, 7.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?true
Directly Connected?false
Co-rupture Count1,496
Co-rupture Rate1.4137047E-5

Jollie Range, 7.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?true
Directly Connected?true
Co-rupture Count2,921
Co-rupture Rate7.0828384E-5

Maimai: Brunner Anticline, 7.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Two Thumb Stream, 10.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?true
Directly Connected?false
Co-rupture Count2,333
Co-rupture Rate2.6507227E-5

Straight Creek, 10.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?true
Directly Connected?false
Co-rupture Count7,161
Co-rupture Rate0.0

Potts Range, 11.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?true
Directly Connected?false
Co-rupture Count2,497
Co-rupture Rate3.4430526E-5

Hohonu North, 14.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?true
Directly Connected?false
Co-rupture Count48,469
Co-rupture Rate4.5403812E-7

Cape Foulwind 1, 14.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?true
Directly Connected?true
Co-rupture Count7,934
Co-rupture Rate1.0054546E-4

Jagged, 14.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?true
Directly Connected?false
Co-rupture Count1,730
Co-rupture Rate4.4713653E-7
