Kowai - View Hill Details

PropertyValue
Rupture Count11,531
Ruptures Above Sect Min Mag11,515
Ruptures w/ Nonzero Rates33
Magnitude Range[6.49, 8.27]
Length Range[15, 732] km
Total Rate5.582166E-4 /yr
Multi-Fault Rate5.582166E-4 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults98

Table Of Contents

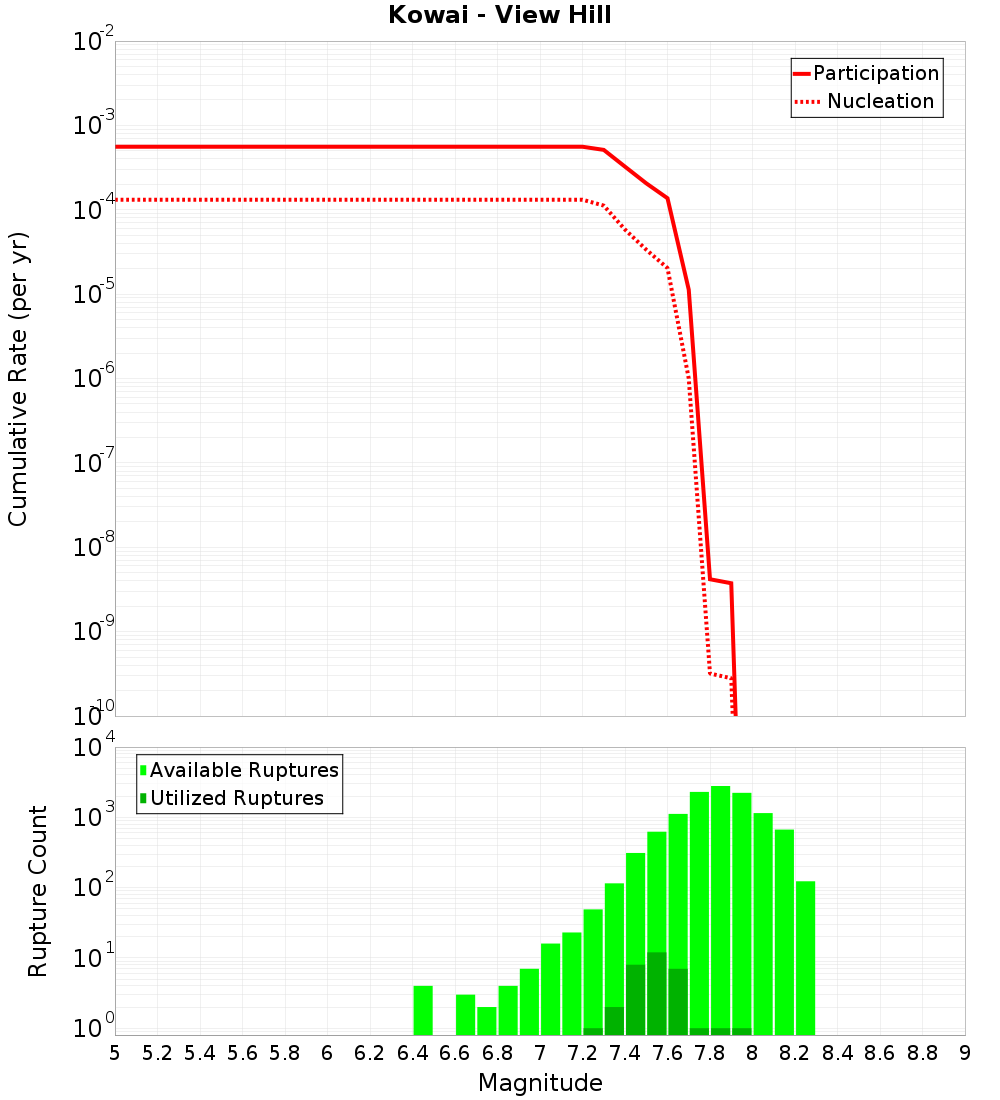

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

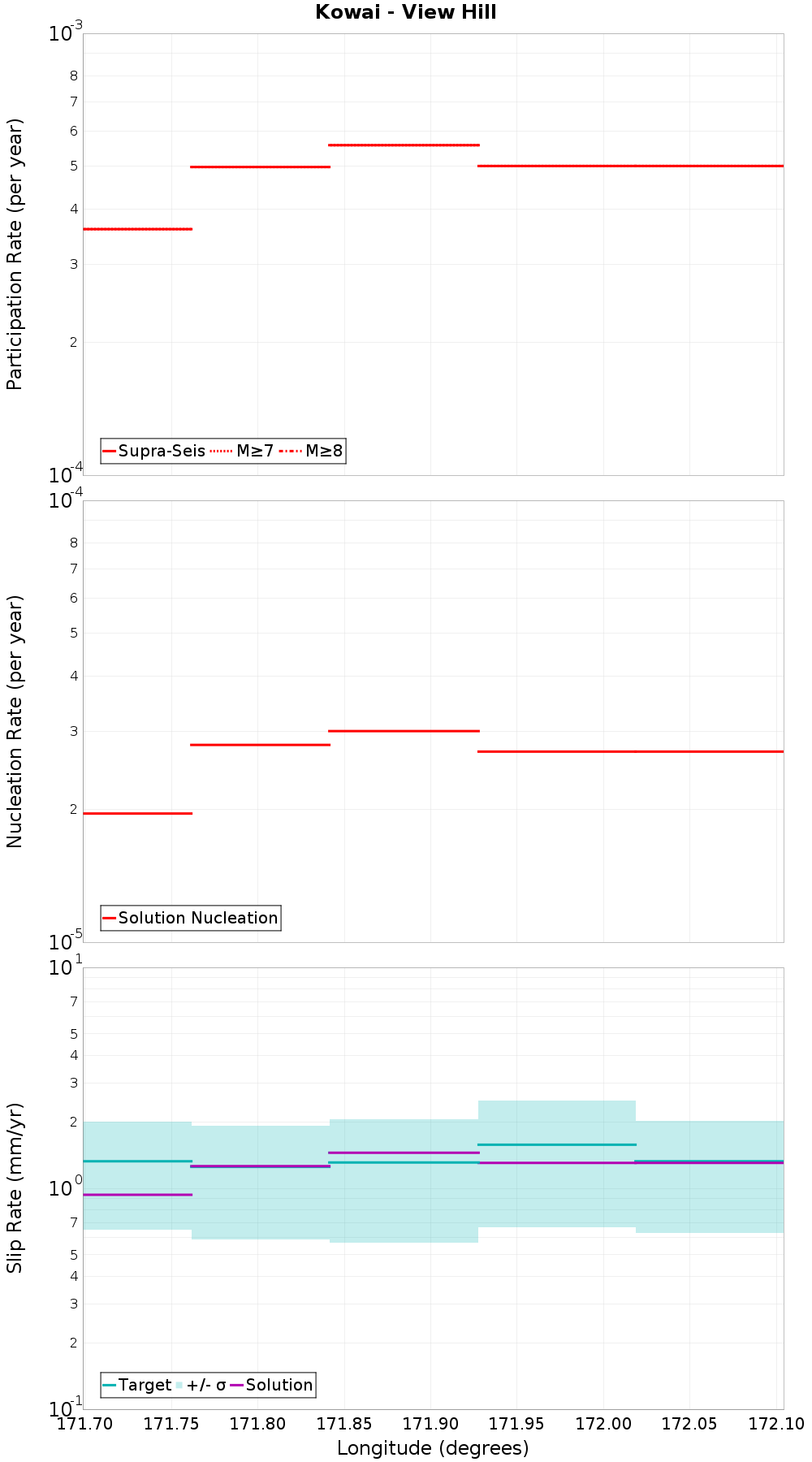

Along-Strike Values

(top)

Along-strike plot

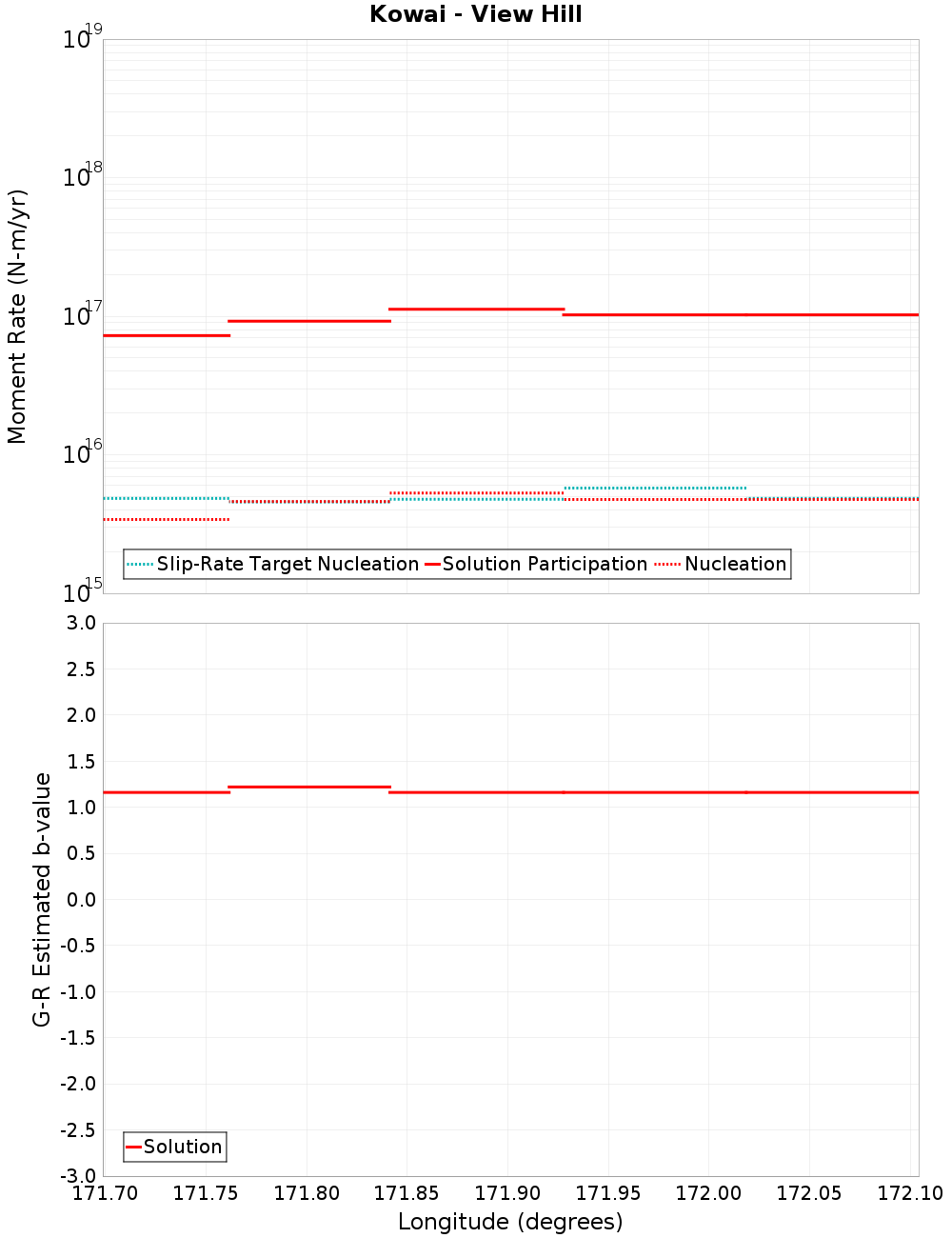

Moment-Rates and b-Values

(top)

Along-strike plot

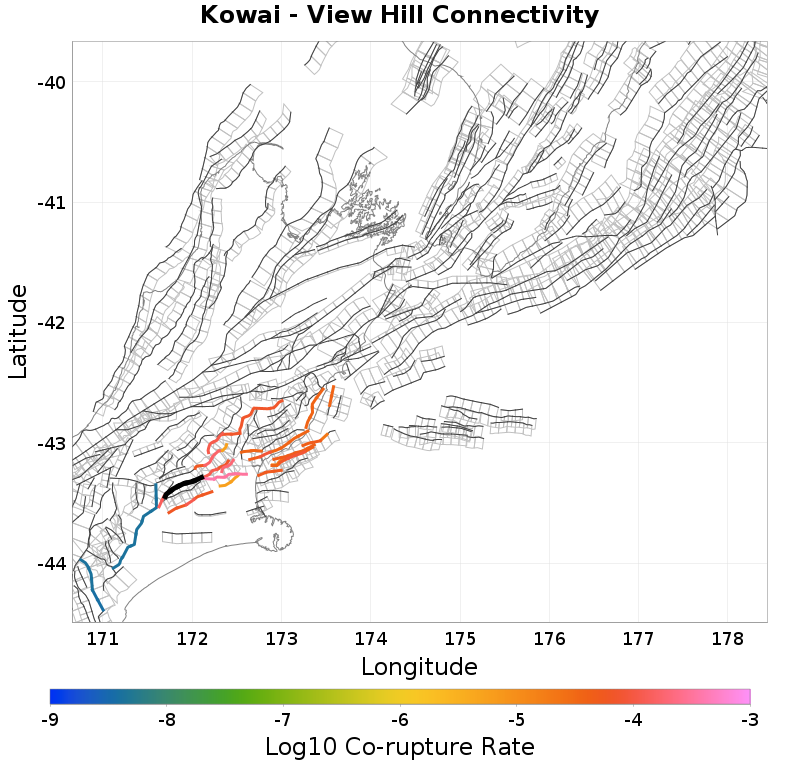

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Hororata, 0.21 km away
Big Ben, 0.83 km away
Starvation - Ashley, 0.87 km away
High Peak - Sheffield, 1.73 km away
Knowles Top, 2.87 km away
Hutt Peel, 8.24 km away
Porters Pass, 8.66 km away
Lees Valley, 8.8 km away
Esk South, 9.83 km away
Springbank, 10.45 km away
Double Hill, 13.14 km away
Torlesse, 13.54 km away

Hororata, 0.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?true
Directly Connected?true
Co-rupture Count3,523
Co-rupture Rate1.1748432E-4

Big Ben, 0.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?true
Directly Connected?true
Co-rupture Count1,244
Co-rupture Rate1.3787983E-4

Starvation - Ashley, 0.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?true
Directly Connected?true
Co-rupture Count10,625
Co-rupture Rate3.8578195E-4

High Peak - Sheffield, 1.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?true
Directly Connected?true
Co-rupture Count1,848
Co-rupture Rate0.0

Knowles Top, 2.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?true
Directly Connected?true
Co-rupture Count924
Co-rupture Rate1.1497733E-4

Hutt Peel, 8.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?true
Directly Connected?false
Co-rupture Count819
Co-rupture Rate4.1758894E-9

Porters Pass, 8.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Lees Valley, 8.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?true
Directly Connected?false
Co-rupture Count2,325
Co-rupture Rate1.6424069E-4

Esk South, 9.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Springbank, 10.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?true
Directly Connected?false
Co-rupture Count17
Co-rupture Rate5.570089E-6

Double Hill, 13.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Torlesse, 13.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
