Moonlight North Details

Property	Value
Rupture Count	42,057
Ruptures Above Sect Min Mag	42,040
Ruptures w/ Nonzero Rates	44
Magnitude Range	[6.74, 8.51]
Length Range	[21, 1,132] km
Total Rate	1.0985894E-4 /yr
Multi-Fault Rate	1.0985894E-4 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	207

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

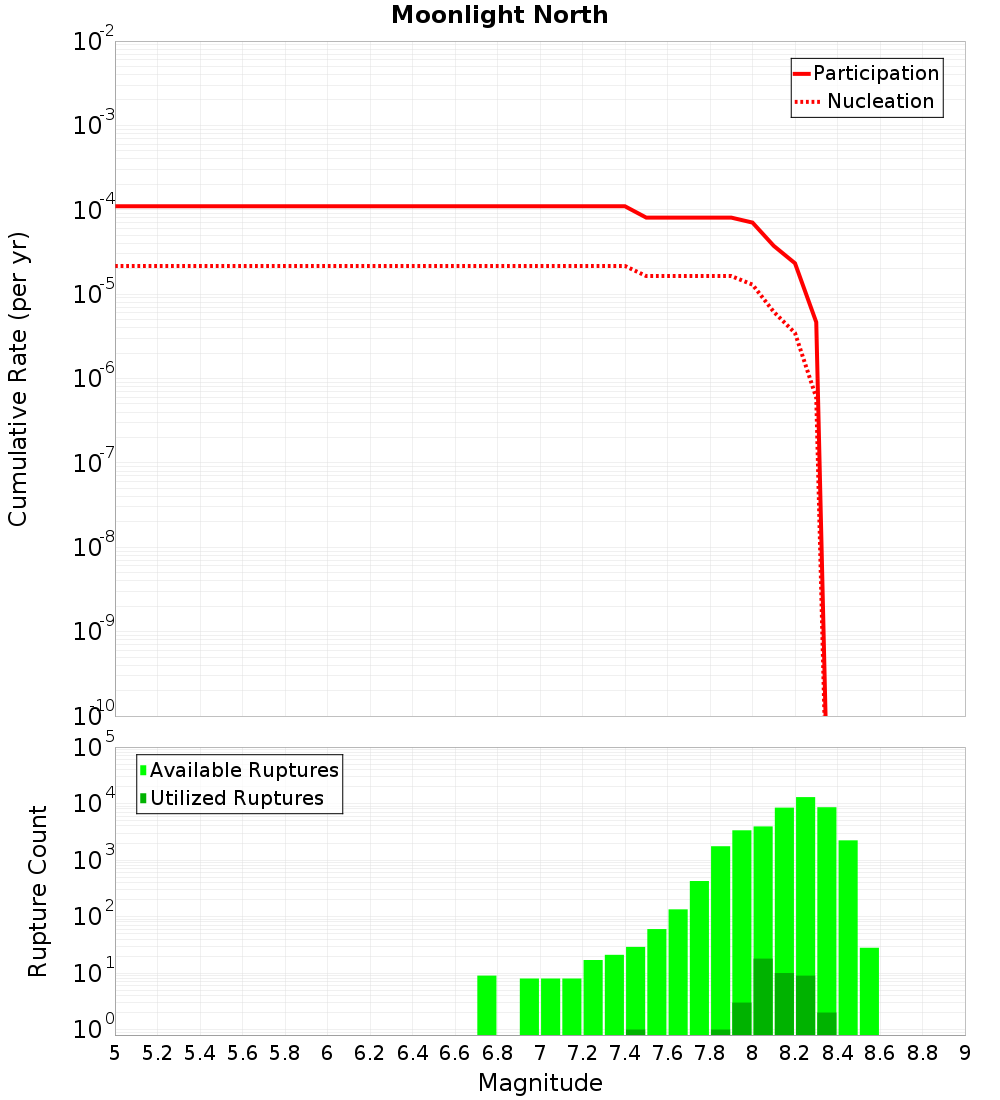

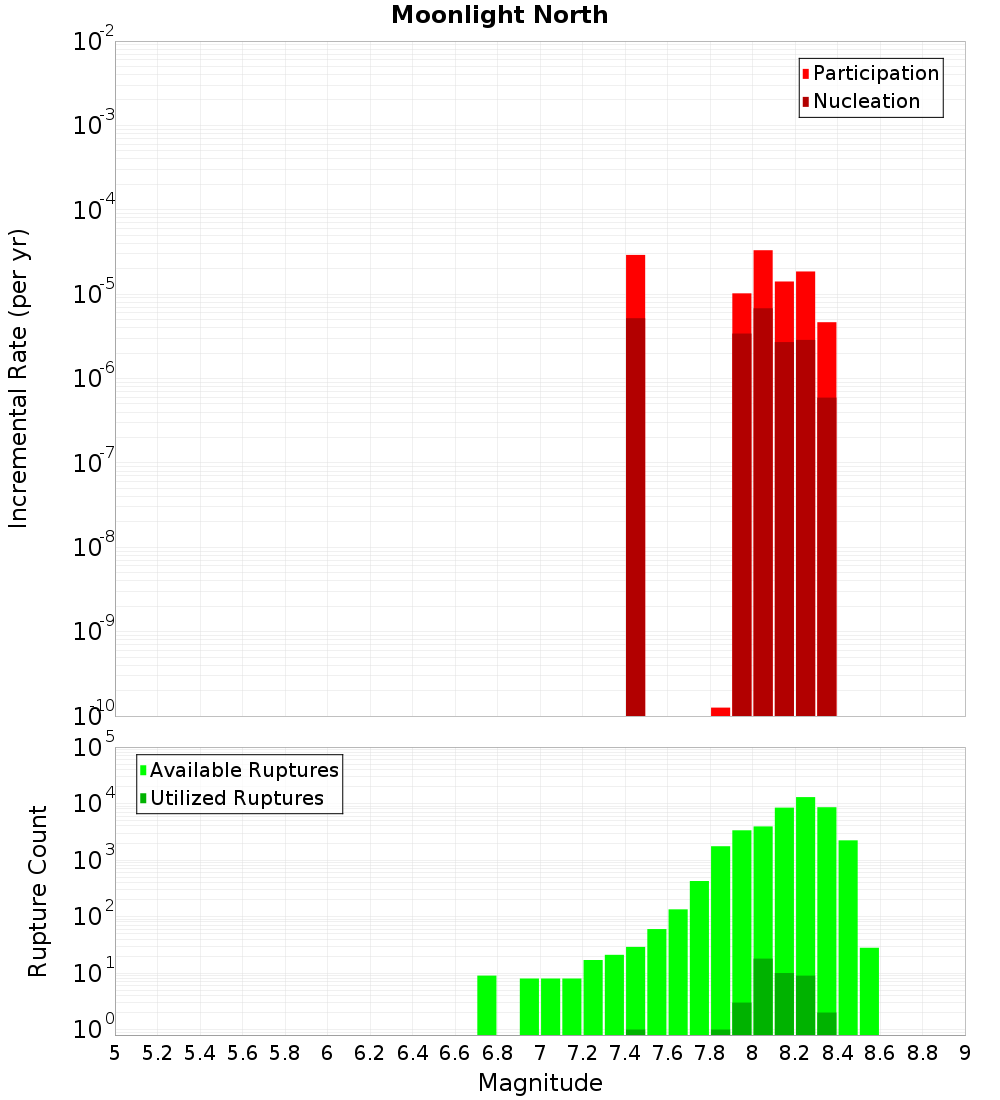

Magnitude-Frequency Distribution

Incremental	Cumulative

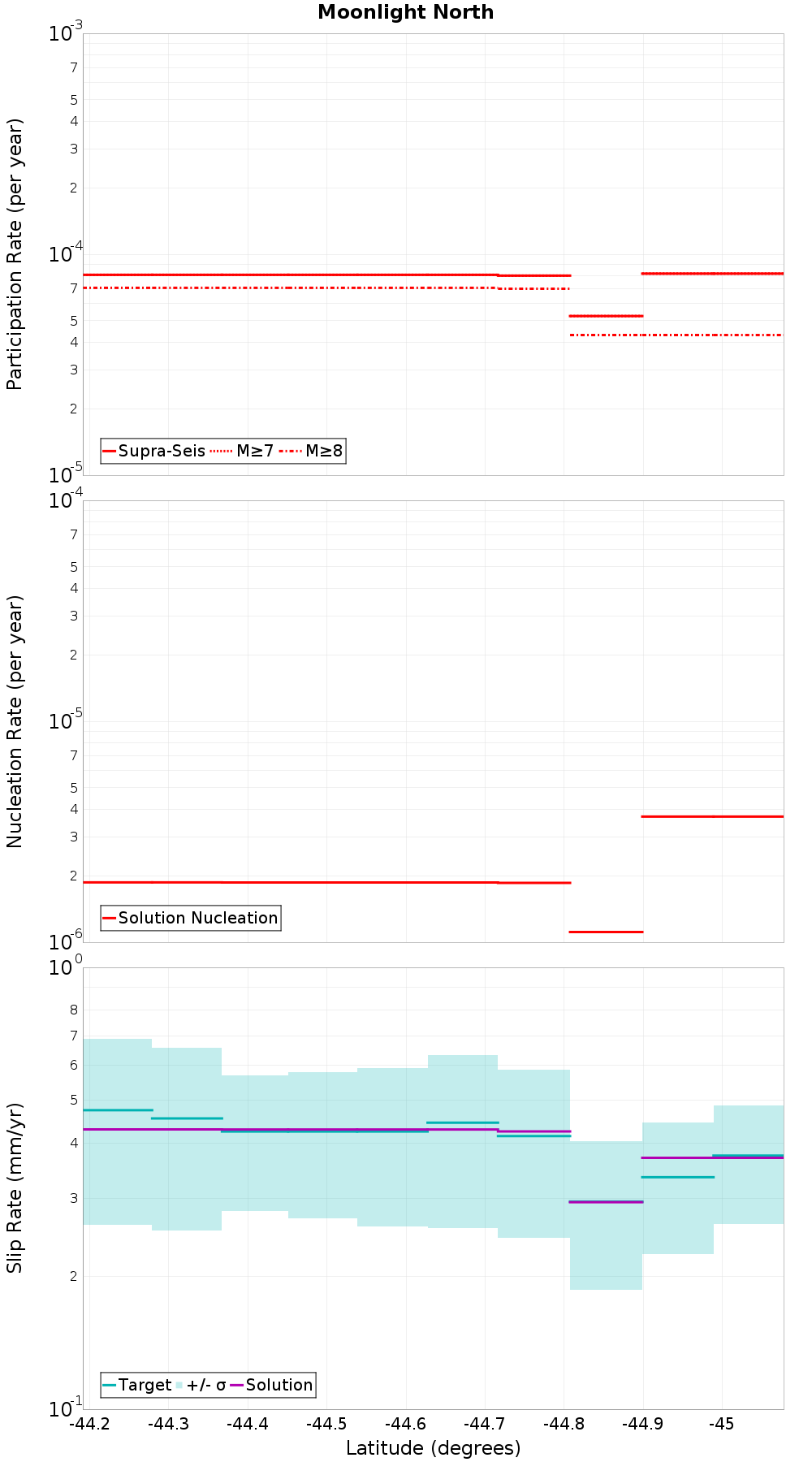

Along-Strike Values

Moment-Rates and b-Values

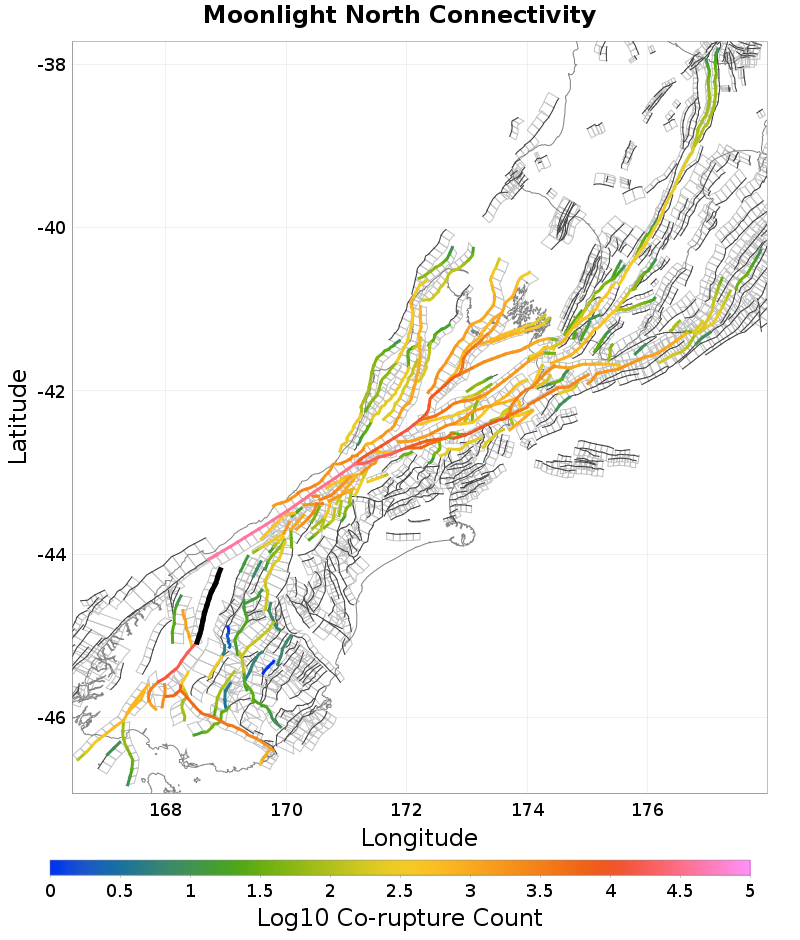

Connectivity

Nearby Sections

Fault Section
West Wakatipu, 0.14 km away
Alpine: Jacksons to Kaniere, 1.47 km away
Moonlight South, 4.73 km away
Alpine: George to Jacksons, 9.42 km away
Livingstone, 9.78 km away
Barn, 10.68 km away

West Wakatipu, 0.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?	true
Directly Connected?	true
Co-rupture Count	1,276
Co-rupture Rate	2.752688E-5

Alpine: Jacksons to Kaniere, 1.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?	true
Directly Connected?	true
Co-rupture Count	41,463
Co-rupture Rate	8.069045E-5

Moonlight South, 4.73 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?	true
Directly Connected?	true
Co-rupture Count	18,068
Co-rupture Rate	8.8283705E-5

Alpine: George to Jacksons, 9.42 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Livingstone, 9.78 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?	true
Directly Connected?	true
Co-rupture Count	24
Co-rupture Rate	2.9168488E-5

Barn, 10.68 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
