Quartz Creek Details
| Property | Value |
|---|---|
| Rupture Count | 278 |
| Ruptures Above Sect Min Mag | 277 |
| Ruptures w/ Nonzero Rates | 8 |
| Magnitude Range | [6.51, 8.11] |
| Length Range | [12, 493] km |
| Total Rate | 6.2478466E-5 /yr |
| Multi-Fault Rate | 6.2478466E-5 /yr (100.00%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 60 |
Table Of Contents

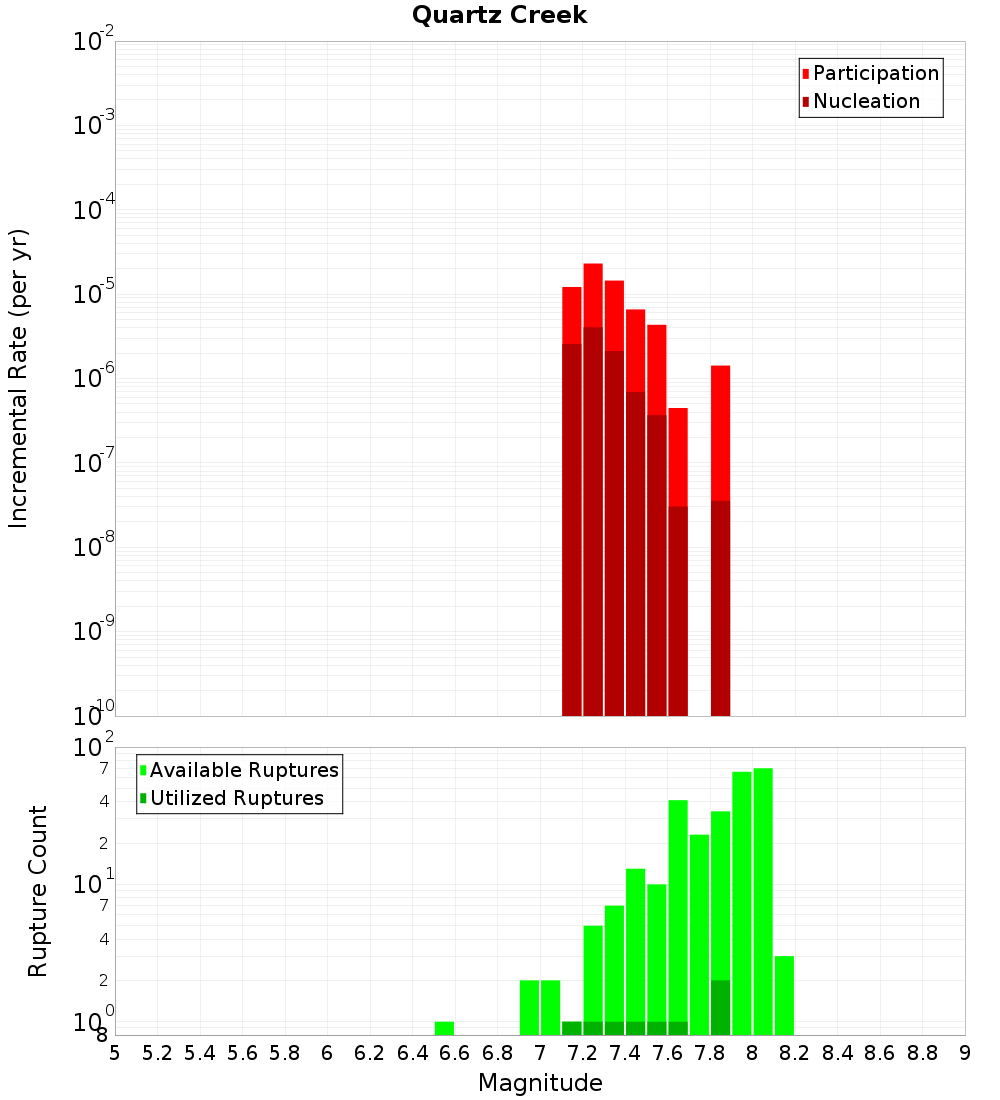

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

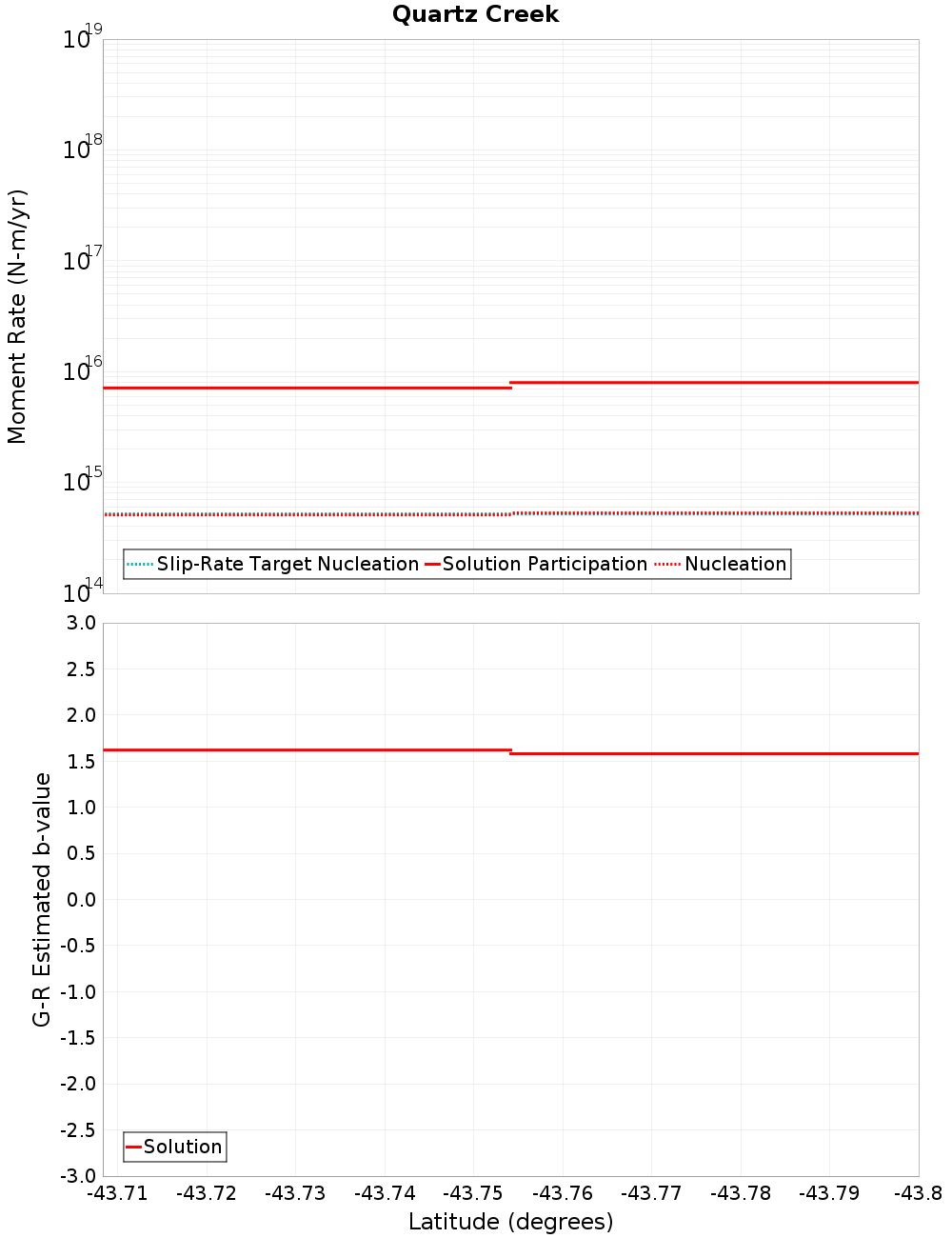

Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Coal Creek, 0.08 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Ben McLeod, 0.23 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 22 |
| Co-rupture Rate | 1.1368018E-5 |
Hutt Peel, 0.45 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 264 |
| Co-rupture Rate | 1.2791542E-5 |
Edith, 2.94 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 26 |
| Co-rupture Rate | 5.111045E-5 |
Catherine, 5.48 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 13 |
| Co-rupture Rate | 0.0 |
Lake Heron, 7.89 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 20 |
| Co-rupture Rate | 1.1368018E-5 |
Klondyke Moor, 10.67 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Fox Peak, 13.08 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
