Rauoterangi Details
| Property | Value |
|---|---|
| Rupture Count | 176 |
| Ruptures Above Sect Min Mag | 175 |
| Ruptures w/ Nonzero Rates | 10 |
| Magnitude Range | [6.99, 8.09] |
| Length Range | [24, 404] km |
| Total Rate | 1.8533127E-4 /yr |
| Multi-Fault Rate | 1.2682167E-4 /yr (68.43%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 39 |
Table Of Contents

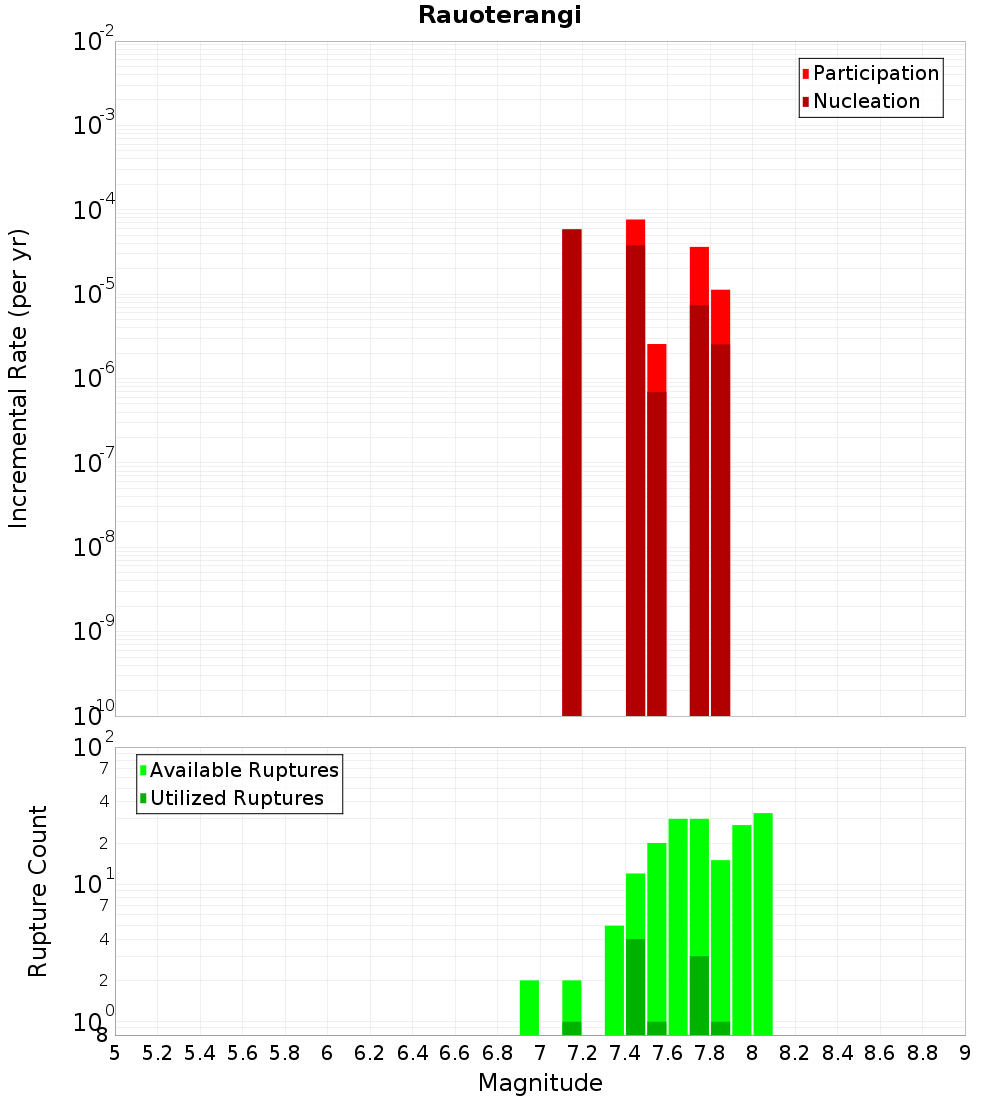

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

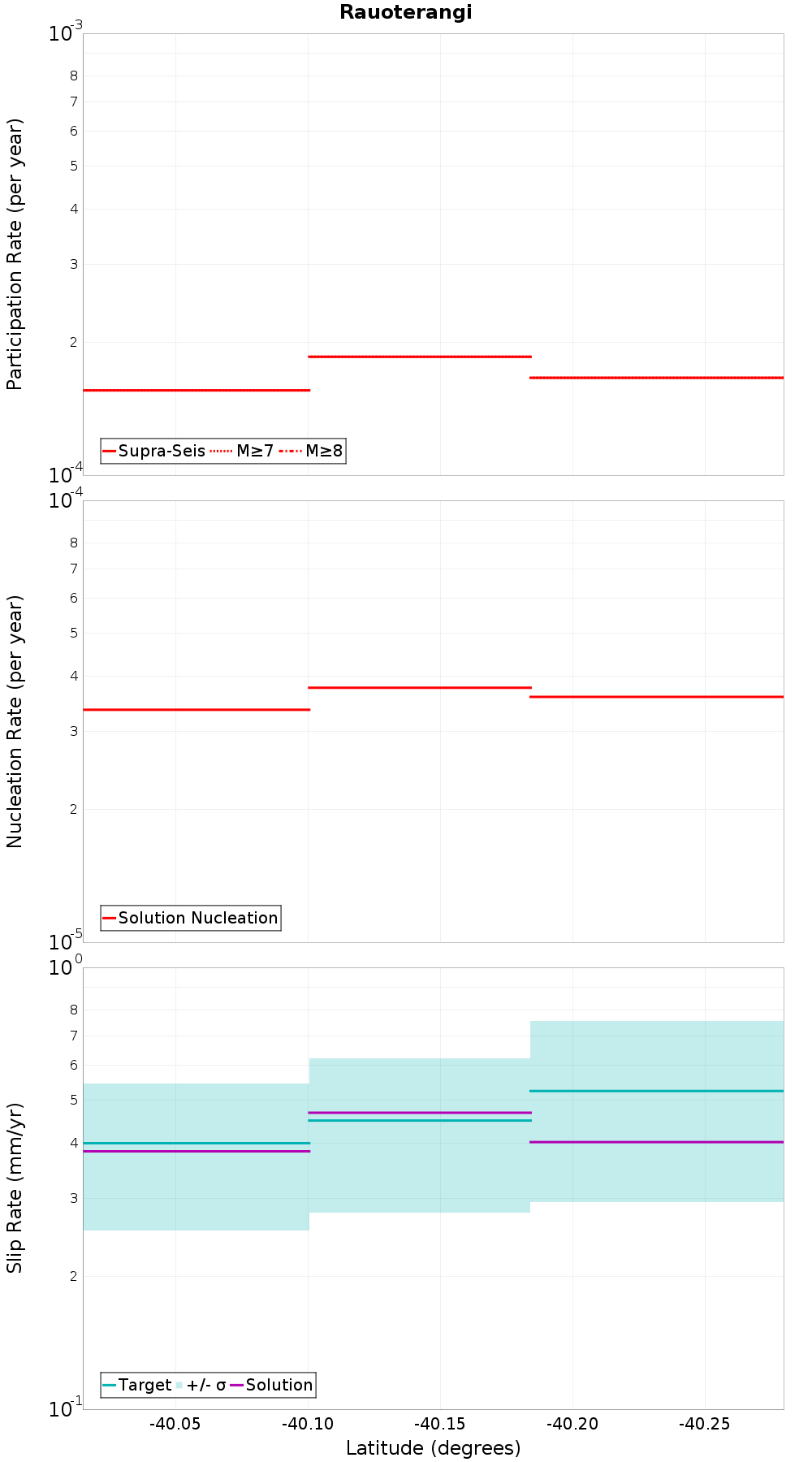

Along-Strike Values

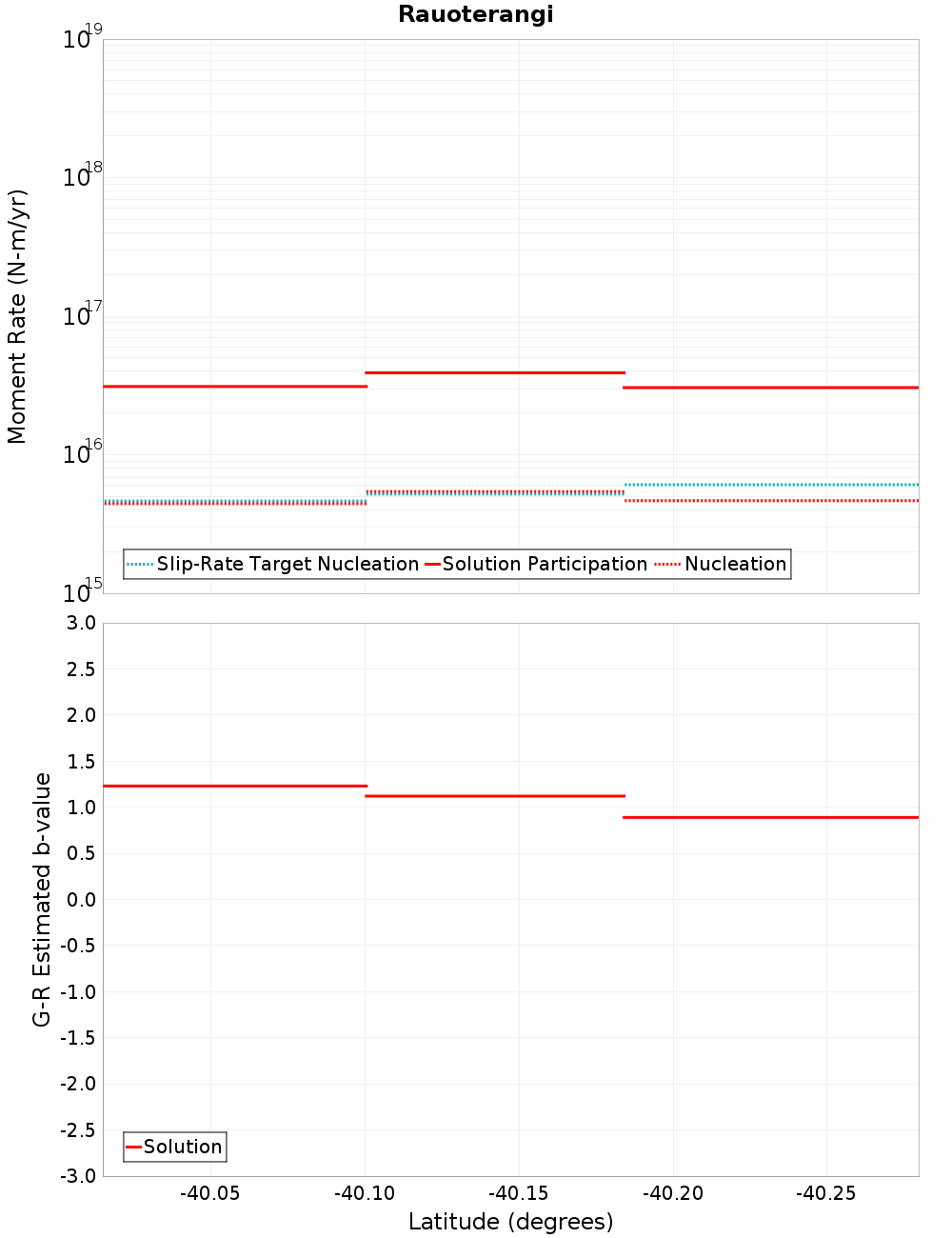

Moment-Rates and b-Values

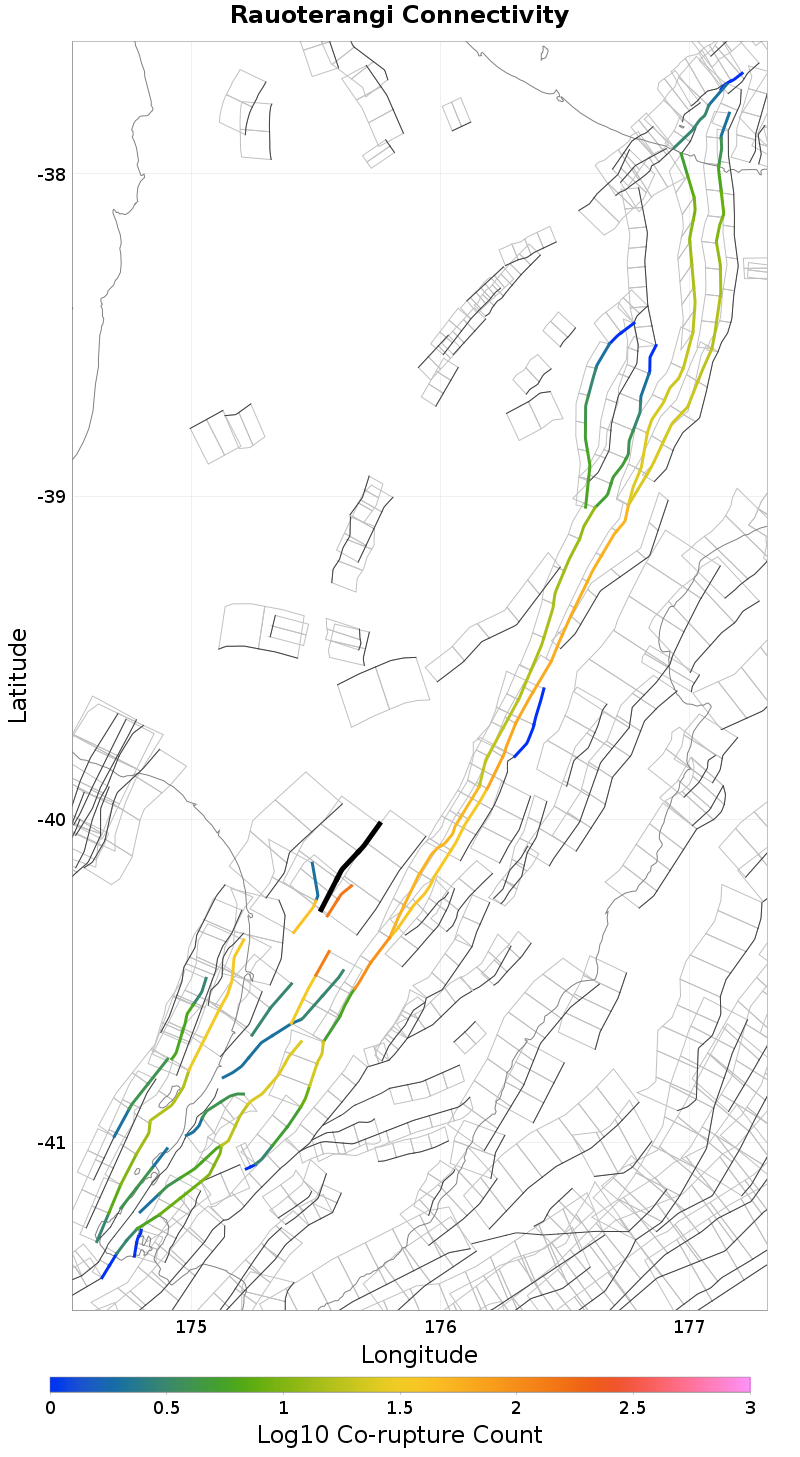

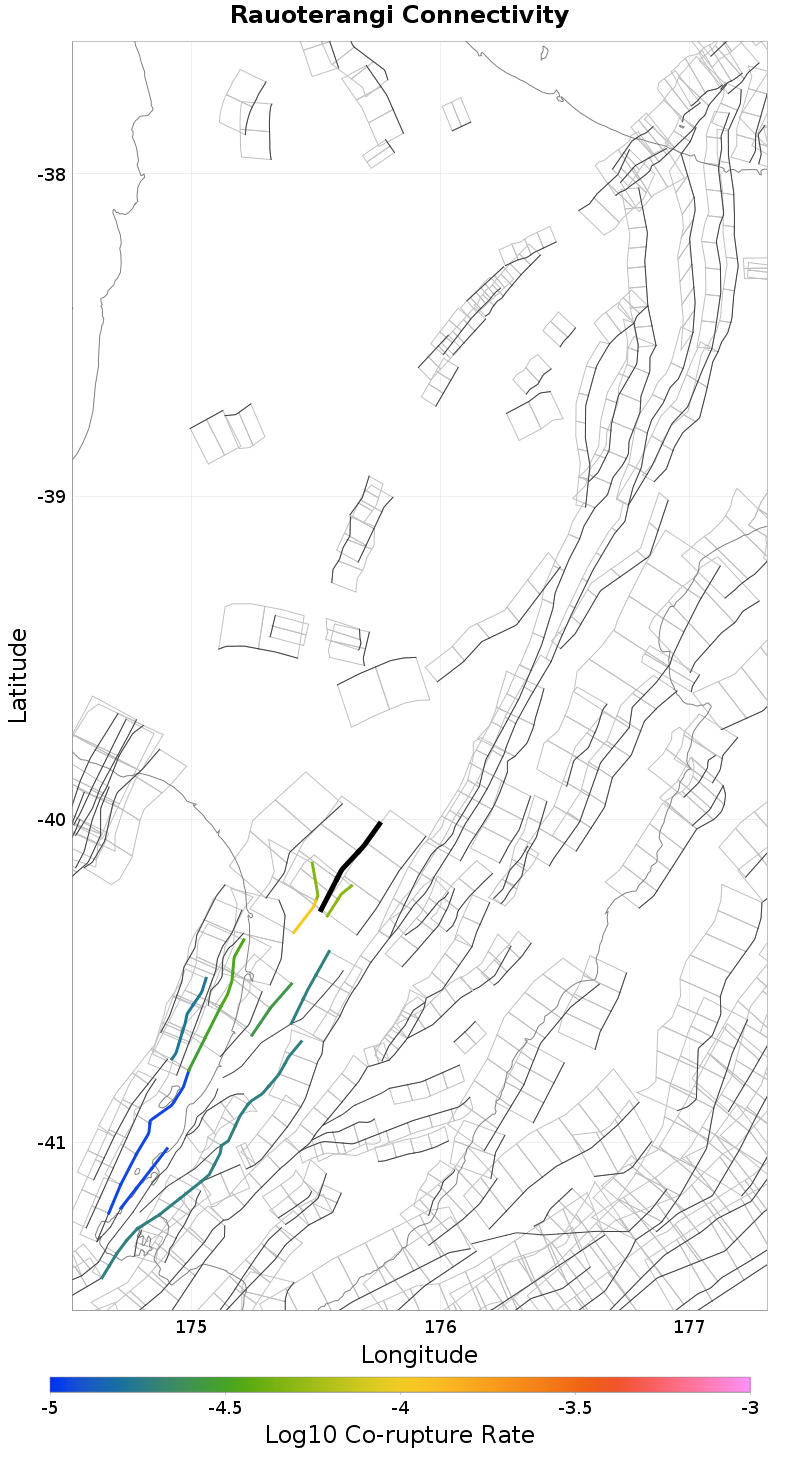

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Mt Stewart, 2.5 km away |
| Taonui, 2.62 km away |
| Mascarin, 11.64 km away |
| Himatangi, 11.72 km away |
| Leedstown, 12.4 km away |
| Pohangina, 12.82 km away |
| Tokomaru, 14.68 km away |
Mt Stewart, 2.5 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 40 |
| Co-rupture Rate | 1.0760365E-4 |
Taonui, 2.62 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 143 |
| Co-rupture Rate | 4.8989117E-5 |
Mascarin, 11.64 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Himatangi, 11.72 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Leedstown, 12.4 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Pohangina, 12.82 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Tokomaru, 14.68 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 132 |
| Co-rupture Rate | 1.9218032E-5 |
