Te Whaiti North Details
| Property | Value |
|---|---|
| Rupture Count | 933 |
| Ruptures Above Sect Min Mag | 931 |
| Ruptures w/ Nonzero Rates | 63 |
| Magnitude Range | [6.27, 8.26] |
| Length Range | [8, 672] km |
| Total Rate | 2.8698976E-4 /yr |
| Multi-Fault Rate | 2.8698976E-4 /yr (100.00%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 76 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

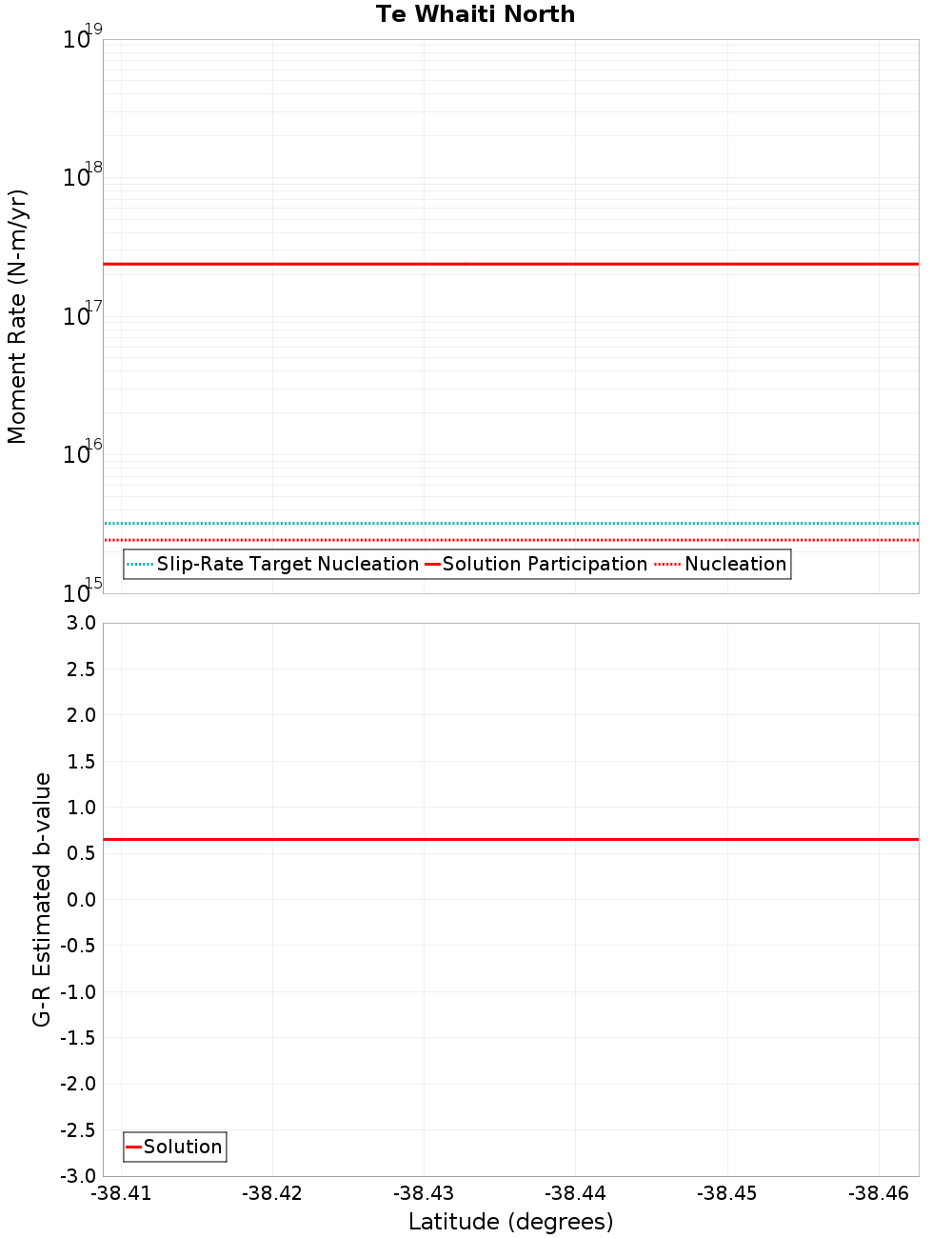

Moment-Rates and b-Values

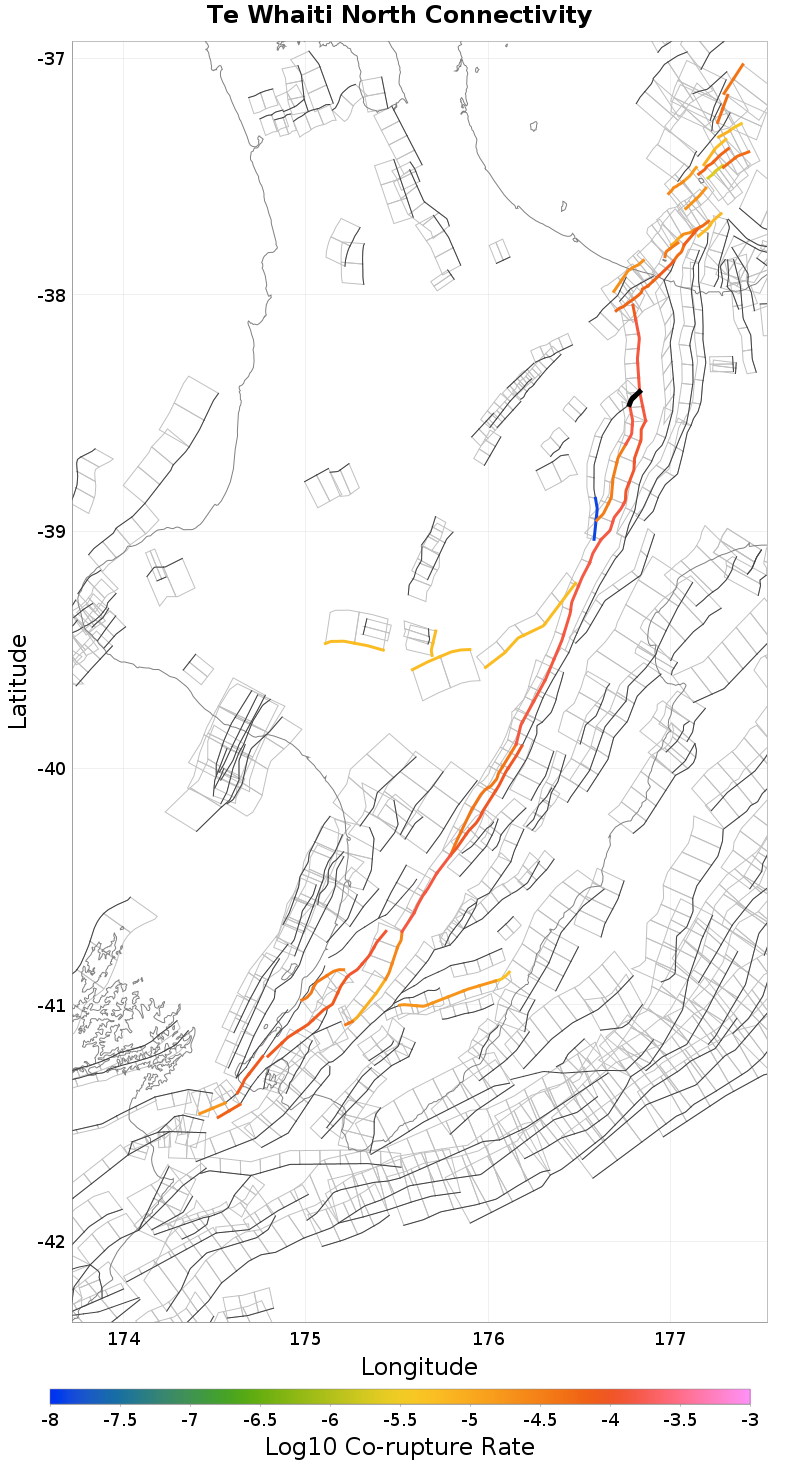

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Te Whaiti South, 0 km away |
| Wheao: North, 0 km away |
| Waiohau: North, 0.2 km away |
| Waiohau: South, 10.35 km away |
| Wheao: South, 11.12 km away |
Te Whaiti South, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 555 |
| Co-rupture Rate | 1.478746E-4 |
Wheao: North, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Waiohau: North, 0.2 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 377 |
| Co-rupture Rate | 1.3911516E-4 |
Waiohau: South, 10.35 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 496 |
| Co-rupture Rate | 1.4786128E-4 |
Wheao: South, 11.12 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 54 |
| Co-rupture Rate | 1.3316607E-8 |
