Wendon Valley Details

PropertyValue
Rupture Count1,680
Ruptures Above Sect Min Mag1,679
Ruptures w/ Nonzero Rates4
Magnitude Range[7.02, 8.25]
Length Range[25, 547] km
Total Rate2.3288543E-4 /yr
Multi-Fault Rate1.16433264E-4 /yr (50.00%)
Directly-Connected Faults4
All Co-Rupturing Faults72

Table Of Contents

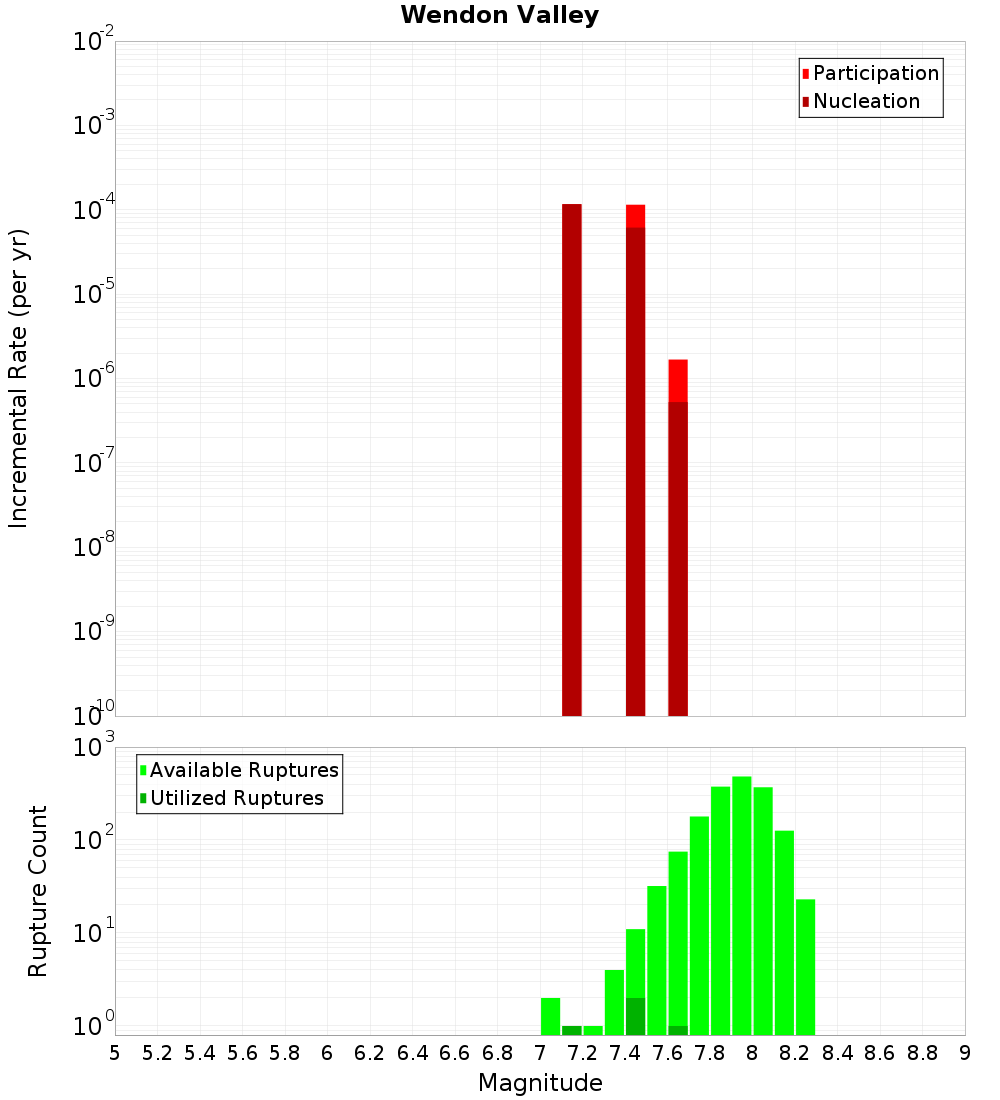

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

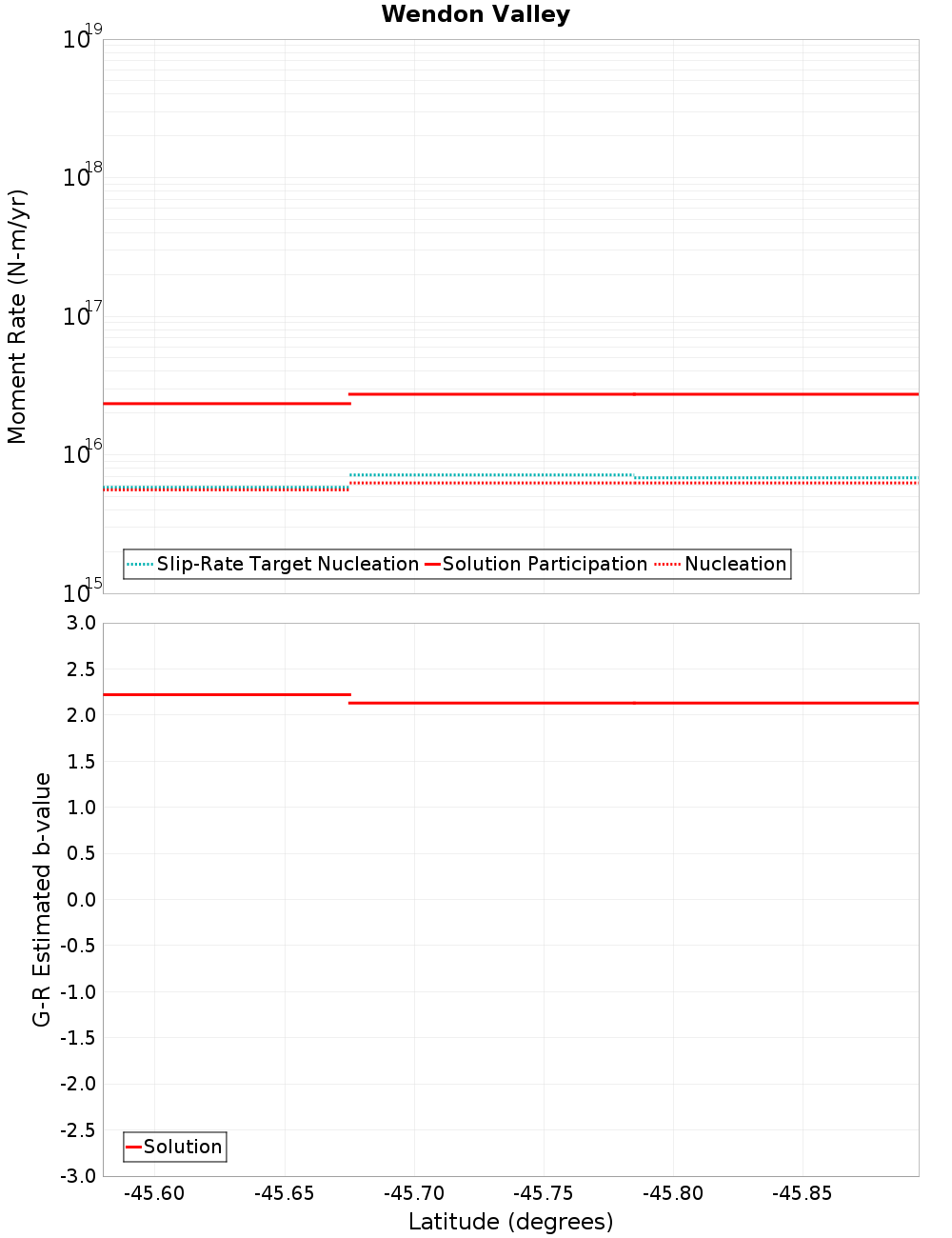

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Old Man, 0.17 km away
Waikaka, 0.21 km away
Teviot, 0.27 km away
Spylaw, 3.74 km away
Waikaia, 4.03 km away
Garvie, 6.3 km away
Roaring Lion, 10.51 km away
Backbone, 10.82 km away
Beacon Hill, 11.5 km away
Lake Onslow, 13.56 km away

Old Man, 0.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?true
Directly Connected?true
Co-rupture Count1,491
Co-rupture Rate1.6777014E-6

Waikaka, 0.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?true
Directly Connected?true
Co-rupture Count835
Co-rupture Rate0.0

Teviot, 0.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Spylaw, 3.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate2.117525E-5

Waikaia, 4.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?true
Directly Connected?true
Co-rupture Count417
Co-rupture Rate9.5258016E-5

Garvie, 6.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?true
Directly Connected?false
Co-rupture Count83
Co-rupture Rate0.0

Roaring Lion, 10.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?true
Directly Connected?false
Co-rupture Count53
Co-rupture Rate0.0

Backbone, 10.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Beacon Hill, 11.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?true
Directly Connected?true
Co-rupture Count226
Co-rupture Rate2.117525E-5

Lake Onslow, 13.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
