Woodville Details

Property	Value
Rupture Count	6,578
Ruptures Above Sect Min Mag	6,577
Ruptures w/ Nonzero Rates	5
Magnitude Range	[6.76, 8.23]
Length Range	[21, 602] km
Total Rate	6.813473E-5 /yr
Multi-Fault Rate	6.813473E-5 /yr (100.00%)
Directly-Connected Faults	3
All Co-Rupturing Faults	82

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

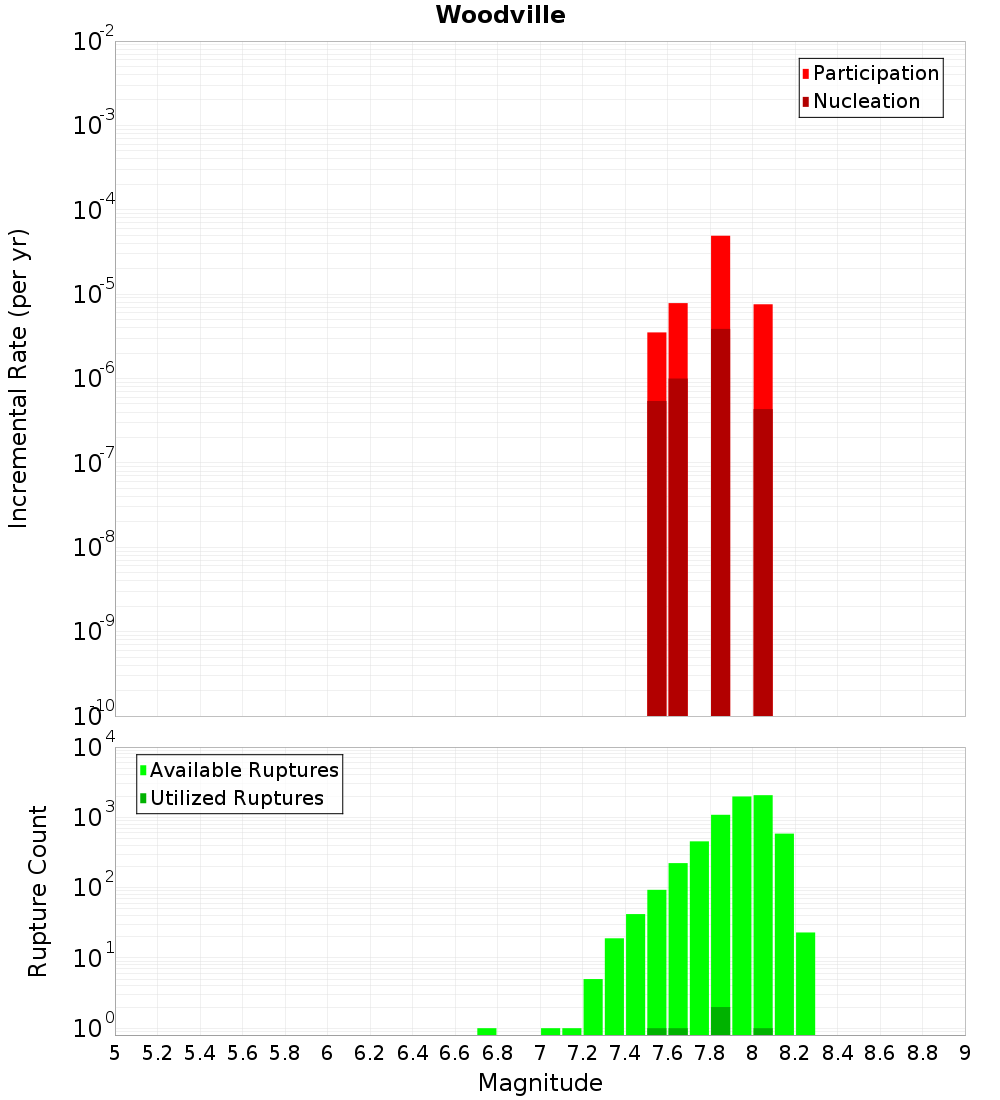

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

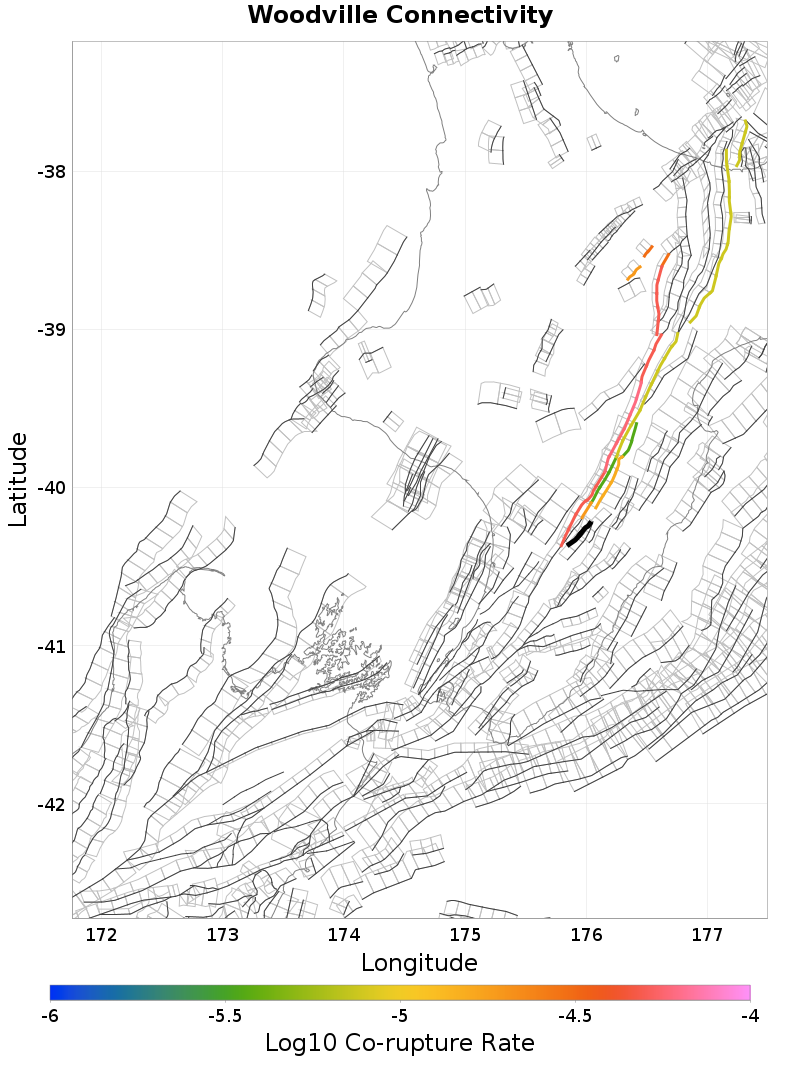

Connectivity

Nearby Sections

Fault Section
Mohaka: South, 0.4 km away
Pahiatua, 1.03 km away
Ruahine: South, 1.31 km away
Wellington: Pahiatua, 5.05 km away
Maunga, 5.92 km away
Rangefront, 10.91 km away
Pohangina, 12.61 km away
Waewaepa, 13.08 km away

Mohaka: South, 0.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?	true
Directly Connected?	true
Co-rupture Count	6,444
Co-rupture Rate	2.6508553E-5

Pahiatua, 1.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ruahine: South, 1.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?	true
Directly Connected?	true
Co-rupture Count	121
Co-rupture Rate	4.920815E-5

Wellington: Pahiatua, 5.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?	true
Directly Connected?	true
Co-rupture Count	5,945
Co-rupture Rate	0.0

Maunga, 5.92 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Rangefront, 10.91 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?	true
Directly Connected?	false
Co-rupture Count	216
Co-rupture Rate	1.5408112E-5

Pohangina, 12.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waewaepa, 13.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMExXRk5B
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
