Hope: Kakapo-2-Hamner Details

Property	Value
Rupture Count	78,021
Ruptures Above Sect Min Mag	78,019
Ruptures w/ Nonzero Rates	81
Magnitude Range	[6.37, 8.57]
Length Range	[6, 1,083] km
Total Rate	9.380958E-4 /yr
Multi-Fault Rate	9.380958E-4 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	250

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

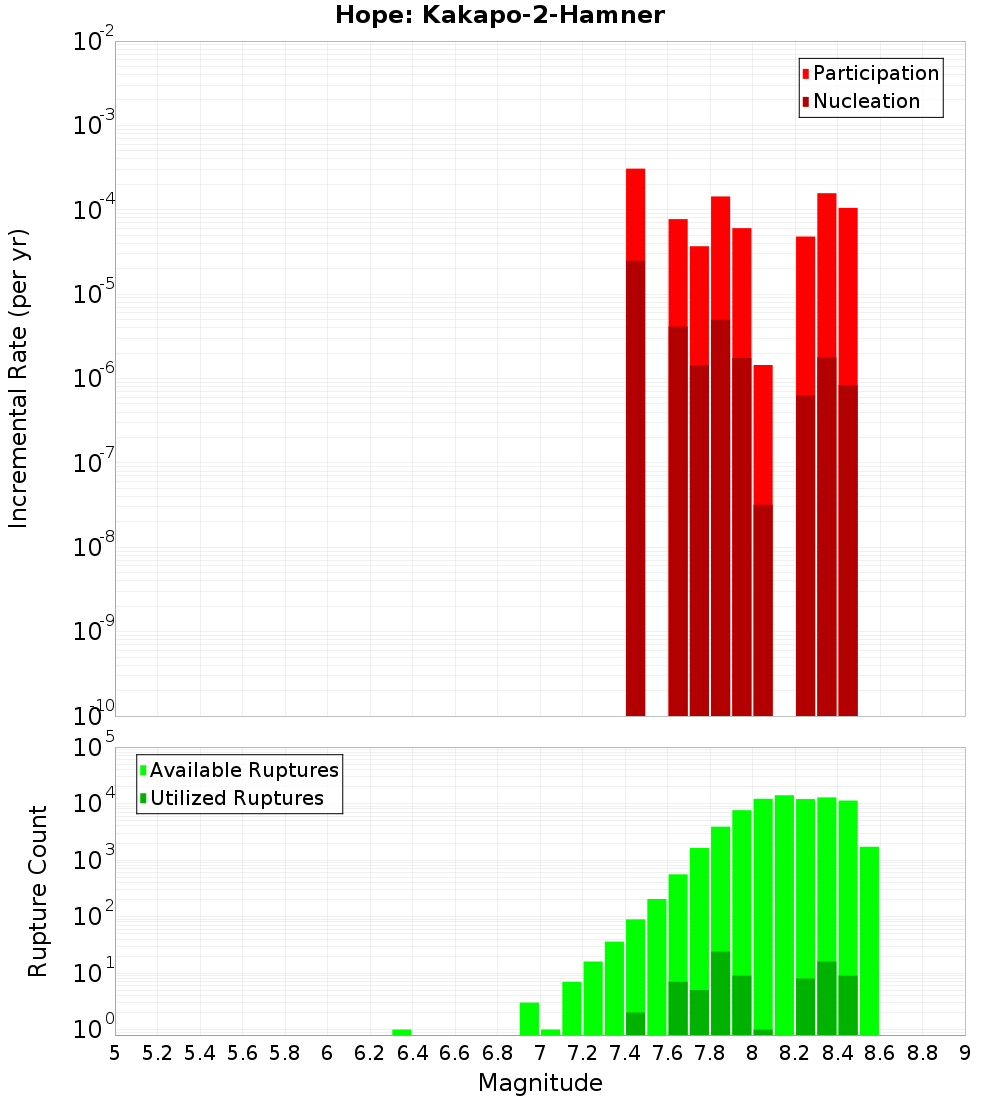

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

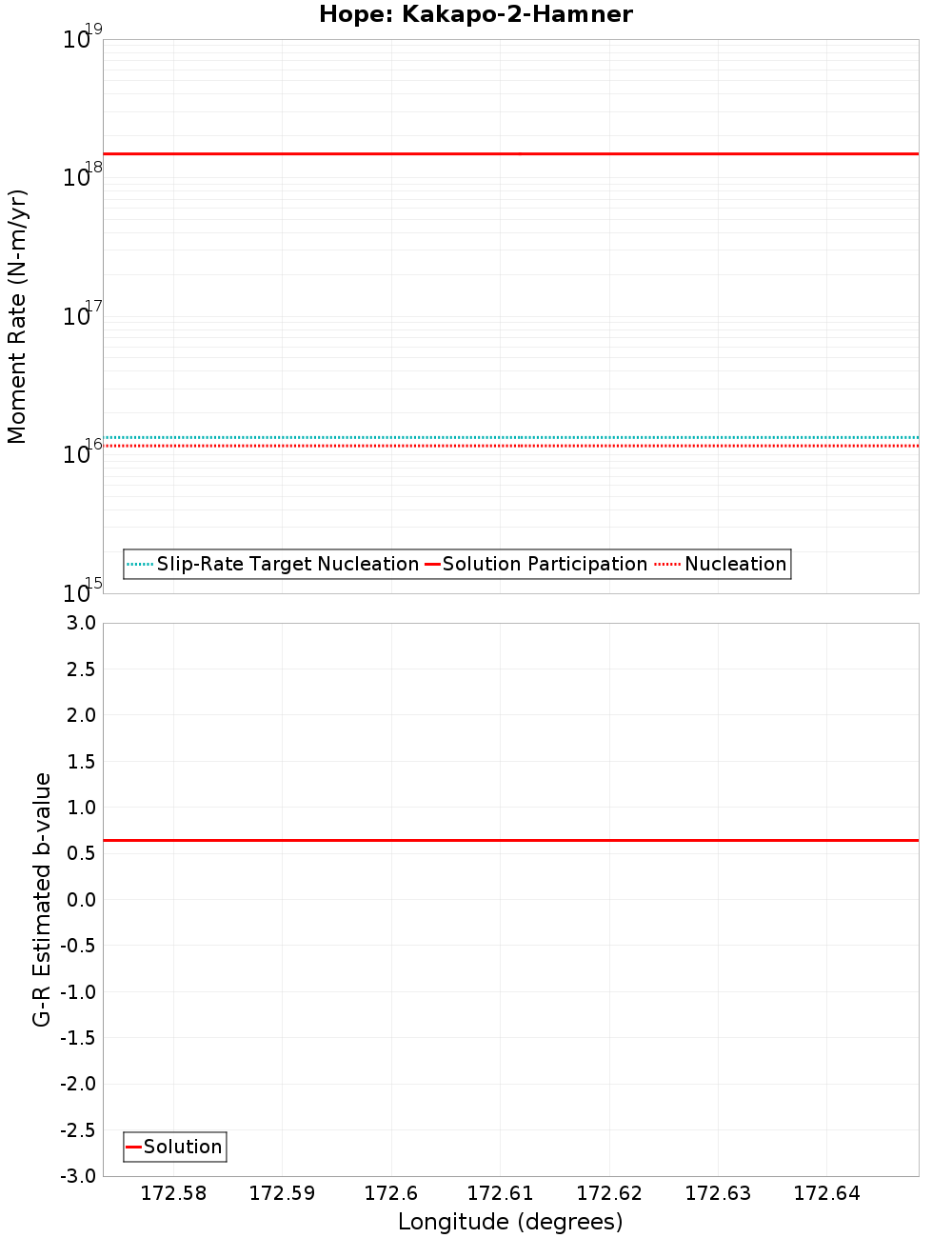

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Kakapo, 0 km away
Hope: Hanmer NW, 0 km away
Hope: Hope River, 0 km away
Hope: Hamner SW, 0 km away
Esk North, 4.29 km away
Hanmer, 7.2 km away
Hope: Hamner SE, 10.42 km away
Hurunui Peak, 12.03 km away
Clarence: Southwest, 12.23 km away

Kakapo, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMFdKOUFD
Connected?	true
Directly Connected?	true
Co-rupture Count	36,054
Co-rupture Rate	3.73008E-4

Hope: Hanmer NW, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMFdKOUFD
Connected?	true
Directly Connected?	false
Co-rupture Count	532
Co-rupture Rate	2.7188114E-4

Hope: Hope River, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMFdKOUFD
Connected?	true
Directly Connected?	true
Co-rupture Count	45,123
Co-rupture Rate	5.424507E-4

Hope: Hamner SW, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMFdKOUFD
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Esk North, 4.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMFdKOUFD
Connected?	true
Directly Connected?	true
Co-rupture Count	3,098
Co-rupture Rate	2.4217177E-5

Hanmer, 7.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMFdKOUFD
Connected?	true
Directly Connected?	false
Co-rupture Count	238
Co-rupture Rate	1.0778168E-5

Hope: Hamner SE, 10.42 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMFdKOUFD
Connected?	true
Directly Connected?	true
Co-rupture Count	74,927
Co-rupture Rate	8.519947E-4

Hurunui Peak, 12.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMFdKOUFD
Connected?	true
Directly Connected?	false
Co-rupture Count	2,177
Co-rupture Rate	2.0282896E-5

Clarence: Southwest, 12.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMFdKOUFD
Connected?	true
Directly Connected?	false
Co-rupture Count	206
Co-rupture Rate	5.643014E-5
