Little Valley Details

Property	Value
Rupture Count	6,037
Ruptures Above Sect Min Mag	6,036
Ruptures w/ Nonzero Rates	29
Magnitude Range	[7.21, 8.39]
Length Range	[29, 539] km
Total Rate	1.5443495E-4 /yr
Multi-Fault Rate	1.5443495E-4 /yr (100.00%)
Directly-Connected Faults	9
All Co-Rupturing Faults	67

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

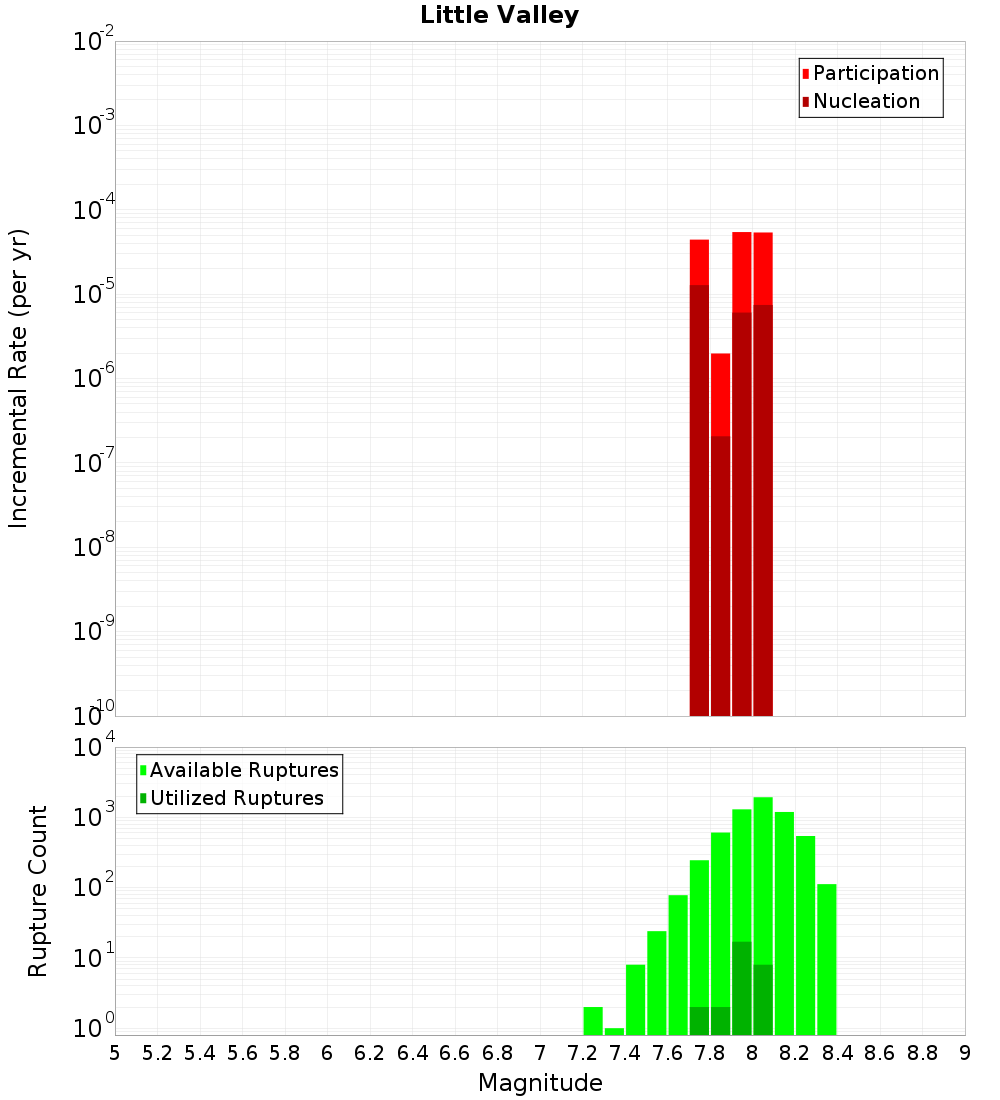

Magnitude-Frequency Distribution

Incremental	Cumulative

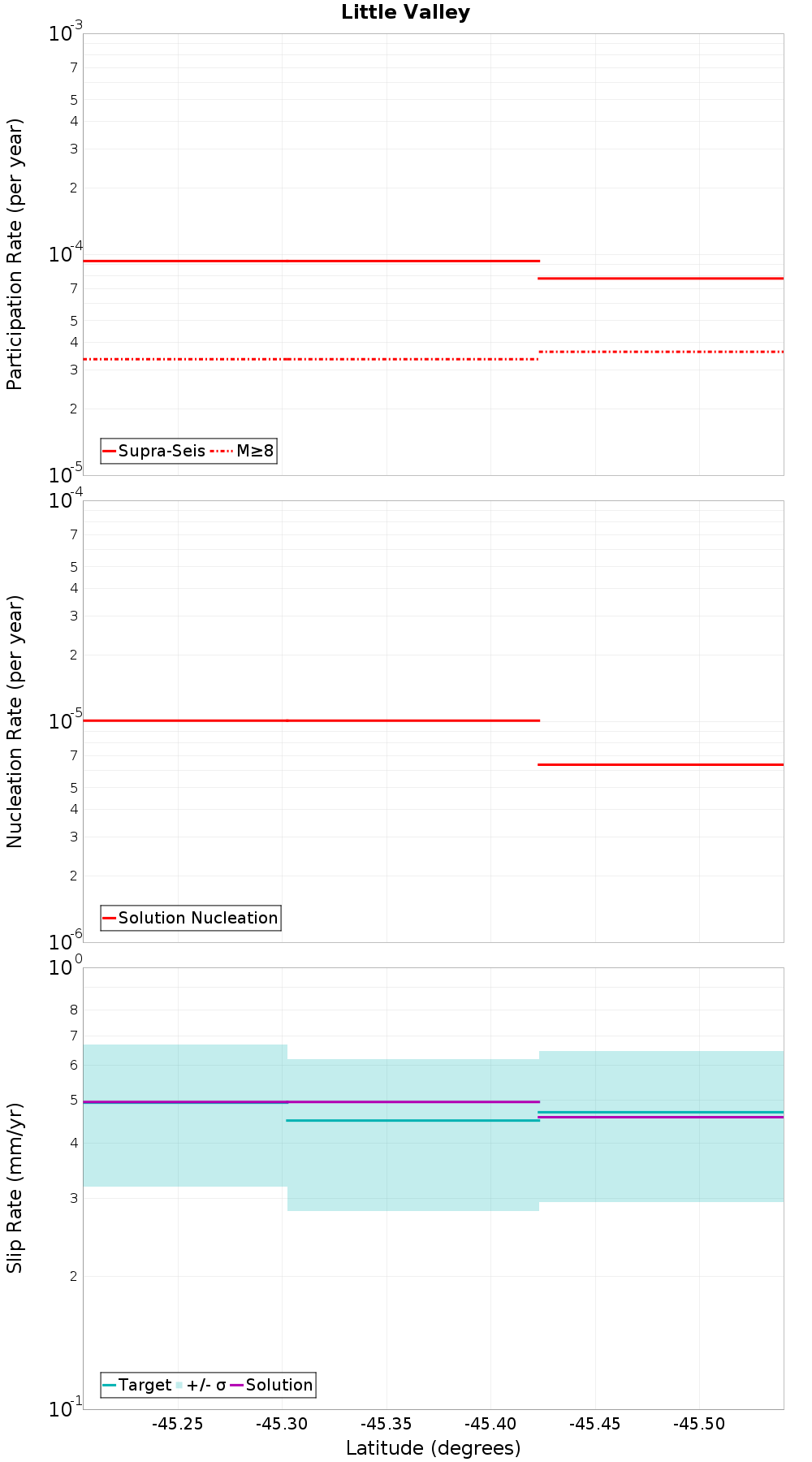

Along-Strike Values

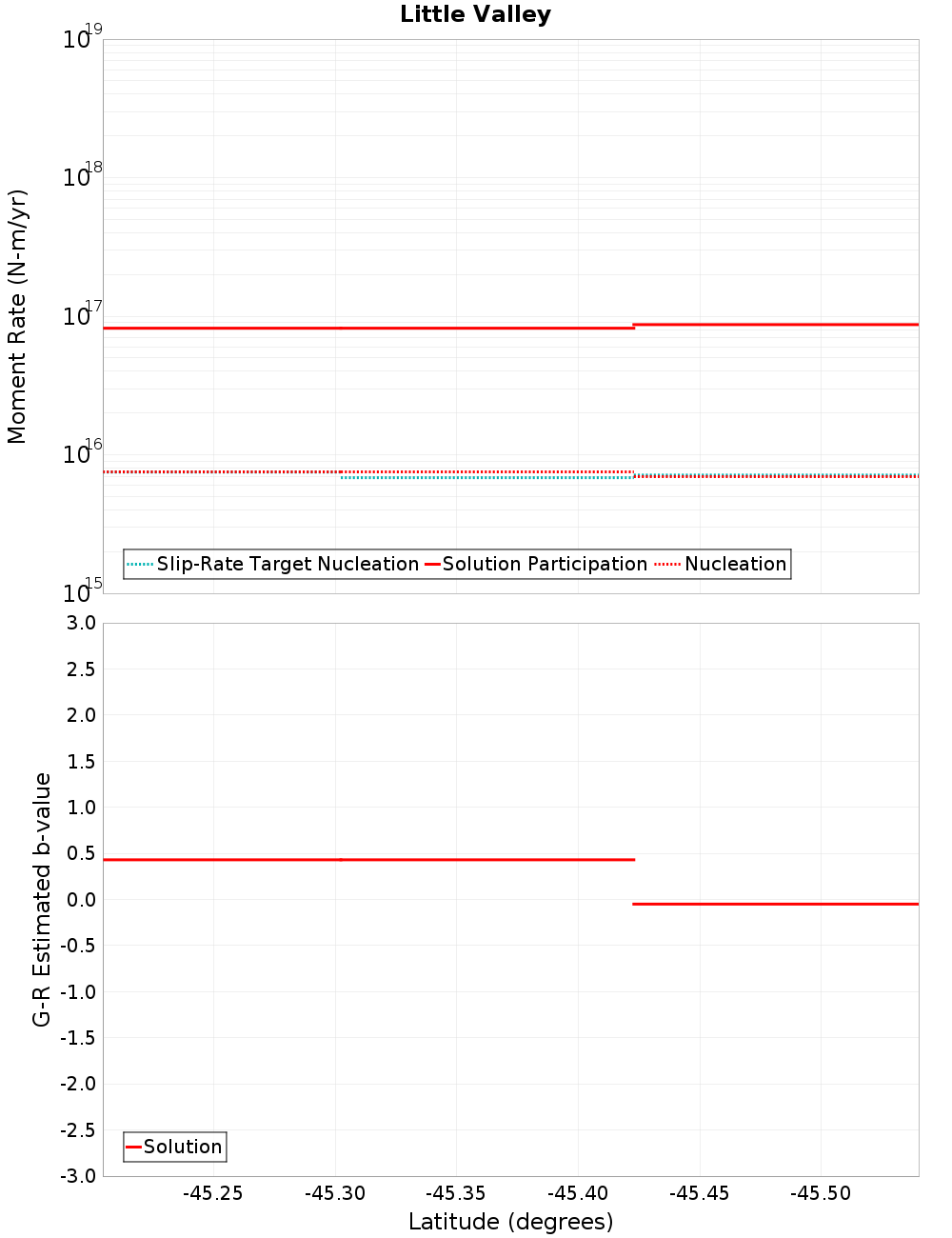

Moment-Rates and b-Values

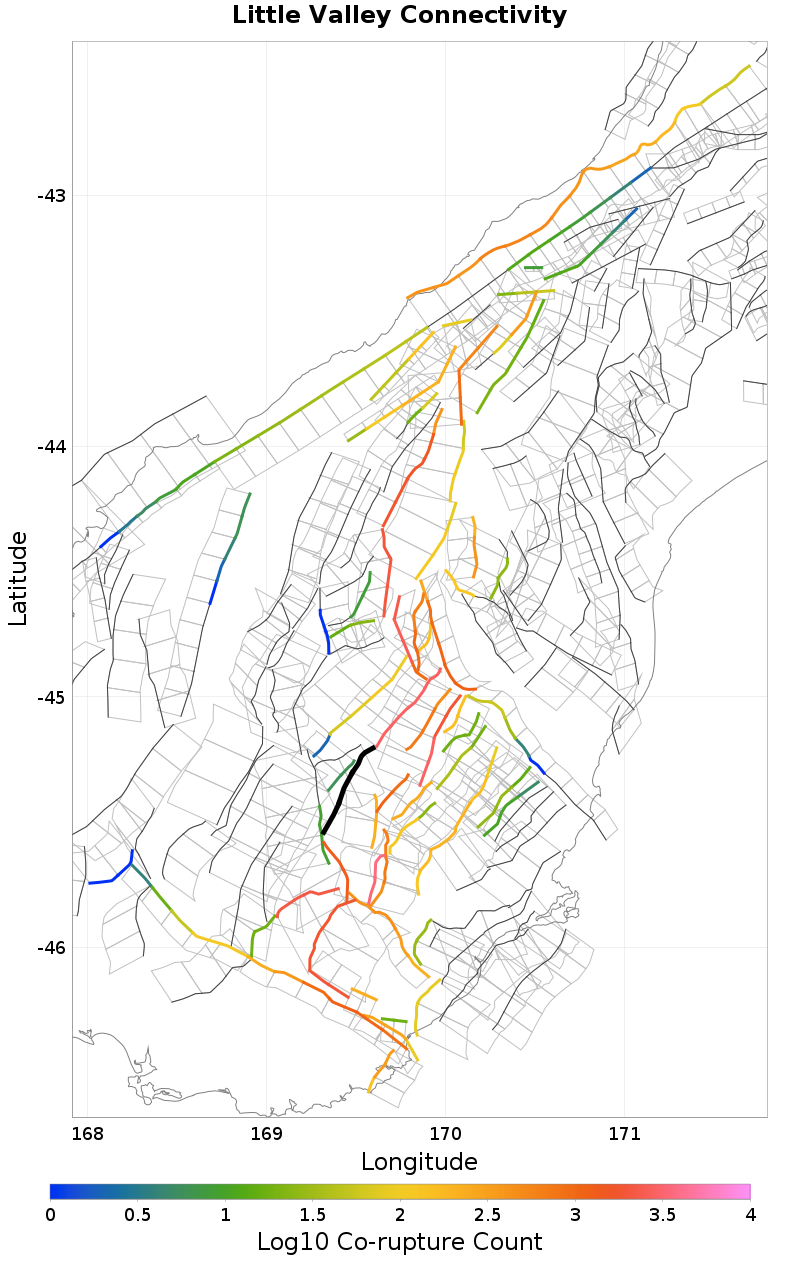

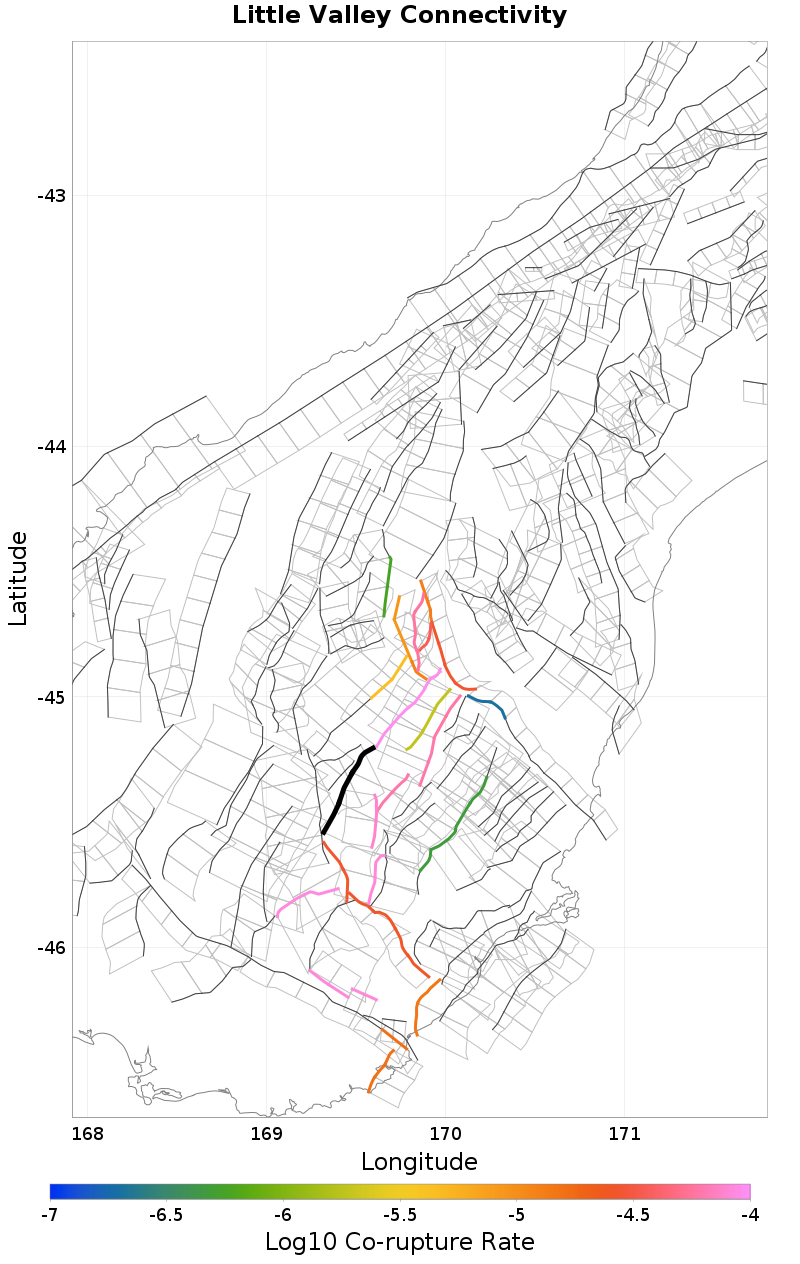

Connectivity

Nearby Sections

Fault Section
Lake Onslow, 0.26 km away
Gimmerburn, 0.27 km away
Backbone, 0.41 km away
Hyde South - The Twins, 0.64 km away
Old Man, 1.09 km away
Raggedy - Blackstone, 1.46 km away
Galloway Shanty, 2.19 km away
Galloway, 2.76 km away
Hyde North, 4.16 km away
Teviot, 4.3 km away
Long Valley, 5.17 km away
Garibaldi, 6.64 km away
Beaumont River, 10.65 km away
Pylap, 11.65 km away

Lake Onslow, 0.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMFdKOUFD
Connected?	true
Directly Connected?	true
Co-rupture Count	221
Co-rupture Rate	7.678468E-5

Gimmerburn, 0.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMFdKOUFD
Connected?	true
Directly Connected?	true
Co-rupture Count	2,869
Co-rupture Rate	6.131398E-5

Backbone, 0.41 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMFdKOUFD
Connected?	true
Directly Connected?	true
Co-rupture Count	3,678
Co-rupture Rate	8.290342E-5

Hyde South - The Twins, 0.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMFdKOUFD
Connected?	true
Directly Connected?	true
Co-rupture Count	173
Co-rupture Rate	4.627314E-7

Old Man, 1.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMFdKOUFD
Connected?	true
Directly Connected?	true
Co-rupture Count	9
Co-rupture Rate	0.0

Raggedy - Blackstone, 1.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMFdKOUFD
Connected?	true
Directly Connected?	true
Co-rupture Count	3,048
Co-rupture Rate	9.312097E-5

Galloway Shanty, 2.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMFdKOUFD
Connected?	true
Directly Connected?	true
Co-rupture Count	6
Co-rupture Rate	0.0

Galloway, 2.76 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMFdKOUFD
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hyde North, 4.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMFdKOUFD
Connected?	true
Directly Connected?	false
Co-rupture Count	205
Co-rupture Rate	4.627314E-7

Teviot, 4.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMFdKOUFD
Connected?	true
Directly Connected?	true
Co-rupture Count	1,305
Co-rupture Rate	2.6804404E-5

Long Valley, 5.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMFdKOUFD
Connected?	true
Directly Connected?	true
Co-rupture Count	1,068
Co-rupture Rate	6.131398E-5

Garibaldi, 6.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMFdKOUFD
Connected?	true
Directly Connected?	false
Co-rupture Count	715
Co-rupture Rate	1.8449535E-6

Beaumont River, 10.65 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMFdKOUFD
Connected?	true
Directly Connected?	false
Co-rupture Count	706
Co-rupture Rate	0.0

Pylap, 11.65 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMFdKOUFD
Connected?	true
Directly Connected?	false
Co-rupture Count	242
Co-rupture Rate	0.0
