Mataikona Details

PropertyValue
Rupture Count2,113
Ruptures Above Sect Min Mag2,098
Ruptures w/ Nonzero Rates11
Magnitude Range[6.74, 8.25]
Length Range[18, 497] km
Total Rate3.8834877E-4 /yr
Multi-Fault Rate3.8834877E-4 /yr (100.00%)
Directly-Connected Faults9
All Co-Rupturing Faults58

Table Of Contents

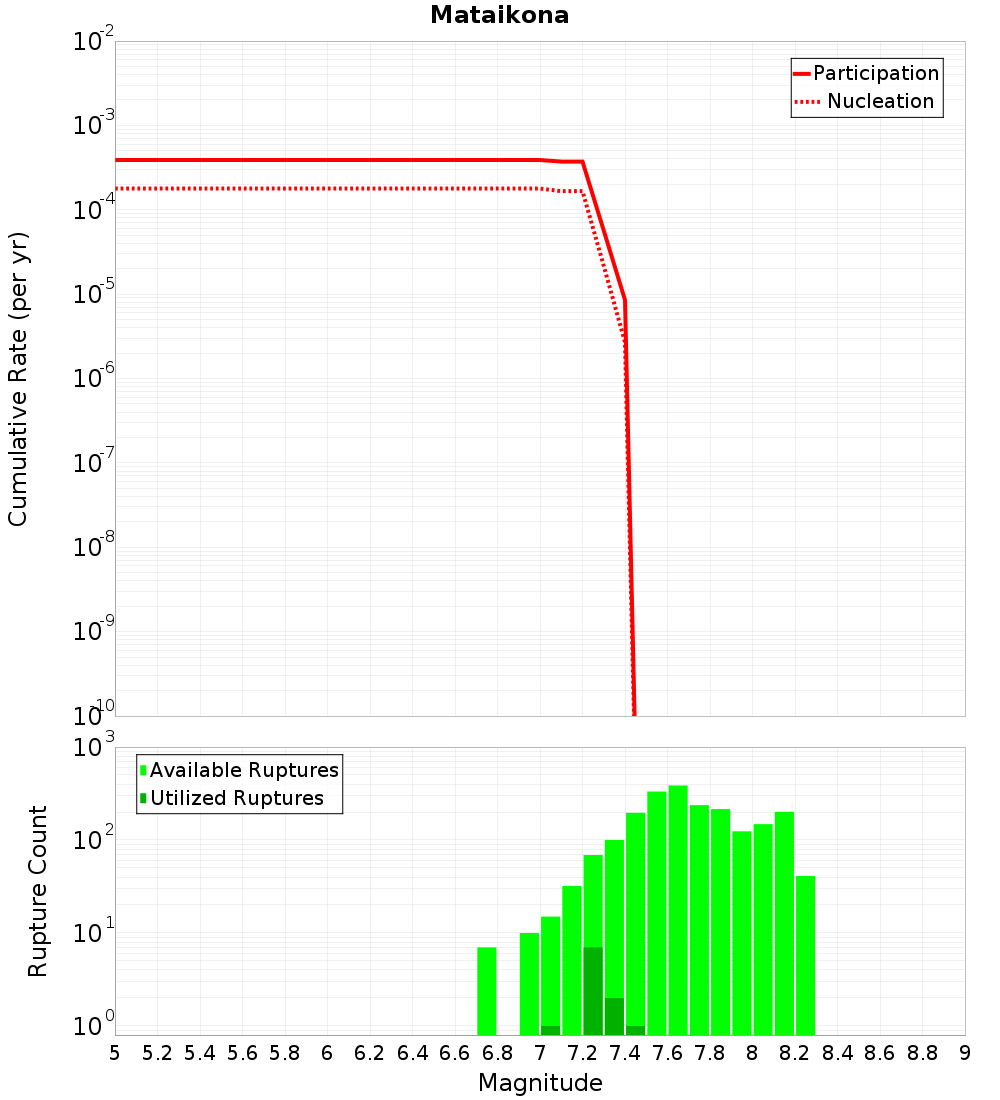

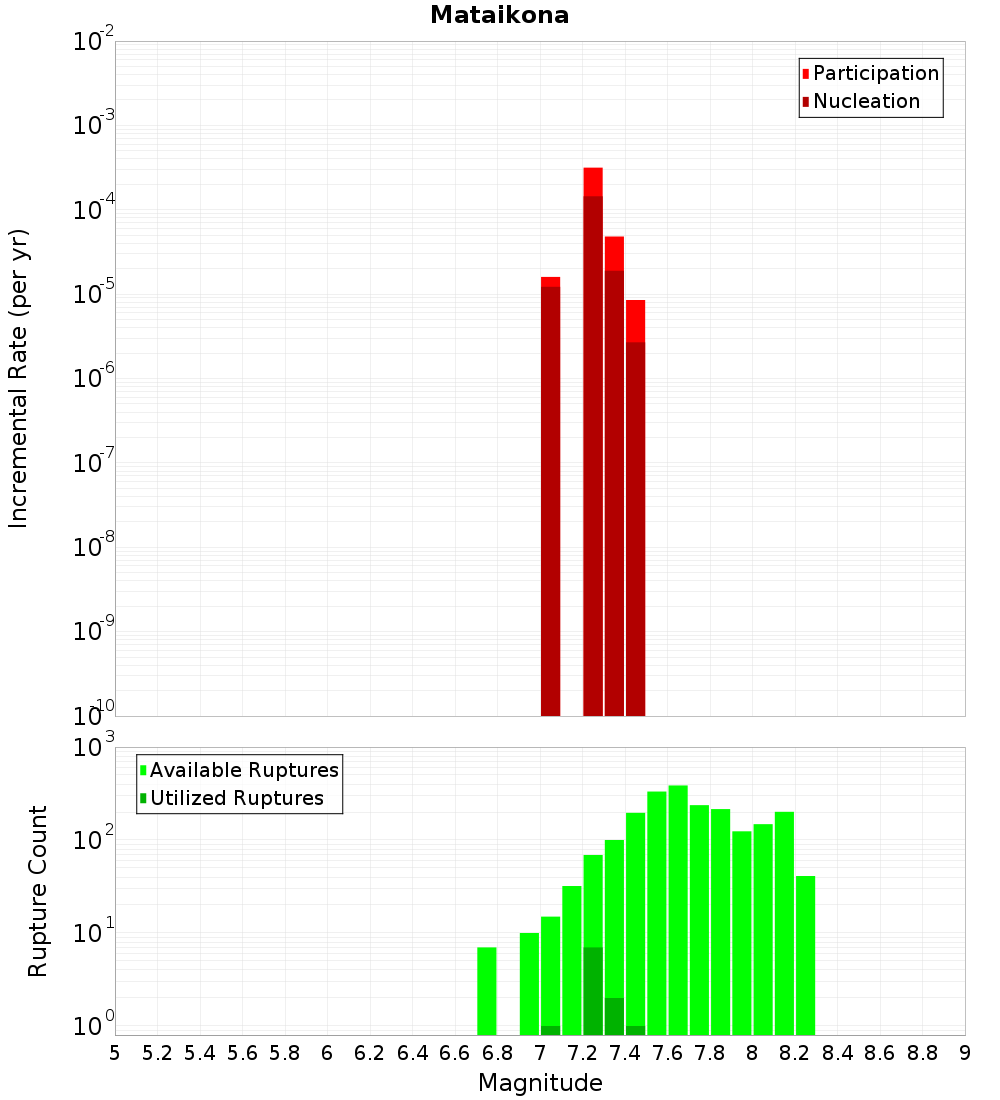

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

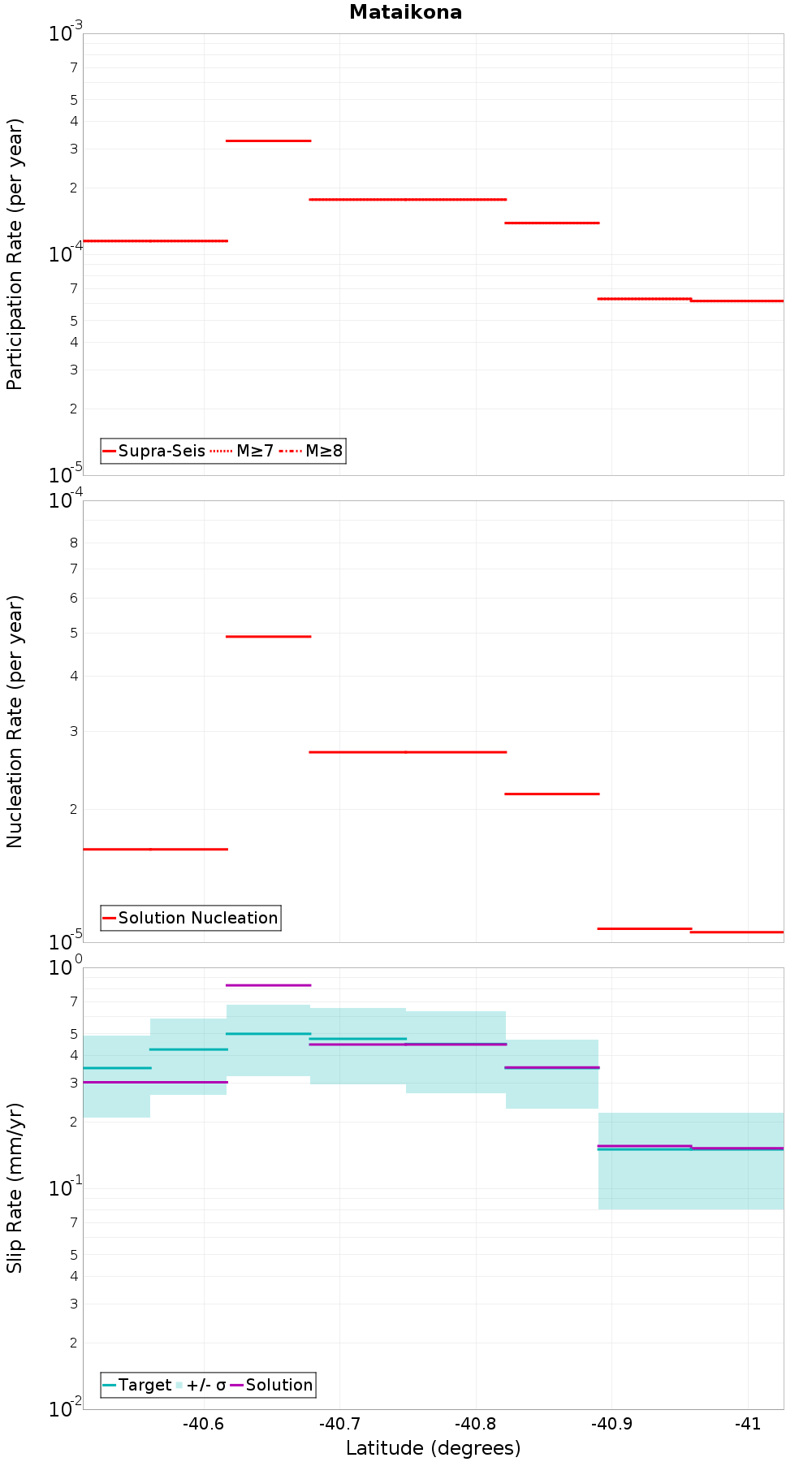

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

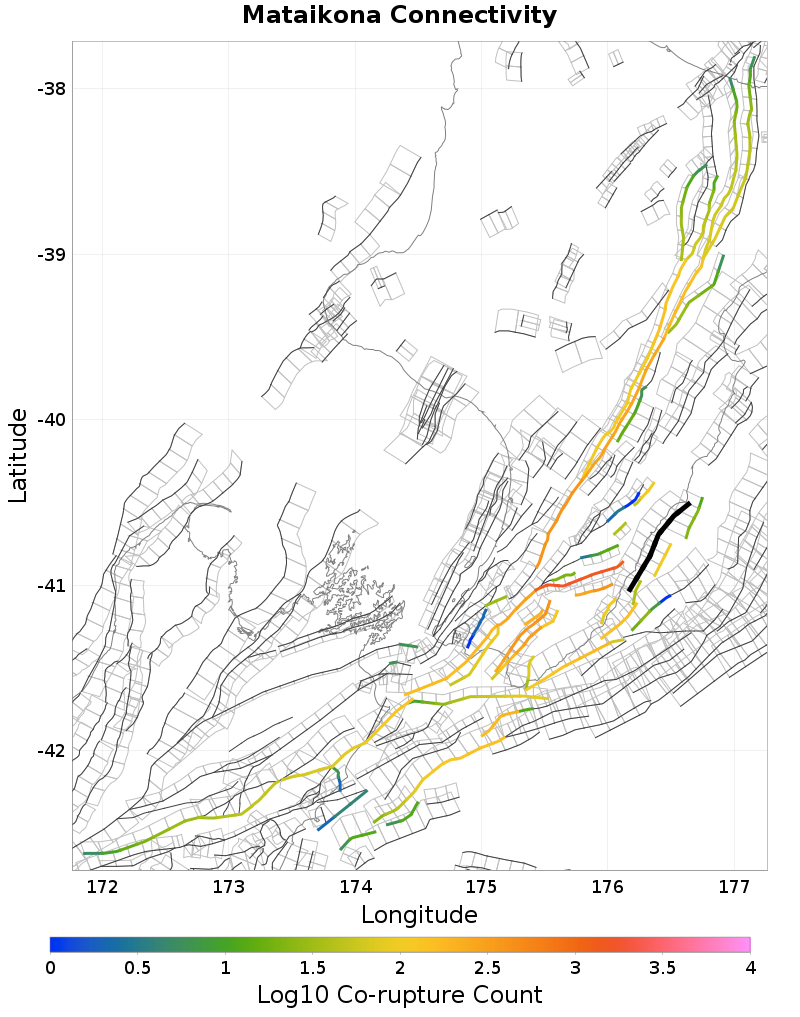

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Carterton, 0.31 km away
Kaumingi, 1.4 km away
Riversdale North, 2.17 km away
Mokonui Northeast, 3.49 km away
Waitawhiti, 4.18 km away
Turnagain, 4.63 km away
Mataikona East, 5.59 km away
Riversdale, 6.57 km away
Uruti Point, 11.39 km away
Whareama Bank, 12.73 km away
Pongaroa - Weber, 12.77 km away

Carterton, 0.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMFdKOUFD
Connected?true
Directly Connected?true
Co-rupture Count1,824
Co-rupture Rate2.3125636E-5

Kaumingi, 1.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMFdKOUFD
Connected?true
Directly Connected?true
Co-rupture Count409
Co-rupture Rate4.5400477E-5

Riversdale North, 2.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMFdKOUFD
Connected?true
Directly Connected?true
Co-rupture Count39
Co-rupture Rate0.0

Mokonui Northeast, 3.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMFdKOUFD
Connected?true
Directly Connected?true
Co-rupture Count13
Co-rupture Rate0.0

Waitawhiti, 4.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMFdKOUFD
Connected?true
Directly Connected?true
Co-rupture Count41
Co-rupture Rate1.0083897E-4

Turnagain, 4.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMFdKOUFD
Connected?true
Directly Connected?true
Co-rupture Count22
Co-rupture Rate2.1078633E-4

Mataikona East, 5.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMFdKOUFD
Connected?true
Directly Connected?true
Co-rupture Count104
Co-rupture Rate1.489806E-4

Riversdale, 6.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMFdKOUFD
Connected?true
Directly Connected?false
Co-rupture Count157
Co-rupture Rate0.0

Uruti Point, 11.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMFdKOUFD
Connected?true
Directly Connected?false
Co-rupture Count103
Co-rupture Rate0.0

Whareama Bank, 12.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMFdKOUFD
Connected?true
Directly Connected?true
Co-rupture Count25
Co-rupture Rate0.0

Pongaroa - Weber, 12.77 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMFdKOUFD
Connected?true
Directly Connected?true
Co-rupture Count115
Co-rupture Rate7.672347E-5
