Bidwill Details

PropertyValue
Rupture Count1,630
Ruptures Above Sect Min Mag1,627
Ruptures w/ Nonzero Rates30
Magnitude Range[6.52, 8.25]
Length Range[15, 615] km
Total Rate8.2492035E-5 /yr
Multi-Fault Rate8.2492035E-5 /yr (100.00%)
Directly-Connected Faults2
All Co-Rupturing Faults113

Table Of Contents

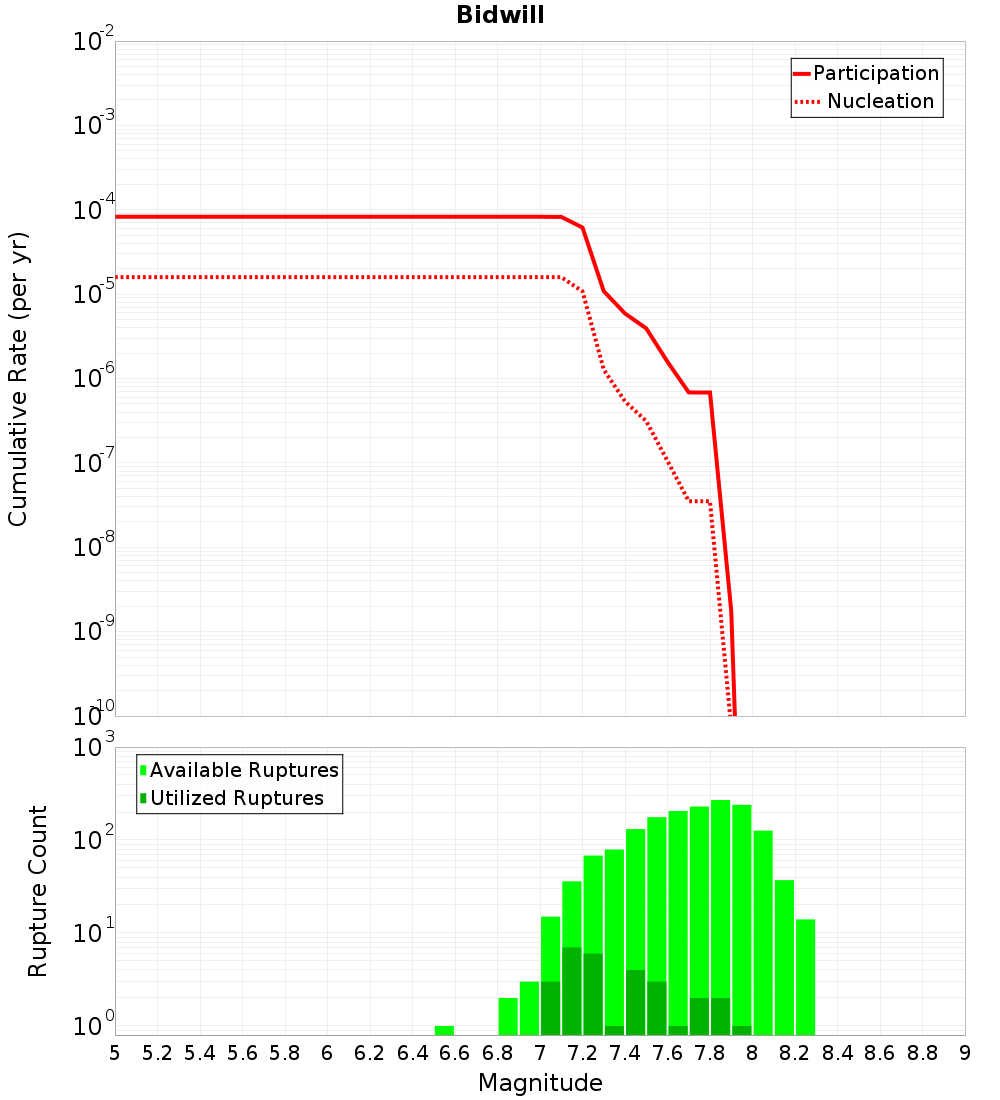

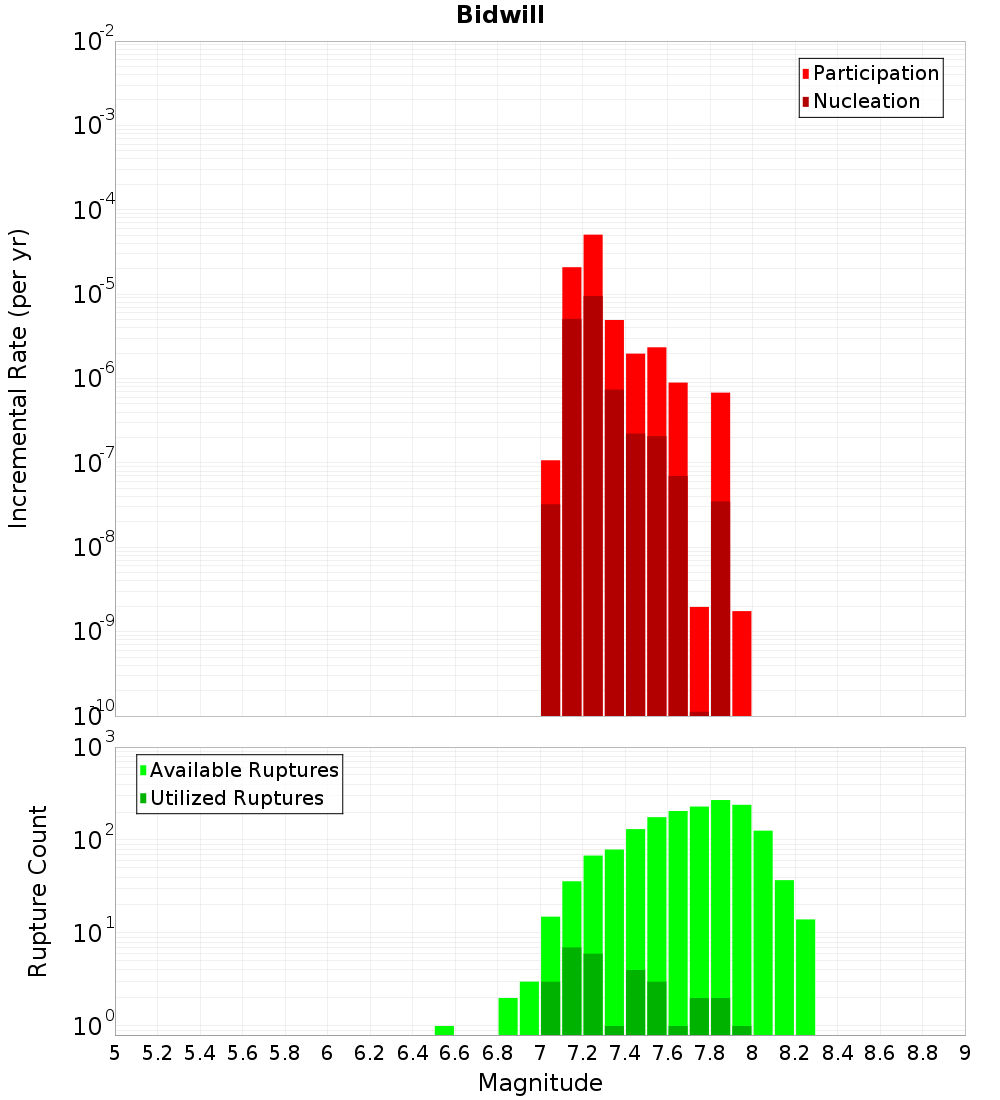

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

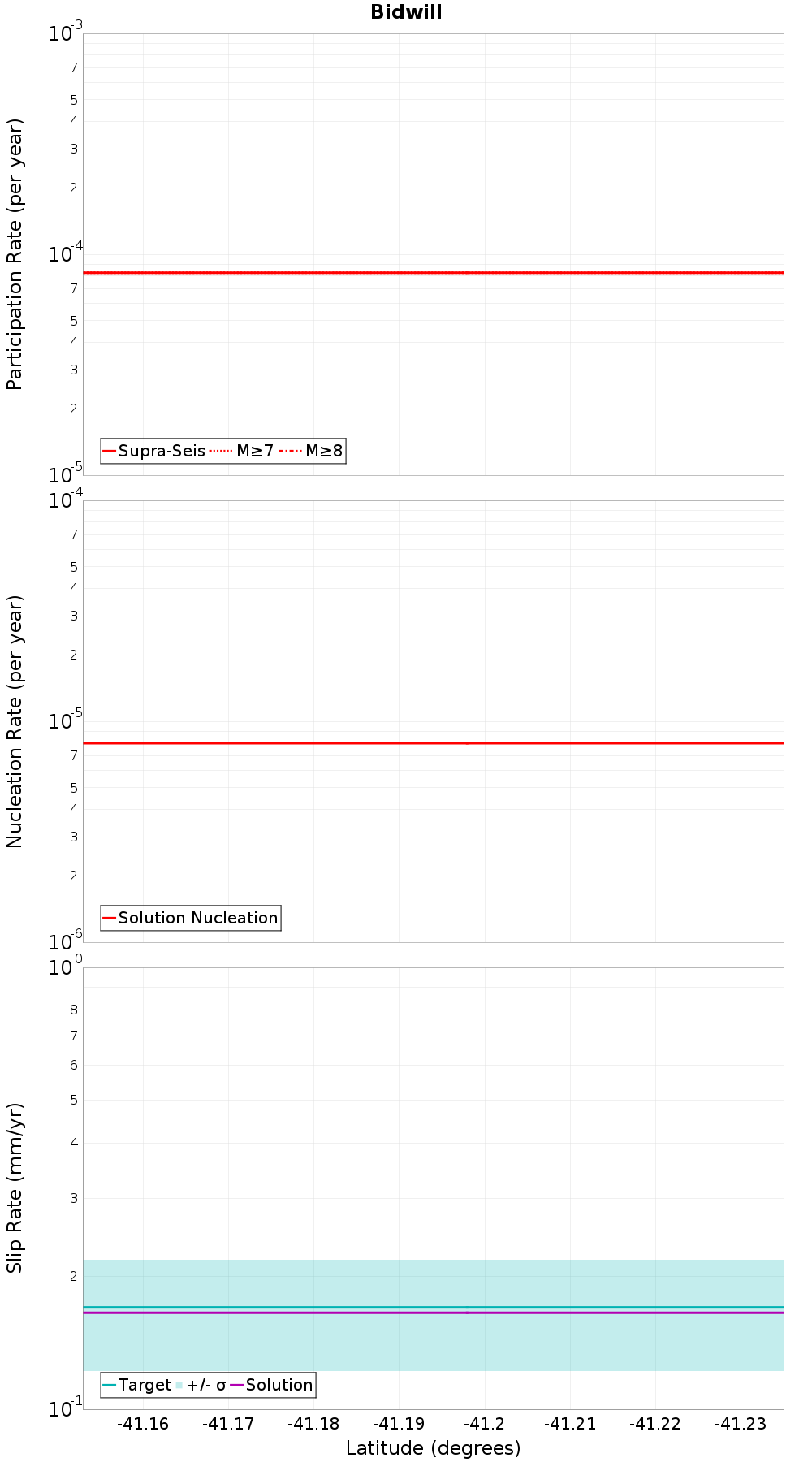

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Martinborough, 2.26 km away
Carterton, 3.31 km away
Otaraia, 3.57 km away
Wellington Hutt Valley: 5, 6 km away
Dry River - Huangarua: 2, 7.05 km away
Dry River - Huangarua: 1, 7.05 km away
Wairarapa: 2, 7.72 km away
Masterton, 8.19 km away
Dry River - Huangarua: 3, 8.48 km away
Wairarapa: 3, 10.11 km away

Martinborough, 2.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Carterton, 3.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?true
Directly Connected?true
Co-rupture Count1,138
Co-rupture Rate7.767578E-5

Otaraia, 3.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?true
Directly Connected?true
Co-rupture Count1,448
Co-rupture Rate3.5774683E-5

Wellington Hutt Valley: 5, 6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Dry River - Huangarua: 2, 7.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?true
Directly Connected?false
Co-rupture Count28
Co-rupture Rate1.0569922E-5

Dry River - Huangarua: 1, 7.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?true
Directly Connected?false
Co-rupture Count88
Co-rupture Rate1.2843183E-5

Wairarapa: 2, 7.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?true
Directly Connected?false
Co-rupture Count235
Co-rupture Rate6.7775304E-8

Masterton, 8.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?true
Directly Connected?false
Co-rupture Count10
Co-rupture Rate2.4786399E-5

Dry River - Huangarua: 3, 8.48 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?true
Directly Connected?false
Co-rupture Count9
Co-rupture Rate2.4028682E-6

Wairarapa: 3, 10.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
