BooBoo Details

PropertyValue
Rupture Count126,163
Ruptures Above Sect Min Mag126,131
Ruptures w/ Nonzero Rates1,156
Magnitude Range[6.64, 8.48]
Length Range[18, 1,082] km
Total Rate0.002093079 /yr
Multi-Fault Rate0.0020807046 /yr (99.41%)
Directly-Connected Faults15
All Co-Rupturing Faults259

Table Of Contents

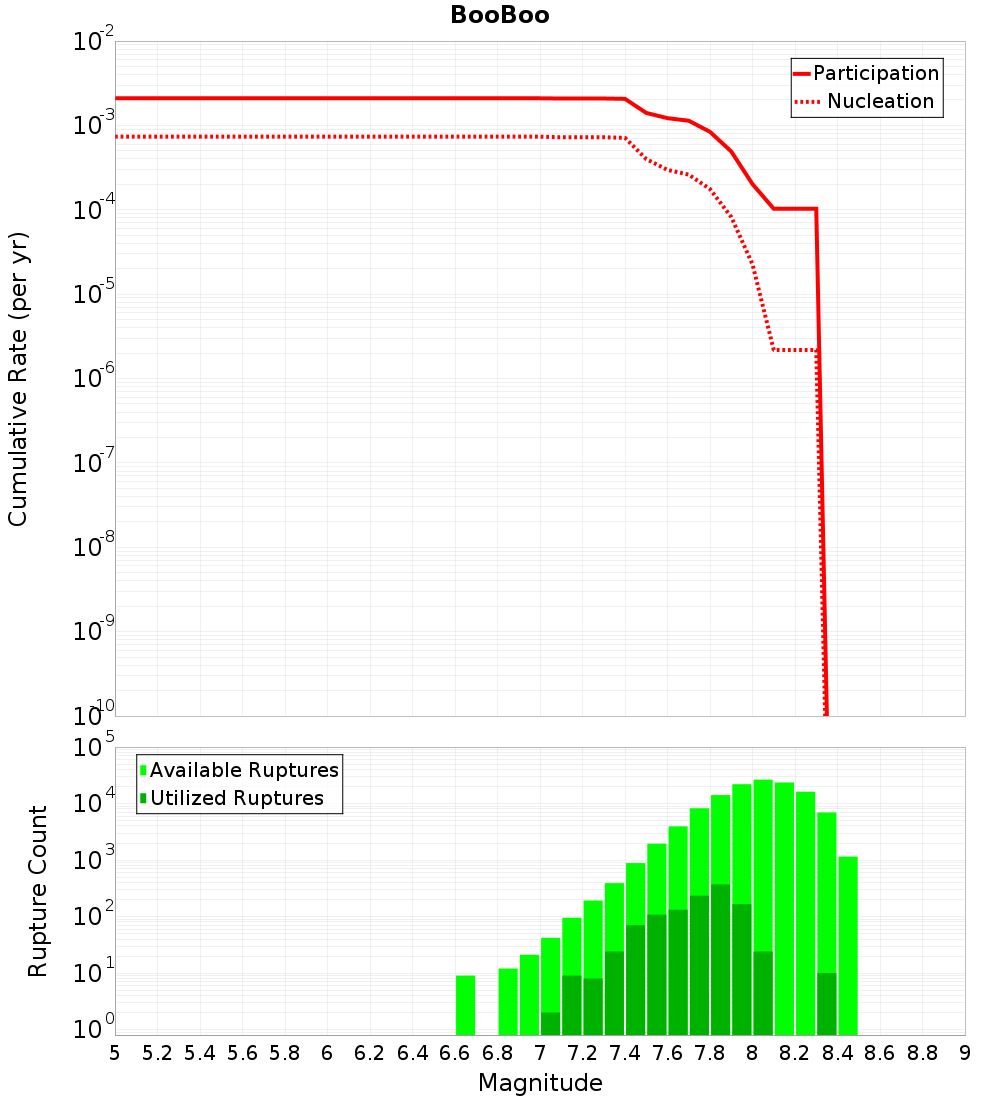

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

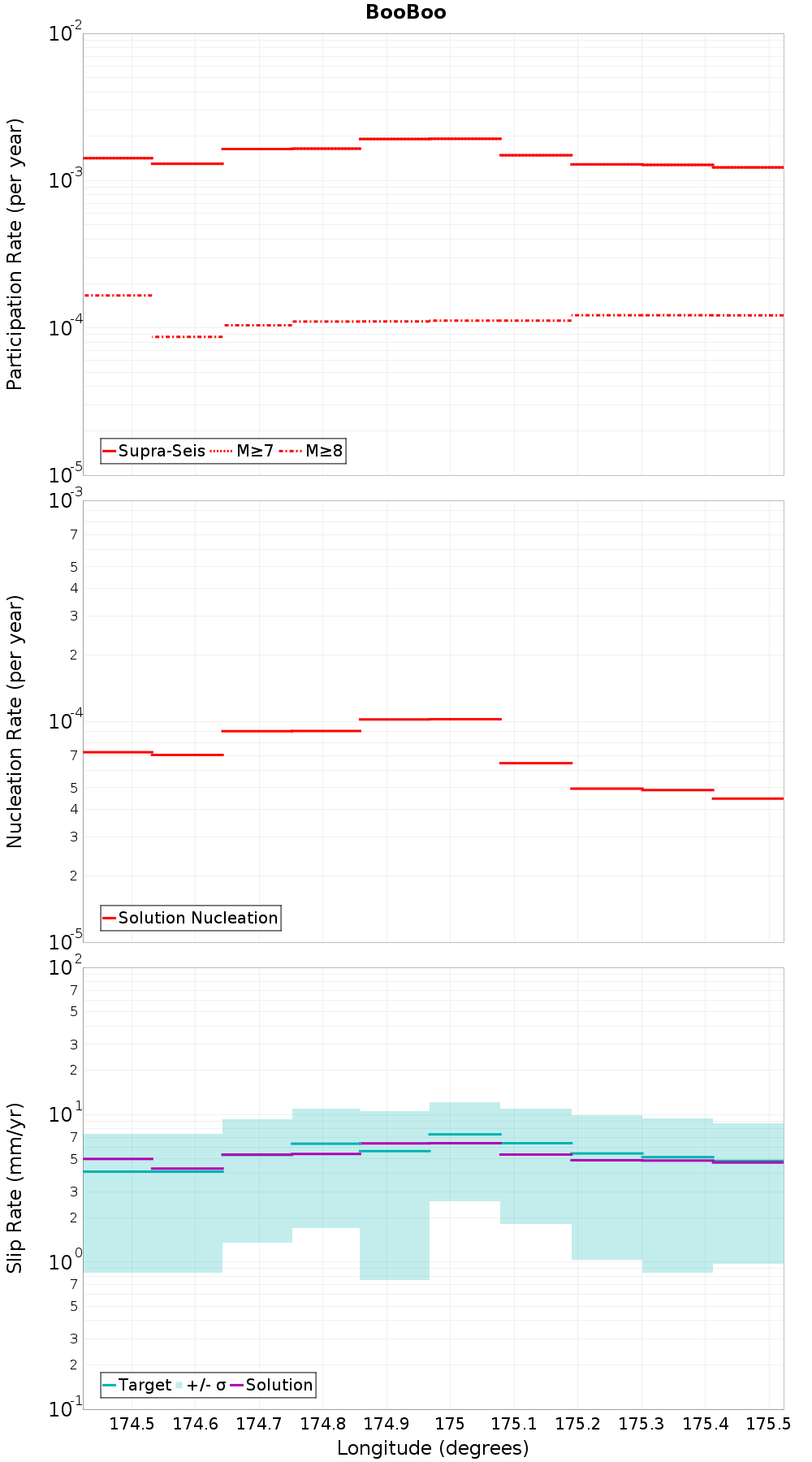

Along-Strike Values

(top)

Along-strike plot

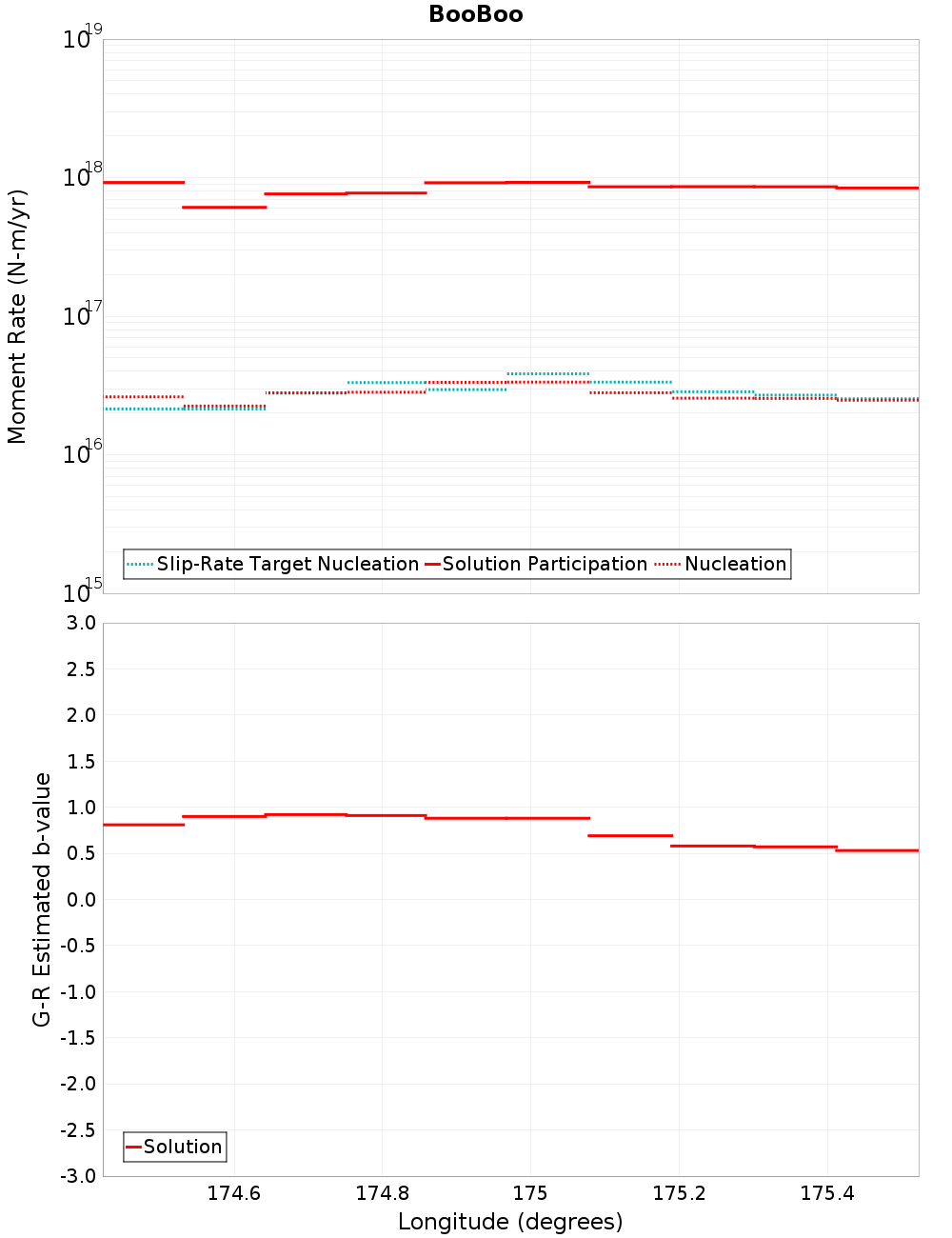

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Opouawe - Uruti, 0.13 km awayLondon Hill, 7.46 km away
Pahaua, 0.16 km awayCloudy 3, 7.74 km away
Needles, 0.17 km awayUpper Slope, 9.5 km away
Campbell Bank, 0.23 km awayNeedles East 2, 10.51 km away
Pahaua SE1, 0.69 km awayWharekauhau, 10.67 km away
Vernon 4, 1.64 km awayDry River - Huangarua: 1, 10.86 km away
Ngapotiki, 3.23 km awayPahaua SE2, 11.65 km away
Palliser - Kaiwhata, 4.24 km awayTe Rapa 2, 13.57 km away
Wairarapa: Needles, 5.6 km awayWairarapa: 1, 14.77 km away
Otaraia, 5.89 km awayVernon 3, 14.97 km away
Glendhu Ridge, 6.94 km away

Opouawe - Uruti, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?true
Directly Connected?true
Co-rupture Count60,018
Co-rupture Rate5.9787254E-4

Pahaua, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?true
Directly Connected?true
Co-rupture Count22,815
Co-rupture Rate2.9958287E-4

Needles, 0.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?true
Directly Connected?true
Co-rupture Count83,122
Co-rupture Rate2.8985462E-4

Campbell Bank, 0.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?true
Directly Connected?true
Co-rupture Count7,783
Co-rupture Rate7.354456E-4

Pahaua SE1, 0.69 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?true
Directly Connected?true
Co-rupture Count224
Co-rupture Rate1.00017016E-4

Vernon 4, 1.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?true
Directly Connected?true
Co-rupture Count1,244
Co-rupture Rate3.072021E-4

Ngapotiki, 3.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?true
Directly Connected?true
Co-rupture Count860
Co-rupture Rate1.6824335E-5

Palliser - Kaiwhata, 4.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?true
Directly Connected?true
Co-rupture Count18,170
Co-rupture Rate8.393963E-5

Wairarapa: Needles, 5.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?true
Directly Connected?true
Co-rupture Count1,549
Co-rupture Rate6.947878E-5

Otaraia, 5.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?true
Directly Connected?true
Co-rupture Count2,416
Co-rupture Rate2.1564607E-4

Glendhu Ridge, 6.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?true
Directly Connected?false
Co-rupture Count36
Co-rupture Rate6.20057E-5

London Hill, 7.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?true
Directly Connected?false
Co-rupture Count2,874
Co-rupture Rate1.0285516E-5

Cloudy 3, 7.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?true
Directly Connected?true
Co-rupture Count5,674
Co-rupture Rate1.2849868E-4

Upper Slope, 9.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?true
Directly Connected?true
Co-rupture Count7,628
Co-rupture Rate3.7194992E-4

Needles East 2, 10.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?true
Directly Connected?false
Co-rupture Count1,298
Co-rupture Rate4.94047E-10

Wharekauhau, 10.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?true
Directly Connected?true
Co-rupture Count2,832
Co-rupture Rate1.4979755E-5

Dry River - Huangarua: 1, 10.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?true
Directly Connected?true
Co-rupture Count1,877
Co-rupture Rate4.3732443E-4

Pahaua SE2, 11.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?true
Directly Connected?false
Co-rupture Count81
Co-rupture Rate2.0337436E-6

Te Rapa 2, 13.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?true
Directly Connected?true
Co-rupture Count4,352
Co-rupture Rate3.026483E-4

Wairarapa: 1, 14.77 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?true
Directly Connected?false
Co-rupture Count696
Co-rupture Rate1.43327E-5

Vernon 3, 14.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?true
Directly Connected?false
Co-rupture Count39
Co-rupture Rate2.8139353E-5
