Fowlers Details

Property	Value
Rupture Count	12,234
Ruptures Above Sect Min Mag	12,227
Ruptures w/ Nonzero Rates	172
Magnitude Range	[6.79, 8.40]
Length Range	[21, 805] km
Total Rate	4.734195E-4 /yr
Multi-Fault Rate	4.131356E-4 /yr (87.27%)
Directly-Connected Faults	7
All Co-Rupturing Faults	224

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

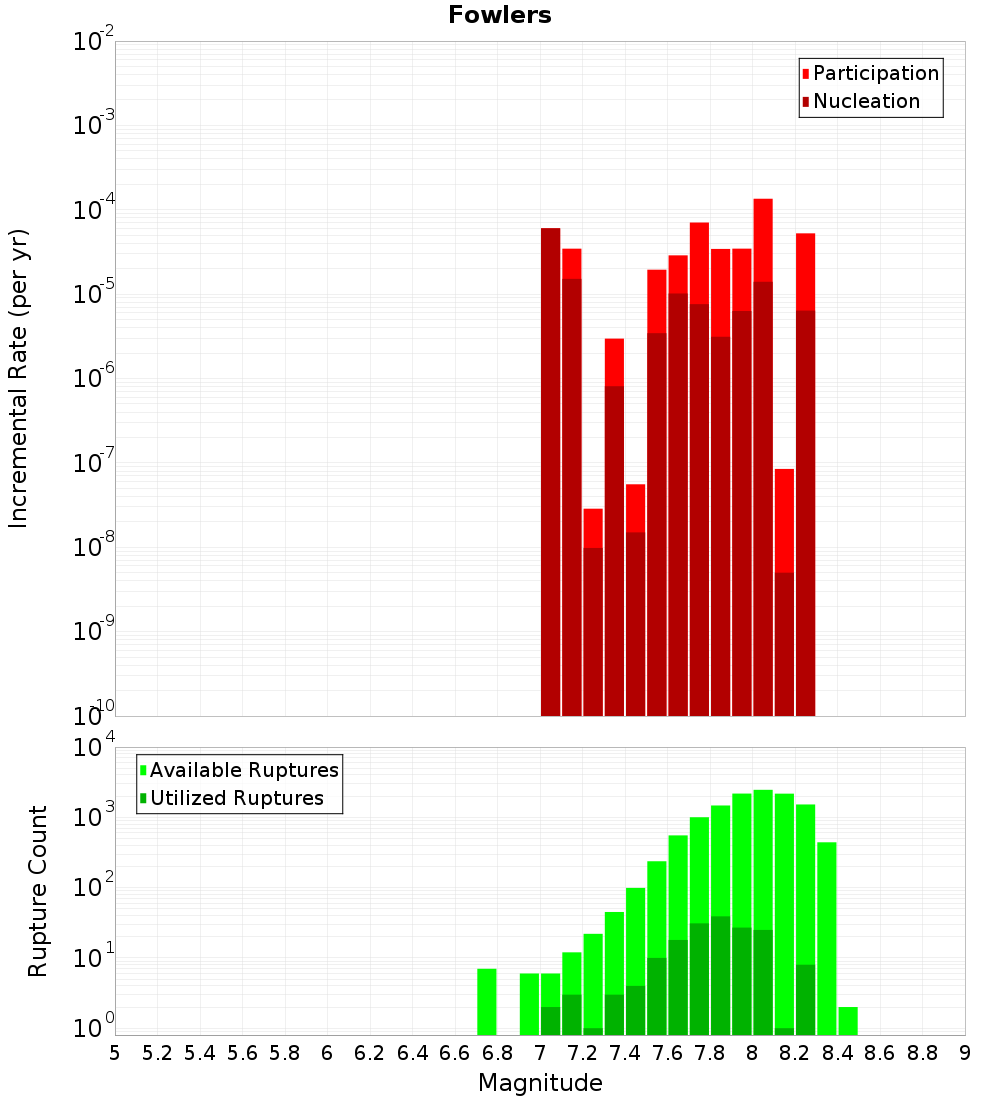

Magnitude-Frequency Distribution

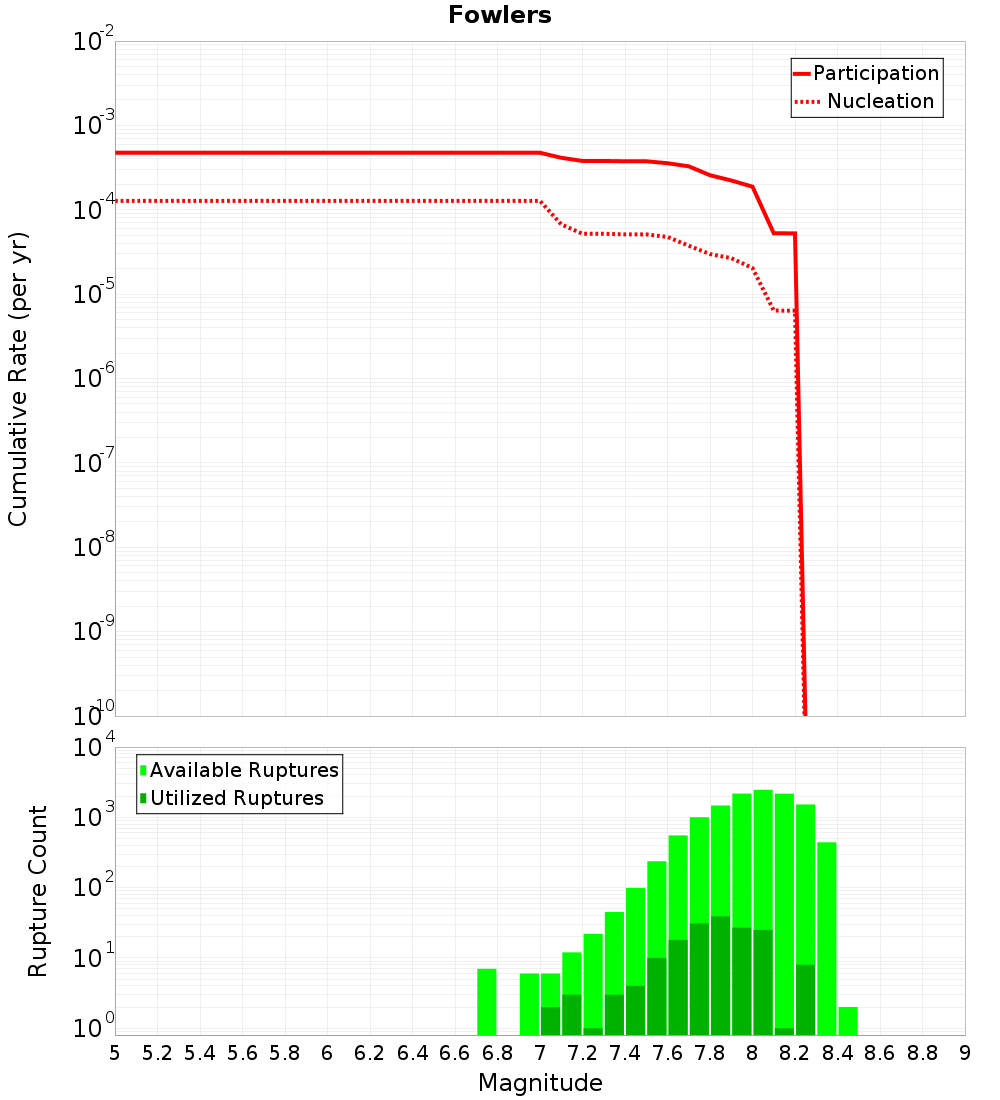

Incremental	Cumulative

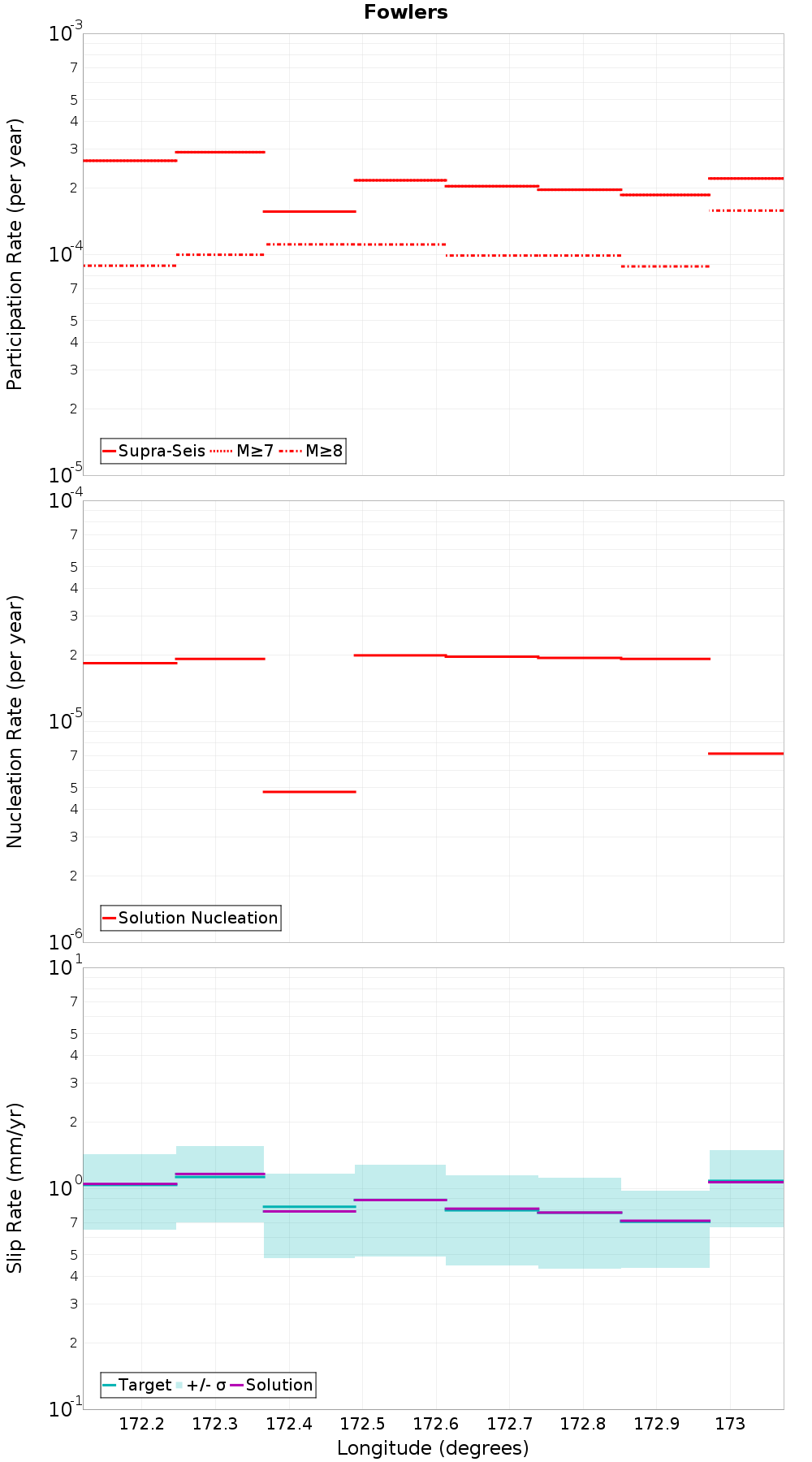

Along-Strike Values

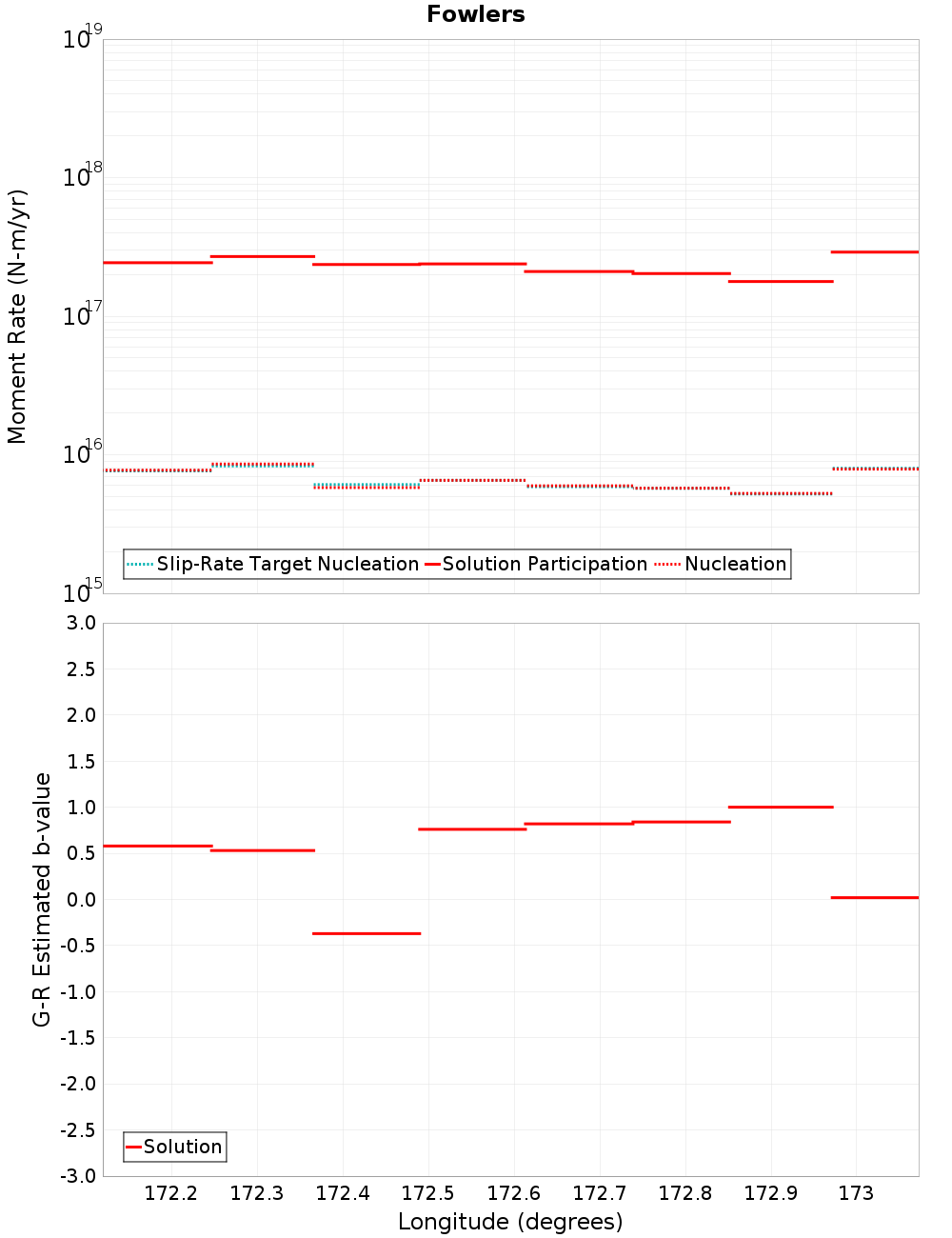

Moment-Rates and b-Values

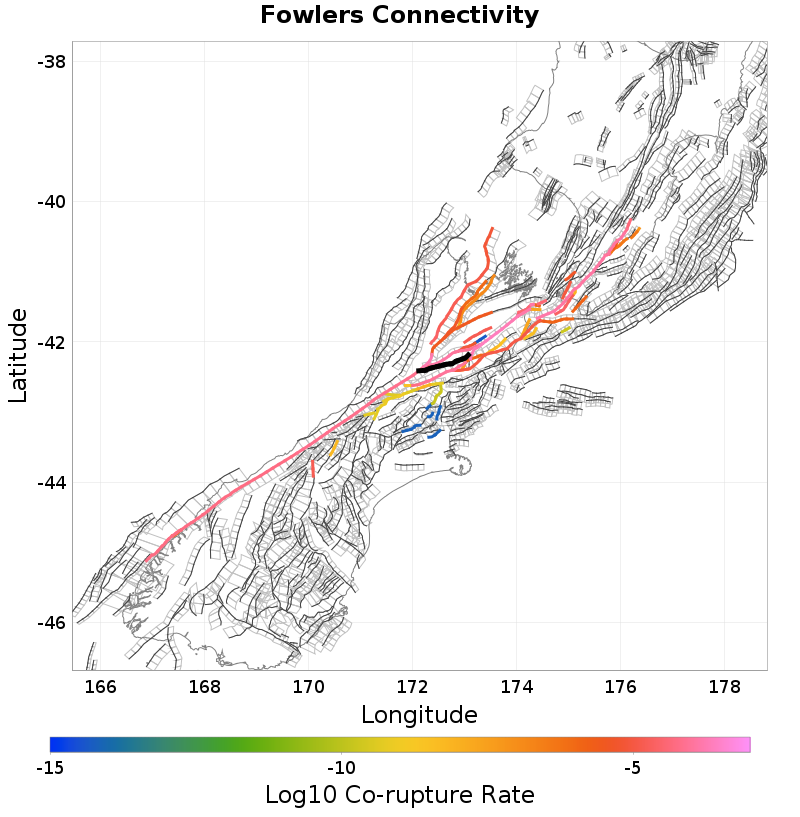

Connectivity

Nearby Sections

Fault Section
Clarence: Central, 0.07 km away
Alpine: Springs Junction to Tophouse, 0.21 km away
Barefell, 0.22 km away
Alpine: Kaniere to Springs Junction, 0.24 km away
Elliott, 0.4 km away
Clarence: Southwest, 2.09 km away
Awatere: Southwest, 4.56 km away
Dillon, 6.66 km away
Acheron, 7.42 km away
Shingle Peak, 12.89 km away
Awatere: Northeast 1, 14.06 km away

Clarence: Central, 0.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?	true
Directly Connected?	true
Co-rupture Count	3,453
Co-rupture Rate	9.652935E-5

Alpine: Springs Junction to Tophouse, 0.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?	true
Directly Connected?	true
Co-rupture Count	312
Co-rupture Rate	1.5903071E-4

Barefell, 0.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?	true
Directly Connected?	true
Co-rupture Count	2,687
Co-rupture Rate	1.7577456E-4

Alpine: Kaniere to Springs Junction, 0.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?	true
Directly Connected?	true
Co-rupture Count	5,464
Co-rupture Rate	6.715968E-5

Elliott, 0.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?	true
Directly Connected?	true
Co-rupture Count	1,063
Co-rupture Rate	9.895302E-6

Clarence: Southwest, 2.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?	true
Directly Connected?	true
Co-rupture Count	2,428
Co-rupture Rate	9.409116E-5

Awatere: Southwest, 4.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?	true
Directly Connected?	true
Co-rupture Count	659
Co-rupture Rate	1.2150277E-4

Dillon, 6.66 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?	true
Directly Connected?	false
Co-rupture Count	4
Co-rupture Rate	0.0

Acheron, 7.42 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?	true
Directly Connected?	false
Co-rupture Count	8
Co-rupture Rate	3.241995E-8

Shingle Peak, 12.89 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?	true
Directly Connected?	false
Co-rupture Count	53
Co-rupture Rate	8.779396E-6

Awatere: Northeast 1, 14.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?	true
Directly Connected?	false
Co-rupture Count	2,718
Co-rupture Rate	2.3555965E-4
