Kongahau Details

PropertyValue
Rupture Count26,778
Ruptures Above Sect Min Mag26,768
Ruptures w/ Nonzero Rates308
Magnitude Range[6.85, 8.47]
Length Range[23, 1,039] km
Total Rate2.4934218E-4 /yr
Multi-Fault Rate2.493412E-4 /yr (100.00%)
Directly-Connected Faults9
All Co-Rupturing Faults86

Table Of Contents

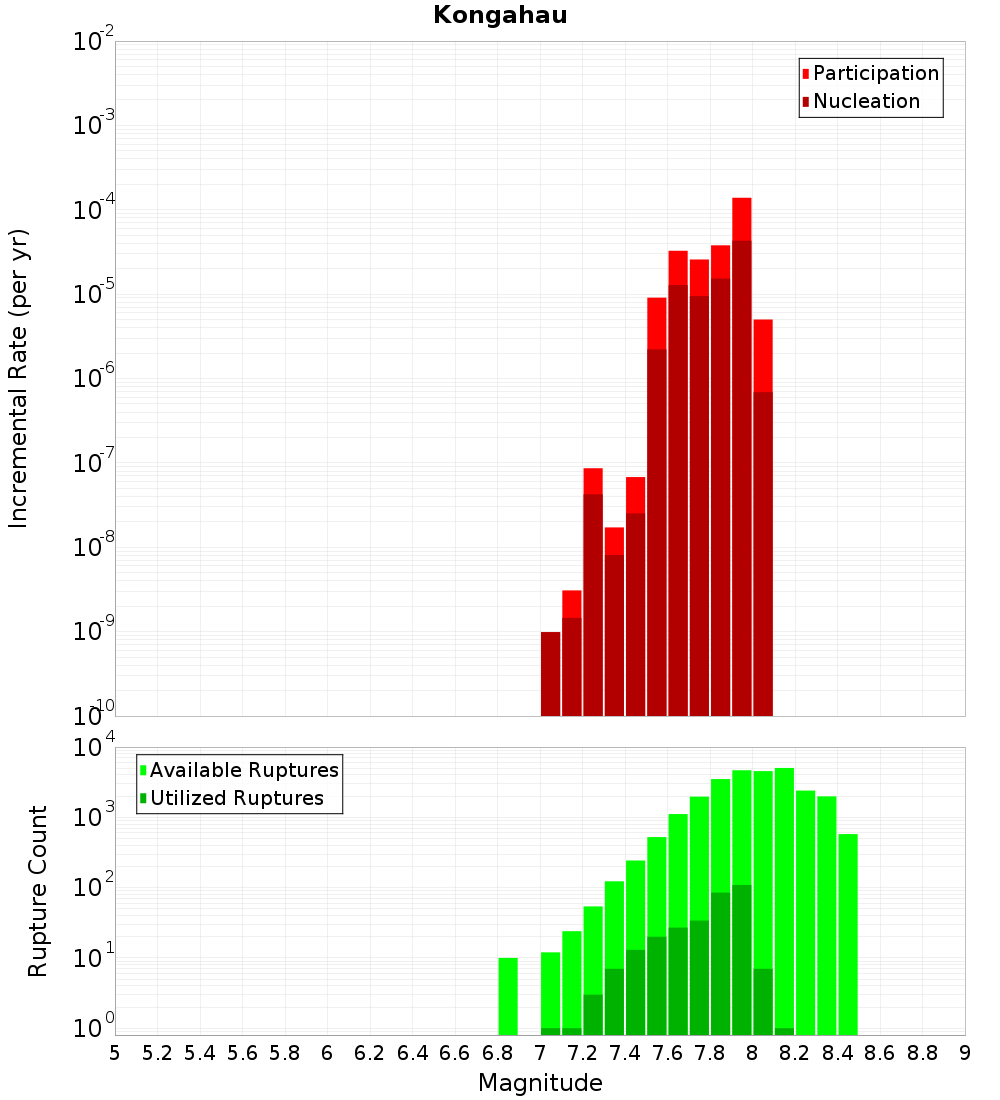

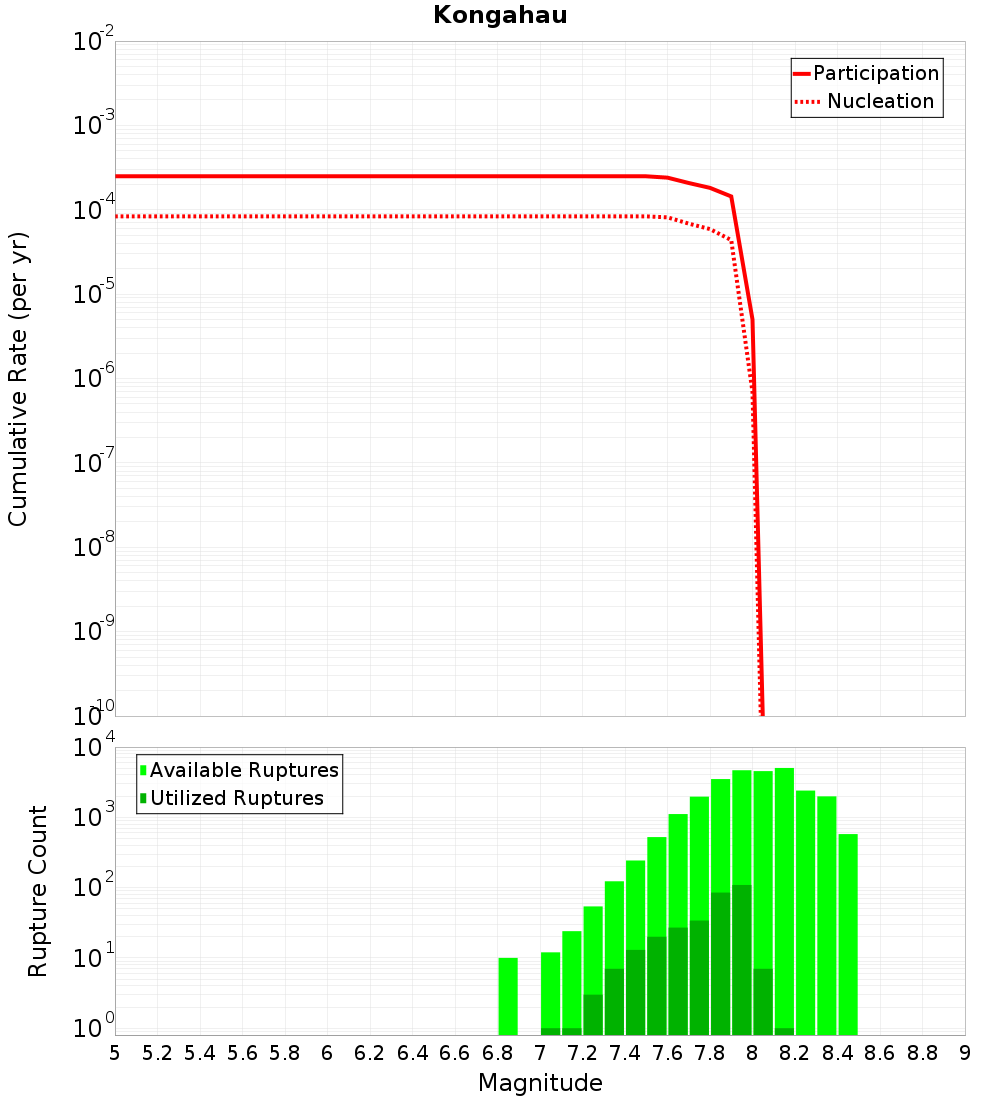

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

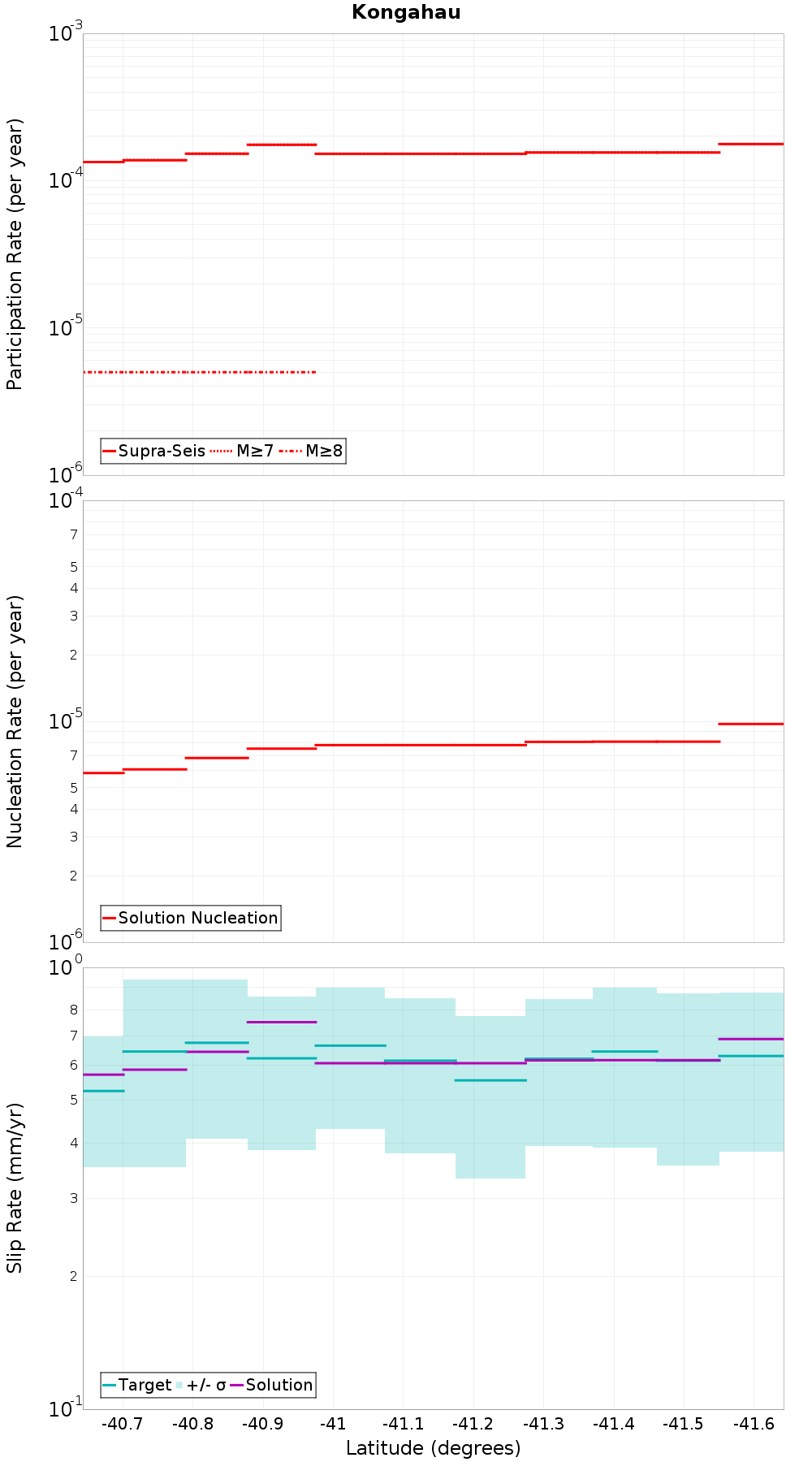

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Kahurangi, 0.37 km away
Wakamarama, 0.4 km away
Inangahua, 0.88 km away
Cape Foulwind 4, 1.28 km away
Paparoa West: North, 1.54 km away
Farewell, 4.12 km away
Kohaihai, 5.4 km away
Glasgow, 6.47 km away
Kohaihai South, 7.18 km away
Cape Foulwind 2, 8.65 km away
Matiri West, 10.55 km away
White Creek, 11.77 km away

Kahurangi, 0.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?true
Directly Connected?true
Co-rupture Count647
Co-rupture Rate3.1829153E-5

Wakamarama, 0.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?true
Directly Connected?true
Co-rupture Count6,360
Co-rupture Rate6.713644E-5

Inangahua, 0.88 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?true
Directly Connected?true
Co-rupture Count10,762
Co-rupture Rate5.51022E-5

Cape Foulwind 4, 1.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?true
Directly Connected?true
Co-rupture Count90
Co-rupture Rate5.867294E-6

Paparoa West: North, 1.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?true
Directly Connected?true
Co-rupture Count4,886
Co-rupture Rate1.5701211E-4

Farewell, 4.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?true
Directly Connected?true
Co-rupture Count1,845
Co-rupture Rate4.9215127E-5

Kohaihai, 5.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?true
Directly Connected?true
Co-rupture Count17,737
Co-rupture Rate9.512005E-5

Glasgow, 6.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?true
Directly Connected?false
Co-rupture Count1,876
Co-rupture Rate2.804969E-5

Kohaihai South, 7.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?true
Directly Connected?false
Co-rupture Count3,062
Co-rupture Rate2.815544E-5

Cape Foulwind 2, 8.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?true
Directly Connected?true
Co-rupture Count272
Co-rupture Rate1.0522427E-5

Matiri West, 10.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?true
Directly Connected?true
Co-rupture Count933
Co-rupture Rate7.0442155E-8

White Creek, 11.77 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?true
Directly Connected?false
Co-rupture Count15,724
Co-rupture Rate6.7073255E-5
