Madden Banks Details

Property	Value
Rupture Count	8,506
Ruptures Above Sect Min Mag	8,488
Ruptures w/ Nonzero Rates	97
Magnitude Range	[6.65, 8.21]
Length Range	[18, 626] km
Total Rate	2.0670799E-4 /yr
Multi-Fault Rate	2.0660975E-4 /yr (99.95%)
Directly-Connected Faults	6
All Co-Rupturing Faults	55

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

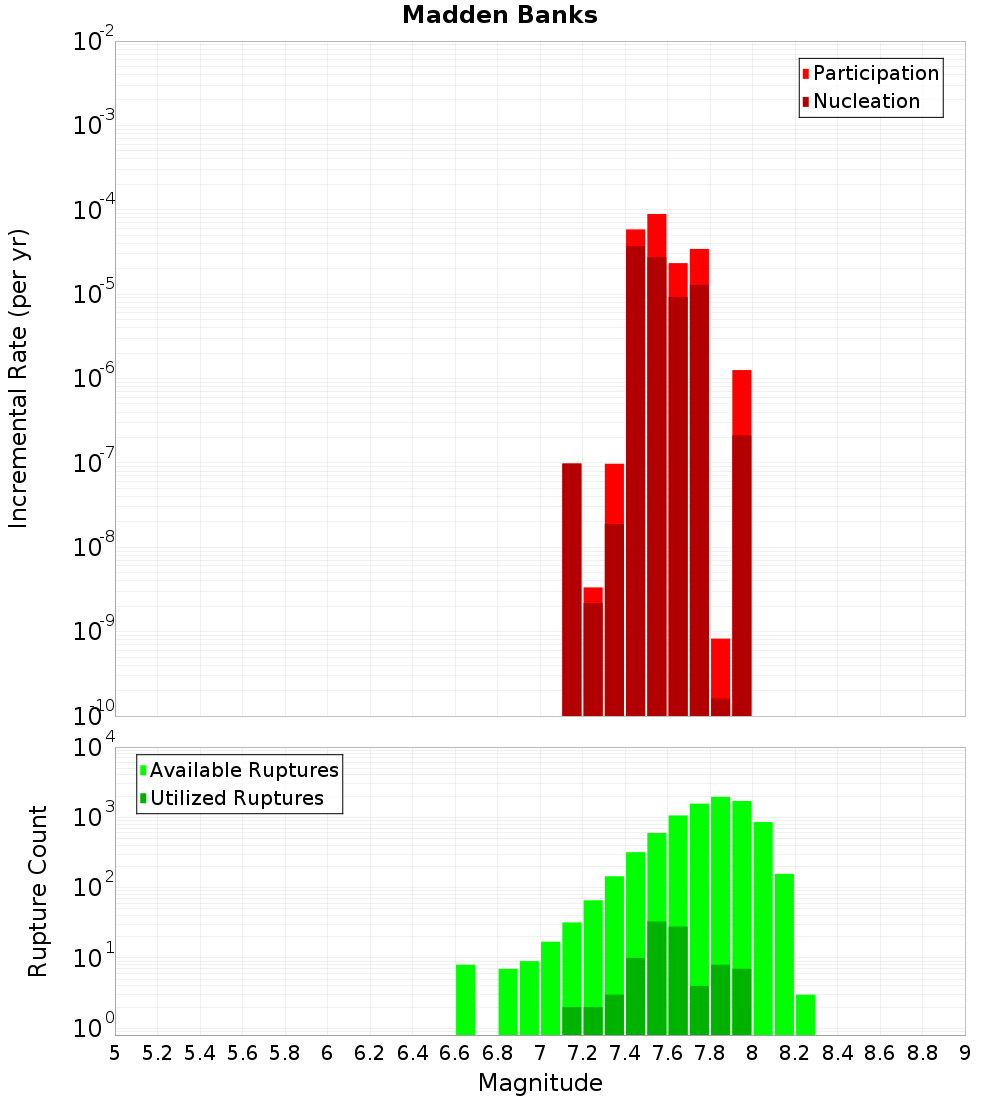

Magnitude-Frequency Distribution

Incremental	Cumulative

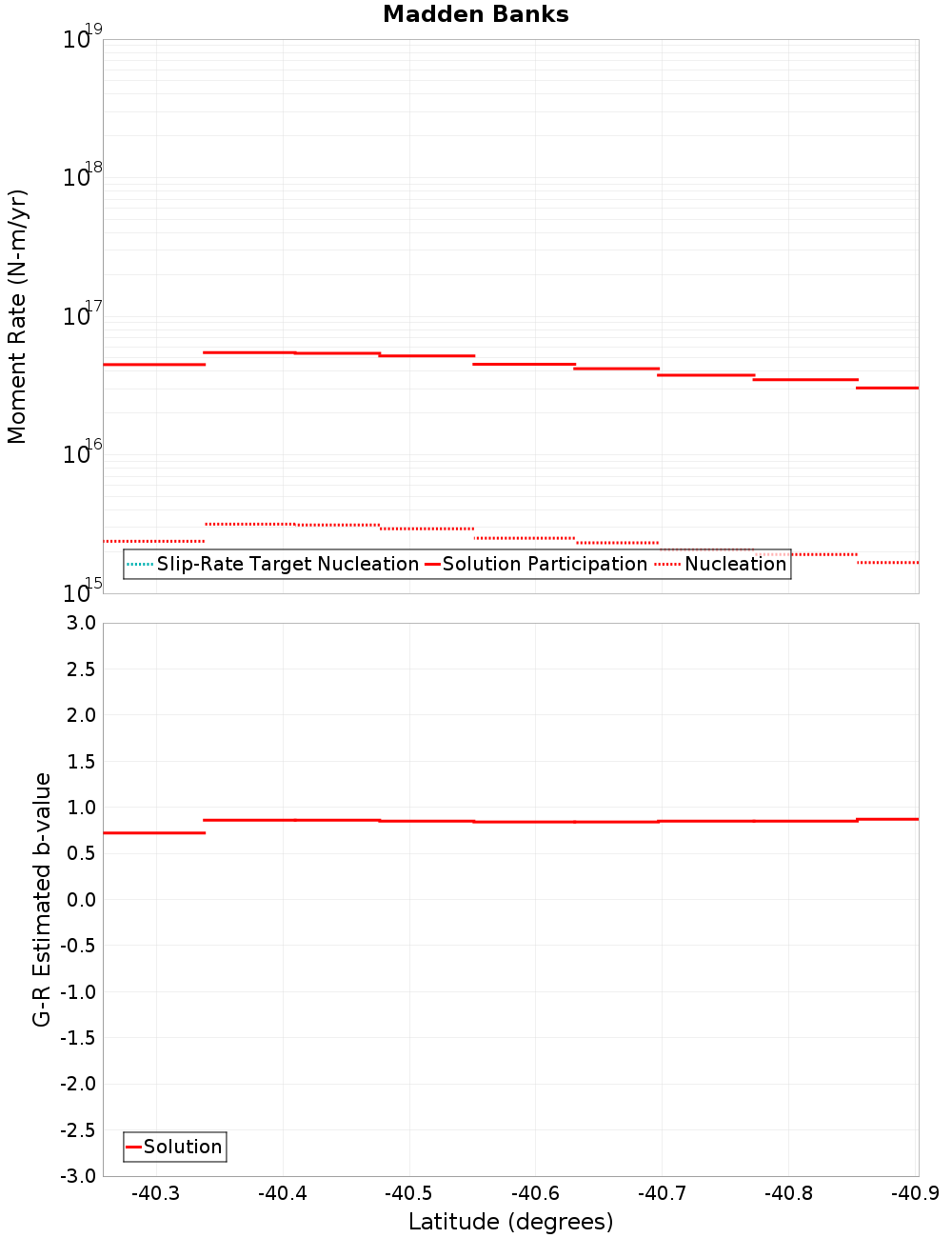

Along-Strike Values

Moment-Rates and b-Values

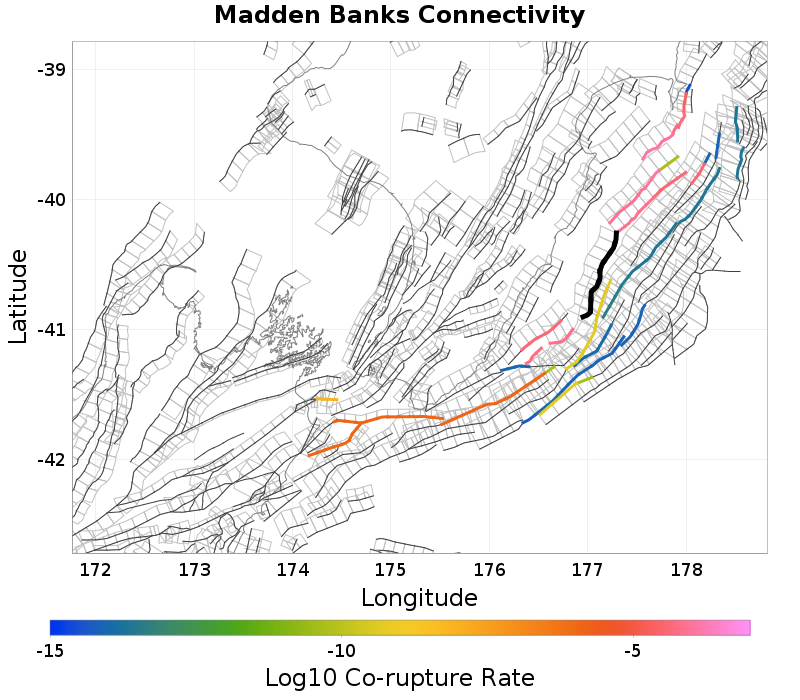

Connectivity

Nearby Sections

Fault Section
Motu o Kura East, 0.5 km away
Uruti North, 3.77 km away
Uruti East - PorWest 1, 4.33 km away
Whareama Bank, 7.83 km away
Motu o Kura Ridge, 7.92 km away
PorWest2 - PaoanuiRSouth, 8.18 km away
Porangahau Basin, 9.02 km away
Omakere South, 13.38 km away
Porangahau Ridge, 14.87 km away

Motu o Kura East, 0.5 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?	true
Directly Connected?	true
Co-rupture Count	4,100
Co-rupture Rate	7.0930815E-5

Uruti North, 3.77 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?	true
Directly Connected?	true
Co-rupture Count	5,253
Co-rupture Rate	5.974834E-5

Uruti East - PorWest 1, 4.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?	true
Directly Connected?	true
Co-rupture Count	2,586
Co-rupture Rate	4.578161E-10

Whareama Bank, 7.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?	true
Directly Connected?	true
Co-rupture Count	207
Co-rupture Rate	3.433701E-5

Motu o Kura Ridge, 7.92 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?	true
Directly Connected?	true
Co-rupture Count	1,124
Co-rupture Rate	7.5933734E-5

PorWest2 - PaoanuiRSouth, 8.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?	true
Directly Connected?	true
Co-rupture Count	503
Co-rupture Rate	4.3916093E-14

Porangahau Basin, 9.02 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?	true
Directly Connected?	false
Co-rupture Count	77
Co-rupture Rate	1.0800591E-14

Omakere South, 13.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Porangahau Ridge, 14.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
