Motu o Kura East Details

PropertyValue
Rupture Count4,525
Ruptures Above Sect Min Mag4,502
Ruptures w/ Nonzero Rates69
Magnitude Range[6.61, 8.21]
Length Range[18, 626] km
Total Rate1.526187E-4 /yr
Multi-Fault Rate1.526187E-4 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults54

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

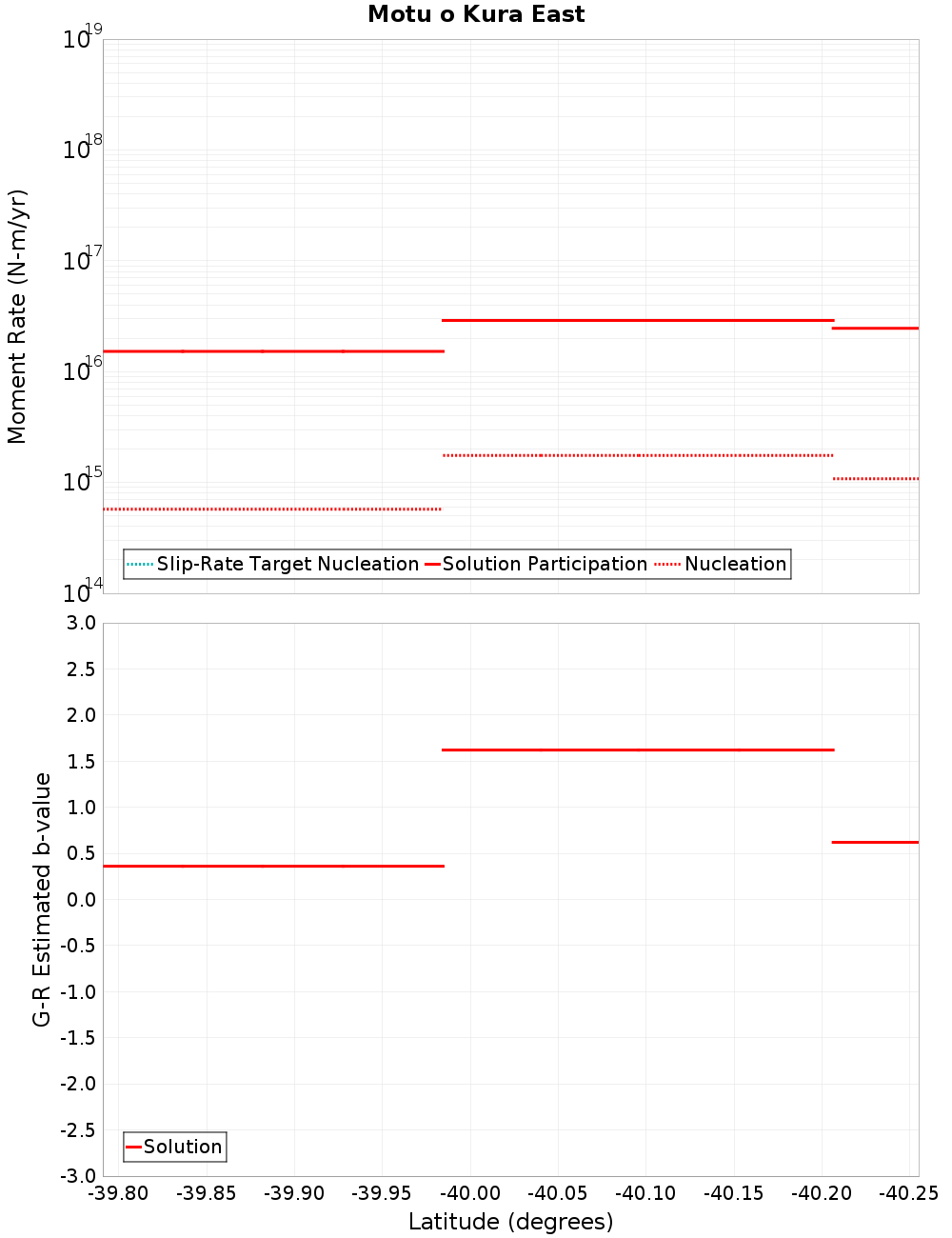

Moment-Rates and b-Values

(top)

Along-strike plot

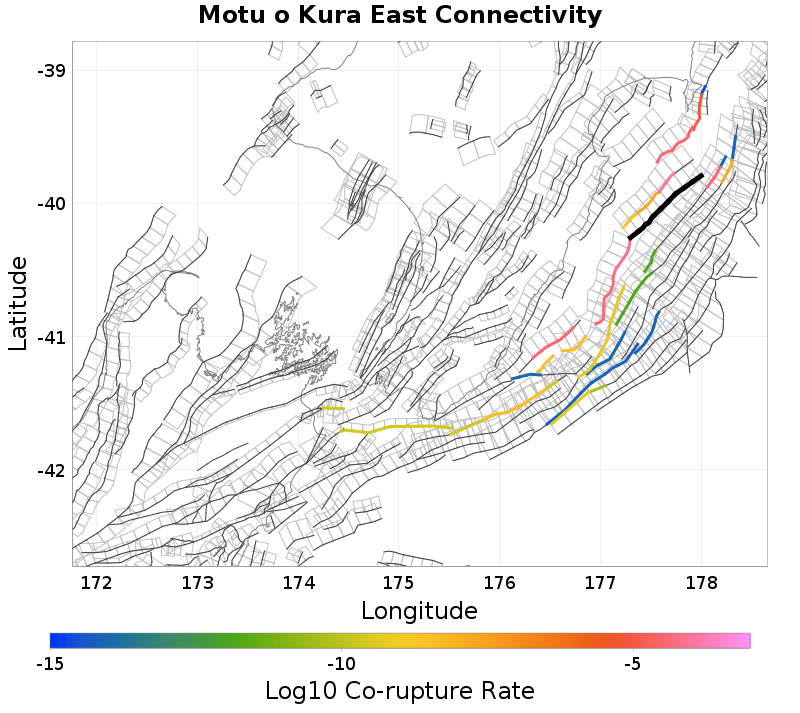

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Madden Banks, 0.5 km away
Omakere Ridge, 6.14 km away
Motu o Kura Ridge, 6.46 km away
Motuokura North, 7.07 km away
Ritchie West 1, 11.34 km away
Omakere South, 12.5 km away
Paoanui Ridge North, 14.85 km away

Madden Banks, 0.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?true
Directly Connected?true
Co-rupture Count4,100
Co-rupture Rate7.0930815E-5

Omakere Ridge, 6.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?true
Directly Connected?true
Co-rupture Count439
Co-rupture Rate3.4333574E-5

Motu o Kura Ridge, 6.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?true
Directly Connected?true
Co-rupture Count109
Co-rupture Rate1.5997994E-8

Motuokura North, 7.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?true
Directly Connected?true
Co-rupture Count252
Co-rupture Rate1.1826488E-4

Ritchie West 1, 11.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?true
Directly Connected?true
Co-rupture Count398
Co-rupture Rate1.3339417E-8

Omakere South, 12.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?true
Directly Connected?true
Co-rupture Count156
Co-rupture Rate1.6469842E-12

Paoanui Ridge North, 14.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate0.0
