North Mernoo 26 Details
| Property | Value |
|---|---|
| Rupture Count | 146 |
| Ruptures Above Sect Min Mag | 135 |
| Ruptures w/ Nonzero Rates | 5 |
| Magnitude Range | [6.51, 7.62] |
| Length Range | [15, 193] km |
| Total Rate | 4.0359684E-9 /yr |
| Multi-Fault Rate | 4.0359684E-9 /yr (100.00%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 12 |
Table Of Contents

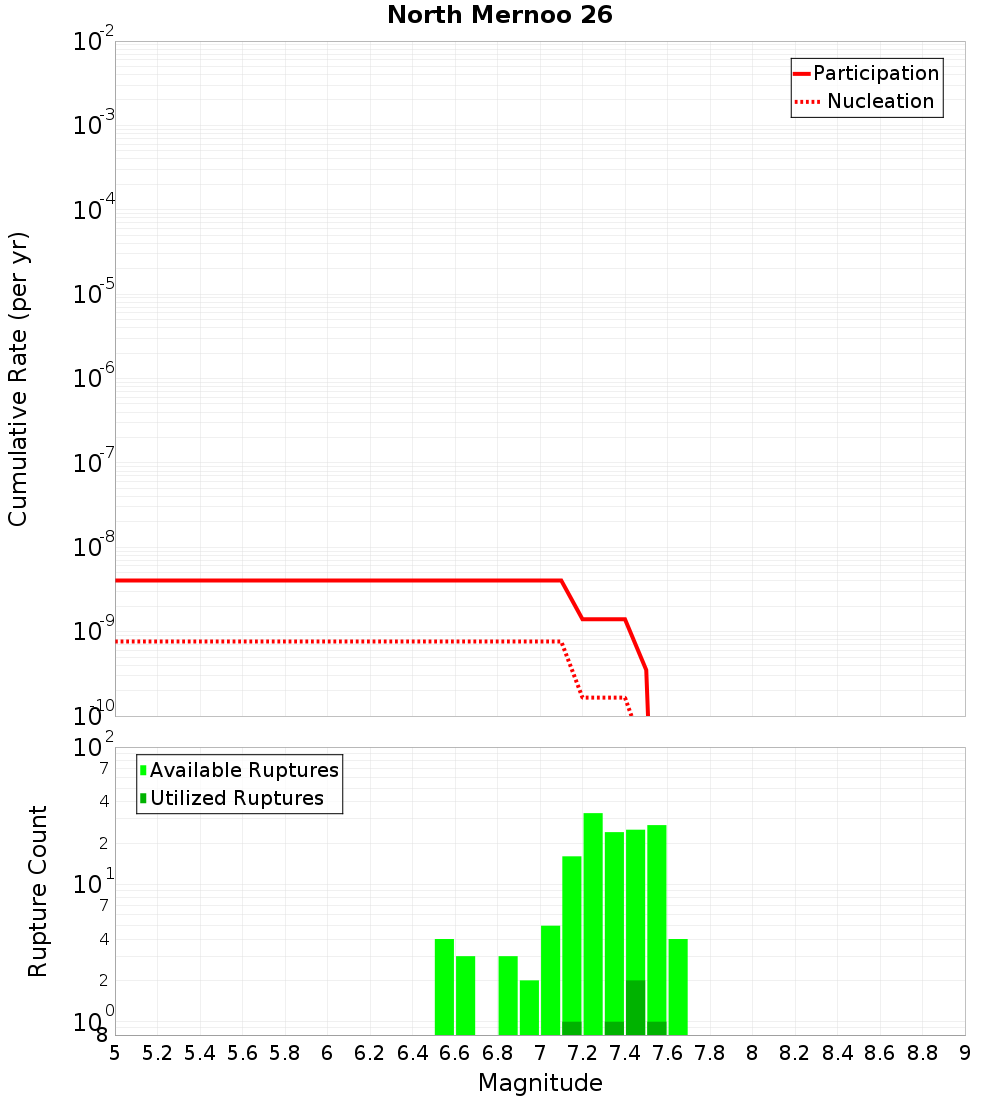

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

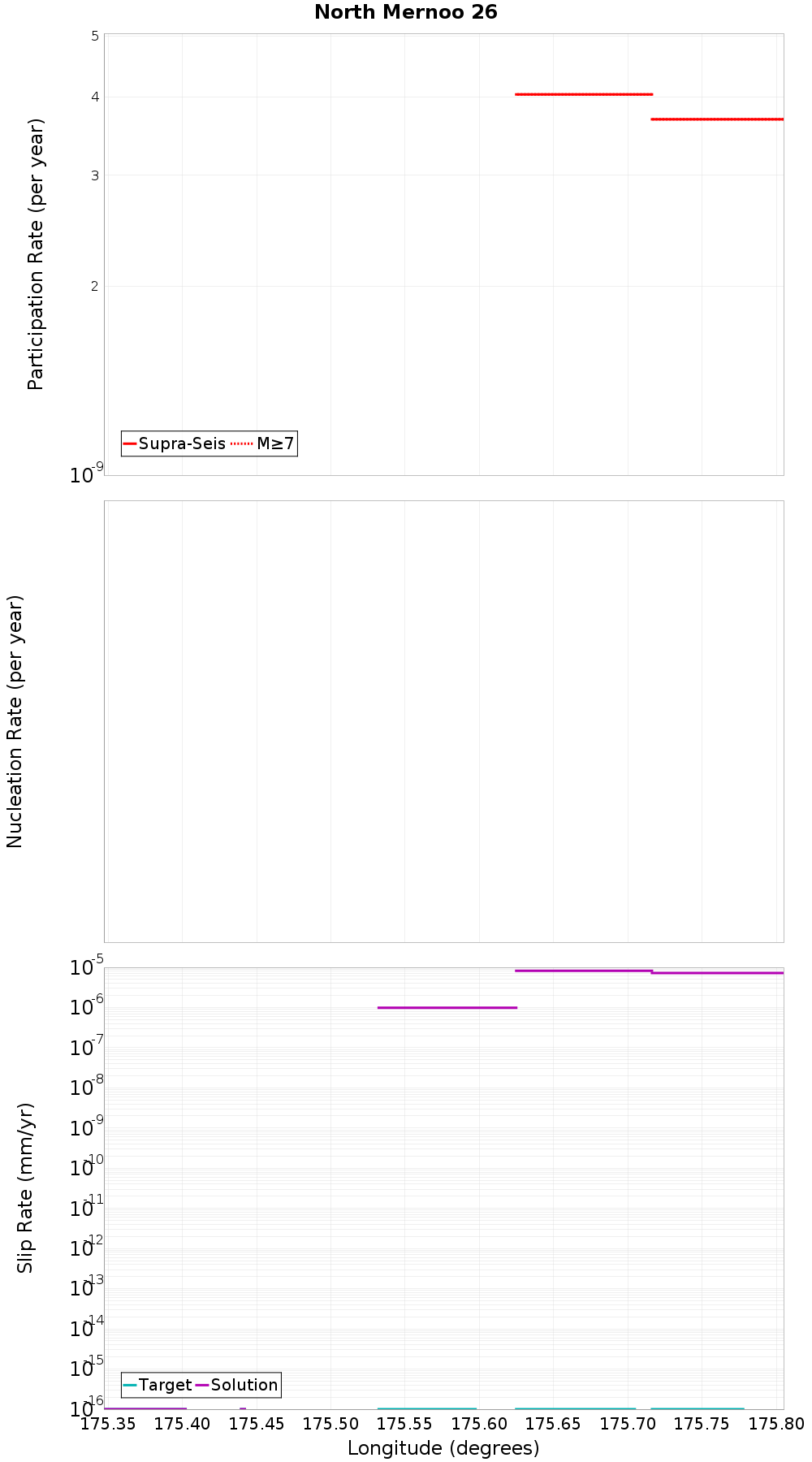

Along-Strike Values

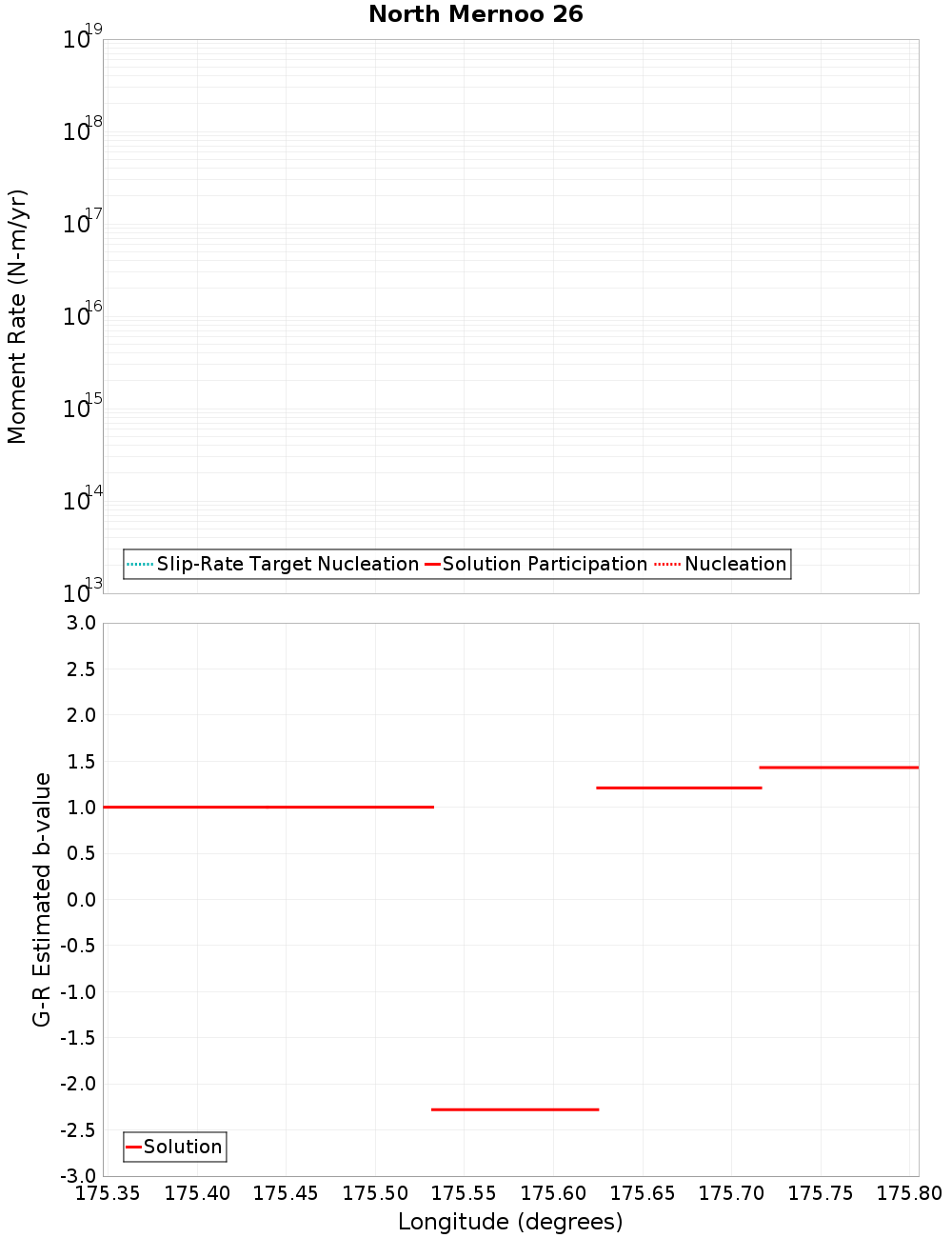

Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
North Mernoo K3, 3.66 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 53 |
| Co-rupture Rate | 4.0359684E-9 |
North Mernoo I, 7.67 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 83 |
| Co-rupture Rate | 0.0 |
North Mernoo L, 8.33 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 17 |
| Co-rupture Rate | 3.5064962E-10 |
North Mernoo M, 11.57 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 33 |
| Co-rupture Rate | 1.4006789E-9 |
North Mernoo K2, 12.44 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 37 |
| Co-rupture Rate | 1.4006867E-9 |
North Mernoo F2, 13.33 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
North Mernoo J, 13.49 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
