Ohena 4 Details

PropertyValue
Rupture Count116
Ruptures Above Sect Min Mag115
Ruptures w/ Nonzero Rates55
Magnitude Range[6.98, 7.73]
Length Range[27, 184] km
Total Rate2.379436E-5 /yr
Multi-Fault Rate1.7559232E-5 /yr (73.80%)
Directly-Connected Faults6
All Co-Rupturing Faults9

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

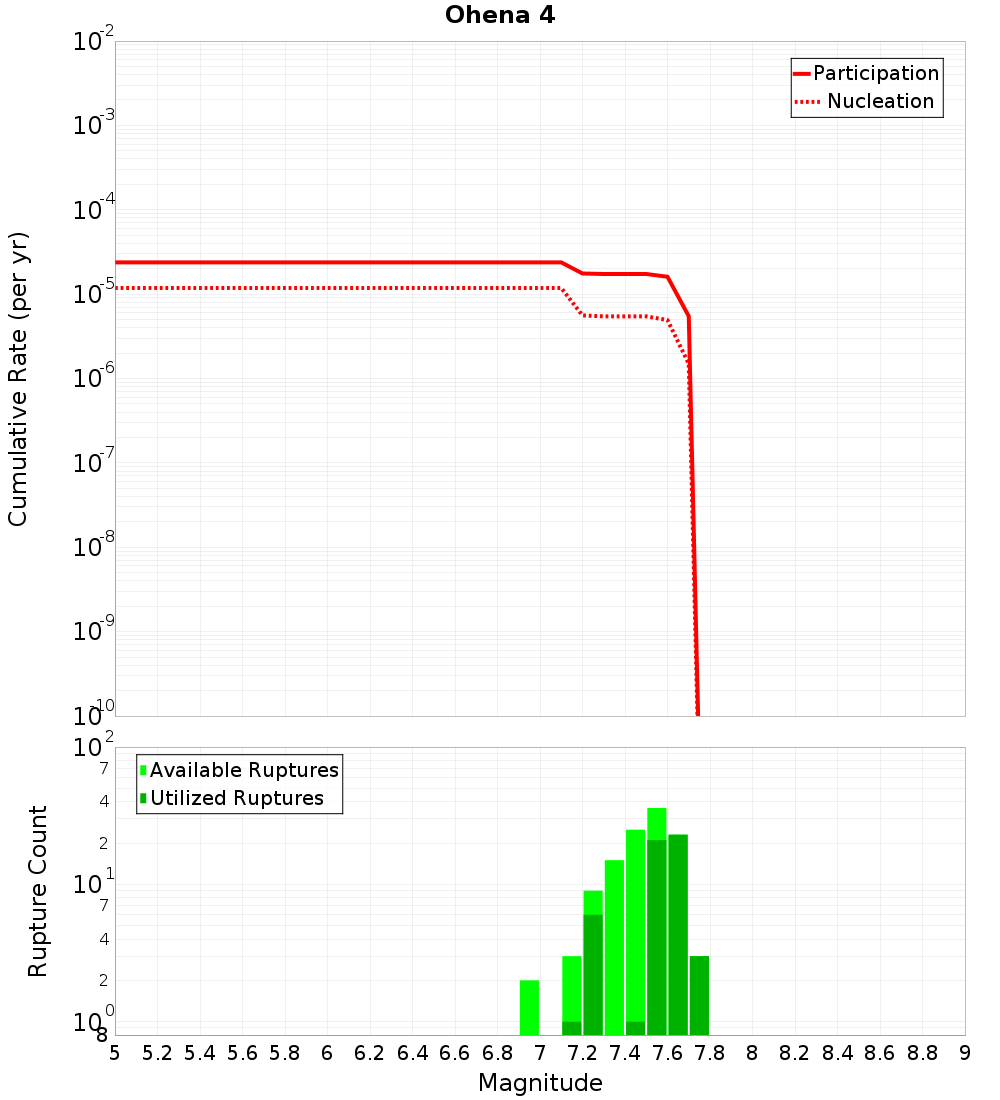

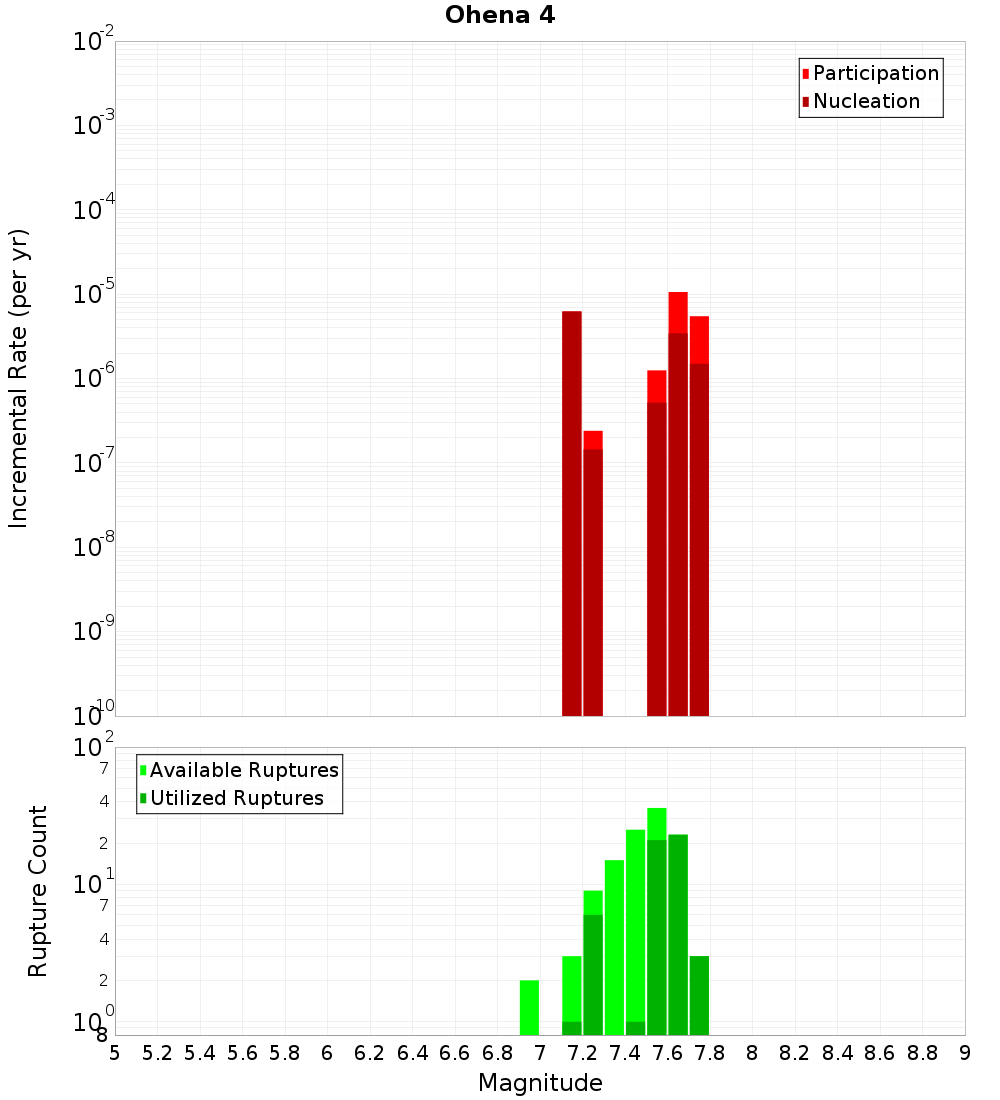

Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

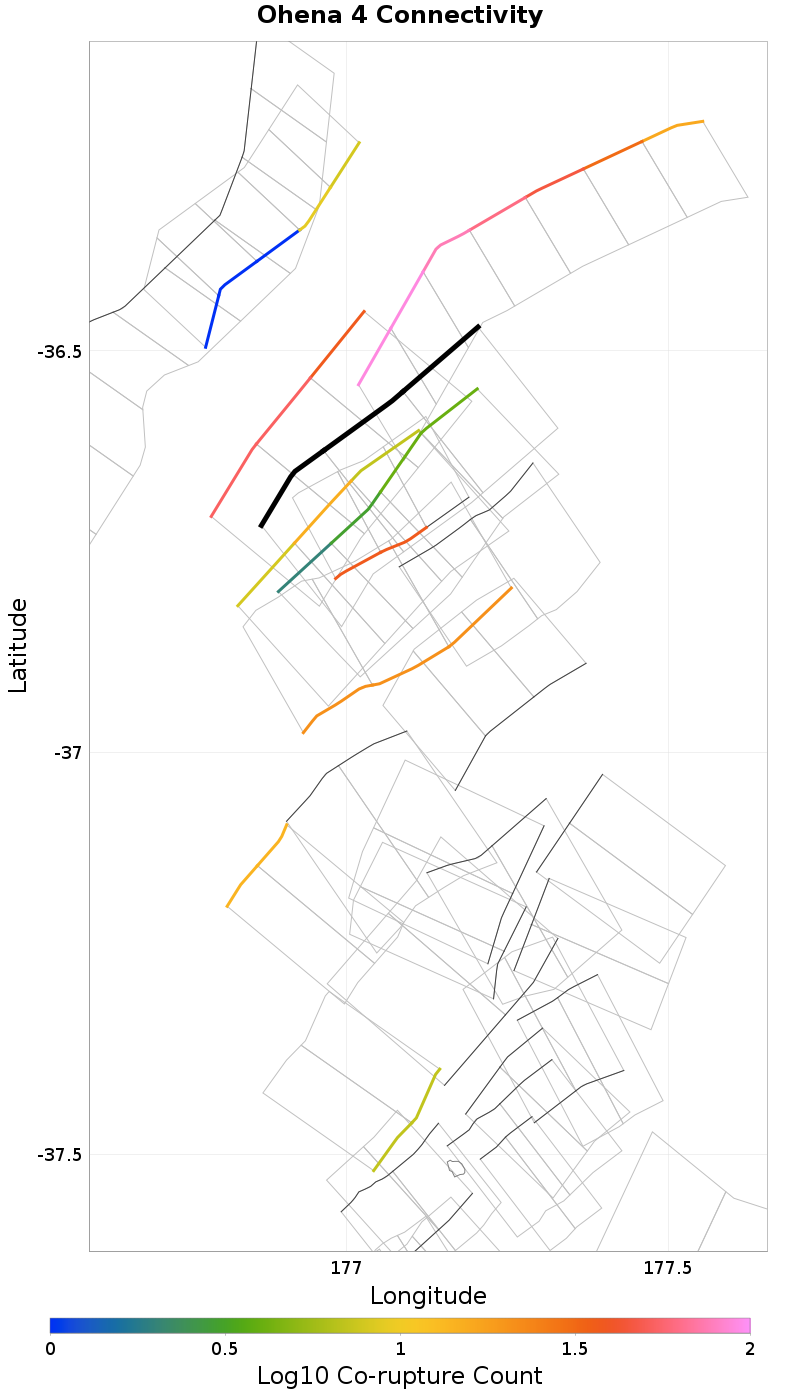

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Ngatoro South 5, 0.16 km away
Tauranga Trough West 2, 0.39 km away
Ngatoro West 1, 3.51 km away
Ohena 3, 3.91 km away
Ohena 5, 4.37 km away
Ohena 2, 4.59 km away
Tauranga Trough East 2, 10.64 km away
Ngatoro South 2, 14.7 km away

Ngatoro South 5, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?true
Directly Connected?true
Co-rupture Count37
Co-rupture Rate9.263988E-6

Tauranga Trough West 2, 0.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?true
Directly Connected?true
Co-rupture Count21
Co-rupture Rate6.5376867E-6

Ngatoro West 1, 3.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?true
Directly Connected?true
Co-rupture Count90
Co-rupture Rate1.6980464E-5

Ohena 3, 3.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?true
Directly Connected?true
Co-rupture Count15
Co-rupture Rate6.9517874E-8

Ohena 5, 4.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?true
Directly Connected?true
Co-rupture Count53
Co-rupture Rate1.0712299E-5

Ohena 2, 4.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?true
Directly Connected?true
Co-rupture Count4
Co-rupture Rate2.3882134E-7

Tauranga Trough East 2, 10.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ngatoro South 2, 14.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
