Te Arawa 1 Details

Property	Value
Rupture Count	8,119
Ruptures Above Sect Min Mag	8,115
Ruptures w/ Nonzero Rates	811
Magnitude Range	[6.77, 8.35]
Length Range	[19, 789] km
Total Rate	6.3046324E-4 /yr
Multi-Fault Rate	6.3046324E-4 /yr (100.00%)
Directly-Connected Faults	7
All Co-Rupturing Faults	76

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

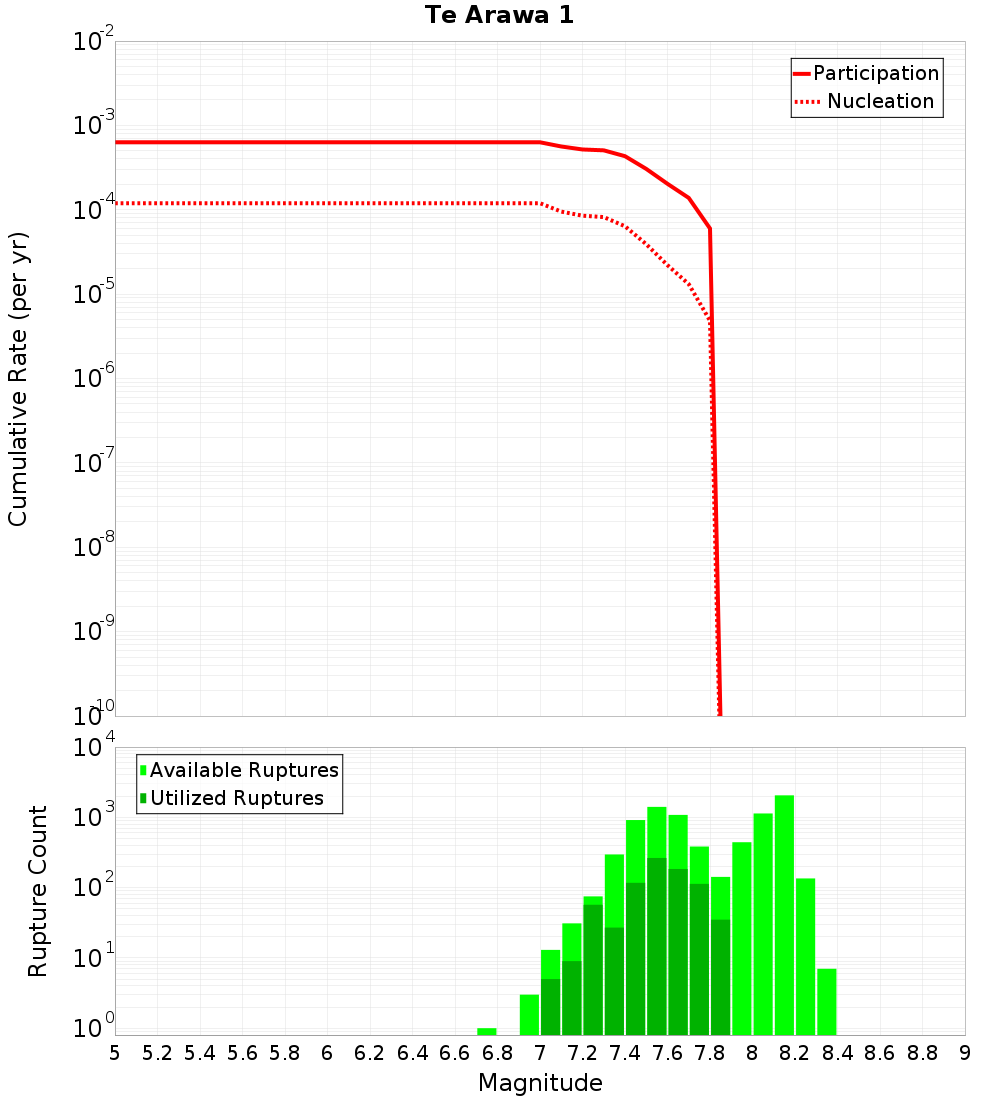

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Tuatoru 2, 0.34 km away
Te Arawa 2, 1.19 km away
Calypso 2, 1.54 km away
Whakaari 4, 2.25 km away
Hariki, 2.72 km away
Tuatoru 1, 3.09 km away
White Island 2, 3.53 km away
Te Arawa 3, 5.29 km away
Volkner 3, 5.74 km away
Volkner 4, 6.45 km away
Opotiki 3, 7.4 km away
Ohiwa 1, 8.65 km away
Otara West 1, 11.56 km away
Otara East 1, 11.84 km away

Tuatoru 2, 0.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?	true
Directly Connected?	true
Co-rupture Count	2,044
Co-rupture Rate	1.9866094E-4

Te Arawa 2, 1.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?	true
Directly Connected?	true
Co-rupture Count	1,532
Co-rupture Rate	1.700381E-4

Calypso 2, 1.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?	true
Directly Connected?	false
Co-rupture Count	128
Co-rupture Rate	1.5942063E-5

Whakaari 4, 2.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?	true
Directly Connected?	true
Co-rupture Count	3,842
Co-rupture Rate	2.3886173E-4

Hariki, 2.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Tuatoru 1, 3.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?	true
Directly Connected?	true
Co-rupture Count	1,282
Co-rupture Rate	1.2668261E-4

White Island 2, 3.53 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?	true
Directly Connected?	true
Co-rupture Count	2,781
Co-rupture Rate	1.7526548E-4

Te Arawa 3, 5.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?	true
Directly Connected?	true
Co-rupture Count	1,174
Co-rupture Rate	1.0944975E-4

Volkner 3, 5.74 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?	true
Directly Connected?	false
Co-rupture Count	5
Co-rupture Rate	3.7625018E-6

Volkner 4, 6.45 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?	true
Directly Connected?	false
Co-rupture Count	31
Co-rupture Rate	8.631555E-6

Opotiki 3, 7.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ohiwa 1, 8.65 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?	true
Directly Connected?	true
Co-rupture Count	2,473
Co-rupture Rate	2.624312E-4

Otara West 1, 11.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Otara East 1, 11.84 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NDguMGFkOGs1
Connected?	true
Directly Connected?	false
Co-rupture Count	949
Co-rupture Rate	1.8533444E-4
