Whangamoa Details

Property	Value
Rupture Count	49,332
Ruptures Above Sect Min Mag	49,326
Ruptures w/ Nonzero Rates	63
Magnitude Range	[7.07, 8.71]
Length Range	[23, 1,002] km
Total Rate	2.2622339E-4 /yr
Multi-Fault Rate	2.2622339E-4 /yr (100.00%)
Directly-Connected Faults	8
All Co-Rupturing Faults	136

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

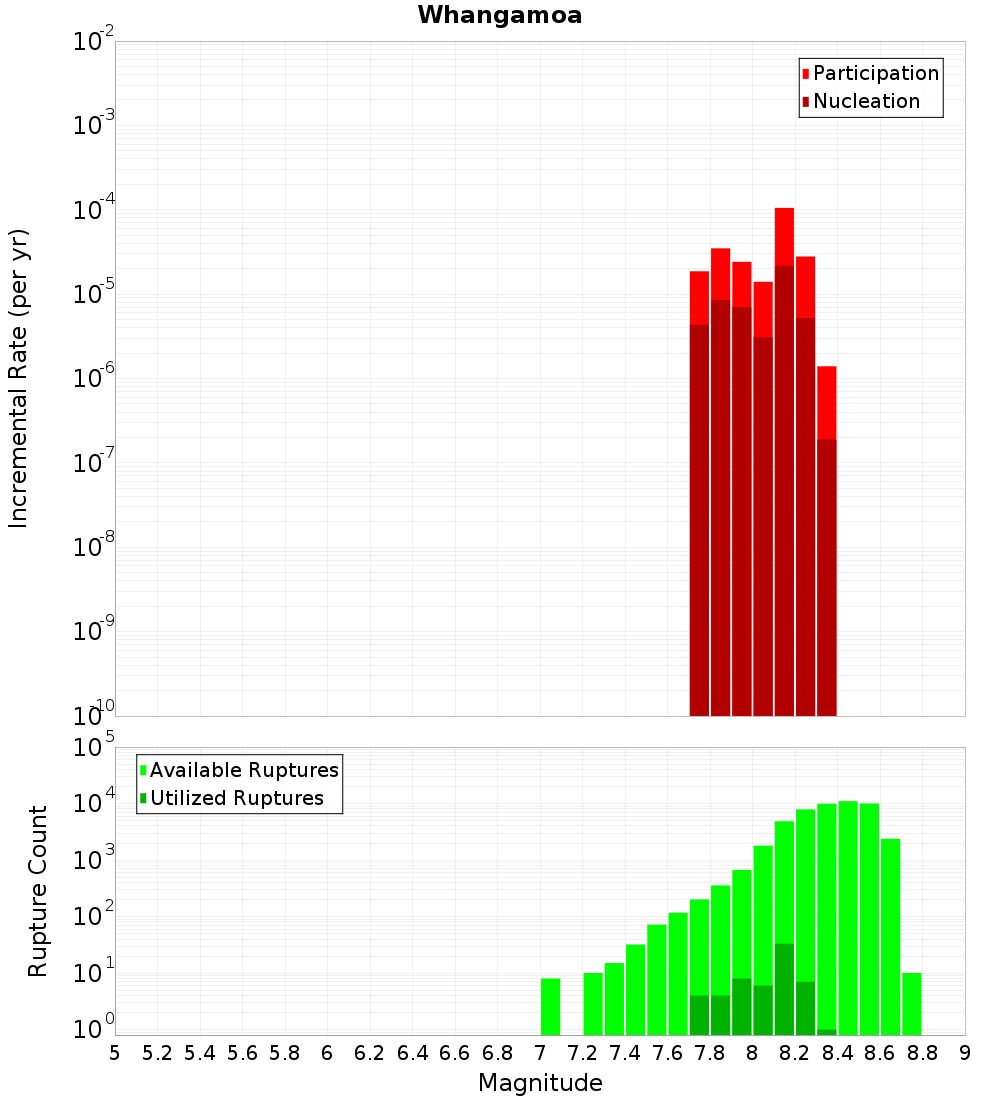

Magnitude-Frequency Distribution

Incremental	Cumulative

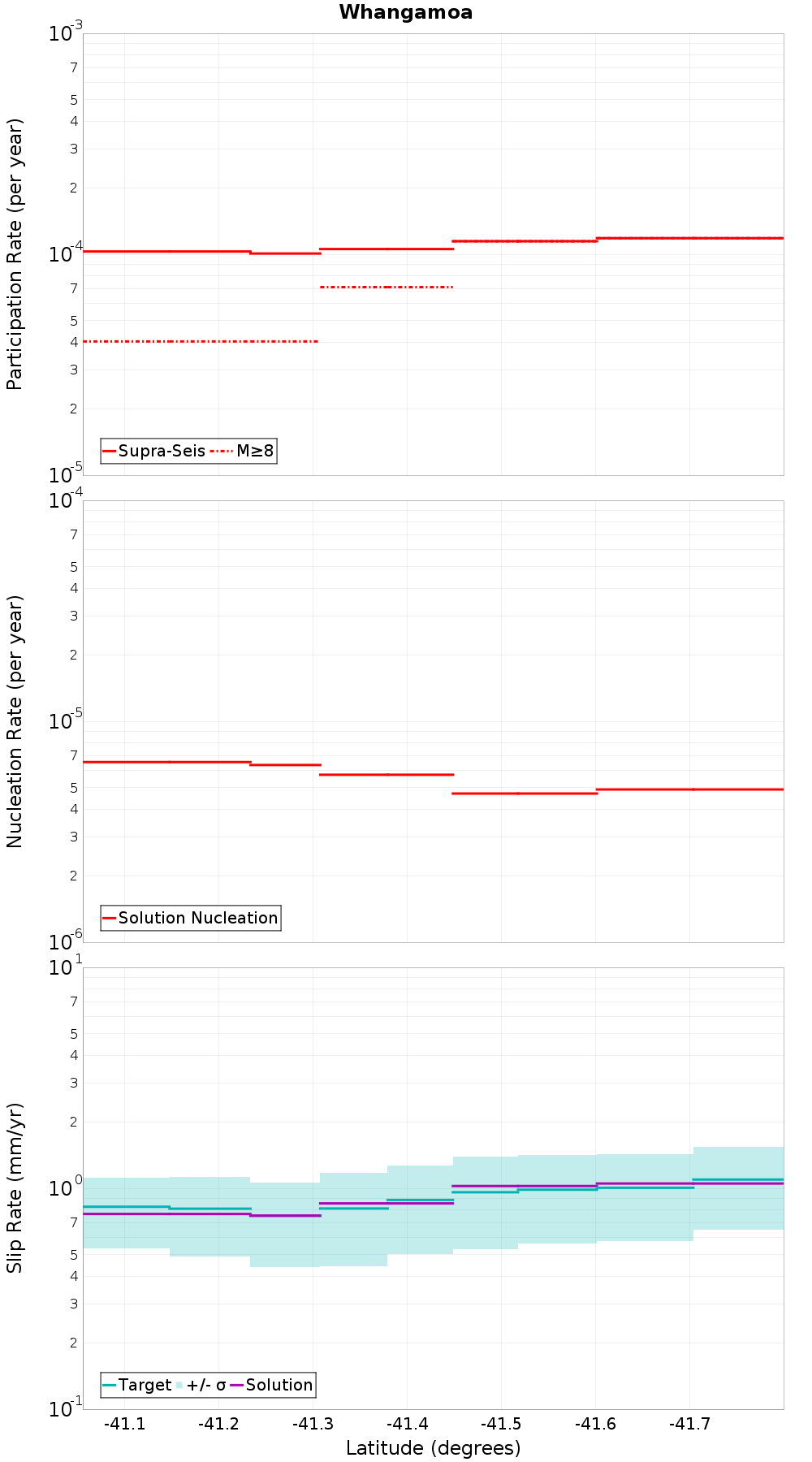

Along-Strike Values

Moment-Rates and b-Values

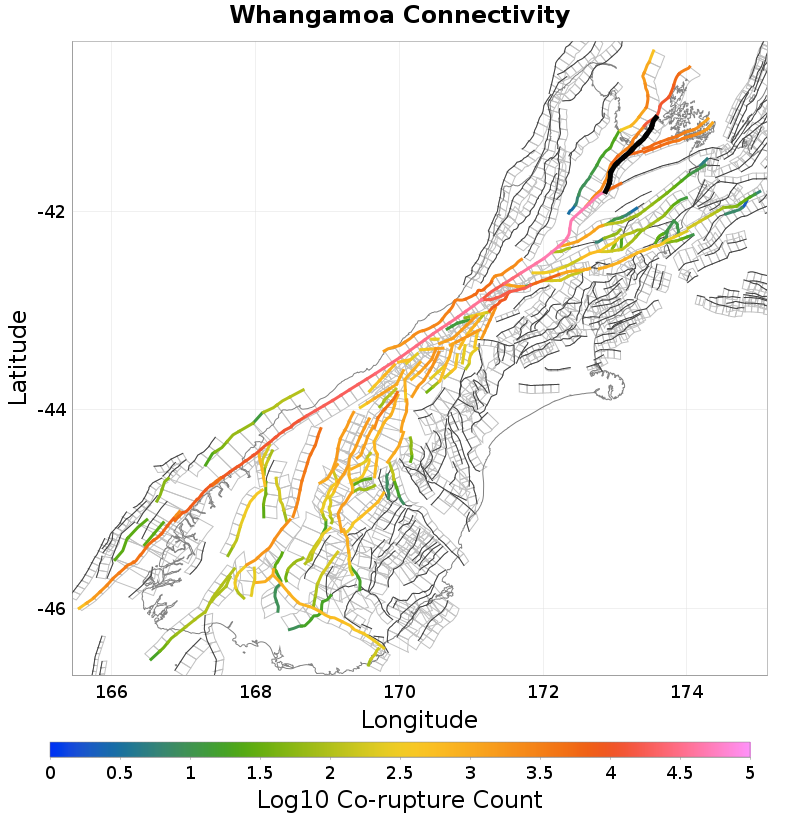

Connectivity

Nearby Sections

Fault Section
Alpine: Springs Junction to Tophouse, 0 km away
Wairau, 0 km away
Totara Saddle, 0.19 km away
Kenepuru, 0.43 km away
Waimea Offshore, 0.81 km away
Flaxmore - Waimea - Tahunanui, 2.28 km away
Queen Charlotte, 3.21 km away
Waihopai, 13.04 km away
Surville, 13.9 km away
Tutaki, 14.85 km away

Alpine: Springs Junction to Tophouse, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NTUuME5jS1Nj
Connected?	true
Directly Connected?	true
Co-rupture Count	47,509
Co-rupture Rate	1.1931088E-4

Wairau, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NTUuME5jS1Nj
Connected?	true
Directly Connected?	true
Co-rupture Count	5,287
Co-rupture Rate	3.606495E-6

Totara Saddle, 0.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NTUuME5jS1Nj
Connected?	true
Directly Connected?	true
Co-rupture Count	5,944
Co-rupture Rate	7.391134E-5

Kenepuru, 0.43 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NTUuME5jS1Nj
Connected?	true
Directly Connected?	true
Co-rupture Count	5,907
Co-rupture Rate	1.1973918E-4

Waimea Offshore, 0.81 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NTUuME5jS1Nj
Connected?	true
Directly Connected?	true
Co-rupture Count	13,044
Co-rupture Rate	7.241432E-5

Flaxmore - Waimea - Tahunanui, 2.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NTUuME5jS1Nj
Connected?	true
Directly Connected?	true
Co-rupture Count	5,700
Co-rupture Rate	4.7725855E-5

Queen Charlotte, 3.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NTUuME5jS1Nj
Connected?	true
Directly Connected?	true
Co-rupture Count	5,517
Co-rupture Rate	6.5465334E-5

Waihopai, 13.04 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NTUuME5jS1Nj
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Surville, 13.9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NTUuME5jS1Nj
Connected?	true
Directly Connected?	true
Co-rupture Count	3,162
Co-rupture Rate	1.4347179E-5

Tutaki, 14.85 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NTUuME5jS1Nj
Connected?	true
Directly Connected?	false
Co-rupture Count	9
Co-rupture Rate	3.5310616E-6
