Alpine: Resolution - Charles Details

Property	Value
Rupture Count	25,697
Ruptures Above Sect Min Mag	25,694
Ruptures w/ Nonzero Rates	76
Magnitude Range	[6.55, 8.58]
Length Range	[10, 1,082] km
Total Rate	1.5568973E-4 /yr
Multi-Fault Rate	1.5568973E-4 /yr (100.00%)
Directly-Connected Faults	3
All Co-Rupturing Faults	154

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

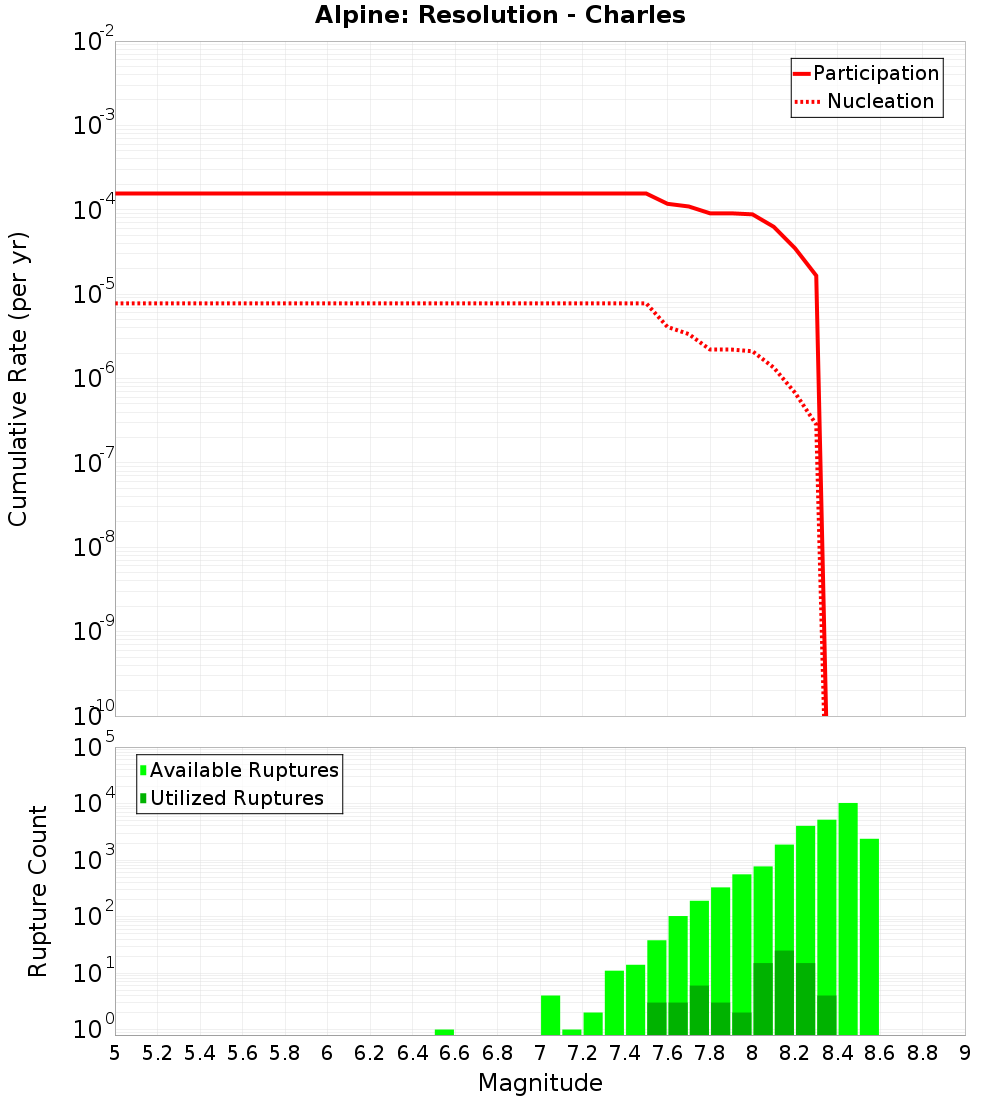

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

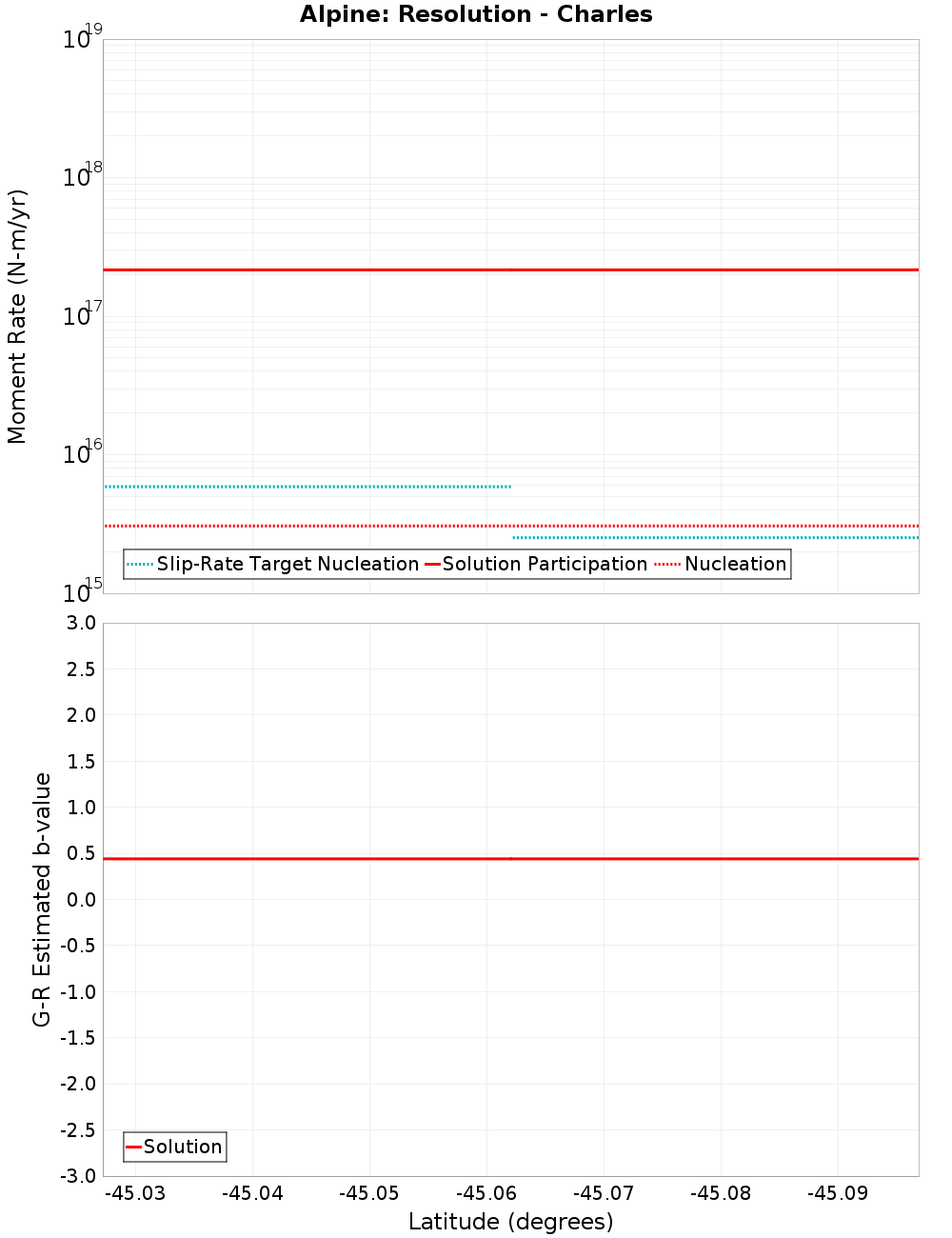

Moment-Rates and b-Values

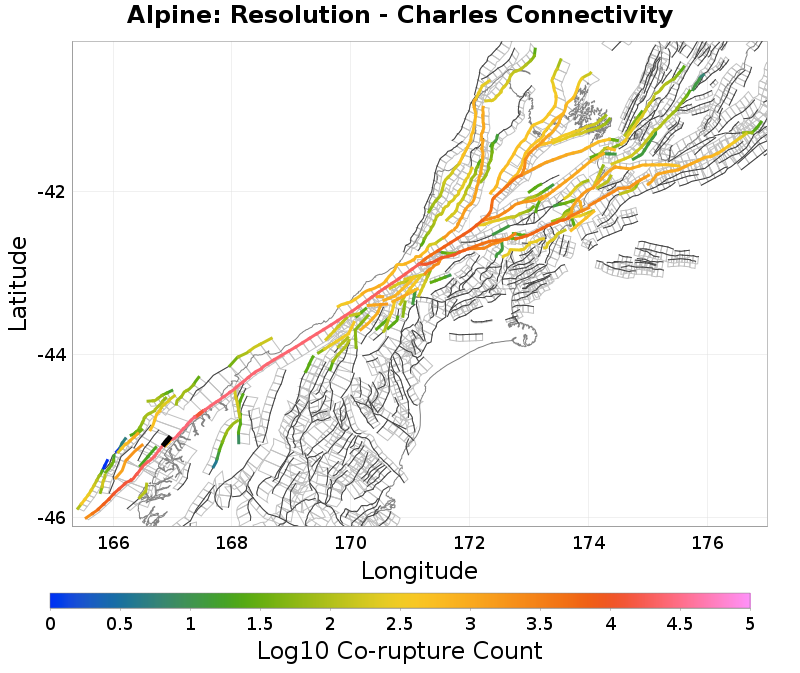

Connectivity

Nearby Sections

Fault Section
Alpine: Resolution - Dagg, 0 km away
Central Wedge 4 - South Wedge 411, 0.32 km away
South Wedge 2, 0.32 km away
Alpine: Nancy, 2.58 km away
Central Wedge 1 & 2 & 3, 2.9 km away
Alpine: Caswell, 3.33 km away
South Wedge 1, 10.28 km away

Alpine: Resolution - Dagg, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjAuMEtTSFo1
Connected?	true
Directly Connected?	true
Co-rupture Count	24,051
Co-rupture Rate	4.208743E-5

Central Wedge 4 - South Wedge 411, 0.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjAuMEtTSFo1
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

South Wedge 2, 0.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjAuMEtTSFo1
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Alpine: Nancy, 2.58 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjAuMEtTSFo1
Connected?	true
Directly Connected?	false
Co-rupture Count	704
Co-rupture Rate	8.2819093E-7

Central Wedge 1 & 2 & 3, 2.9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjAuMEtTSFo1
Connected?	true
Directly Connected?	true
Co-rupture Count	519
Co-rupture Rate	7.407539E-5

Alpine: Caswell, 3.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjAuMEtTSFo1
Connected?	true
Directly Connected?	true
Co-rupture Count	25,236
Co-rupture Rate	8.244254E-5

South Wedge 1, 10.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjAuMEtTSFo1
Connected?	true
Directly Connected?	false
Co-rupture Count	19
Co-rupture Rate	0.0
