Hororata Details

Property	Value
Rupture Count	8,680
Ruptures Above Sect Min Mag	8,671
Ruptures w/ Nonzero Rates	148
Magnitude Range	[6.70, 8.37]
Length Range	[17, 732] km
Total Rate	8.207358E-4 /yr
Multi-Fault Rate	8.207358E-4 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	91

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

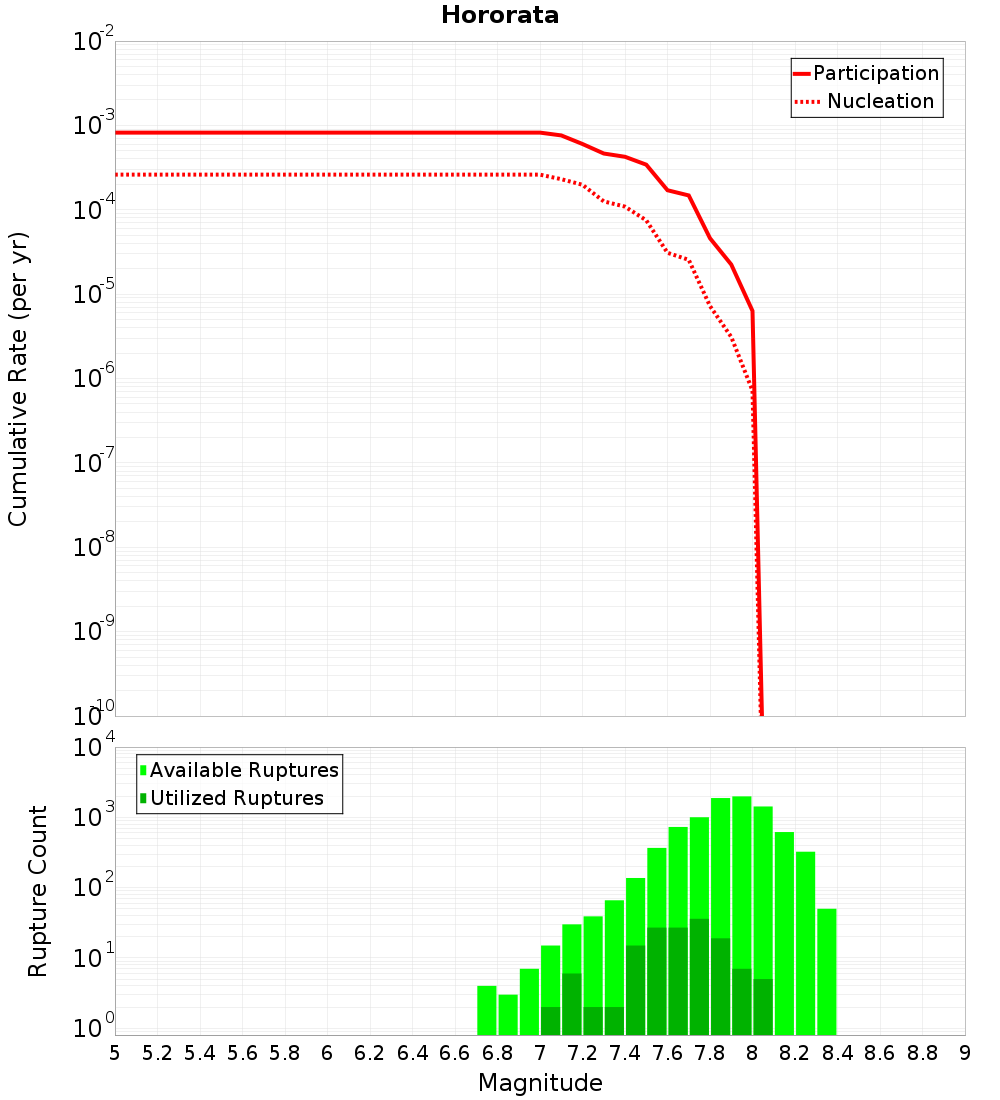

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

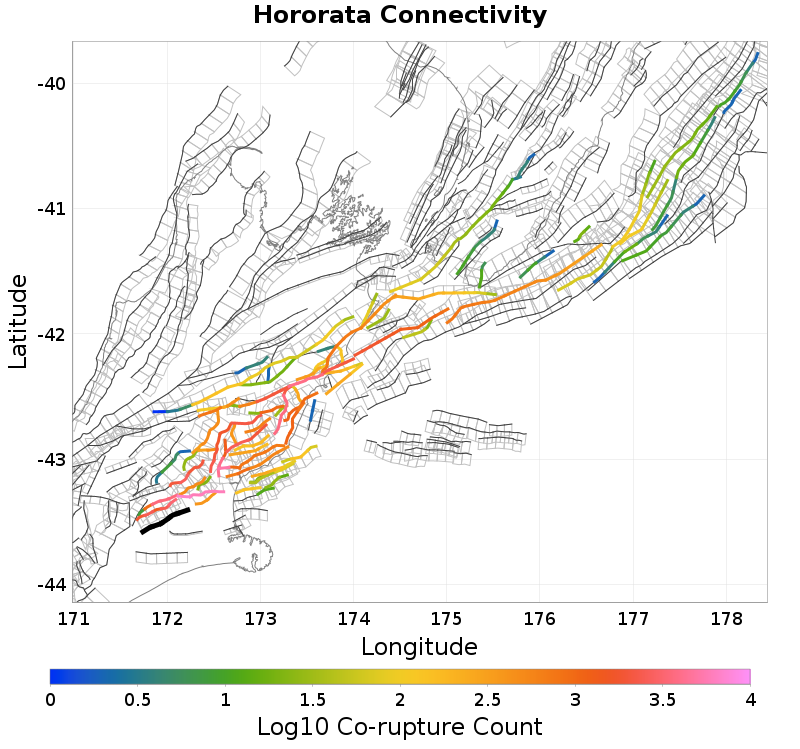

Connectivity

Nearby Sections

Fault Section
High Peak - Sheffield, 0.14 km away
Kowai - View Hill, 0.21 km away
Lees Valley, 5.51 km away
Esk South, 6.31 km away
Starvation - Ashley, 6.38 km away
Springbank, 8.03 km away
Big Ben, 8.04 km away
Knowles Top, 10.03 km away
Greendale, 10.04 km away
Hutt Peel, 10.65 km away
Torlesse, 12.36 km away
Double Hill, 12.7 km away

High Peak - Sheffield, 0.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjAuMEtTSFo1
Connected?	true
Directly Connected?	true
Co-rupture Count	4,431
Co-rupture Rate	2.74096E-4

Kowai - View Hill, 0.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjAuMEtTSFo1
Connected?	true
Directly Connected?	true
Co-rupture Count	3,523
Co-rupture Rate	1.4756508E-4

Lees Valley, 5.51 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjAuMEtTSFo1
Connected?	true
Directly Connected?	true
Co-rupture Count	3,186
Co-rupture Rate	4.0826437E-4

Esk South, 6.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjAuMEtTSFo1
Connected?	true
Directly Connected?	true
Co-rupture Count	8
Co-rupture Rate	2.3722263E-4

Starvation - Ashley, 6.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjAuMEtTSFo1
Connected?	true
Directly Connected?	false
Co-rupture Count	6,999
Co-rupture Rate	2.2743244E-4

Springbank, 8.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjAuMEtTSFo1
Connected?	true
Directly Connected?	false
Co-rupture Count	390
Co-rupture Rate	3.2320313E-5

Big Ben, 8.04 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjAuMEtTSFo1
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Knowles Top, 10.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjAuMEtTSFo1
Connected?	true
Directly Connected?	false
Co-rupture Count	497
Co-rupture Rate	2.915284E-5

Greendale, 10.04 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjAuMEtTSFo1
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hutt Peel, 10.65 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjAuMEtTSFo1
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Torlesse, 12.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjAuMEtTSFo1
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Double Hill, 12.7 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3NjAuMEtTSFo1
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
